An electric fan is a ubiquitous device found in households and industries alike, providing much-needed airflow and ventilation. At the heart of this simple yet crucial appliance lies the shaft, a component that serves as the backbone of the fan's mechanical operation. Understanding the function of the shaft in an electric fan is essential for appreciating how fans work and how their efficiency can be optimized. The shaft not only transmits mechanical power but also plays a vital role in the stability and longevity of the fan. This article delves deep into the function of the shaft in electric fans, exploring its design, material considerations, and impact on overall performance. For those interested in high-quality fan shafts, consider exploring options like the Fan Shaft.

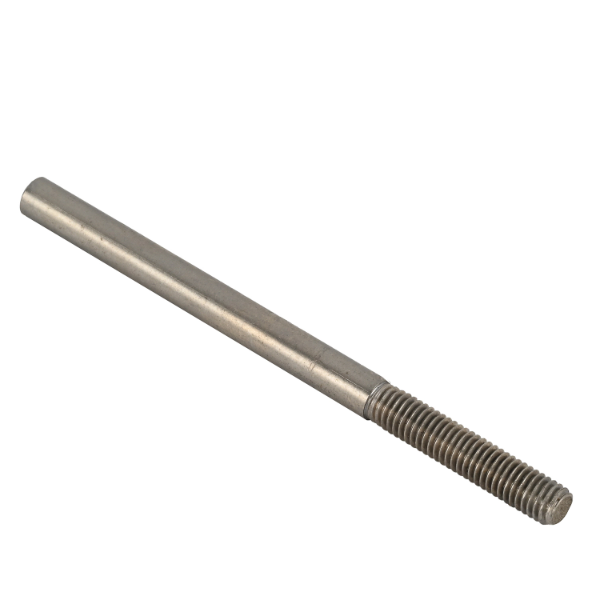

The shaft in an electric fan serves as the primary conduit for transmitting rotational motion from the motor to the fan blades. It converts electrical energy into mechanical energy, enabling the blades to rotate and generate airflow. This mechanical link is critical because any misalignment or imbalance in the shaft can lead to inefficient operation or even mechanical failure. The shaft ensures that the rotational speed of the motor is accurately transferred to the blades, maintaining the desired airflow and performance levels.
At its core, the shaft acts as a mechanical transmitter. It must be structurally sound to handle the torque generated by the motor without deforming or breaking. The material selection and diameter of the shaft are critical factors that influence its ability to transmit power efficiently. For instance, a shaft made of high-strength steel can endure greater stresses compared to one made of aluminum, albeit at the cost of increased weight.
The shaft must maintain perfect alignment with the motor and blades to prevent vibrations and noise. An unbalanced shaft can cause oscillations that not only produce unwanted sounds but also accelerate wear and tear on the bearings and other components. Precision in manufacturing, such as that found in high-quality motor shafts, is essential for optimal performance.
The choice of material for the fan shaft is a crucial decision that affects durability, performance, and cost. Common materials include stainless steel, carbon steel, and aluminum. Each material offers a balance between strength, weight, and corrosion resistance.
Stainless steel shafts are renowned for their corrosion resistance and strength. They are ideal for environments where the fan may be exposed to moisture or corrosive elements. The added durability ensures a longer lifespan, reducing maintenance costs over time. However, stainless steel is heavier and more expensive than other materials, which may impact the overall design considerations.
Aluminum shafts offer the advantage of being lightweight while still providing adequate strength for many applications. They are also resistant to corrosion but may not withstand as much torque as steel shafts. This makes them suitable for smaller fans or applications where weight reduction is a priority.
The design of the shaft involves multiple factors, including diameter, length, and surface finish. These parameters must be optimized to ensure efficient power transmission and longevity of the fan.
The diameter of the shaft is directly related to its ability to withstand bending moments and torque. A larger diameter increases the shaft's strength but also adds weight and cost. The length of the shaft must be sufficient to bridge the motor and the blades without causing deflection that could lead to imbalance. Calculations involving bending stress, such as the formula σ = (32M)/(πd³), where M is the bending moment and d is the diameter, are used to determine the optimal dimensions.
A smooth surface finish on the shaft reduces friction with bearings and other moving parts. Precision machining ensures tight tolerances, which are essential for maintaining alignment and reducing mechanical play. High-quality machining processes, like those used in micro CNC machined parts, achieve the necessary precision.
The shaft does not operate in isolation; it interacts closely with bearings, motor components, and fan blades. Understanding these interactions is key to optimizing fan performance.
Bearings support the shaft, allowing it to rotate smoothly with minimal friction. The choice of bearing type—ball, roller, or sleeve—depends on the fan's operational requirements. Proper lubrication and material compatibility between the shaft and bearings are essential to prevent premature wear.
The connection between the motor and the shaft must be robust to handle the torque and rotational speeds involved. Couplings or direct attachments are designed to minimize backlash and maintain alignment. In some advanced designs, flexible couplings are used to compensate for any misalignment.
Shaft-related problems can significantly affect the performance and lifespan of an electric fan. Common issues include vibration, noise, and mechanical failure. Identifying and addressing these problems early can prevent costly repairs or replacements.
Imbalances in the shaft can cause vibrations that lead to noise and decreased efficiency. Regular maintenance checks can identify wear or deformation in the shaft. Using high-precision shafts, like those from specialized manufacturers, can mitigate this issue.
Overloading the fan or using it in conditions beyond its design specifications can cause the shaft to fail. Fatigue from repeated stress cycles can lead to cracks and eventual breakage. Material selection and proper engineering design are crucial to prevent such failures.
Technological advancements have led to the development of new materials and manufacturing techniques that enhance shaft performance. Composite materials, advanced alloys, and precision machining have expanded the possibilities in shaft design.
Composite materials offer high strength-to-weight ratios and excellent corrosion resistance. Carbon fiber shafts, for example, are lightweight and can reduce the overall weight of the fan, improving energy efficiency. These materials are increasingly used in high-performance applications where traditional metals may not suffice.
Precision manufacturing processes such as CNC machining and 3D printing allow for complex shaft geometries and tighter tolerances. These techniques improve the balance and alignment of the shaft, reducing vibrations and increasing efficiency. For cutting-edge manufacturing solutions, companies like HANYEE METAL offer expertise in producing high-quality shafts.
Improving shaft efficiency has direct economic benefits. An efficient shaft reduces energy consumption, decreases maintenance costs, and extends the lifespan of the electric fan. Industries that rely heavily on fans for ventilation or cooling can realize significant savings by investing in high-quality shafts.
Inefficient shafts can cause increased friction and mechanical losses, leading to higher energy consumption. Optimizing the shaft design minimizes these losses, making the fan more energy-efficient. This is particularly important in large-scale industrial applications where energy costs constitute a significant portion of operational expenses.
High-quality shafts reduce the frequency of maintenance interventions. Fewer breakdowns mean less downtime, which is critical in operations where continuous airflow is necessary. Investing in reliable shafts minimizes the risk of unexpected failures and the associated costs.
Several industries have reported improvements after upgrading to superior fan shafts. In one instance, a manufacturing plant reduced its cooling costs by 15% after replacing standard shafts with precision-machined alternatives. Another case involved an HVAC company that saw a decrease in customer complaints about noise after implementing better-balanced shafts in their units.
A large manufacturing facility faced issues with overheating and high energy bills. An audit revealed that the inefficiency stemmed from worn-out shafts in their industrial fans. By switching to high-precision shaft pins, the plant improved airflow efficiency and reduced energy consumption significantly.
An HVAC service provider struggled with customer complaints regarding noise from air conditioning units. Investigations pointed to imbalances in the fan shafts. Upgrading to shafts with tighter tolerances and better materials resulted in quieter operation and increased customer satisfaction.
The shaft is an integral component of an electric fan, fundamental to its operation and efficiency. From transmitting mechanical power to ensuring balanced rotation, the shaft's function is multifaceted and critical. Advances in materials and manufacturing techniques continue to enhance shaft performance, offering economic and environmental benefits. For those seeking high-quality shafts to improve their electric fans, exploring specialized products like the Fan Shaft can provide the optimal solution. Understanding the role and importance of the shaft enables better design, maintenance, and utilization of electric fans across various applications.
