NHY-F0093
NHY
| Parameter Item | Standard Details & Range | Customization Support |
|---|---|---|

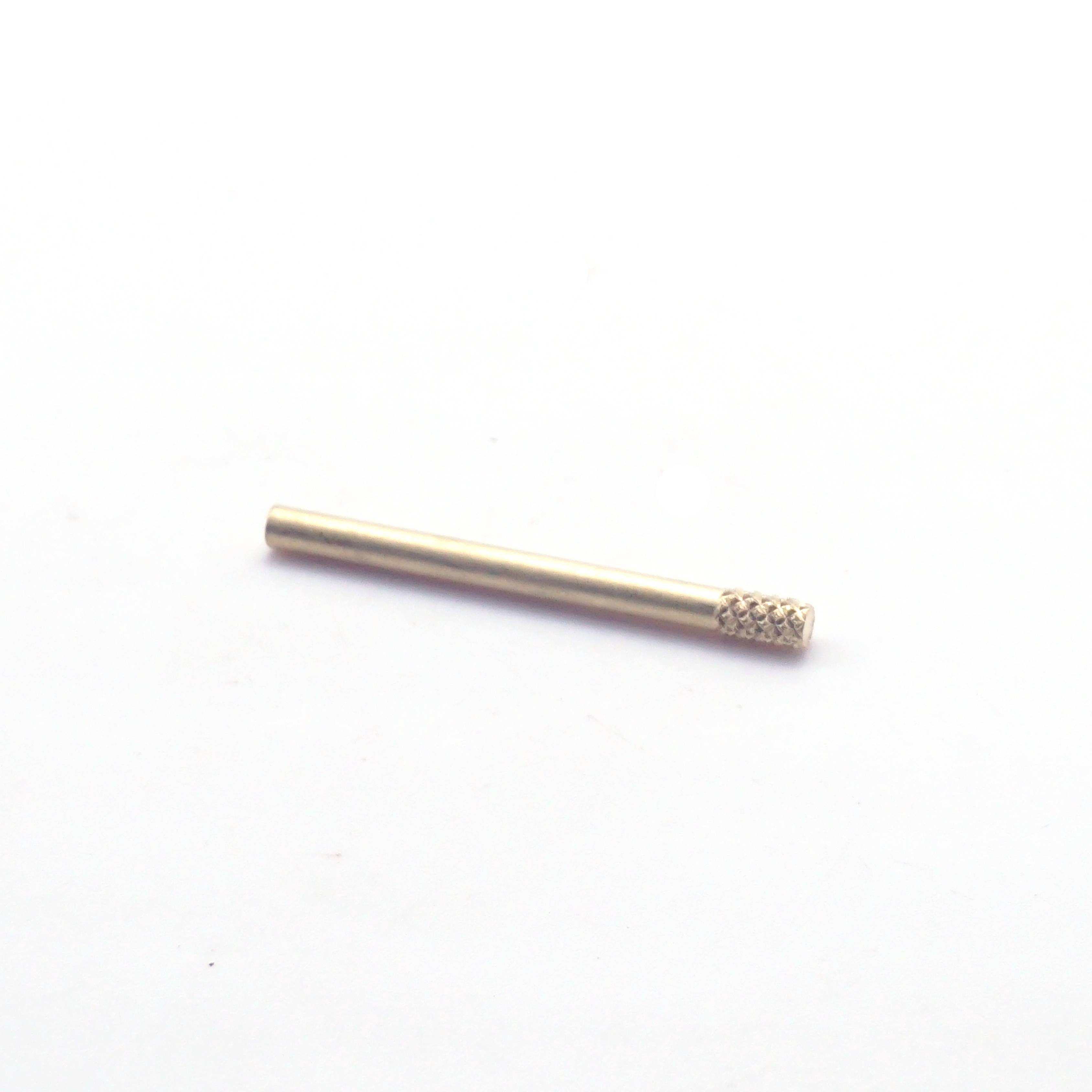

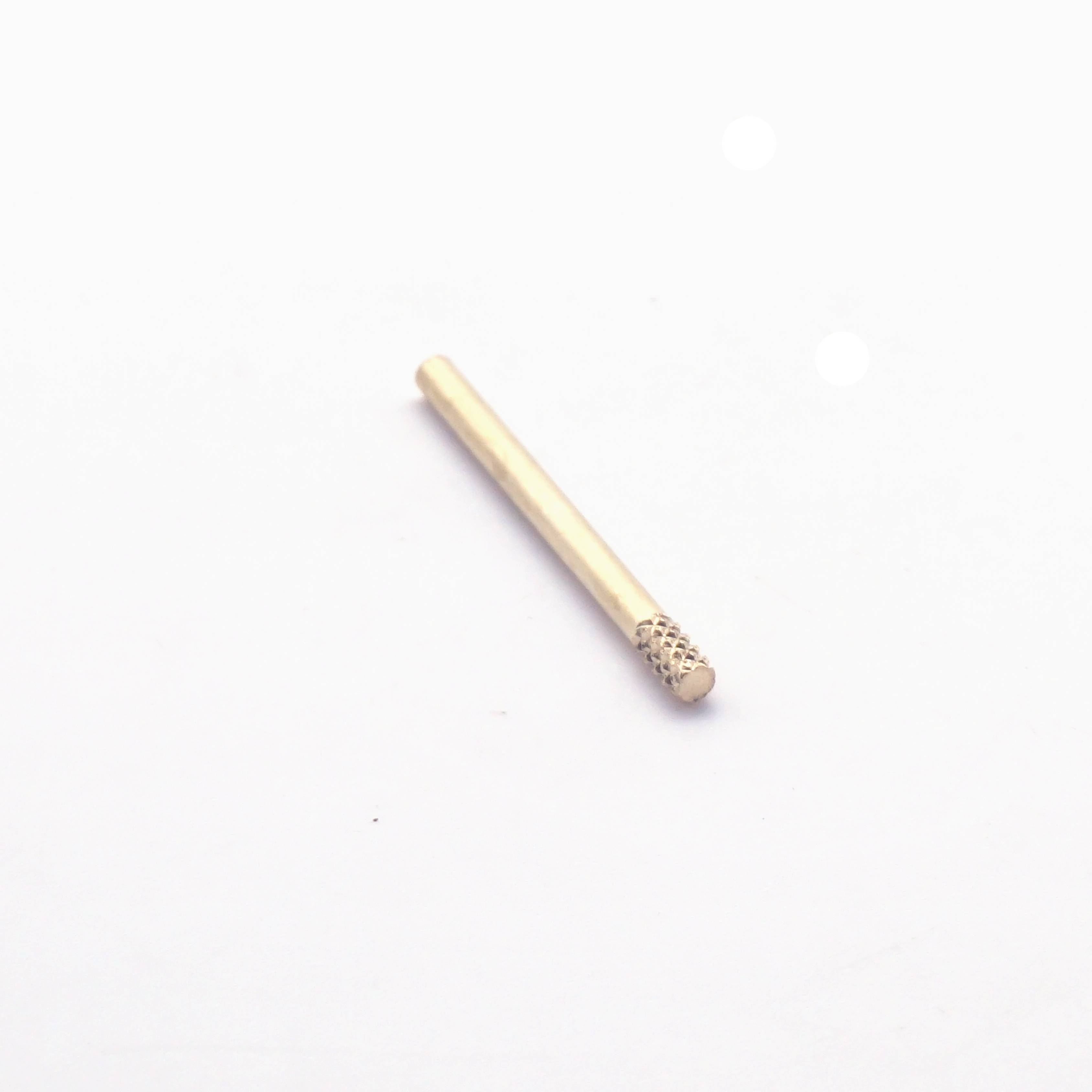

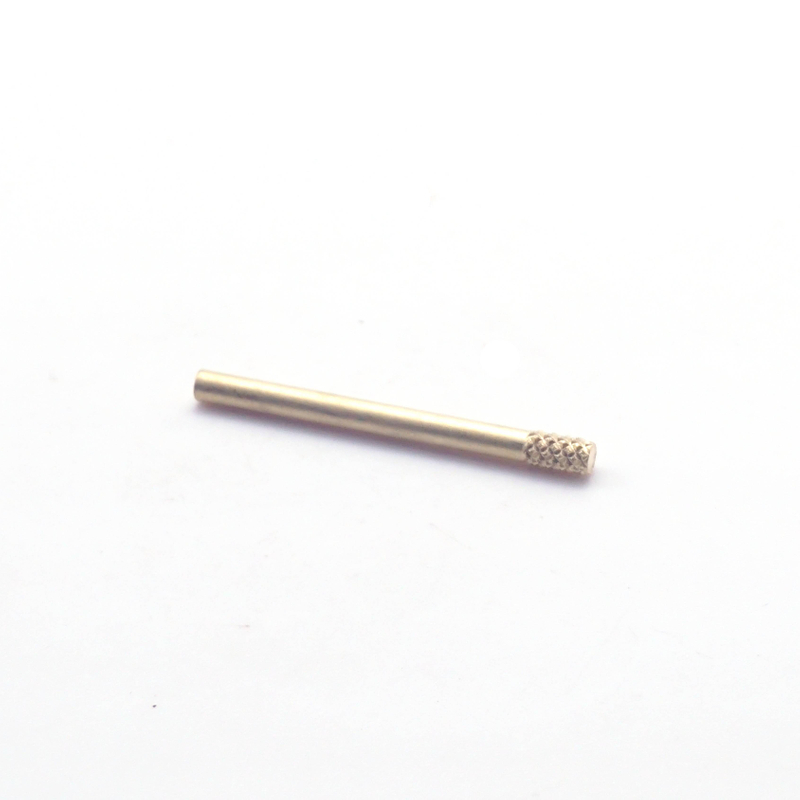

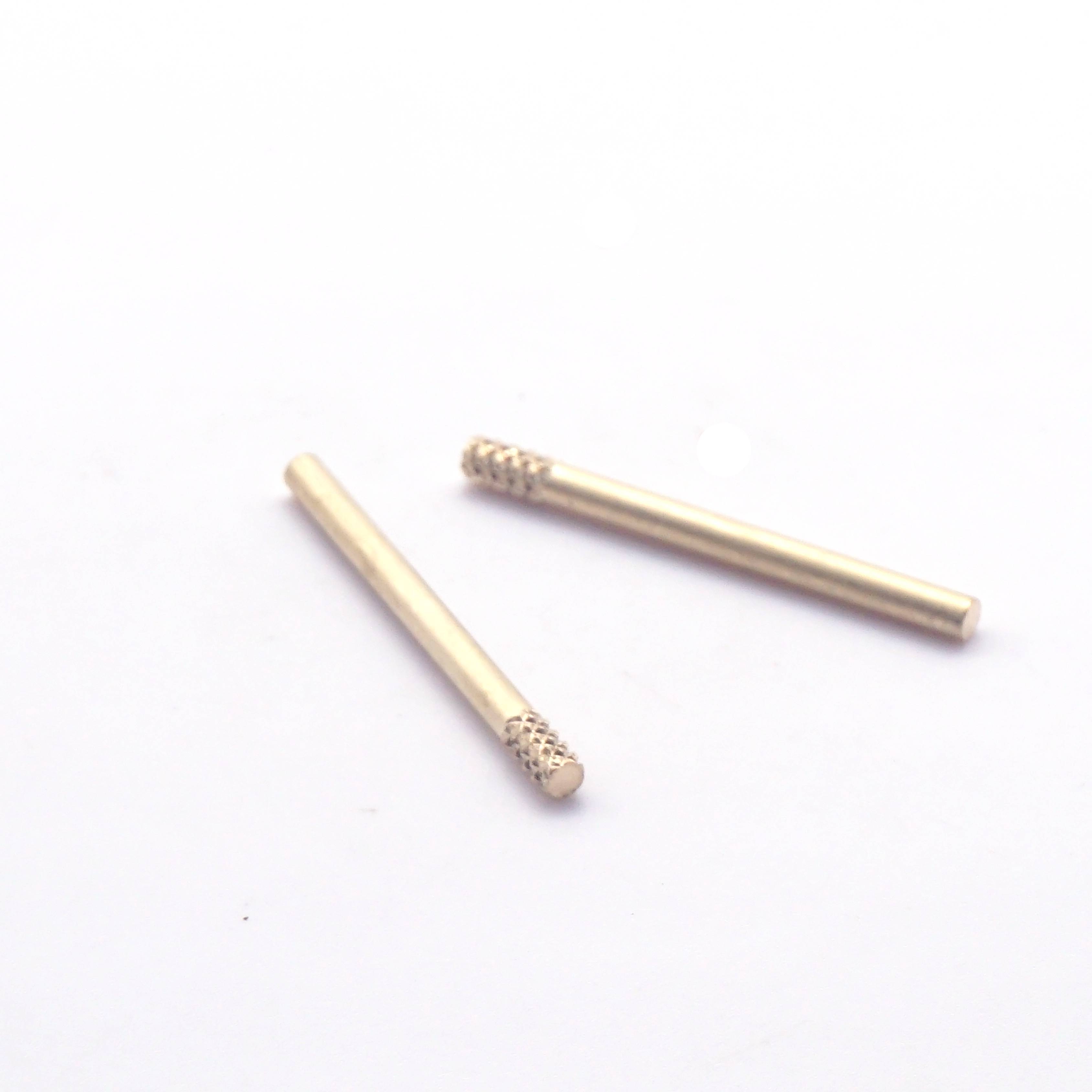

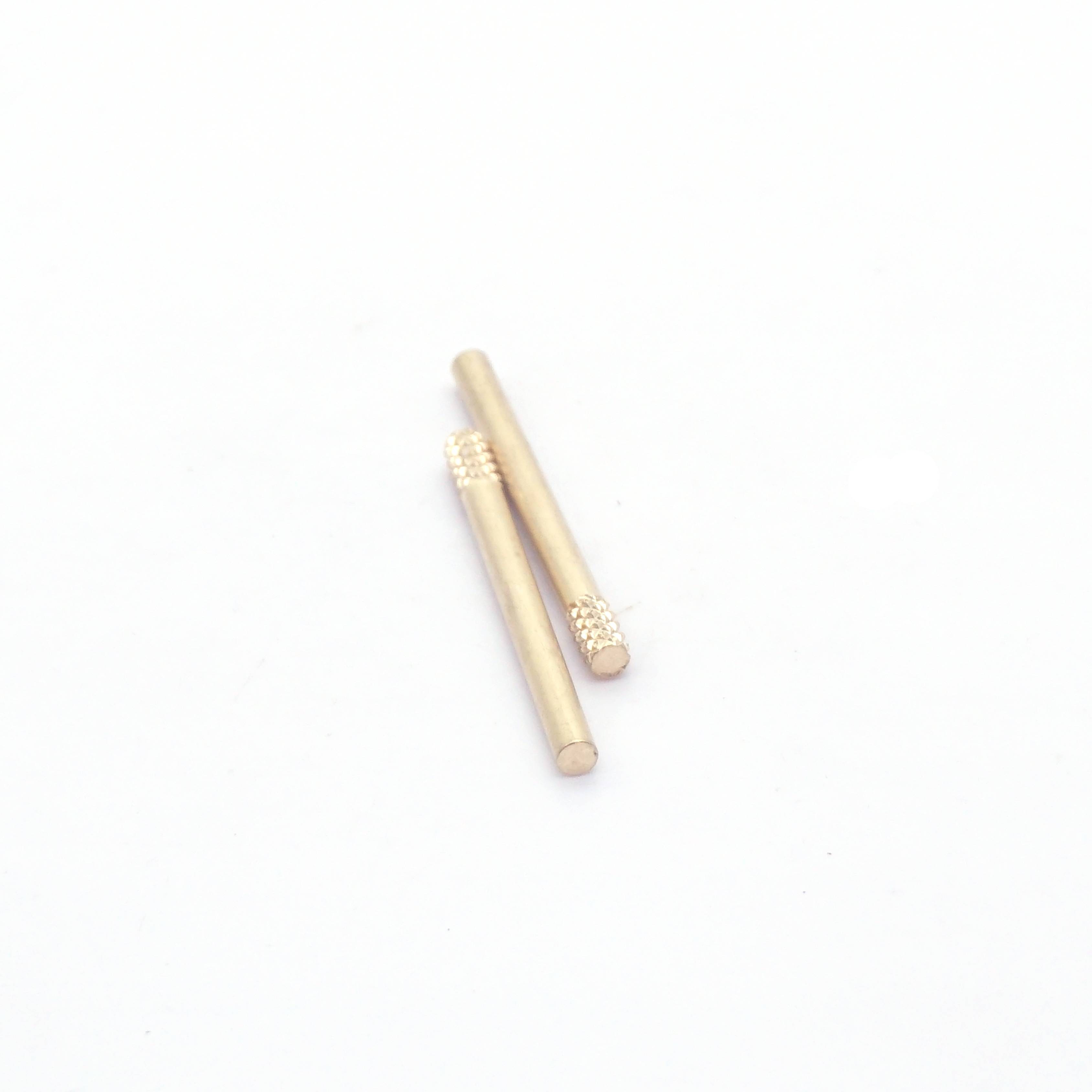

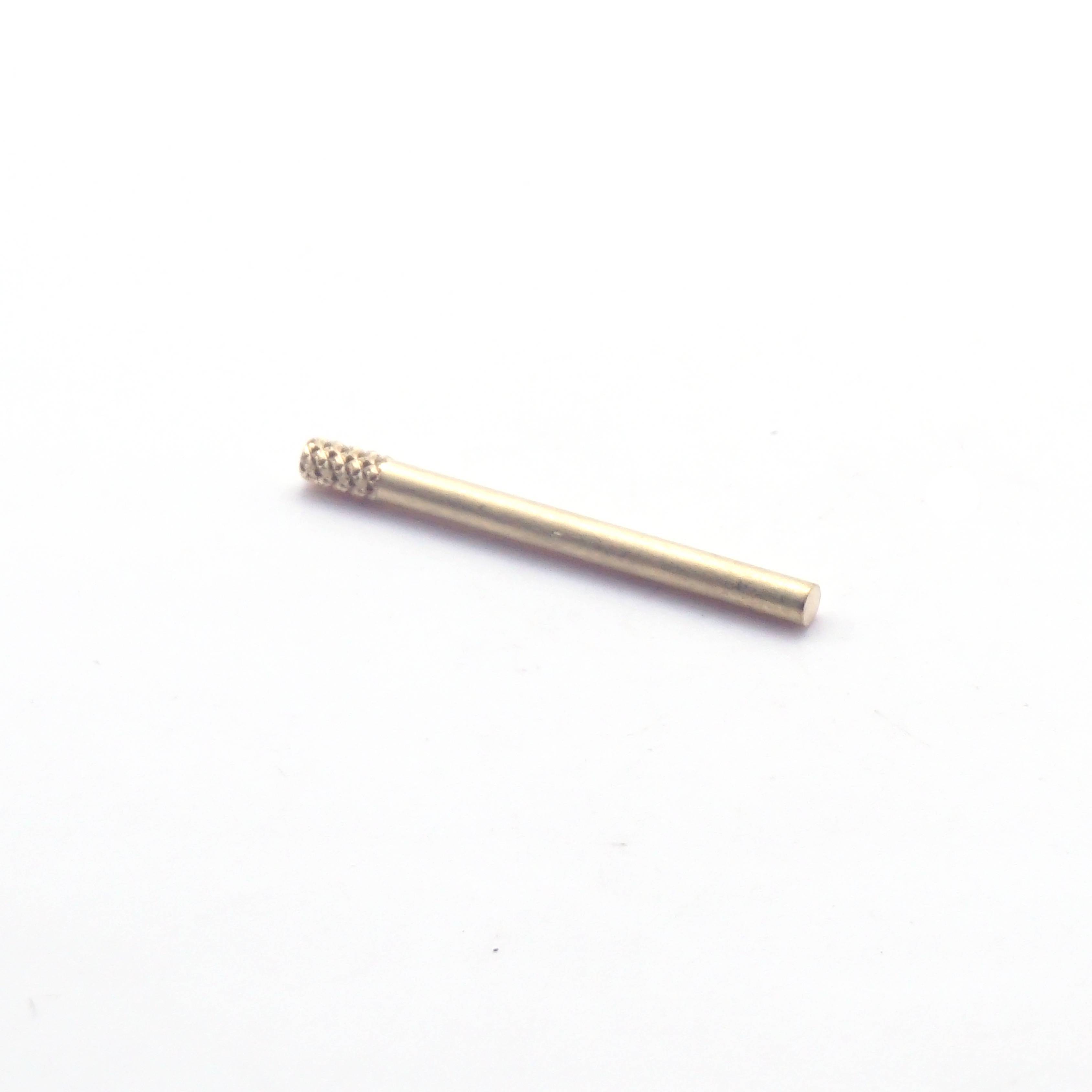

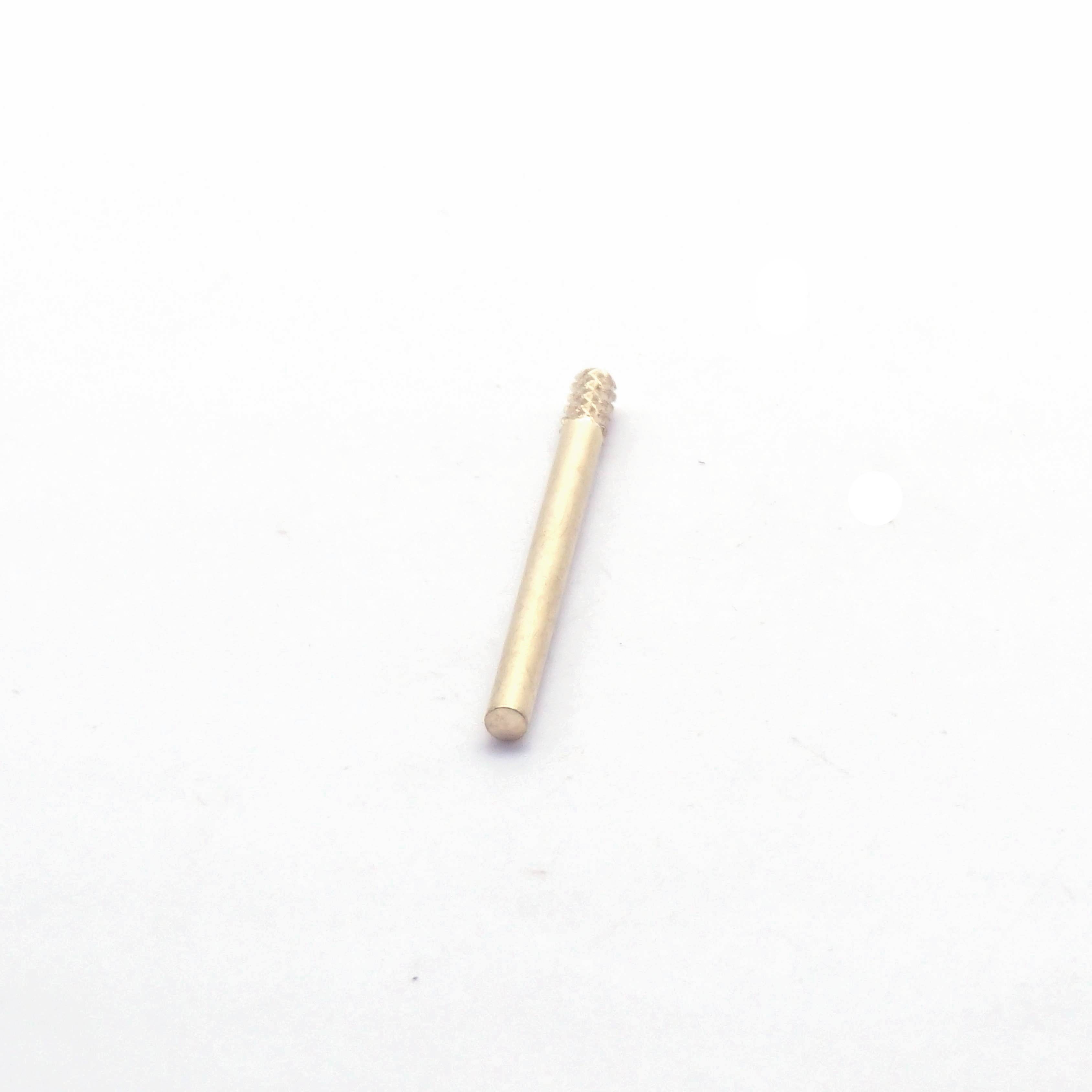

| Product Name | Custom CNC Turned Knurled Pin | Adjustable as per client request |
| Material | Brass, SS304/316, Aluminum | Custom special materials accepted |
| Dimensional Tolerance | ±0.002mm to ±0.01mm | Tighter precision available |
| Size Range | Overall length 5mm-50mm, Diameter 1mm-10mm | Fully custom sizes and geometries |
| Surface Treatment | Passivation, Plating, Polishing | Custom finishes supported |
| Hardness (if applicable) | HRC 15-40 (depending on material) | Custom hardness treatments available |
| Processing Technology | CNC Turning, Knurling, Drilling | Non-standard machining processes |
| MOQ | 20pcs - 50,000pcs | Flexible MOQ for prototype orders |
| Production Lead Time | 7-14 Working Days | Expedited service for urgent needs |
3.Application Cases

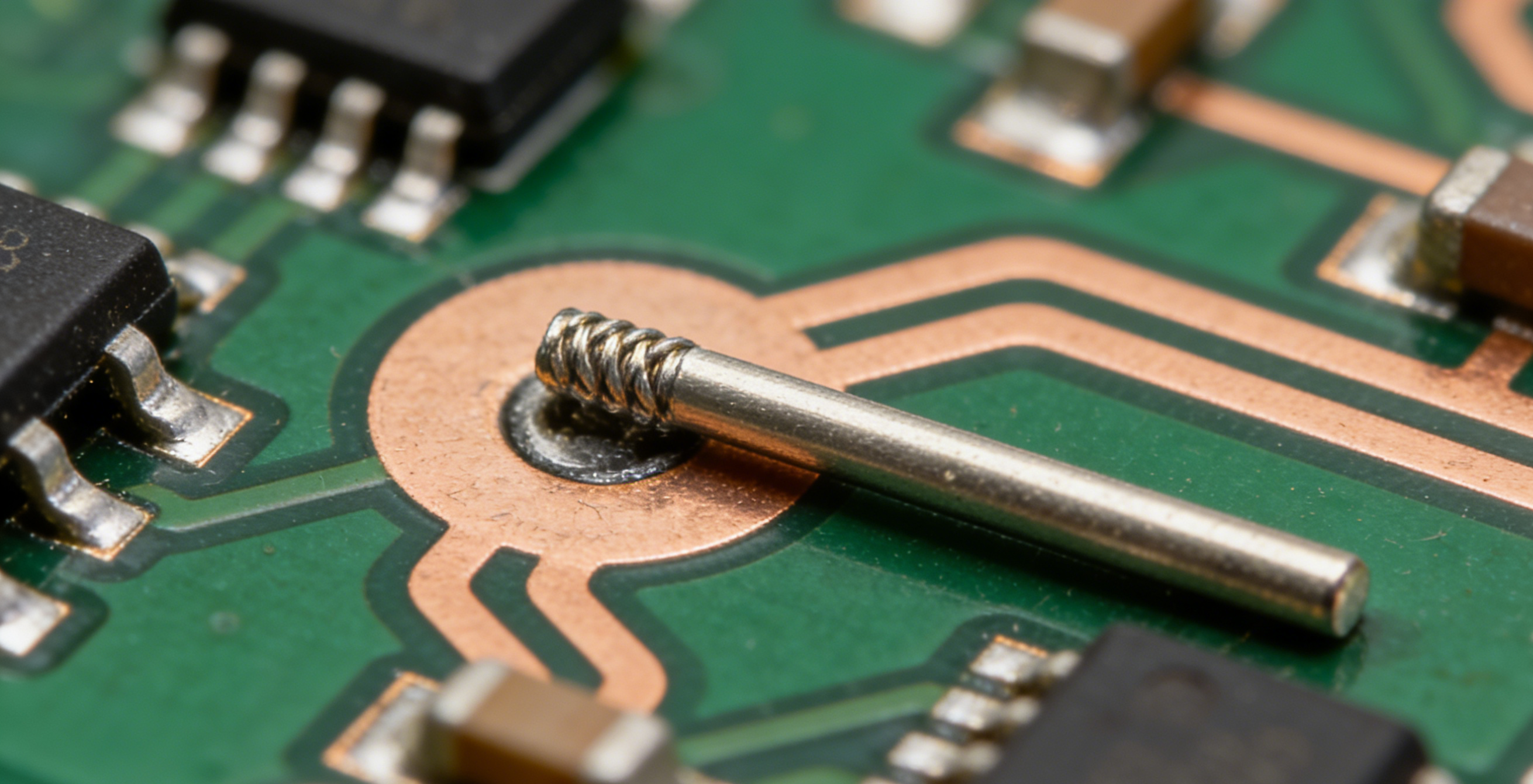

We supplied custom CNC turned brass knurled pins for a Japanese electronics company. The knurled end provided secure anti-slip insertion into circuit boards, improving electrical connection stability by 25% and reducing signal interference.
A Swiss medical equipment manufacturer ordered stainless steel knurled pins for surgical instruments. The passivated surface and tight tolerances ensured biocompatibility and precise component alignment, complying with ISO 13485 medical device standards.
A U.S. automotive supplier commissioned aluminum knurled pins for vehicle sensor mounting. The corrosion-resistant finish and anti-slip design withstood outdoor vibration, reducing maintenance frequency by 23% and meeting automotive safety standards.
Anti-Slip Knurled End: Textured knurled surface enhances friction grip, preventing pin loosening or slippage under vibration and load.
Precision CNC Machining Tolerance: Tight ±0.002mm dimensional accuracy ensures seamless insertion and precise component alignment.
Material & Conductivity: Brass material offers excellent electrical conductivity, while other alloys suit high-strength or lightweight applications.
Custom Geometric Design: Non-standard length and knurl pattern configurations allow tailored integration into unique assemblies without modification.
Corrosion & Wear Resistance: Surface treatments prevent rust and wear, extending service life in harsh industrial or medical environments.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
