NHY-F00106
NHY

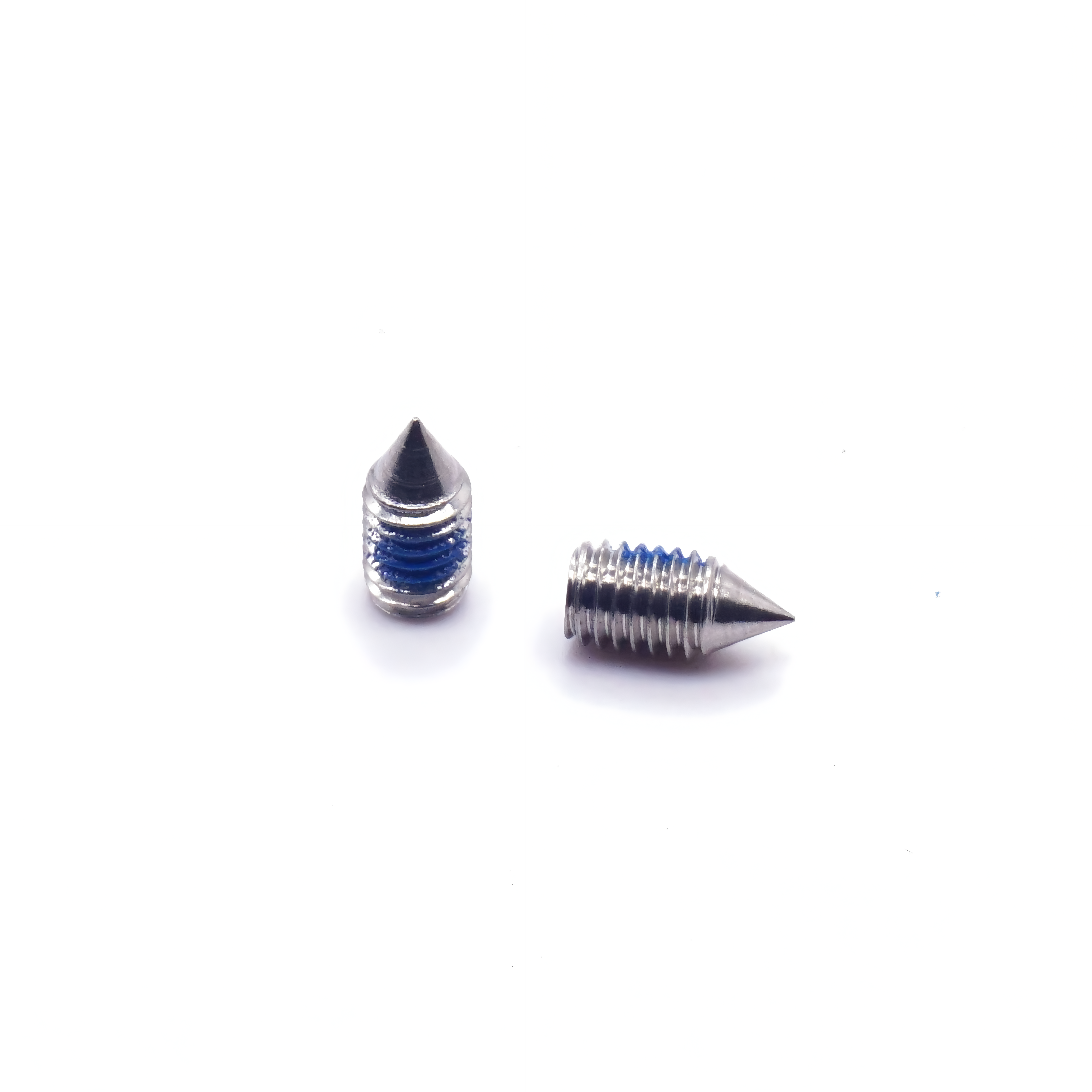

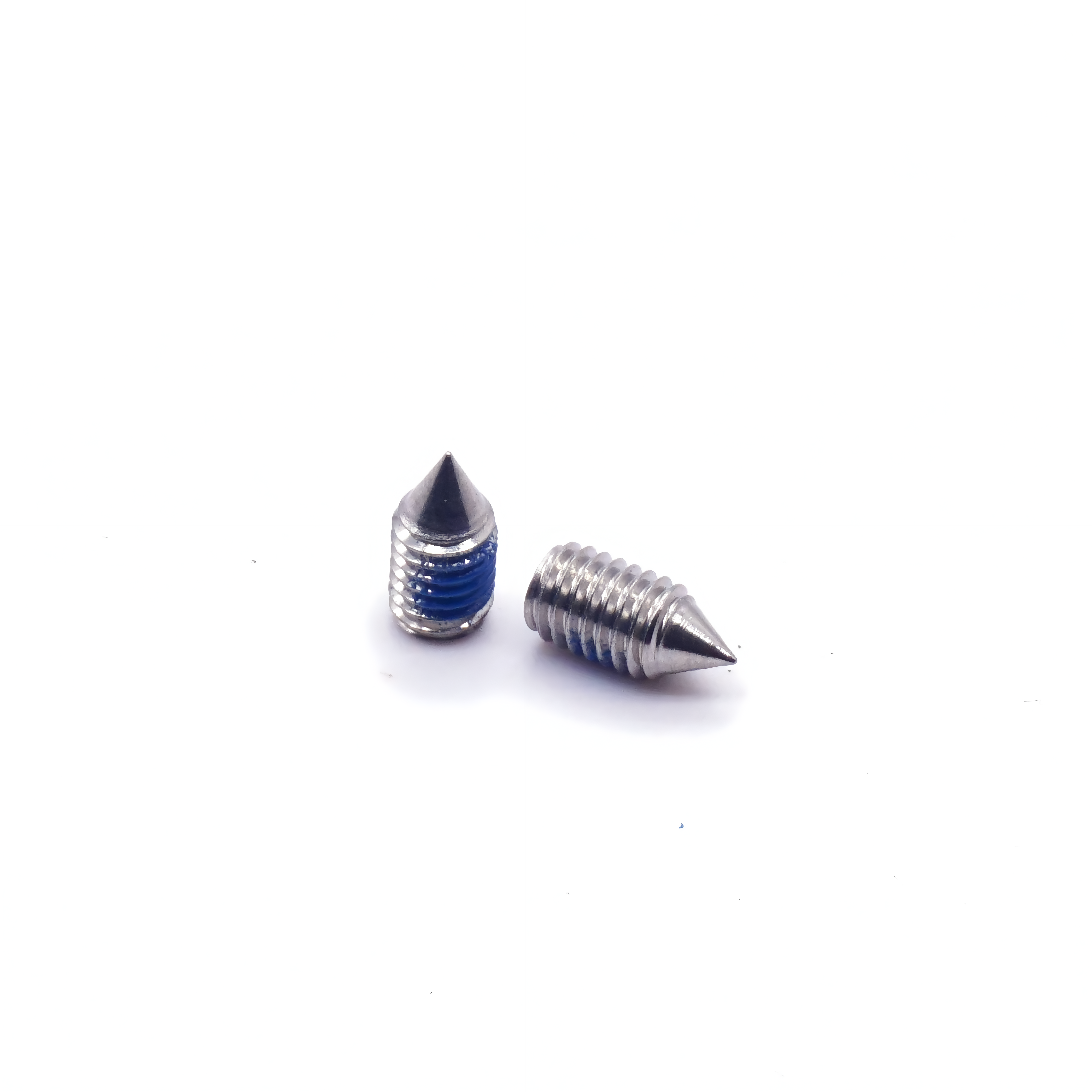

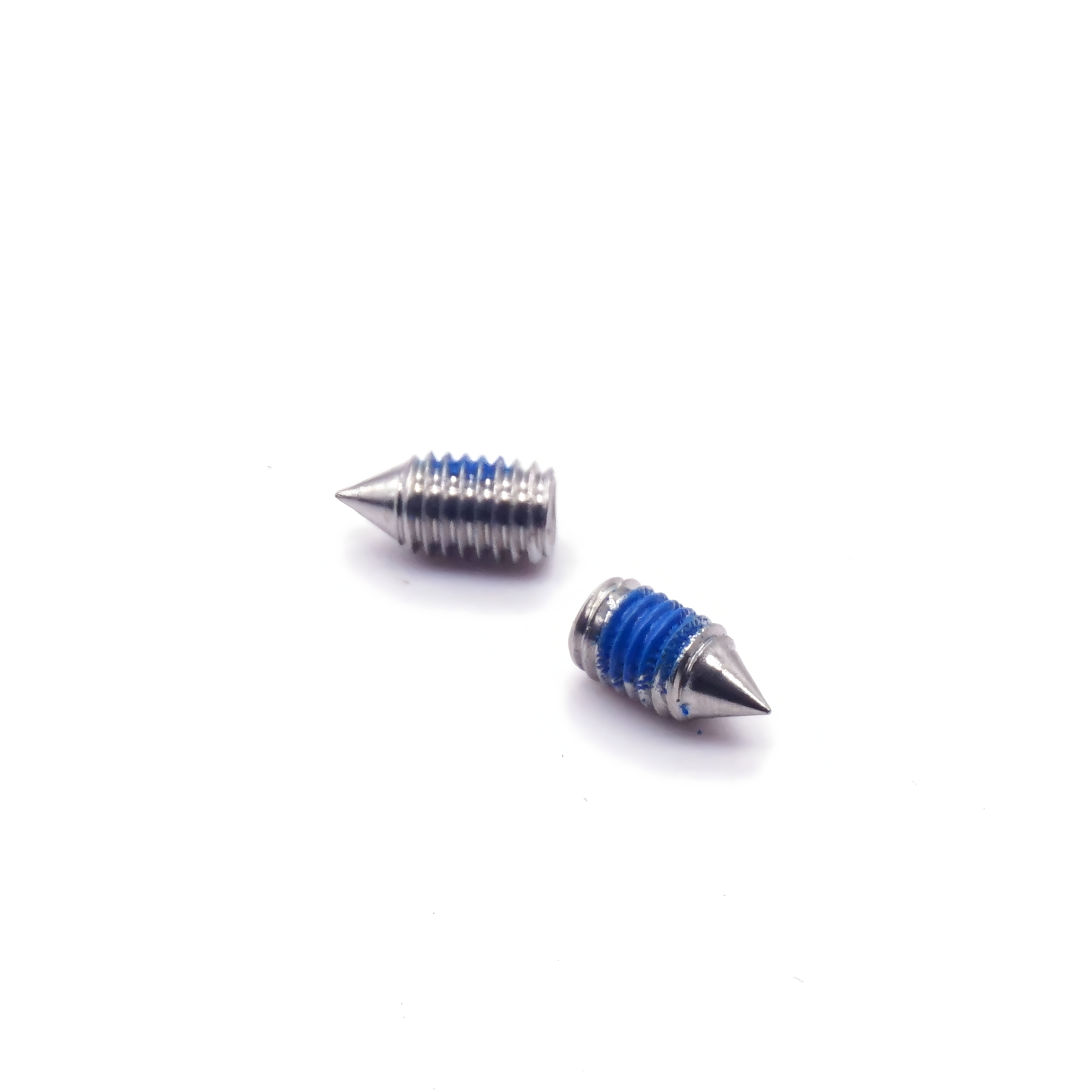

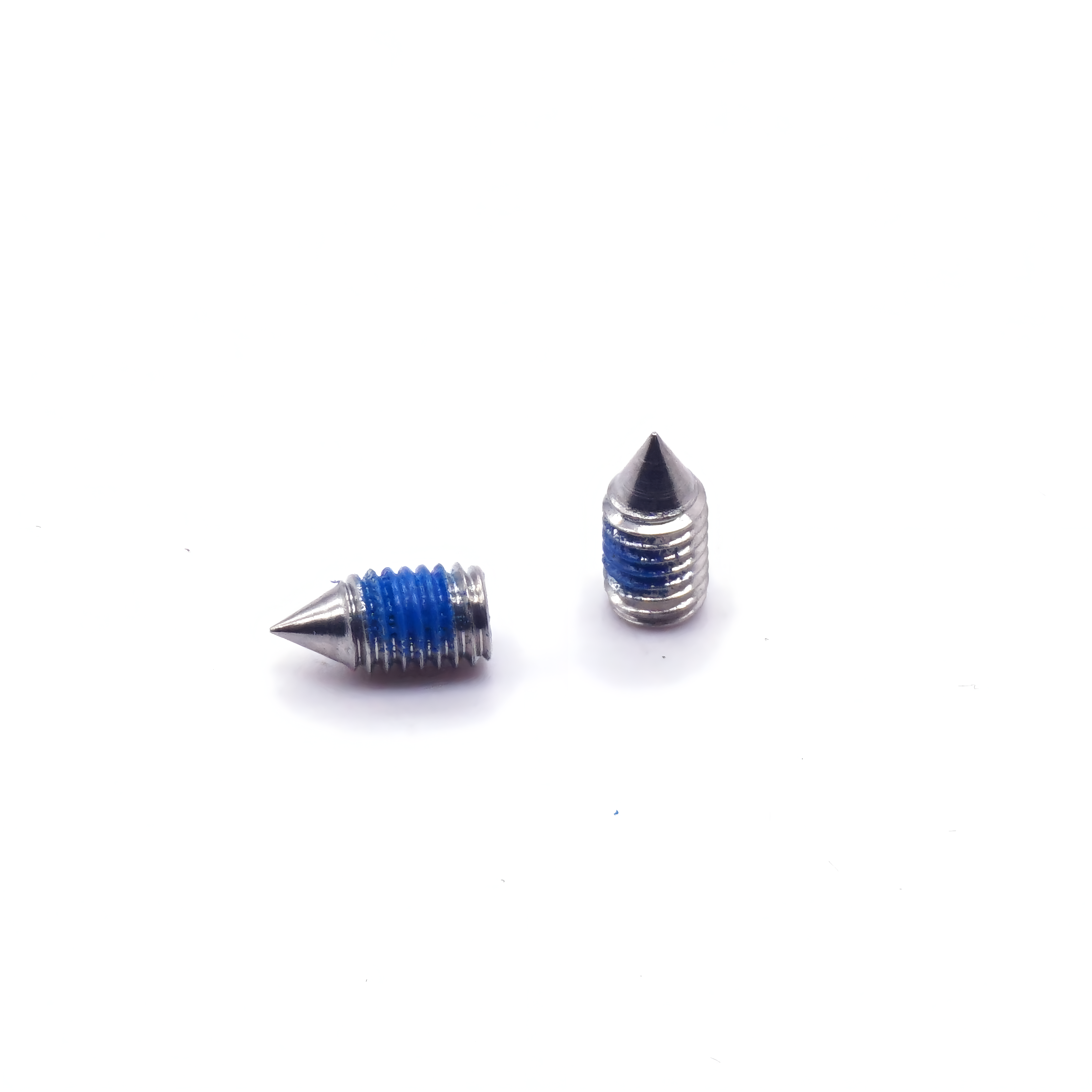

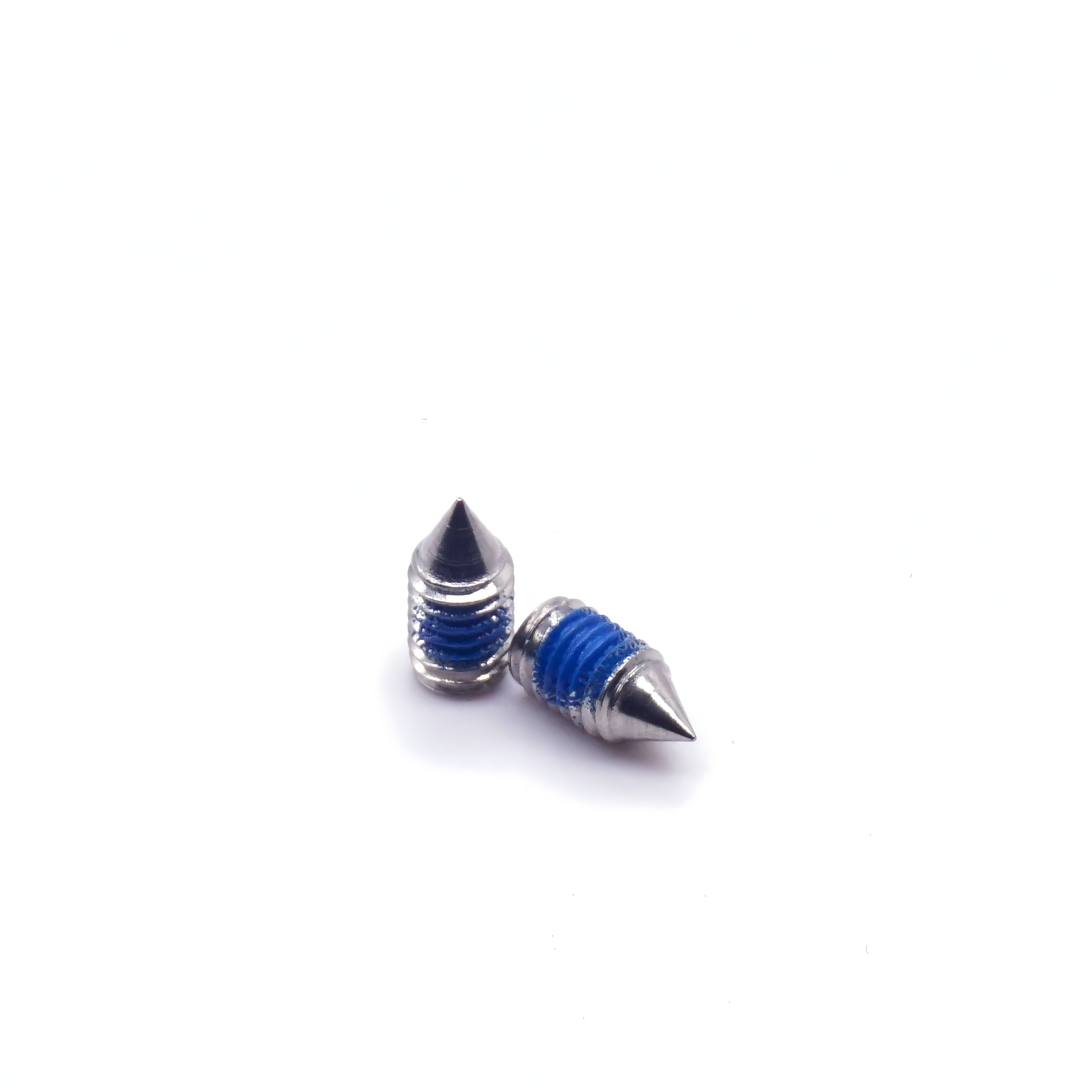

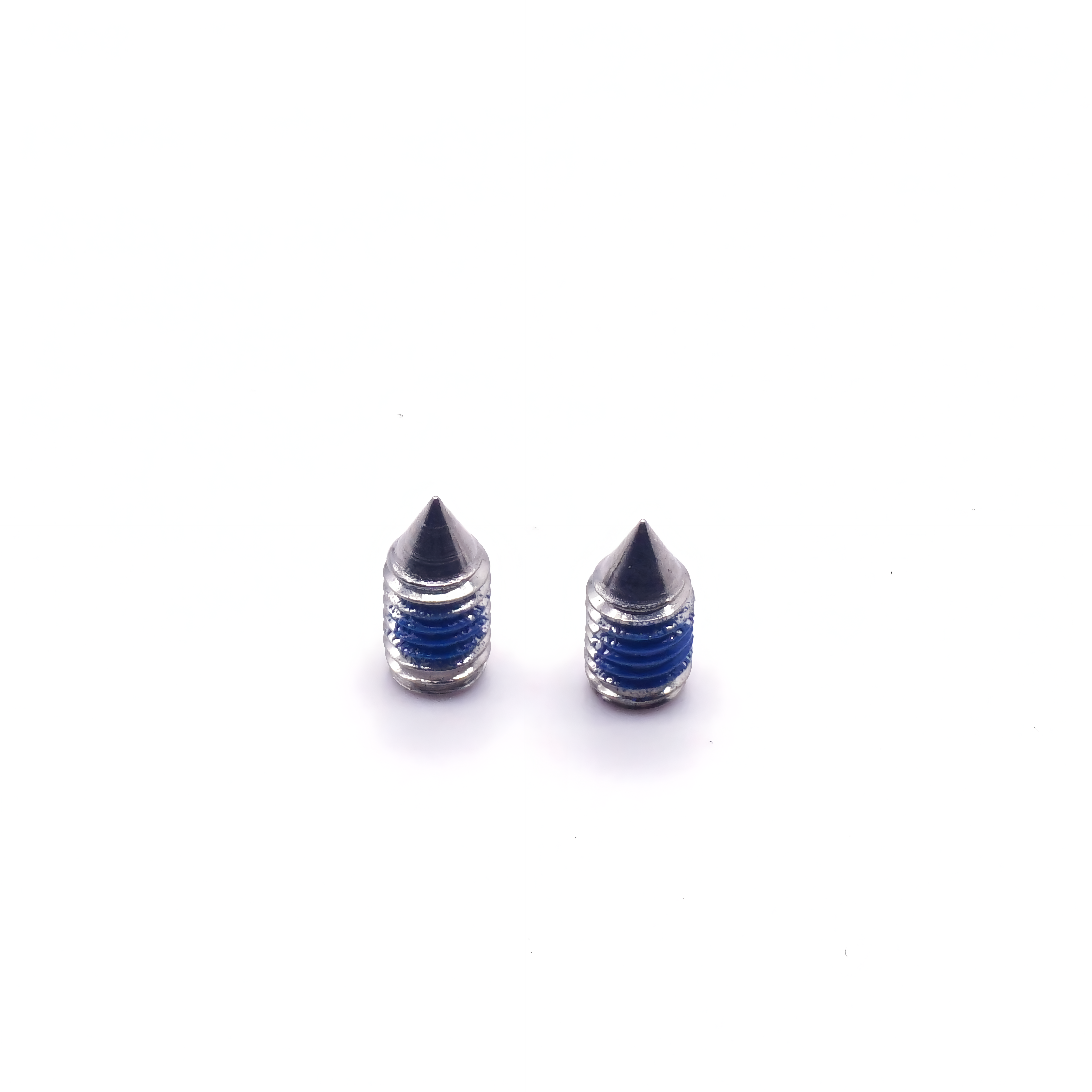

Our custom CNC machined cone point anti-loosening set screw is a compact precision fastener engineered for secure component fixation and anti-loosening performance across electronics, industrial fixtures, and precision mechanical assemblies. Featuring a sharp cone point for targeted pressure application and a blue nylon thread-locking patch, it delivers reliable vibration resistance to prevent loosening under long-term use and dynamic loads. Produced via advanced CNC turning and thread rolling processes, this set screw offers tight dimensional tolerances and customizable miniature sizes, catering to the precise fastening needs of small-scale industrial and consumer products while ensuring durable, maintenance-free connections without frequent readjustment.
| Parameter | Standard Specification | Custom Option |
|---|---|---|
| Material | Carbon Steel 1018/Stainless Steel 304 | Brass/Titanium Alloy |
| Thread Size | Custom (M1.4–M8, micro-threads) | Non-standard tiny thread pitches |
| Length | Custom (2mm–15mm) | Fully customizable miniature lengths |
| Nylon Patch Color | Blue (standard) | Custom colors (black/red) |
| Drive Type | Hex Socket (standard) | Torx/Phillips micro-drive options |
| Thread Tolerance | ±0.02mm | Tighter tolerance (±0.01mm) |
| Point Type | Cone Point (standard) | Flat/ Cup Point options |
| Surface Finish | Zinc Plated / Passivated | Custom plating/coating |
| Hardness | HV 200–250 | Custom hardness levels |
3.Application Case
A smartphone manufacturer integrated our cone point set screws into camera lens bracket assembly, securing delicate optical components with targeted pressure. The anti-loosening nylon patch eliminated component shift under daily use, reducing camera focus errors by 36% and improving product yield by 24%.

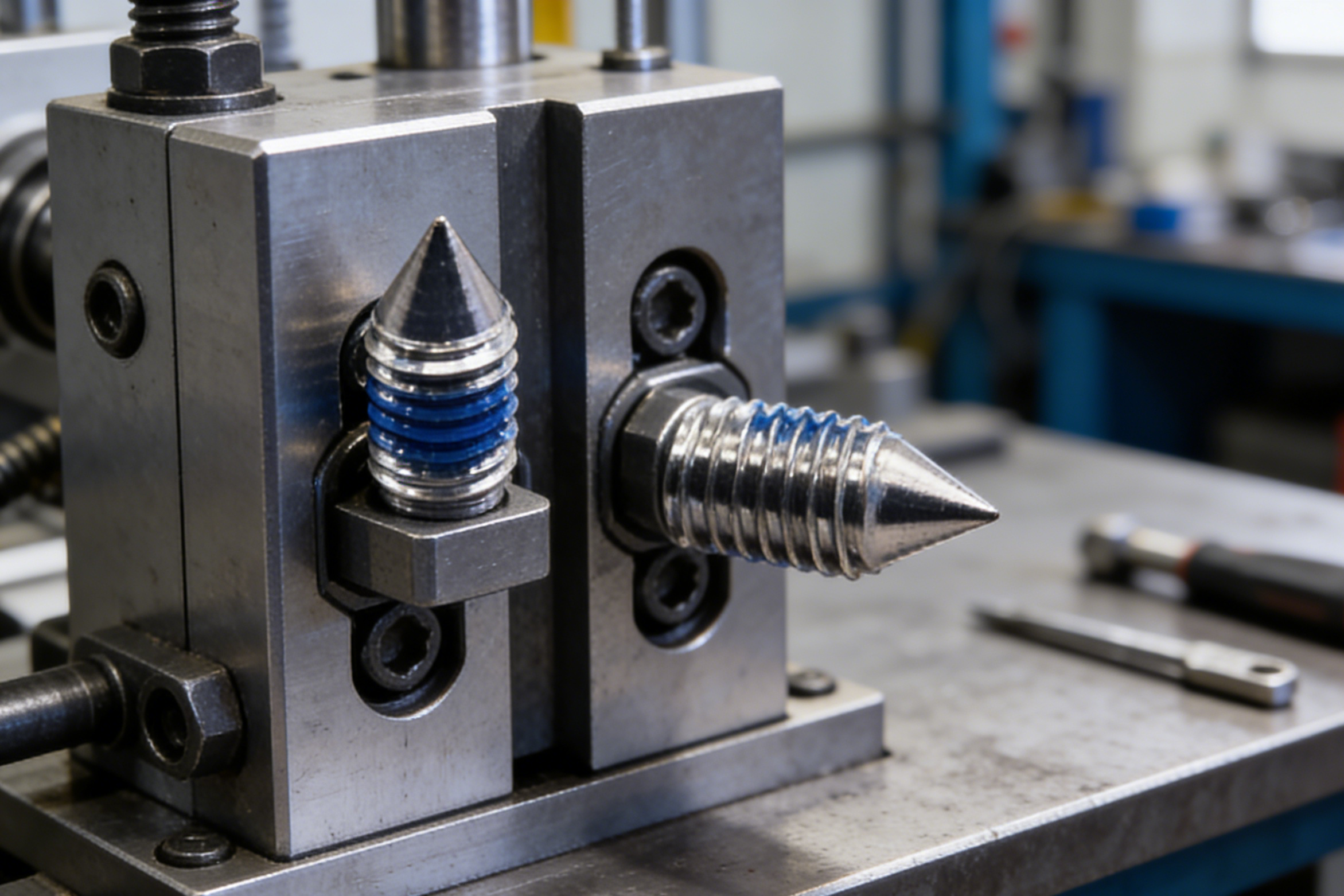

A factory automation client utilized our stainless steel set screws in precision fixture jigs, locking movable sensor probes in place. The cone point design ensured zero probe slippage during high-speed operation, while the nylon patch maintained stability, improving testing accuracy by 28%.
CNC Precision Machining: Tight thread tolerance ensures perfect fit in tiny holes.
Cone Point Design: Delivers targeted pressure for secure component locking.
Nylon Anti-Loosening Patch: Prevents thread slippage under vibration and impact.
Full Customization: Non-standard thread sizes, lengths, and materials are available.
Corrosion Resistance: Stainless steel or zinc-plated options suit diverse environments.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
