NHY-F0096
NHY
| Parameter | Standard Specification | Custom Option |
|---|---|---|
| Material | Stainless Steel 304/316 | Carbon Steel/Alloy Steel 4140 |
| Outer Diameter | Custom (φ5–φ60mm) | Fully customizable |
| Inner Diameter | Custom (φ3–φ50mm) | Fully customizable |
| Flange Diameter | Custom (φ10–φ70mm) | Fully customizable |
| Overall Length | Custom (8–120mm) | Fully customizable |
| Side Hole Diameter | Custom (M2–M8 set screw hole) | Custom thread or through hole |
| Tolerance | ±0.005mm | Tighter tolerance (±0.002mm) |
| Surface Finish | Ra 0.8μm (machined) | Polished / Passivated / Plated |
Industrial Automation: Conveyor systems, robotic arms, and linear motion modules.
Automotive Industry: Transmission systems, steering mechanisms, and engine components.
Mechanical Equipment: Printing machines, textile machinery, and packaging equipment.
Aerospace: Precision actuation systems and aircraft landing gear components.
Medical Devices: Surgical instruments and diagnostic equipment requiring stable positioning.
CNC Machining Precision: Tight dimensional tolerance (±0.003mm) ensures perfect fit.

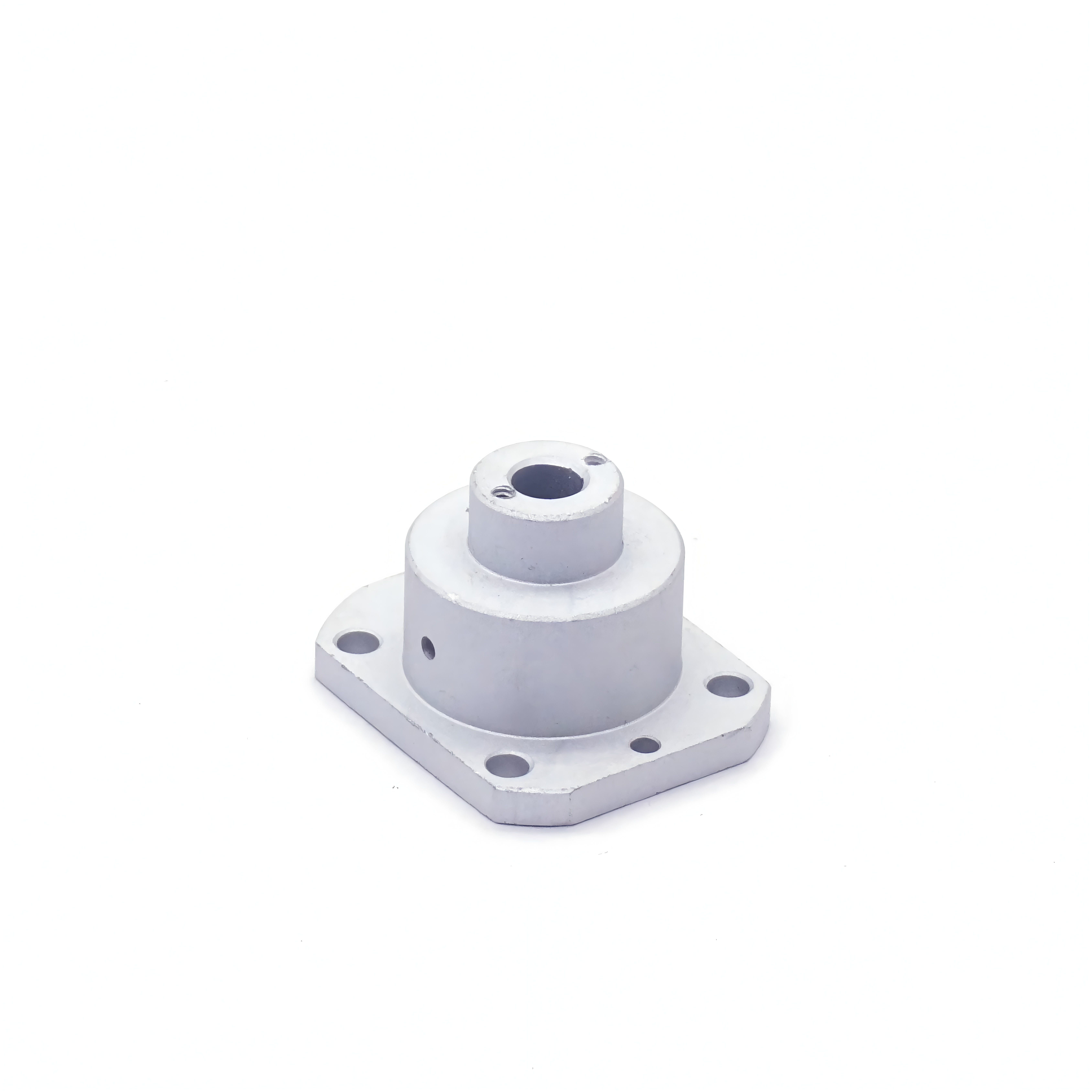

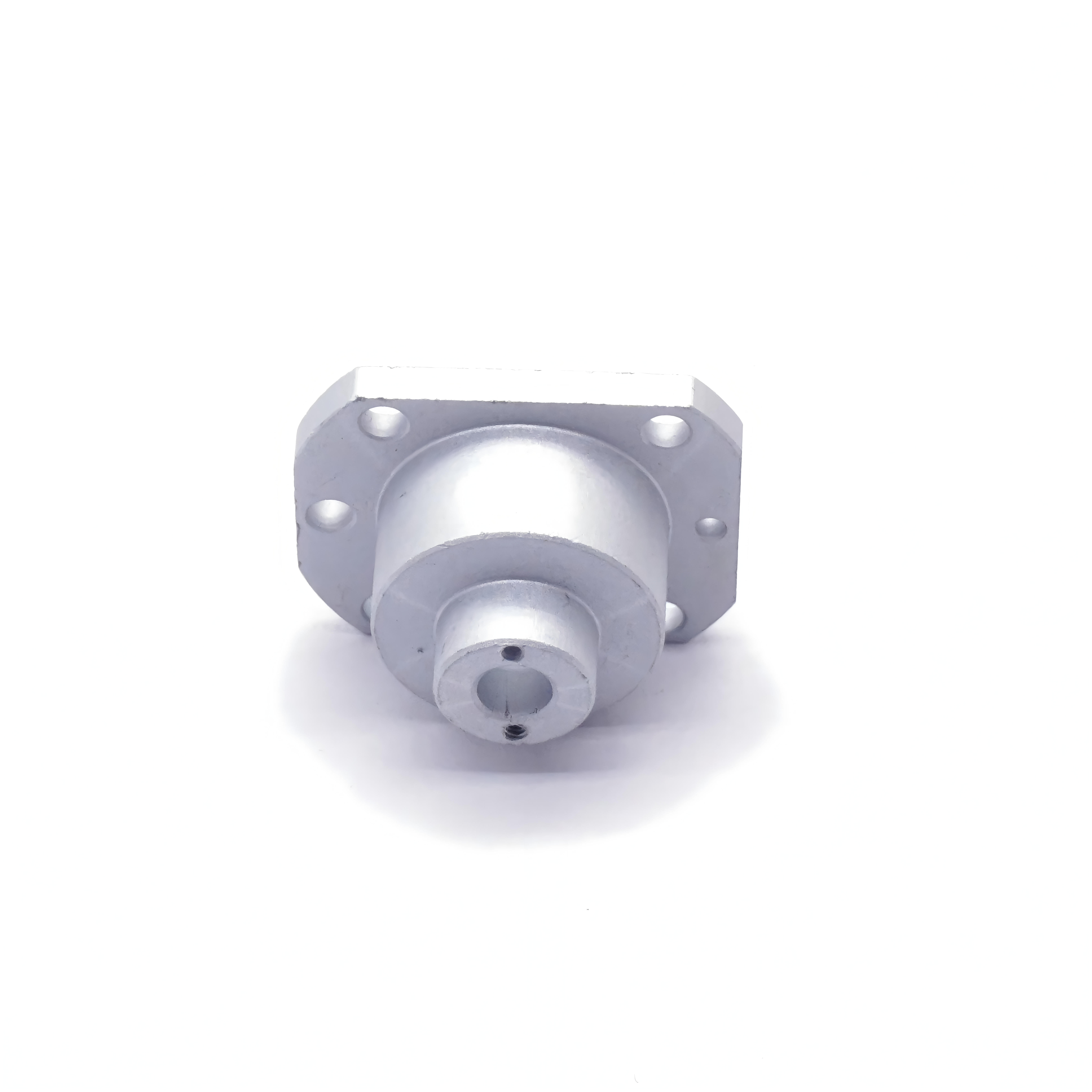

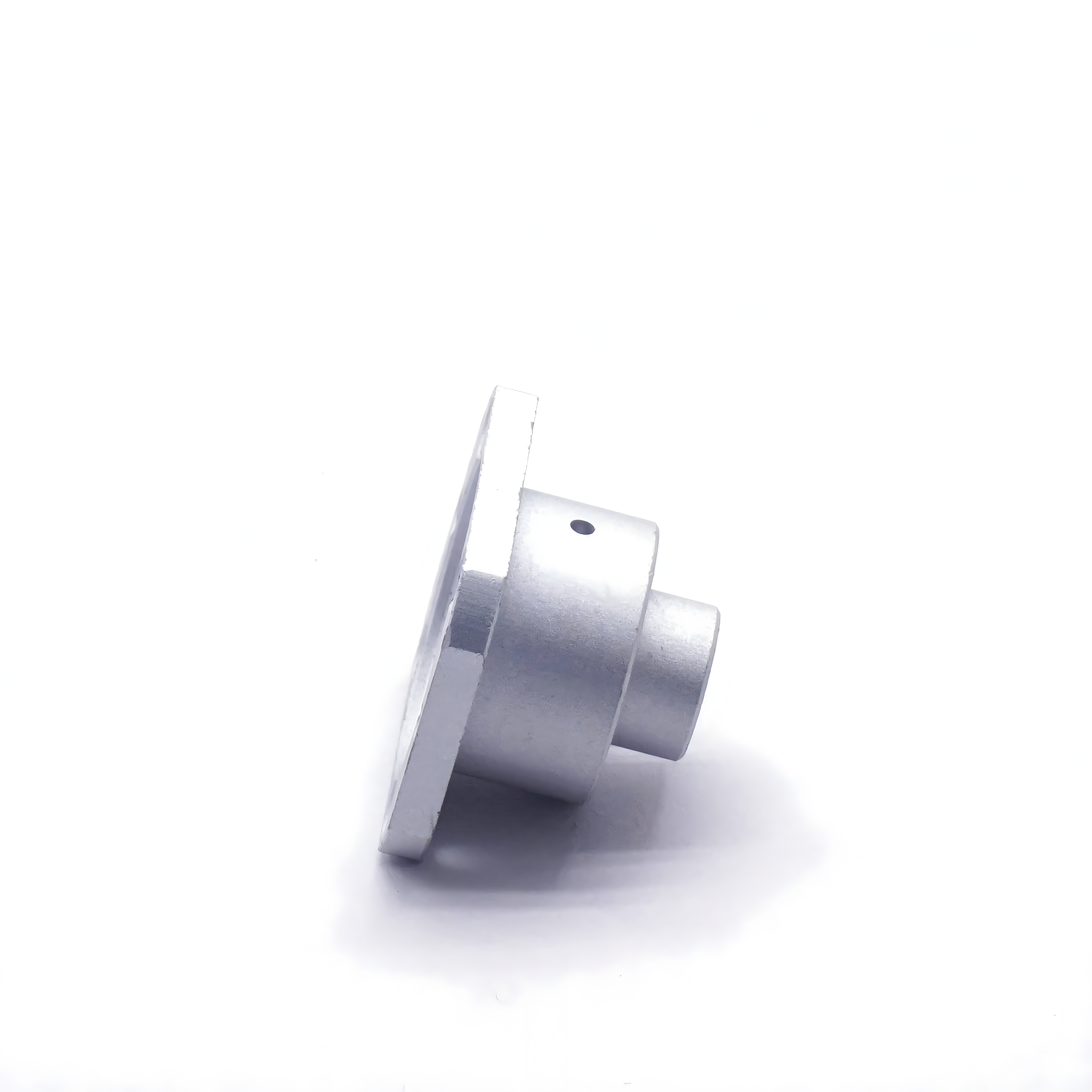

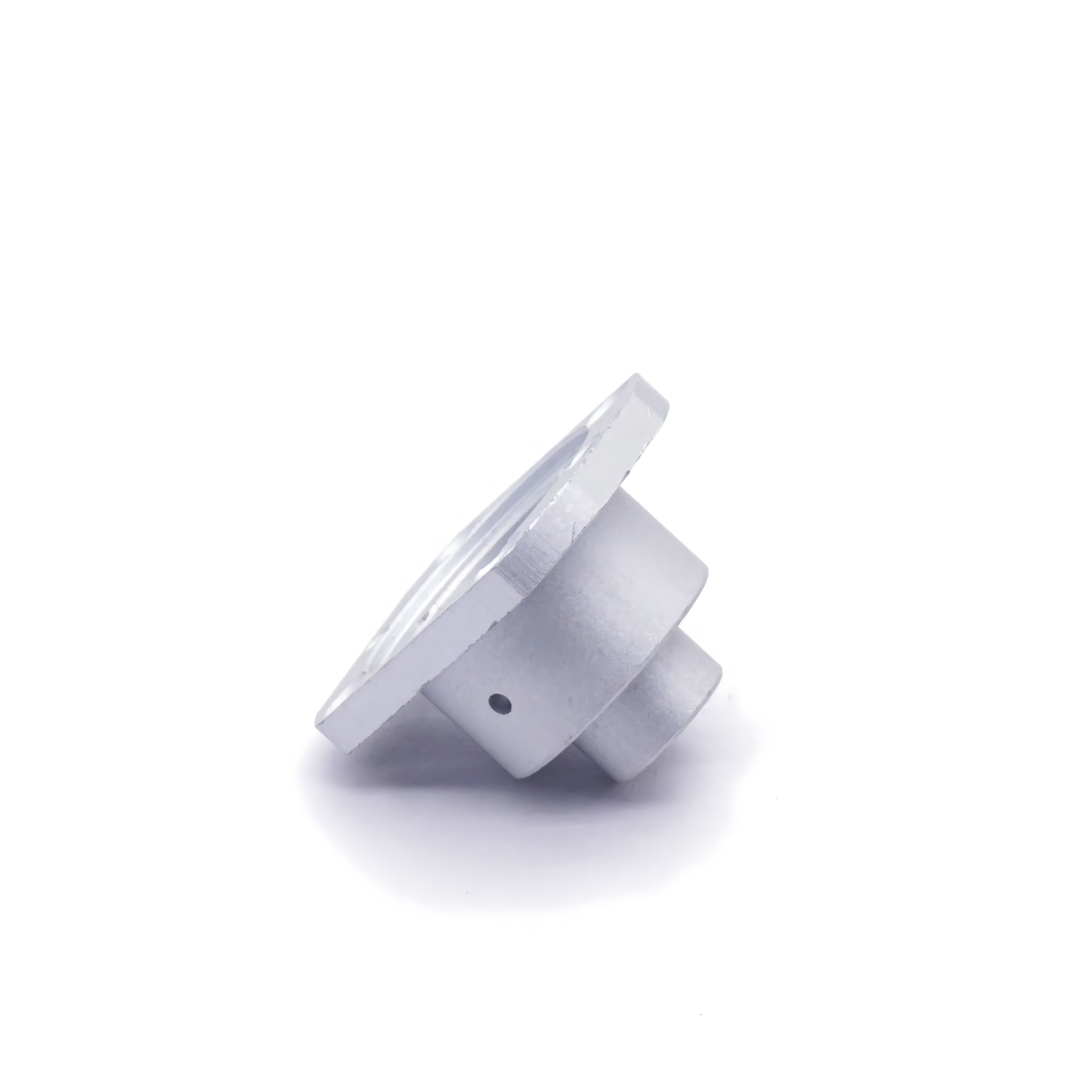

Side Hole Design: Dedicated set screw hole for secure shaft locking and anti-slip.

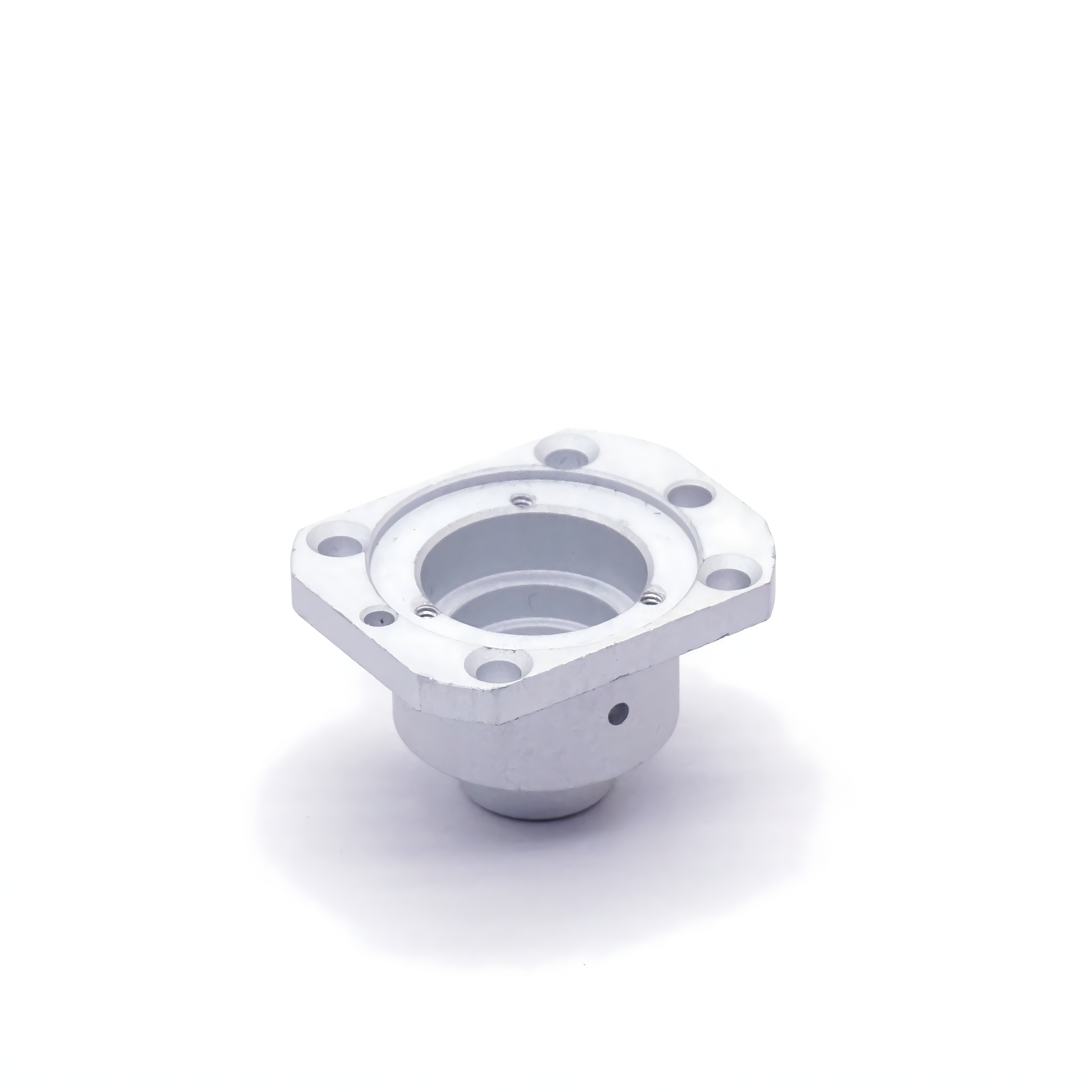

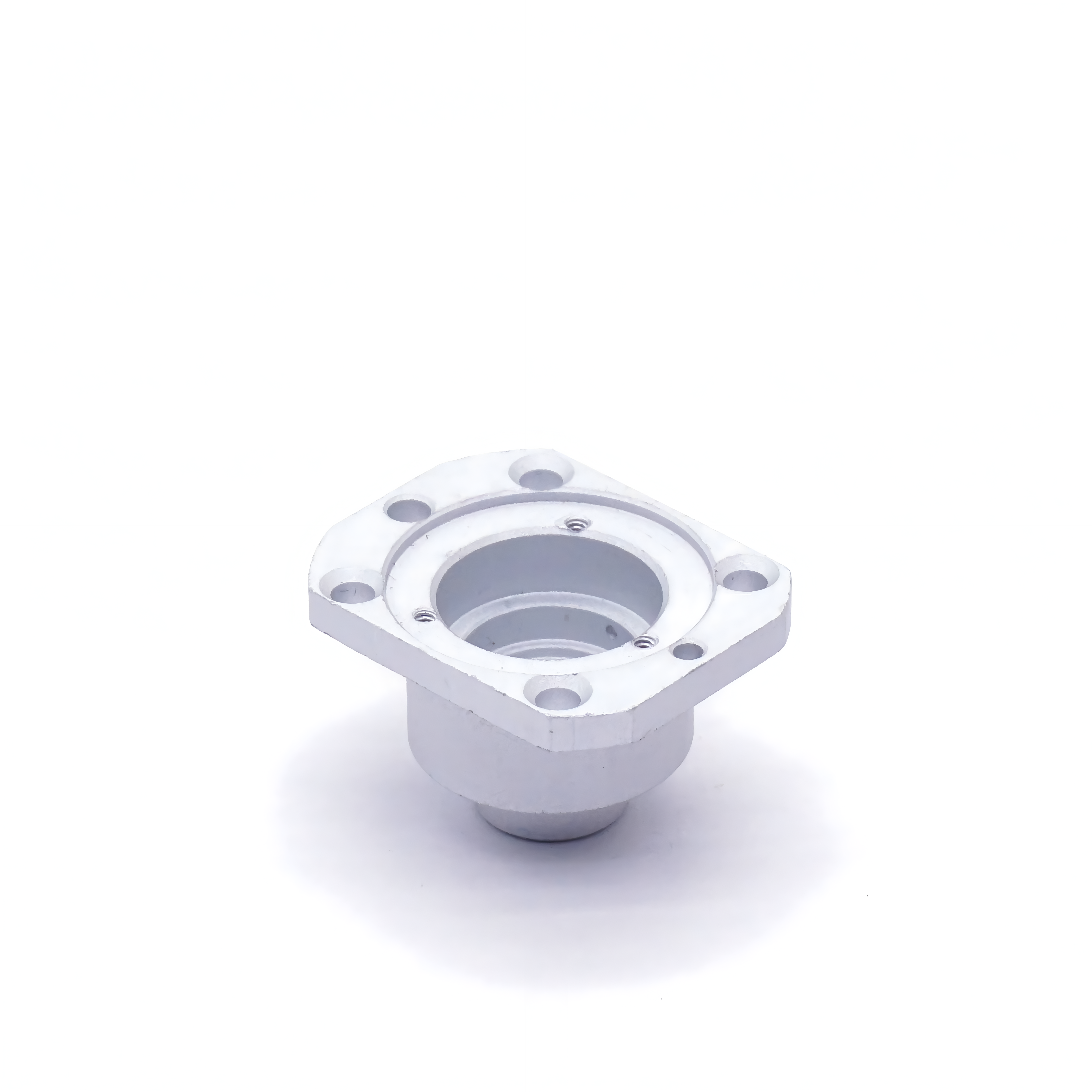

Flanged Structure: Flange base provides stable positioning and axial load support.
Material Durability: High-grade metal resists wear, corrosion, and mechanical fatigue.
Customization Flexibility: Fully customizable sizes, materials, and hole positions via CNC machining.
Efficient Installation: Side hole design simplifies assembly and disassembly processes.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
