| Quantity: | |
|---|---|
NHY-F0069
NHY

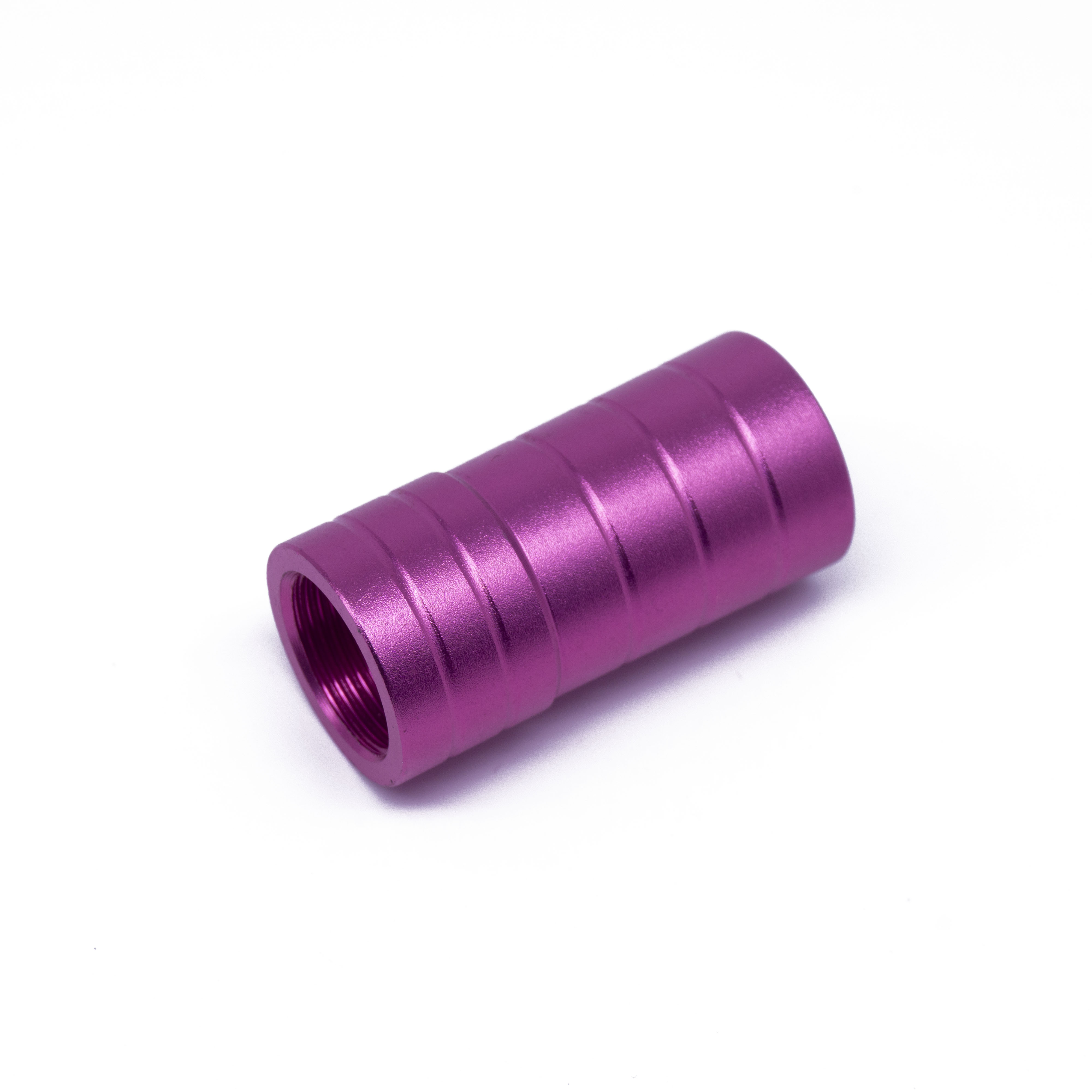

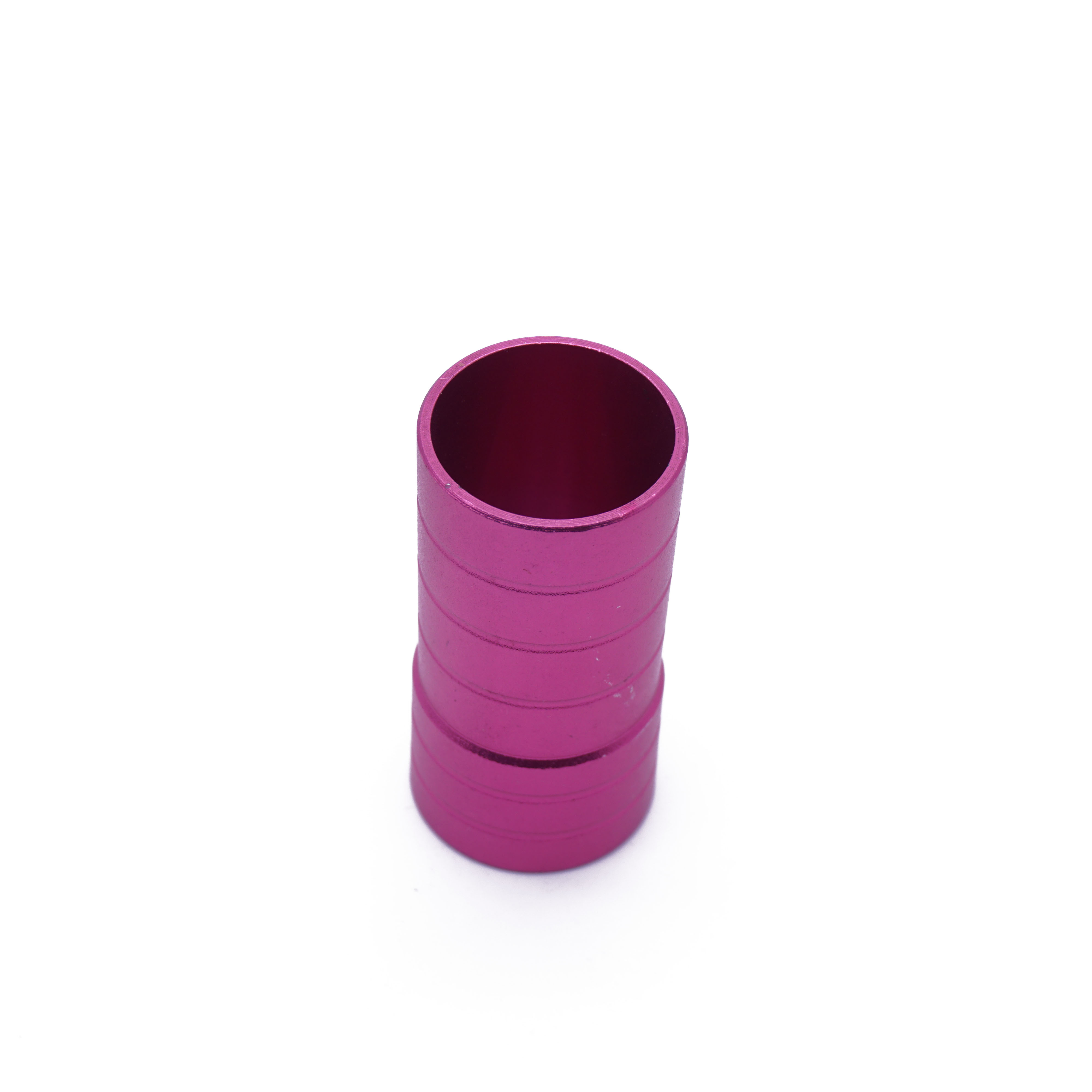

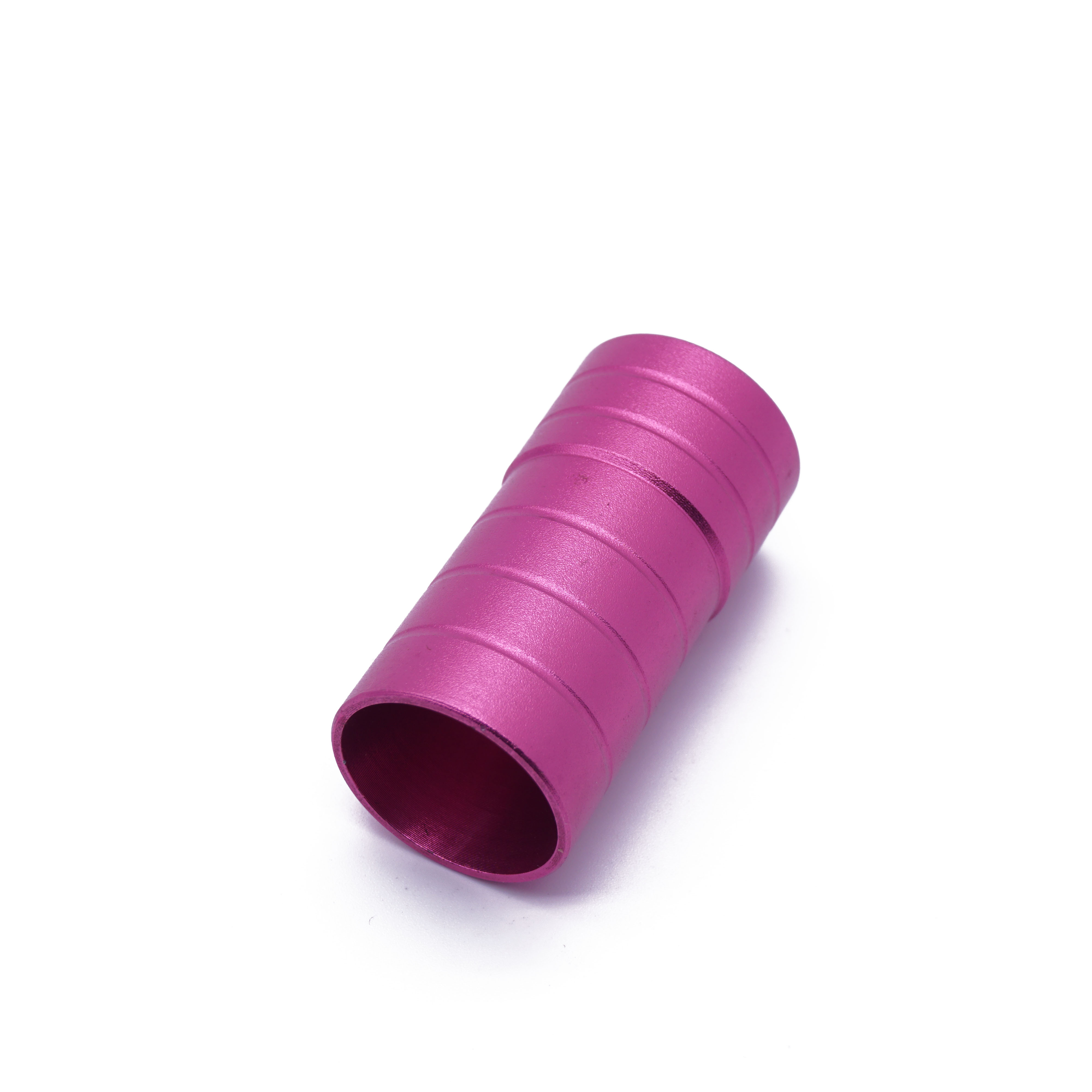

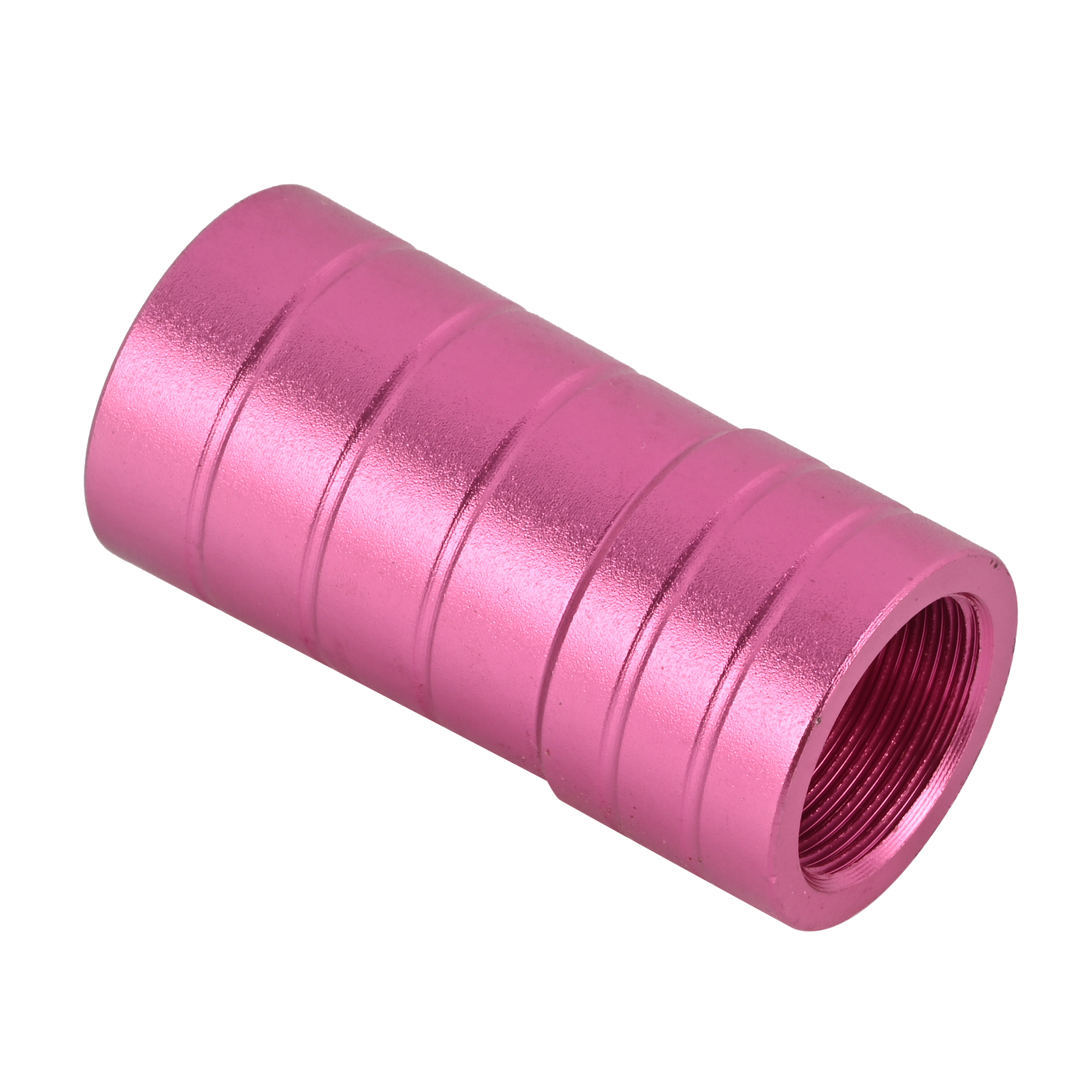

This industrial precision connector fitting is a specially designed non-standard connection component, produced via high-precision CNC machining and fine turning processes, mainly applied to industrial automation lines, hydraulic pipeline systems, fluid transmission devices and various mechanical assembly scenarios. Differing from conventional standard connector parts, it is fully tailored according to customers’ detailed technical drawings, assembly standards and actual site working conditions, covering special structural designs, non-standard thread sizes and unique connection forms. Crafted from premium industrial metal raw materials and under strict full-process quality supervision, it features stable connection performance, ultra-high machining accuracy, strong corrosion resistance and long service life, suitable for long-term stable operation in harsh industrial environments including high pressure, high humidity, salt spray and extreme temperature fluctuations, providing a professional and reliable custom connection solution for global B2B industrial buyers and equipment manufacturers.
| Main Parameter Category | Sub Item | Standard Specification | Customizable Range |
|---|---|---|---|
| Basic Product & Standard | Product Type, Execution Norm | CNC Precision Connector Fitting, ISO Standard | Custom Industrial Connector, Customer Specific Standards |
| Material & Surface Finish | Raw Material, Surface Treatment | 304 Stainless Steel, Natural Machined | 316/316L SS, Brass, Carbon Steel, Aluminum; Passivation, Plating, Anodizing, Polishing |
| Machining Technical Data | Processing Method, Tolerance | CNC Precision Machining, ±0.005mm | CNC Turning & Milling, ±0.001mm to ±0.01mm |
| Working Performance Index | Temperature, Pressure Rating | -45℃ to 240℃, Medium Pressure | Material-Based Temp Adjustment, Custom High Pressure |
Ultra-Precise Dimensional Control
Processed by high-end CNC machining centers, with micro tolerance control, ensuring seamless assembly and tight fit, completely eliminating connection gaps and medium leakage risks in long-term operation.
Flexible Non-Standard Customization
Support full customization of material types, overall dimensions, thread specifications and surface treatments, accept small-batch prototype proofing and large-scale batch production to meet diverse special project requirements.
Excellent Harsh Environment Resistance
Selected high-strength corrosion-resistant metal materials, with outstanding wear resistance, rust resistance and pressure resistance, adaptable to humid, high salt spray, high pressure and low temperature working conditions.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
