NHY-F00107
NHY
| Parameter | Standard Specification | Custom Option |
|---|---|---|
| Material | Stainless Steel 304/Carbon Steel 1018 | Brass/Titanium Alloy |
| Outer Diameter | Custom (φ4mm–φ20mm) | Fully customizable |
| Inner Bore Diameter | Custom (φ2mm–φ16mm) | Fully customizable |
| Thread Size | Custom (M3–M10) | Non-standard thread pitches |
| Overall Length | Custom (5mm–30mm) | Fully customizable |
| Knurling Type | Diamond/Knurled (standard) | Custom knurling pitch and depth |
| Dimensional Tolerance | ±0.01mm | Tighter tolerance (±0.005mm) |
| Surface Finish | Zinc Plated / Passivated | Polished / Custom coating |
| Hardness | HV 200–250 | Custom hardness levels |
3.Application Case

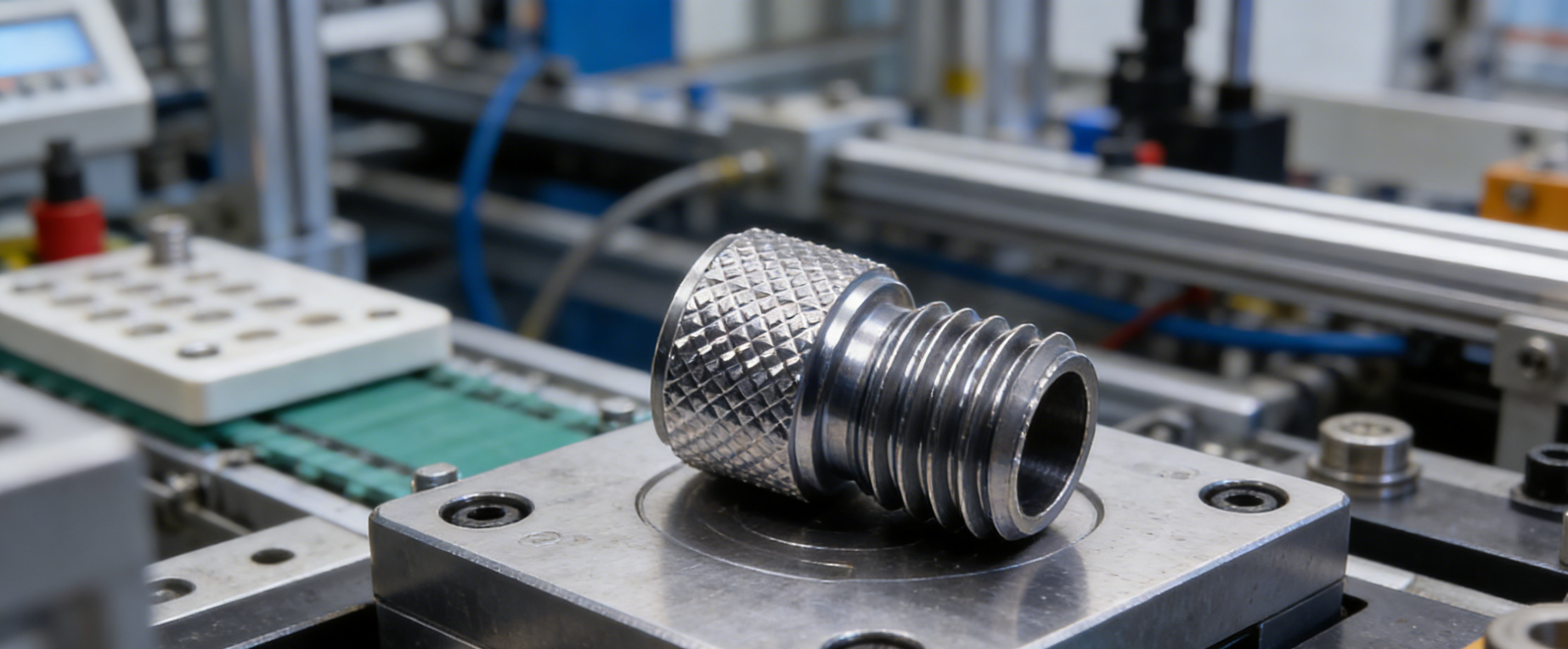

A factory automation client utilized our stainless steel sleeve bushings in precision fixture jigs, adjusting sensor probe positioning. The threaded hollow structure enabled fine incremental adjustments, while the knurled head ensured stable grip, improving testing accuracy by 25% and reducing setup time by 18%.
A high-end furniture maker deployed our mini sleeve bushings in height-adjustable desk mechanisms, securing leg positions with manual adjustment. The corrosion-resistant finish and anti-slip design maintained stability under daily use, reducing after-sales maintenance requests by 30%.

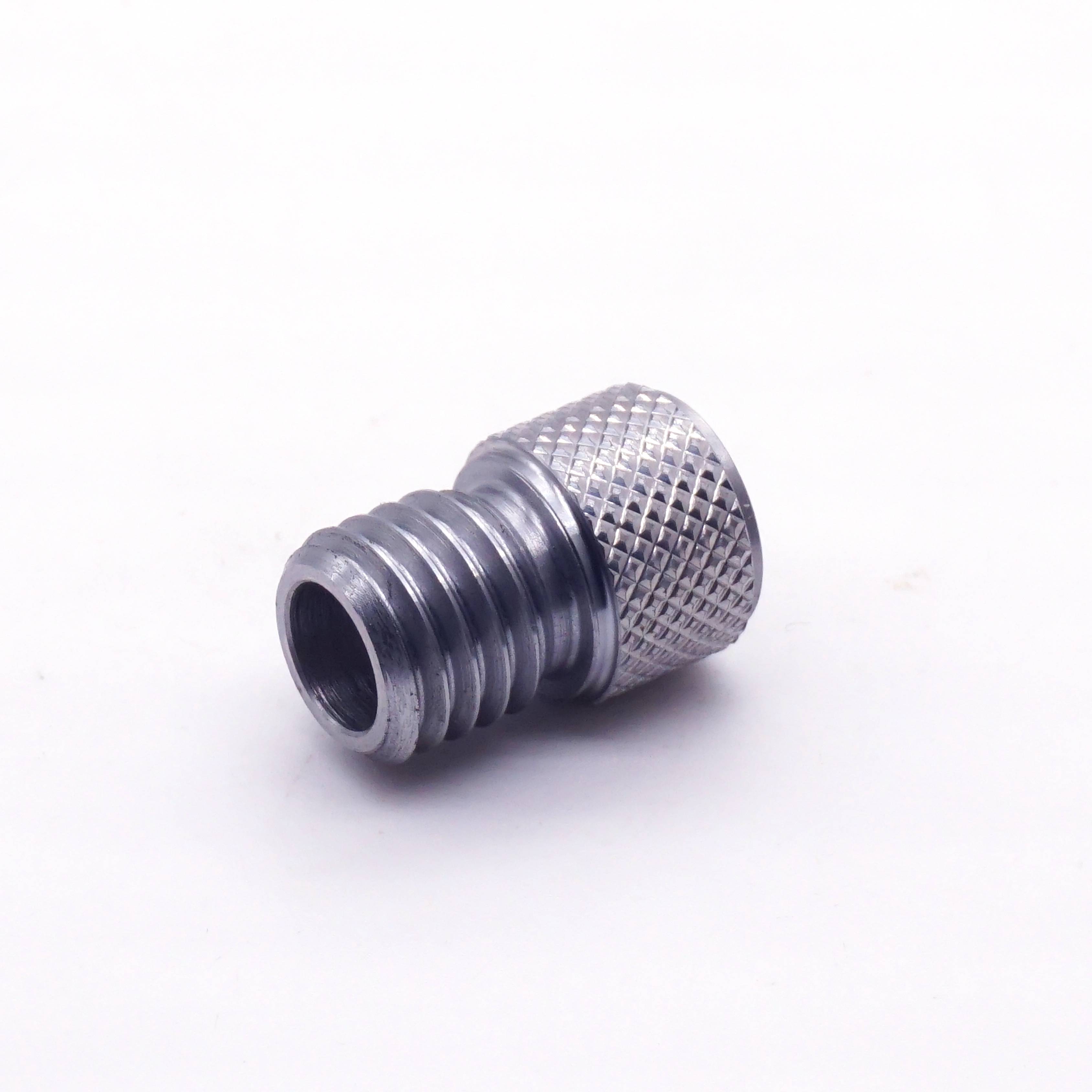

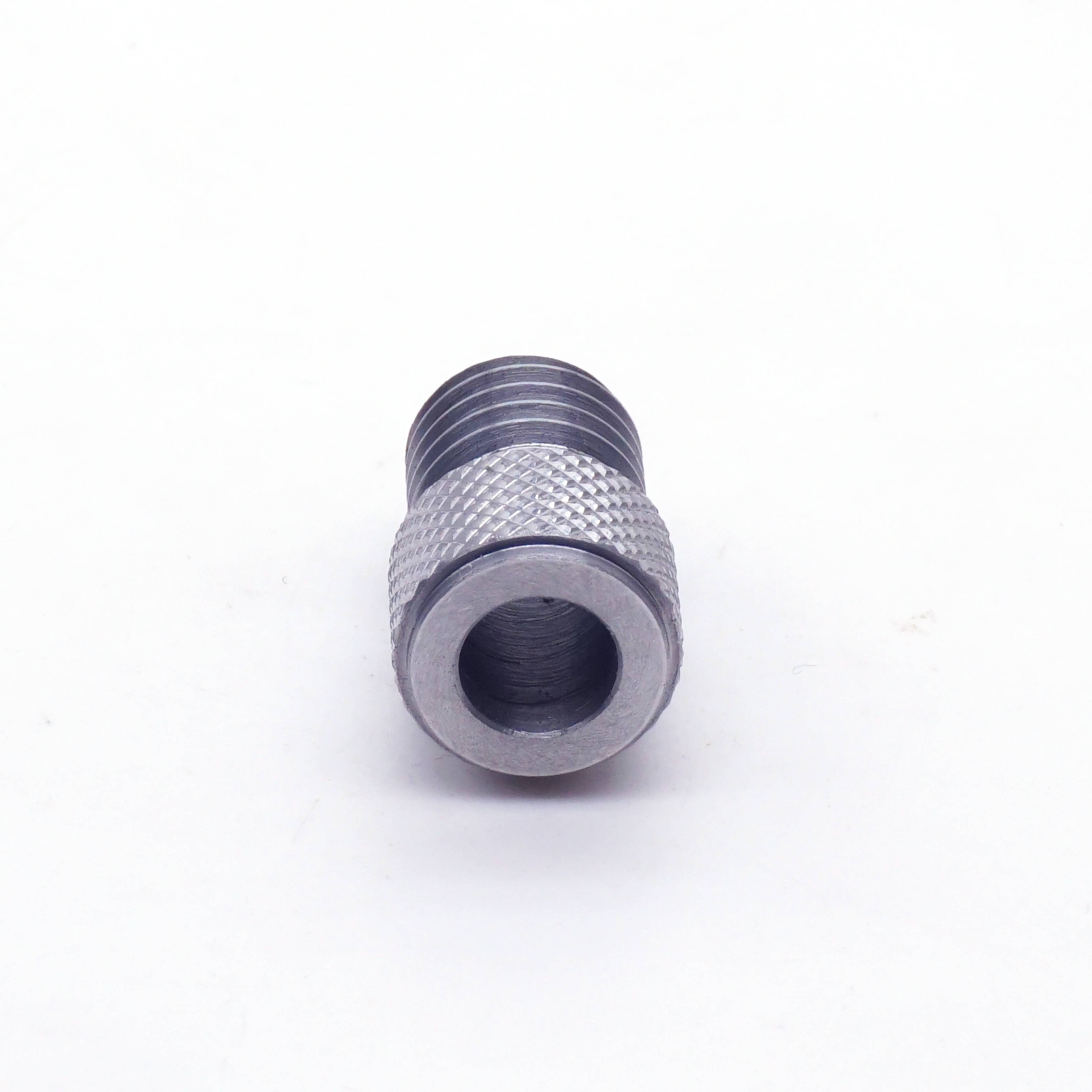

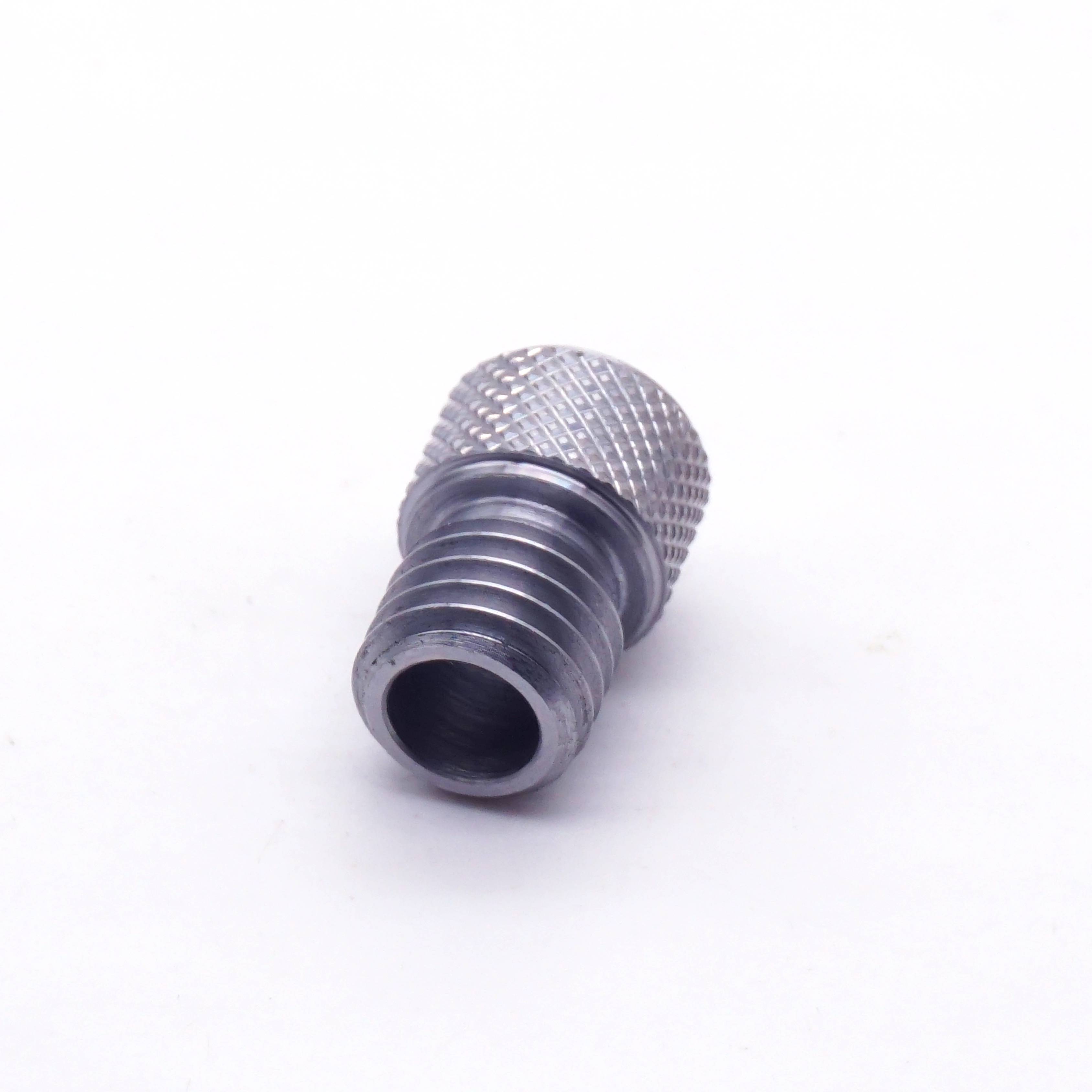

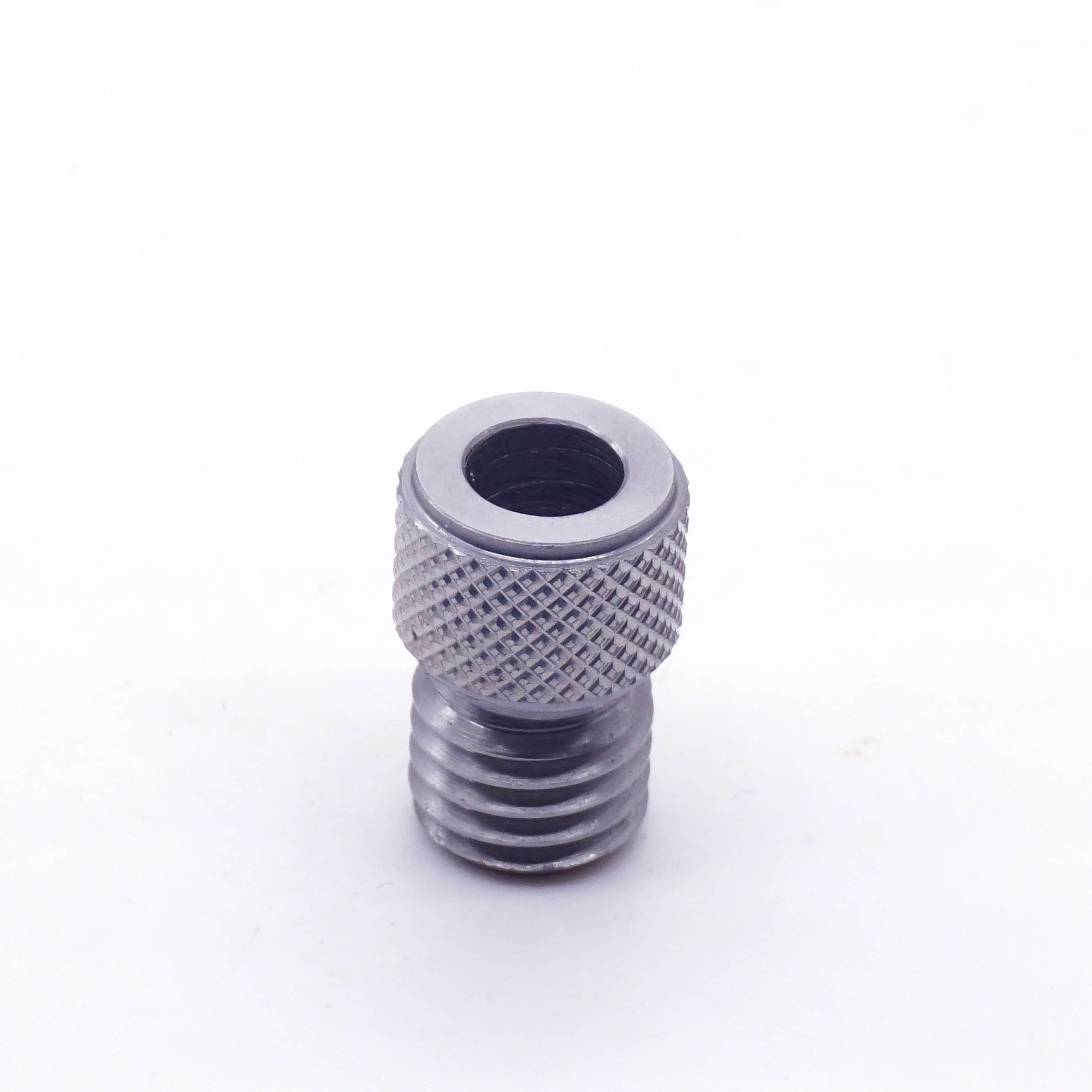

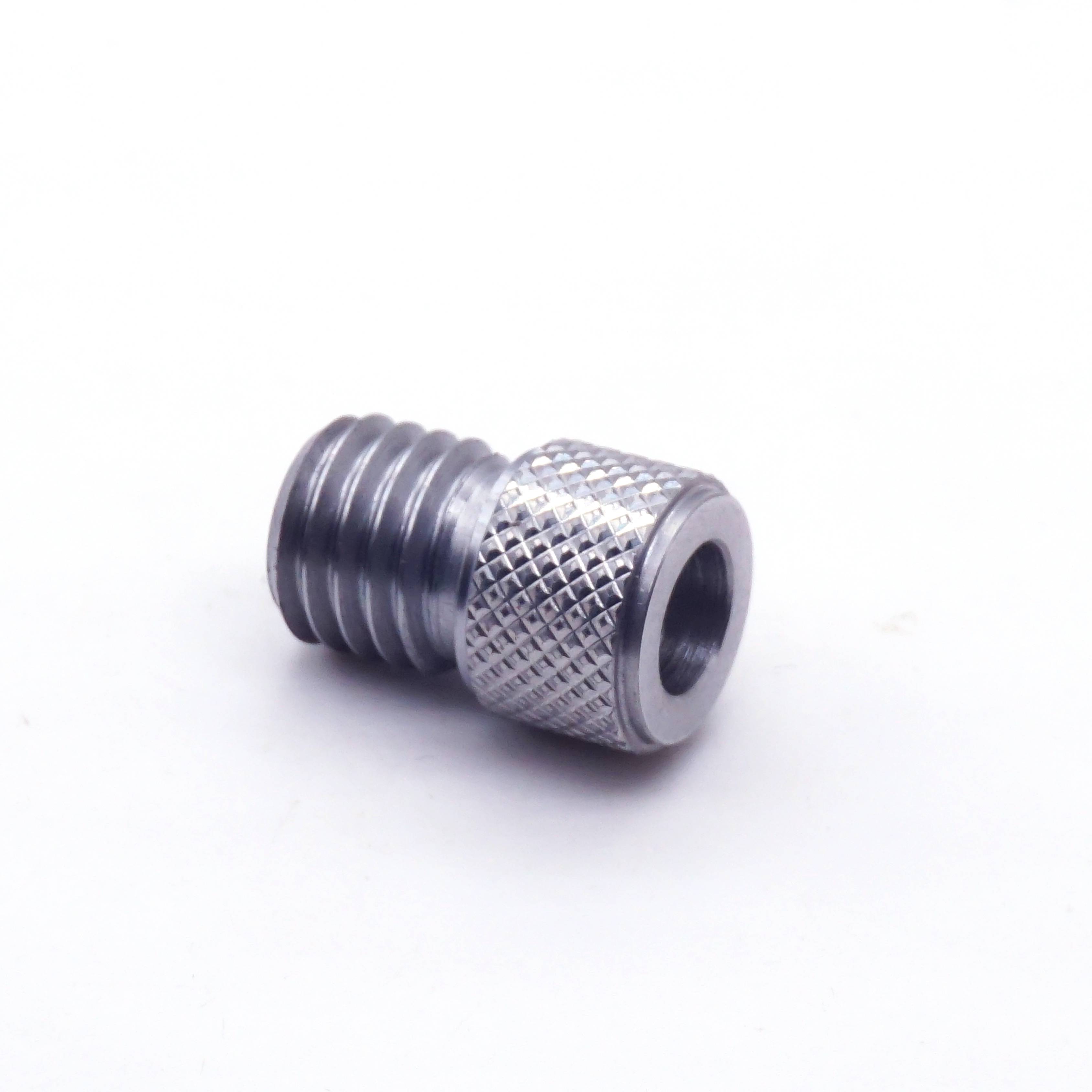

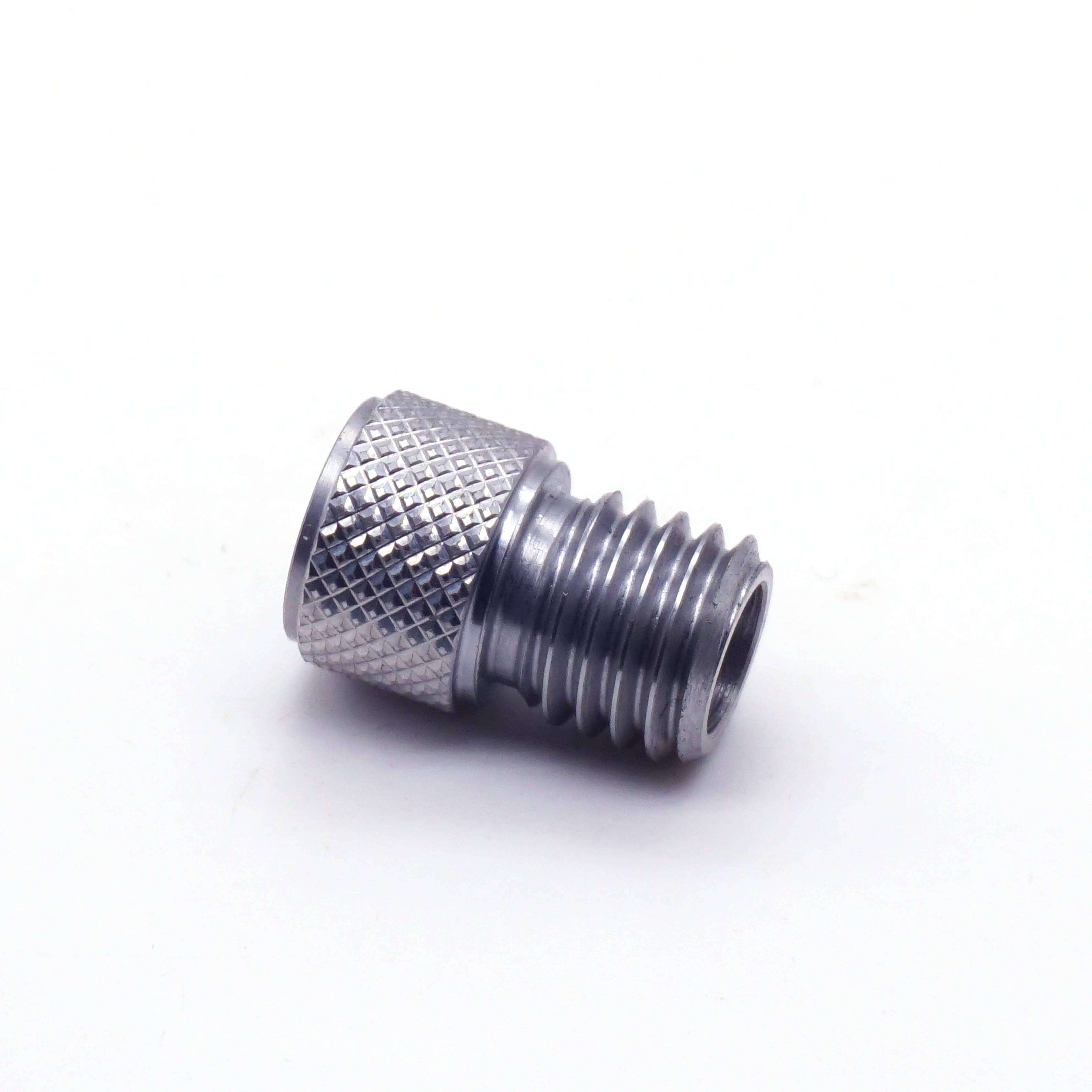

Knurled Anti-Slip Head: Increases friction for easy manual adjustment without tools.
Threaded Hollow Structure: Allows fine-tuning and secure component fixation.
Full Customization: Non-standard thread sizes, lengths, and bore diameters are available.
Corrosion Resistance: Stainless steel or zinc-plated options suit diverse environments.
Easy Installation: Knurled design simplifies manual adjustment and installation.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
