NHY-F0099
NHY

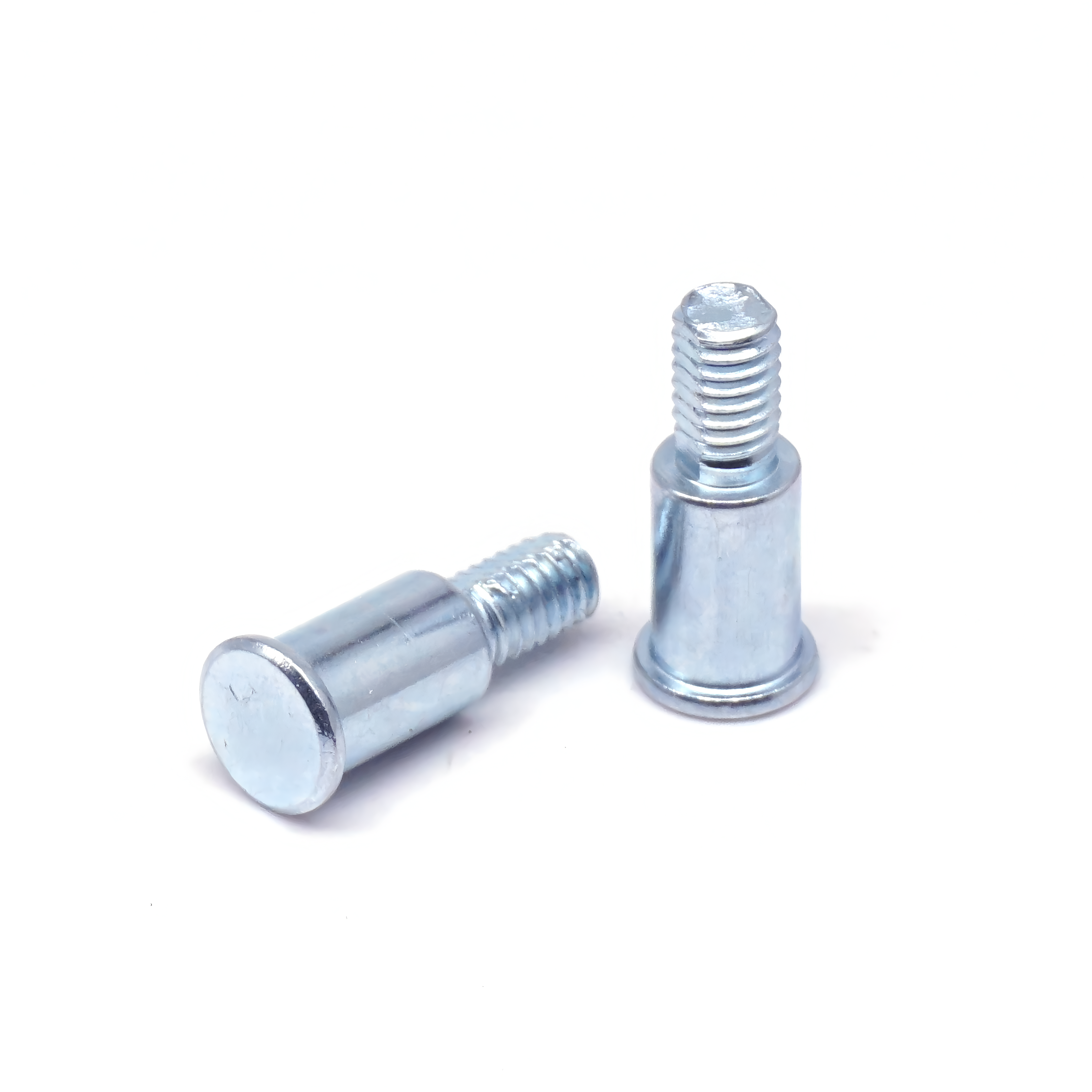

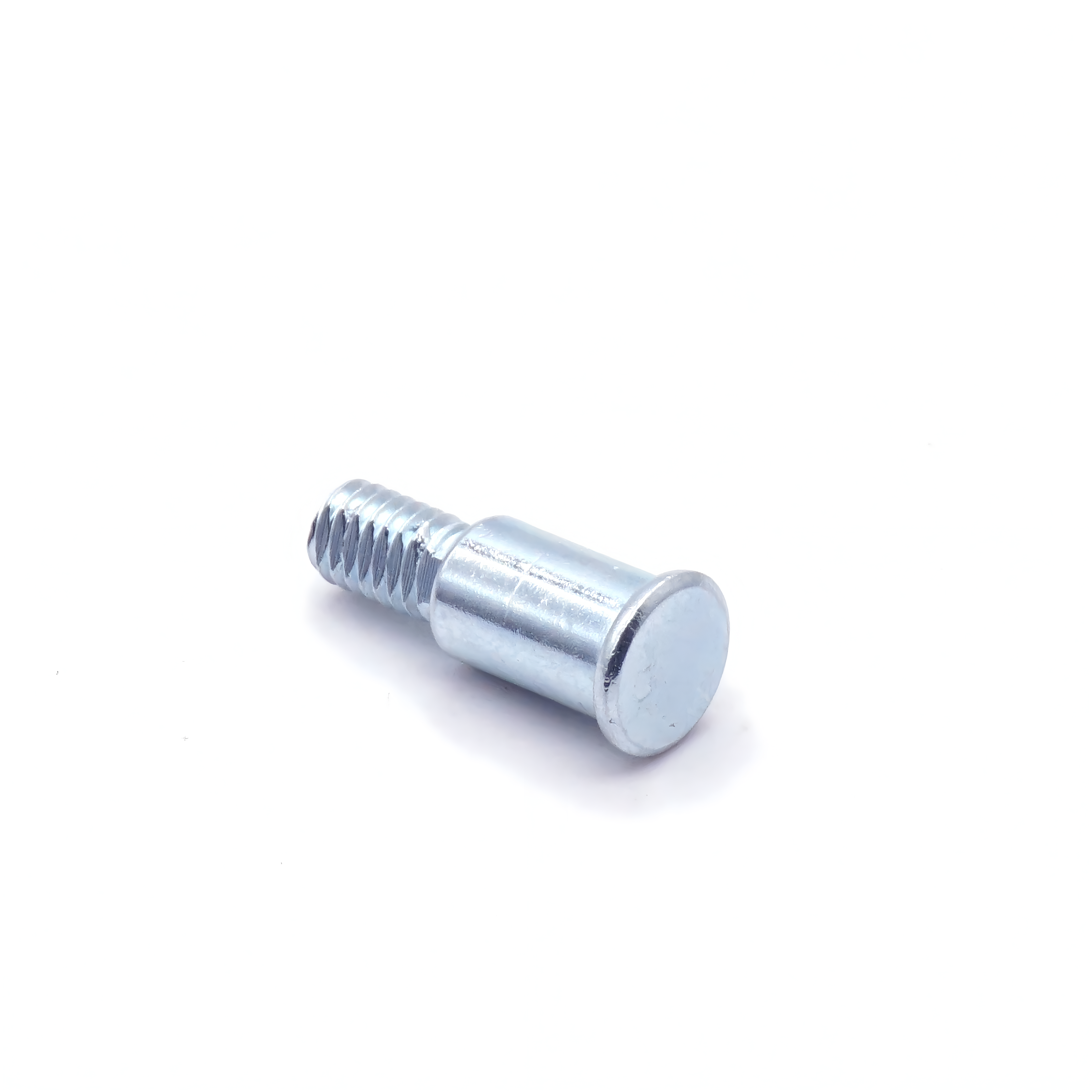

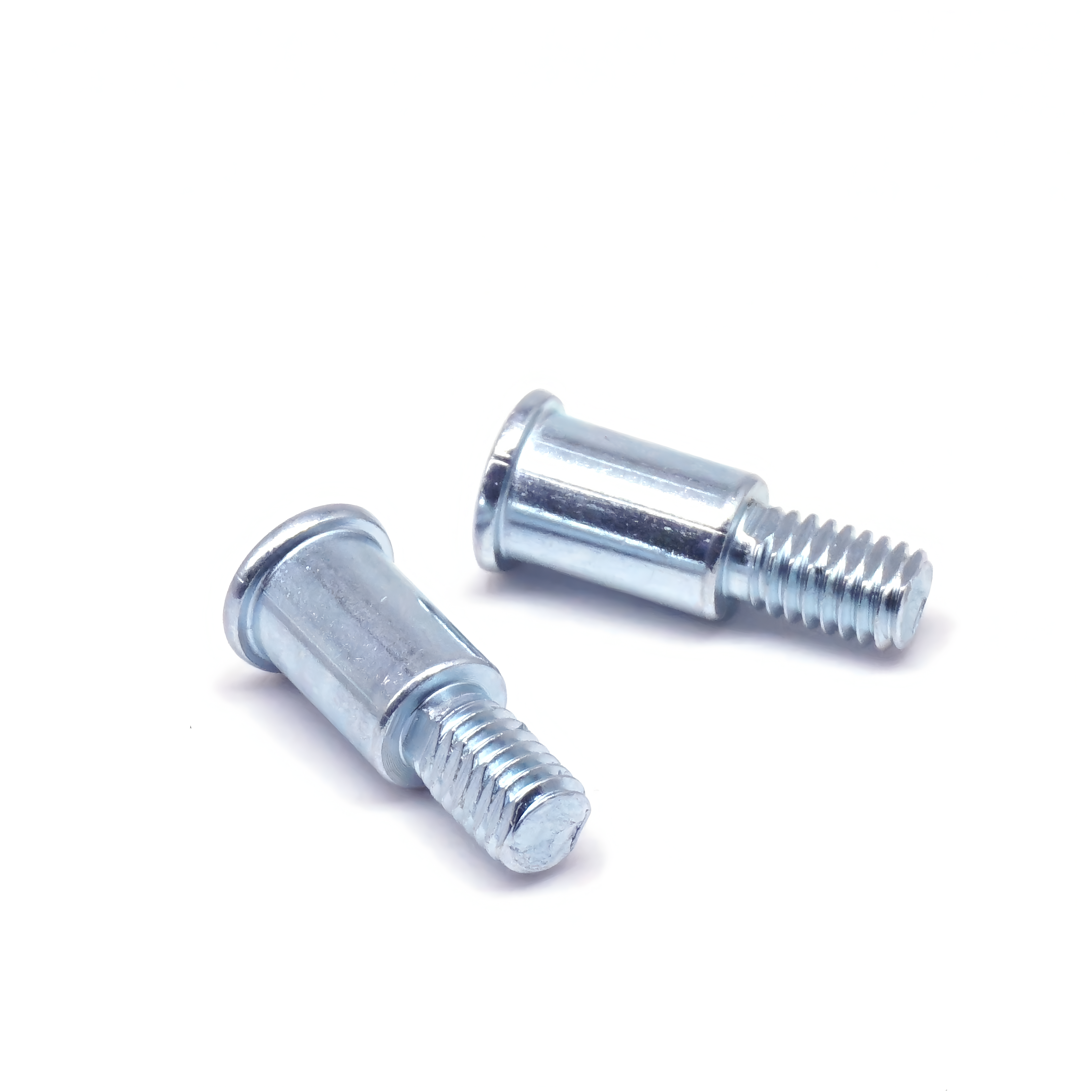

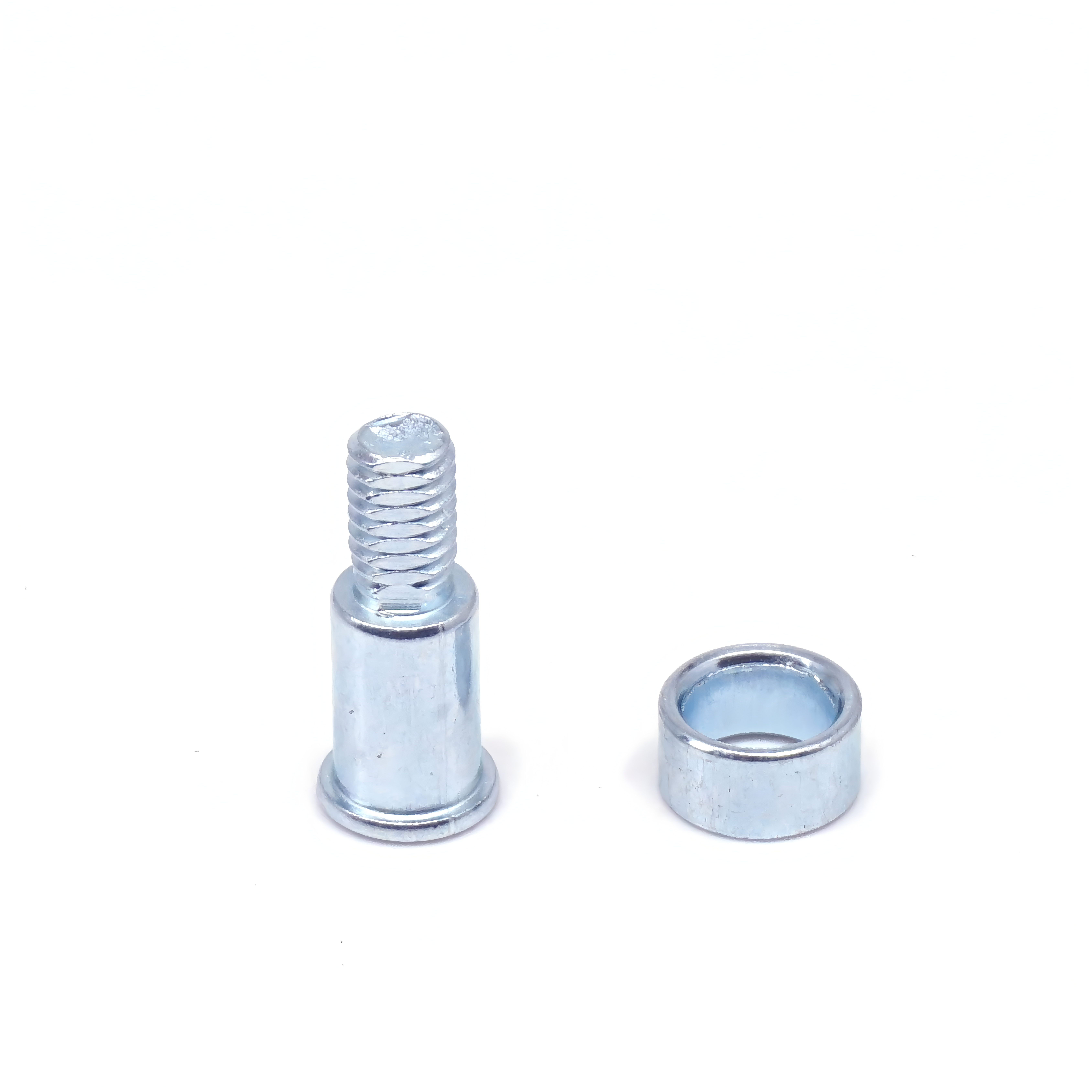

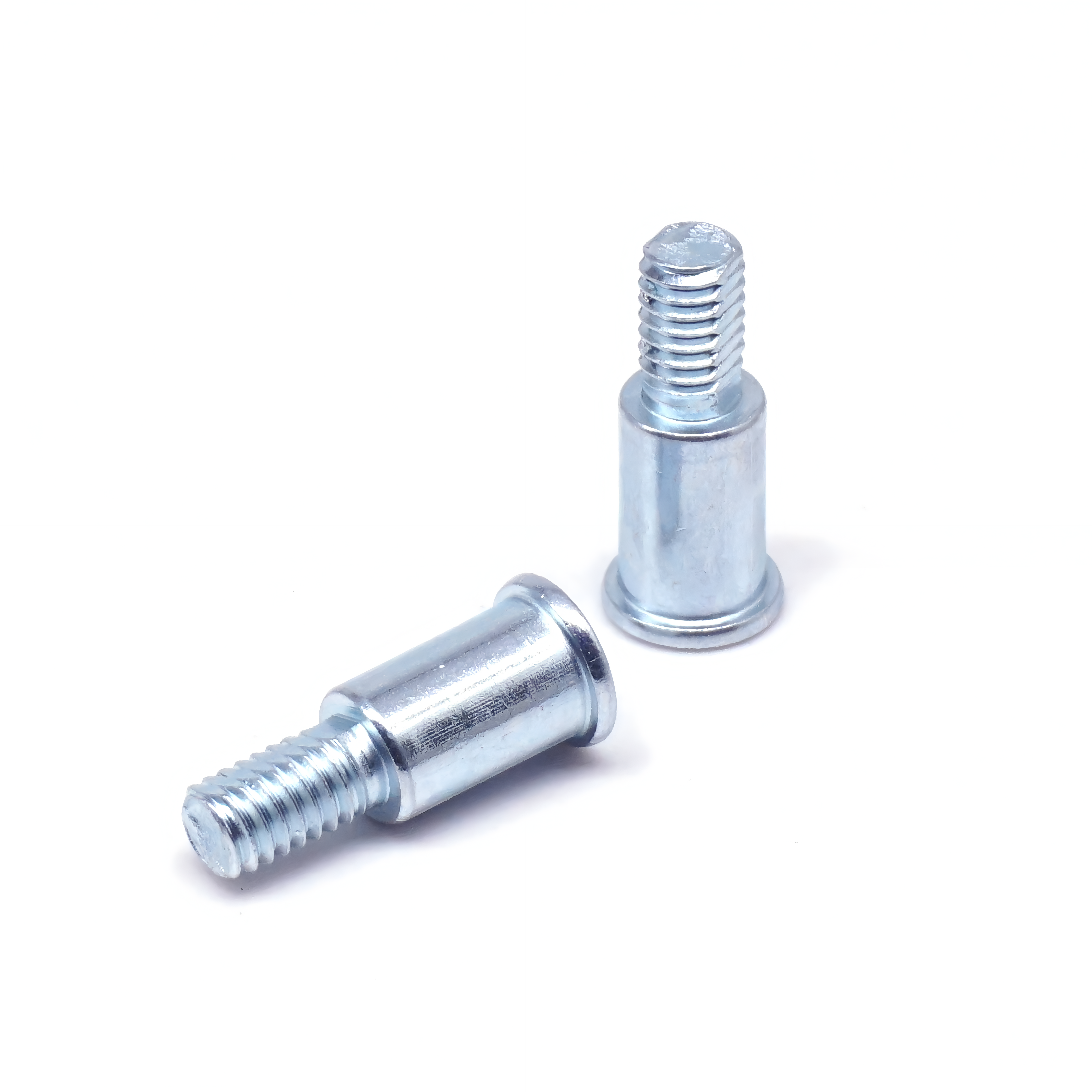

Our custom CNC machined shoulder screw is a precision fastener engineered for axial positioning and load-bearing in mechanical assemblies. Produced via advanced CNC turning, it features a precision shoulder section to limit movement and ensure accurate alignment for non-standard industrial applications.
| Parameter | Standard Specification | Custom Option |
|---|---|---|
| Material | Carbon Steel 1018/Stainless Steel 304 | Alloy Steel/Brass |
| Shoulder Diameter | Custom (φ3mm–φ20mm) | Fully customizable |
| Thread Size | Custom (M2–M10, UNC/UNF) | Non-standard thread pitches |
| Shoulder Length | Custom (2mm–30mm) | Fully customizable |
| Overall Length | Custom (5mm–50mm) | Fully customizable |
| Tolerance | ±0.005mm | Tighter tolerance (±0.002mm) |
| Surface Finish | Zinc Plated / Passivated | Custom plating/coating |
| Head Type | Flat Head (as shown) | Pan Head/Countersunk Head |
3.Application Case
An automotive OEM used our custom shoulder screws in a transmission gear assembly, where the shoulder section provided precise axial spacing between gears. The high-strength carbon steel construction with zinc plating resisted wear and corrosion, meeting automotive durability standards and reducing gear misalignment issues by 40%.
A medical device manufacturer utilized our stainless steel shoulder screws in a surgical retractor assembly, leveraging the shoulder to secure moving components while maintaining sterile compatibility. The passivated surface resisted autoclave sterilization cycles, complying with ISO 13485 standards and ensuring reliable performance in clinical settings.
Tight tolerance control (±0.005mm) ensures accurate shoulder positioning.
Precision shoulder acts as a mechanical stop for axial alignment.
Non-standard shoulder diameters, thread sizes, and lengths available.
Robust material construction withstands shear and axial loads.
Surface treatments extend service life in harsh environments.
Threaded design simplifies assembly and disassembly processes.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
