| Quantity: | |
|---|---|
NHY-F00112
NHY
| Parameter | Standard Specification | Custom Option |
|---|---|---|
| Material | Carbon Steel 1018/Stainless Steel 304 | Brass/Titanium Alloy |
| Thread Size | Custom (M2–M8, micro-threads) | Non-standard thread pitches |
| Step Diameter | Custom (0.5–3mm larger than thread OD) | Custom step size & position |
| Step Length | Custom (1–5mm) | Fully customizable |
| Overall Length | Custom (3–20mm) | Fully customizable |
| Nylon Patch Color | Blue (standard) | Custom colors (black/red) |
| Drive Type | Hex Socket (standard) | Torx/Phillips micro-drive options |
| Dimensional Tolerance | ±0.01mm | Tighter tolerance (±0.005mm) |
| Surface Finish | Passivated / Zinc Plated | Polished / Custom coating |
| Hardness | HV 200–250 | Custom hardness levels |
3.Application Case

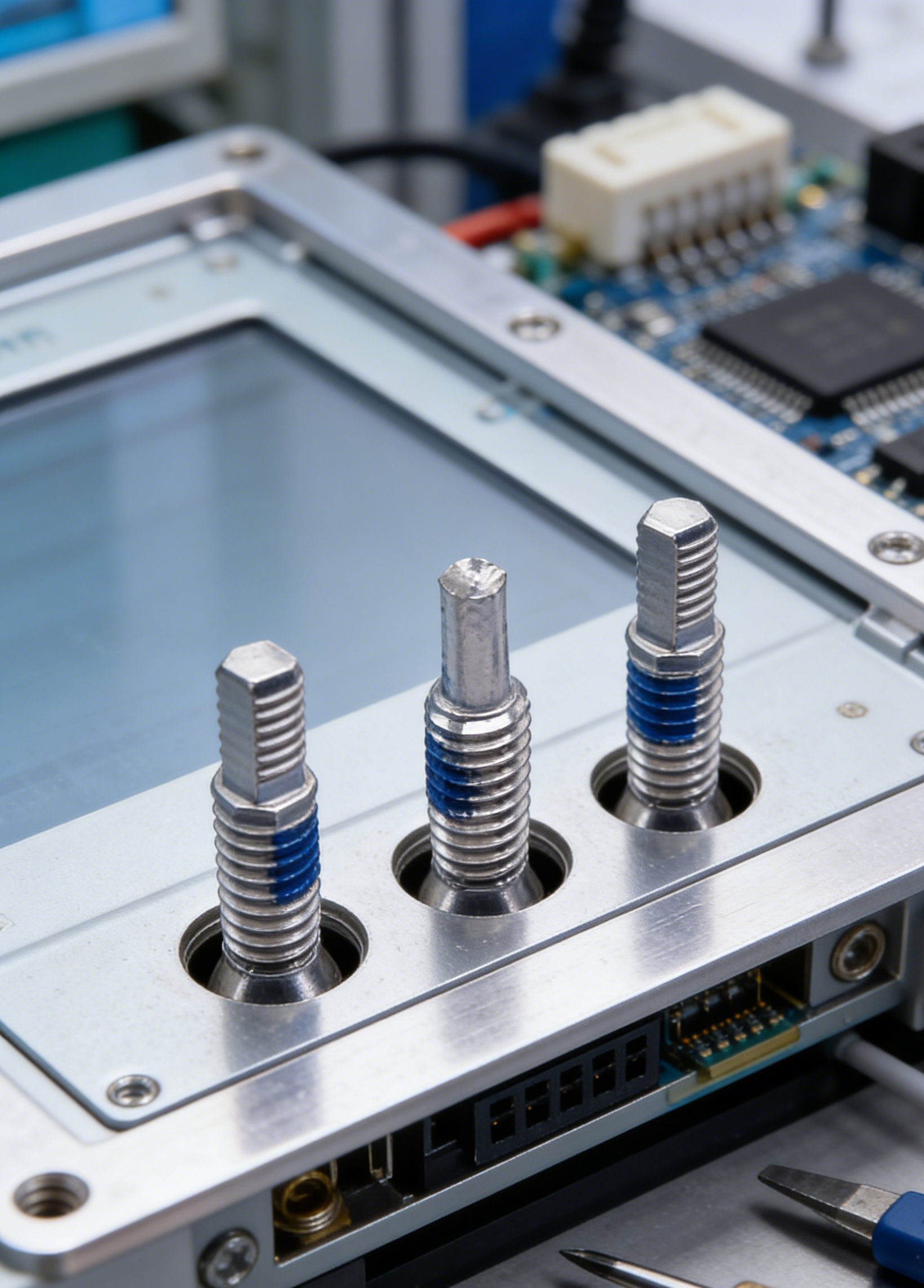

A smartphone manufacturer deployed our miniature step screws in camera module assembly, fixing delicate optical components with the step shoulder to avoid over-tightening. The anti-loosening performance prevented component shift under daily use, reducing camera focus errors by 32% and improving product yield by 23%.
An automotive OEM utilized our carbon steel step screws in dashboard trim assembly, securing lightweight plastic parts with the step shoulder to ensure flush fit. The anti-loosening patch maintained stability under vehicle vibration, meeting automotive quality standards and reducing after-sales complaints by 29%.

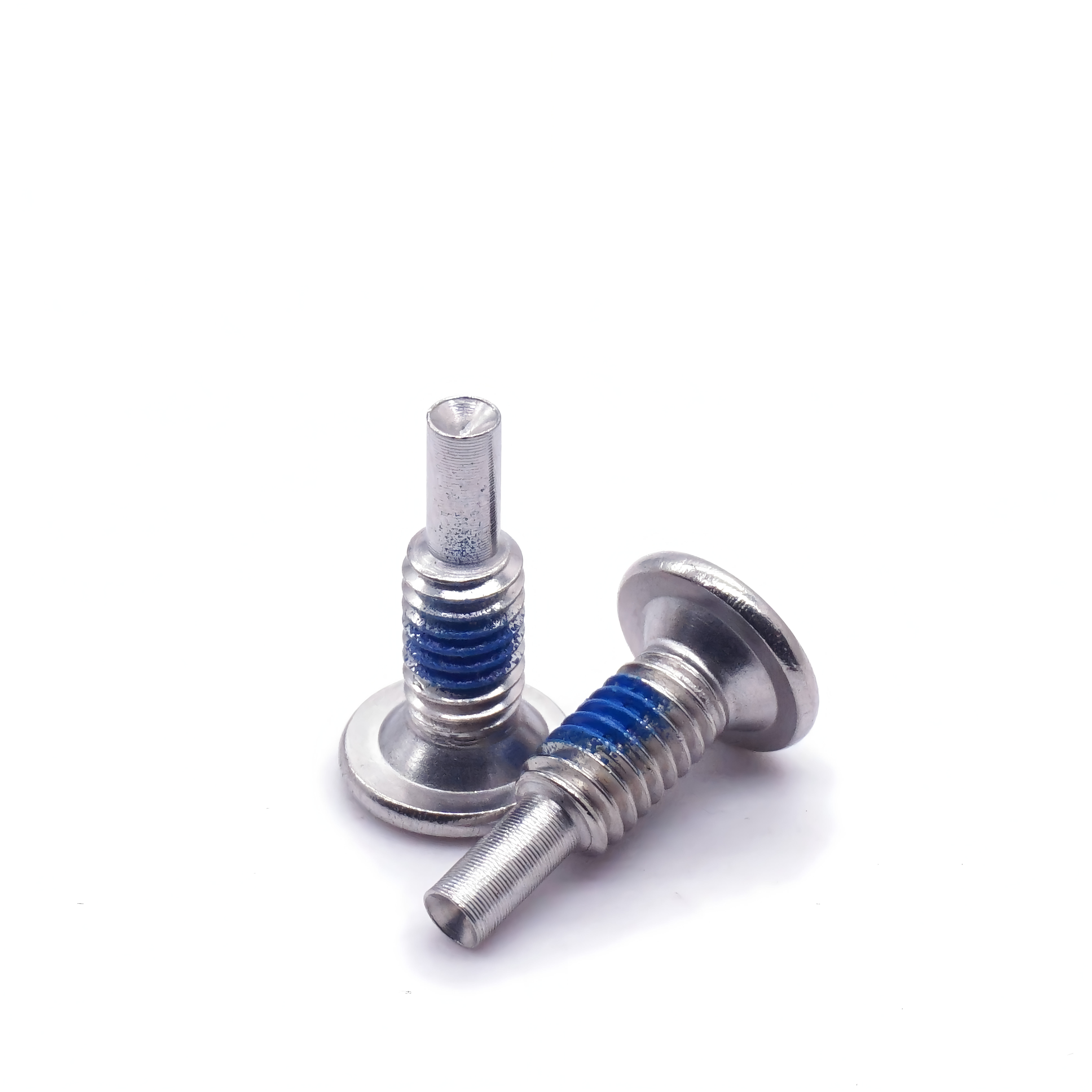

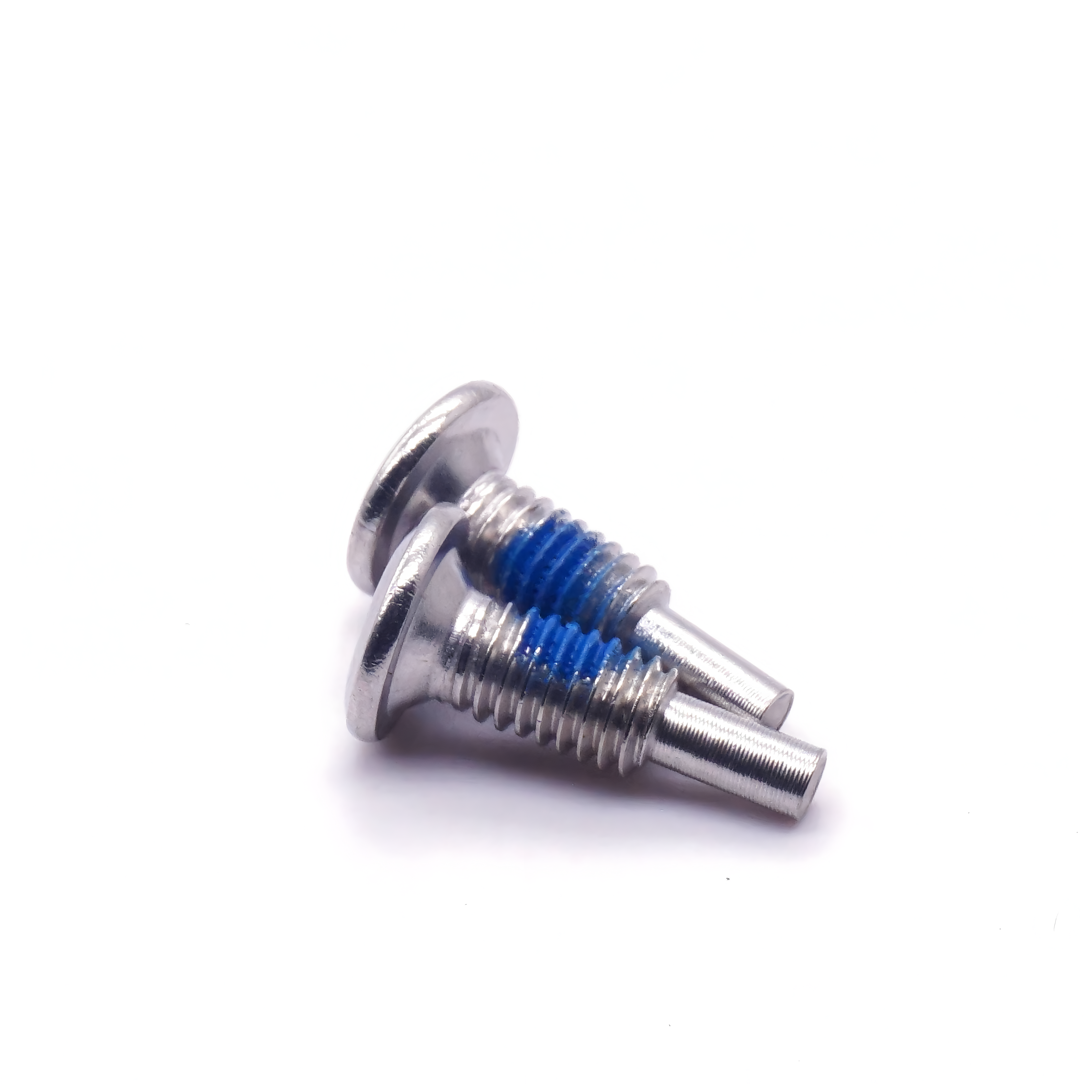

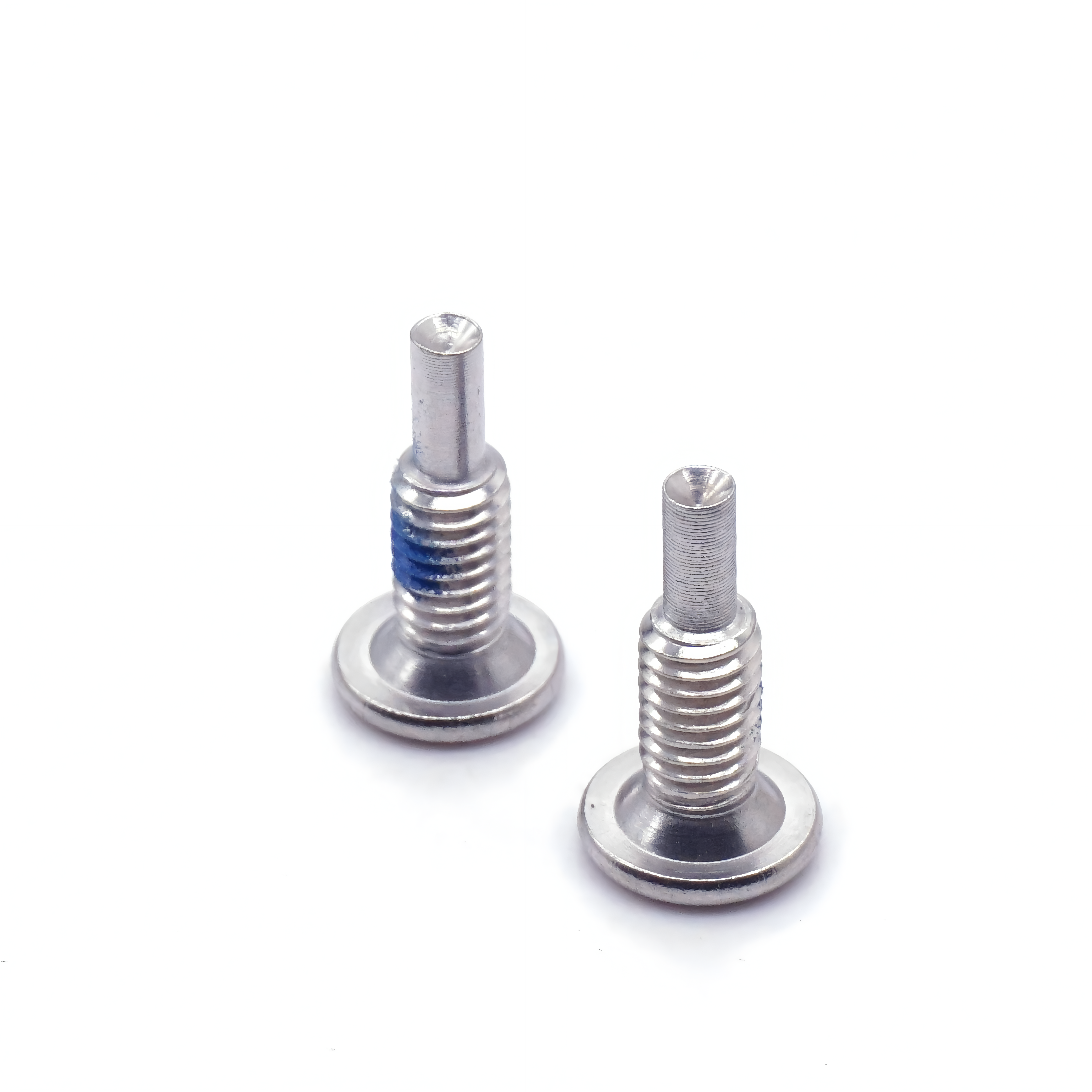

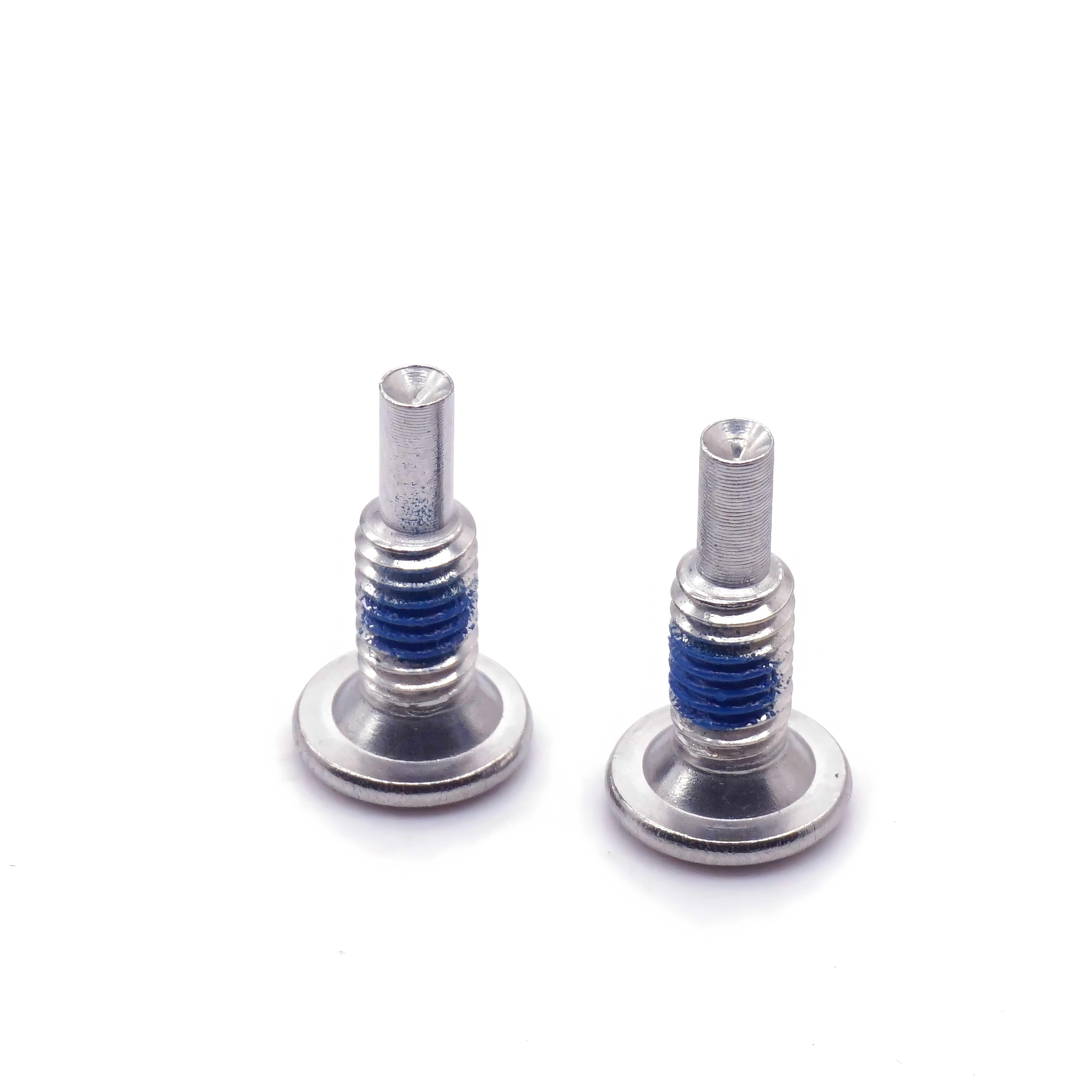

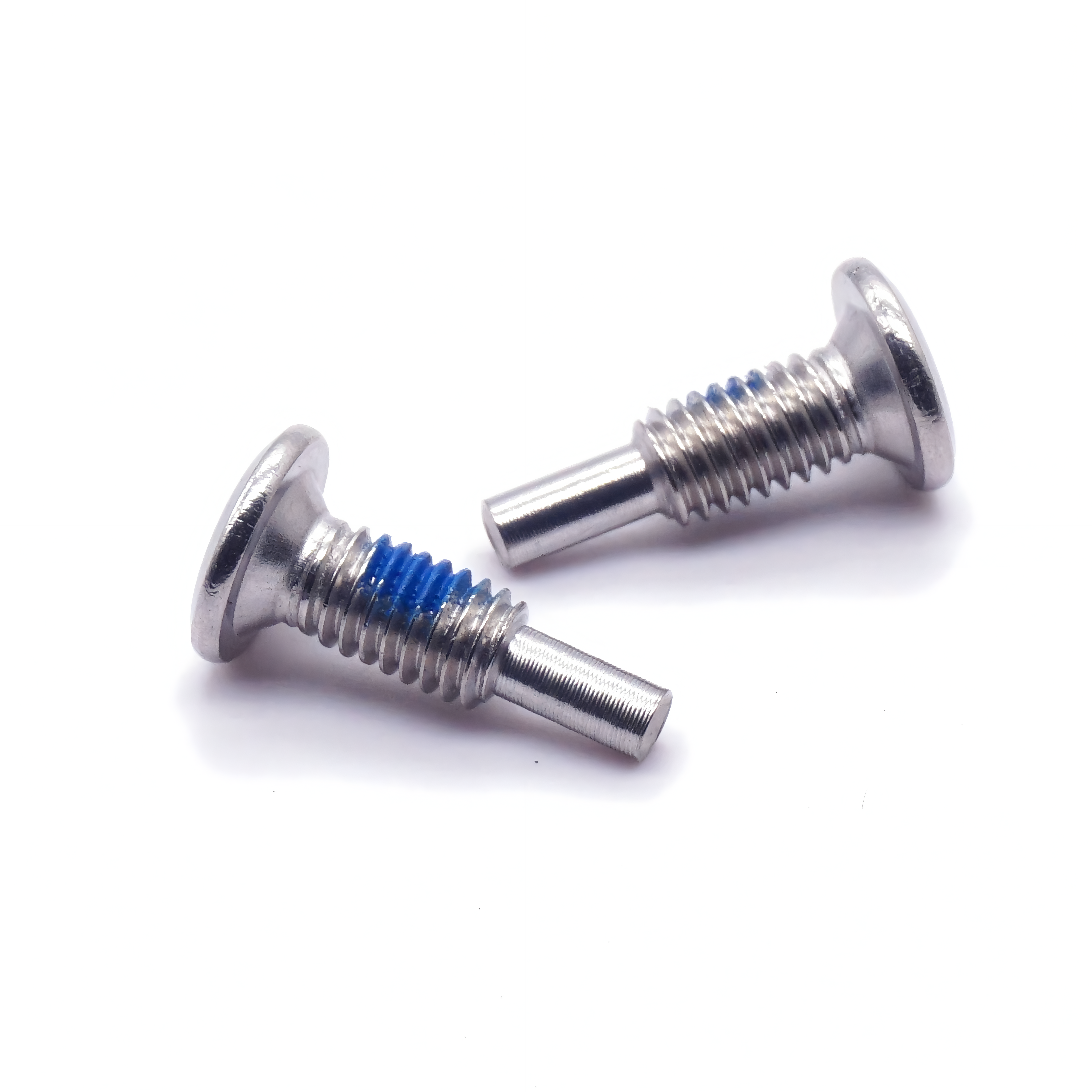

Nylon Anti-Loosening Patch: Forms a resilient lock on threads, eliminating slippage under vibration and mechanical impact.
CNC Precision Machining: Tight dimensional tolerance (≤0.01mm) ensures consistent fit in high-precision assemblies.

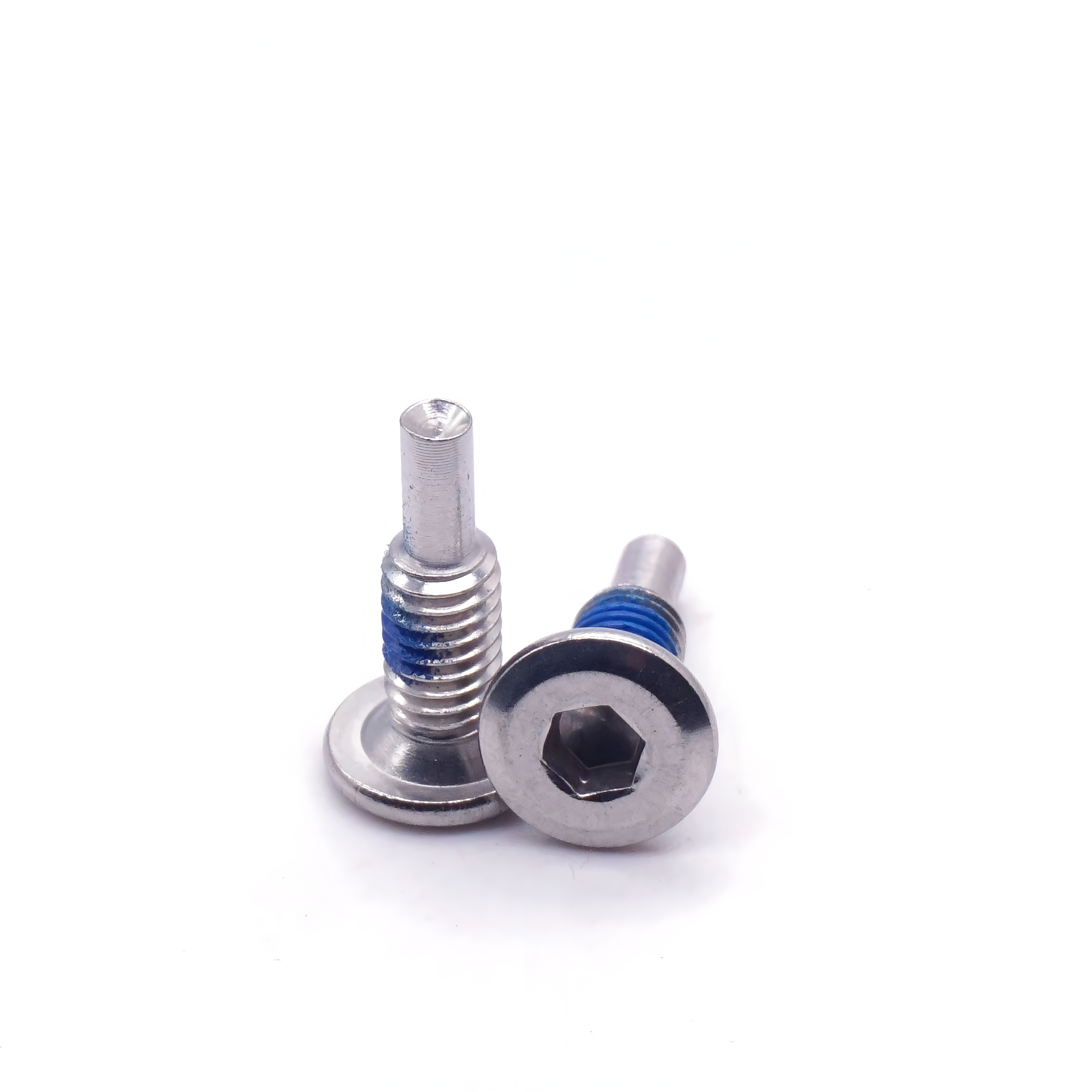

Countersunk Hex Socket: Saves installation space while delivering controlled torque with standard Allen keys.
Full Customization: Non-standard step sizes, thread specs, and materials are fully customizable to meet diverse needs.
Corrosion Resistance: Stainless steel or passivated finish suits harsh industrial, electronic, and outdoor environments.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
