| Quantity: | |
|---|---|
NHY-F0063
NHY
| Main Parameter Category | Sub Item | Standard Specification | Customizable Range |
|---|---|---|---|

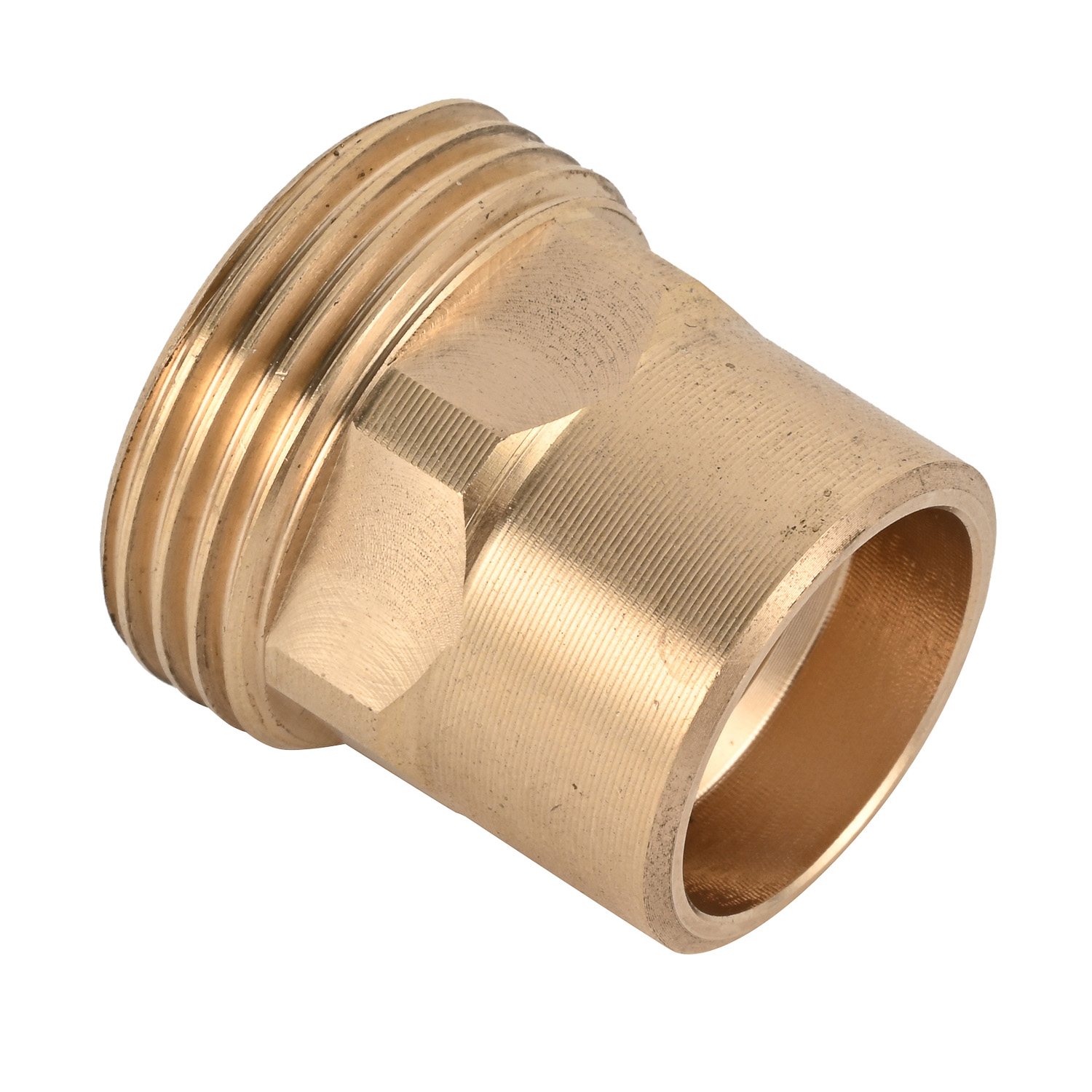

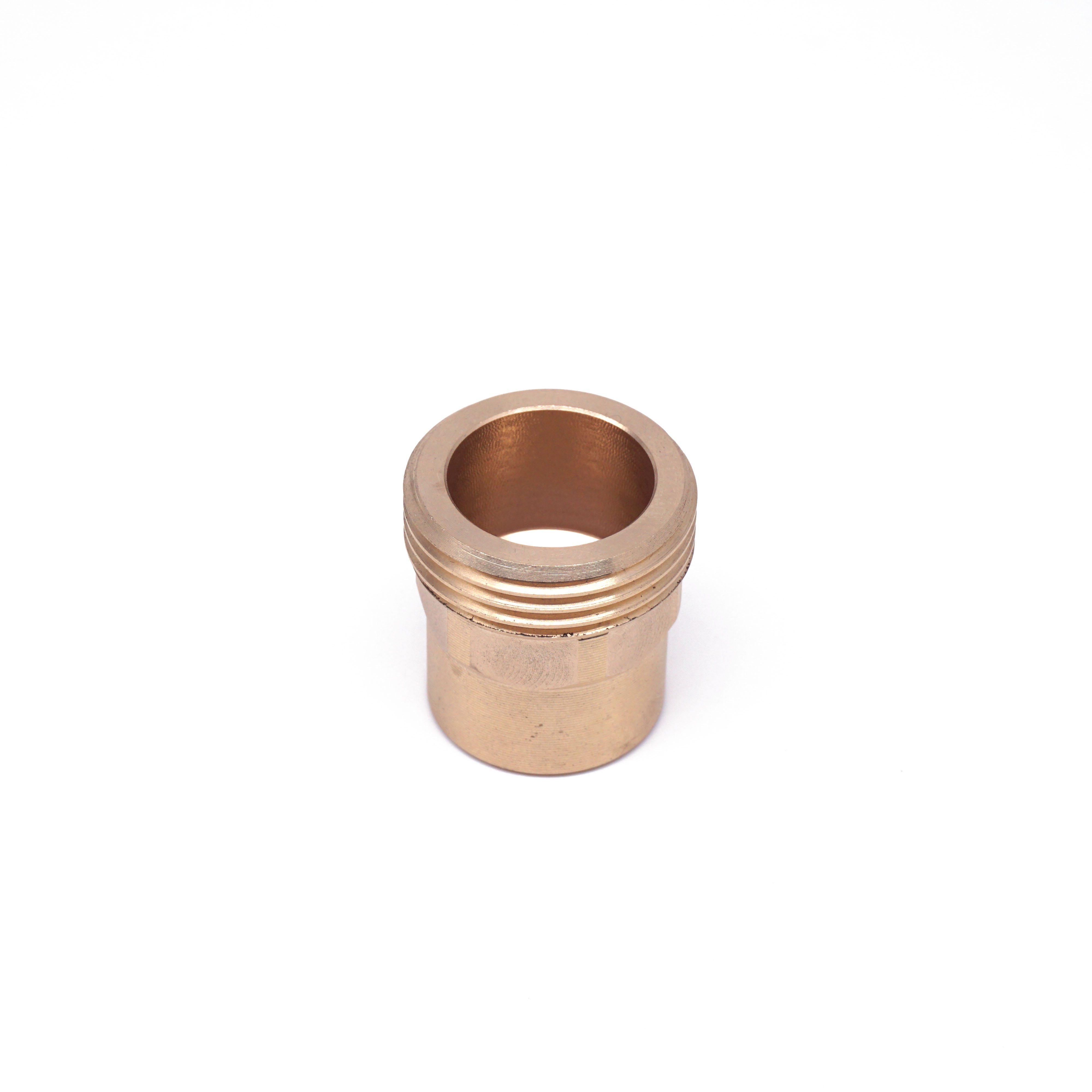

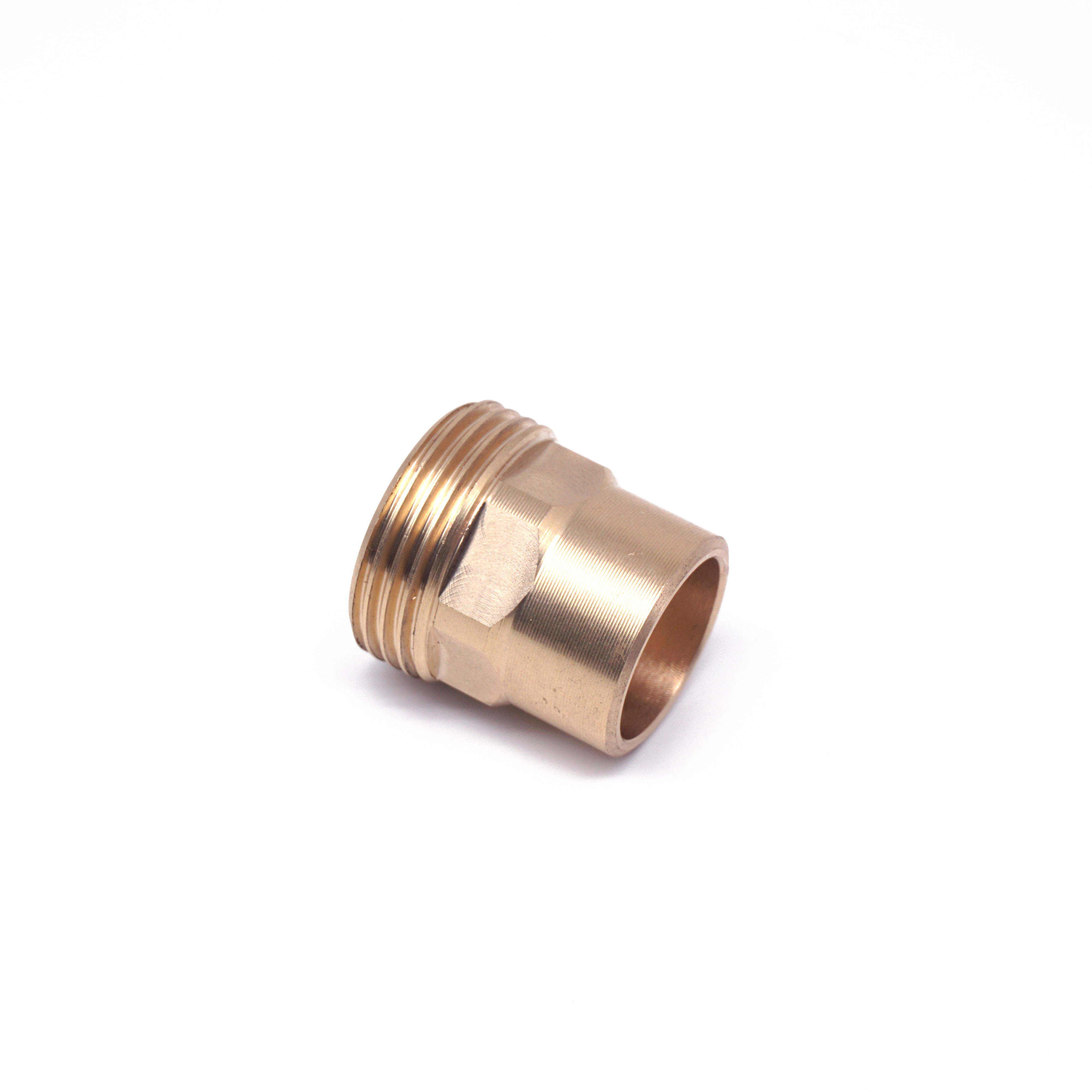

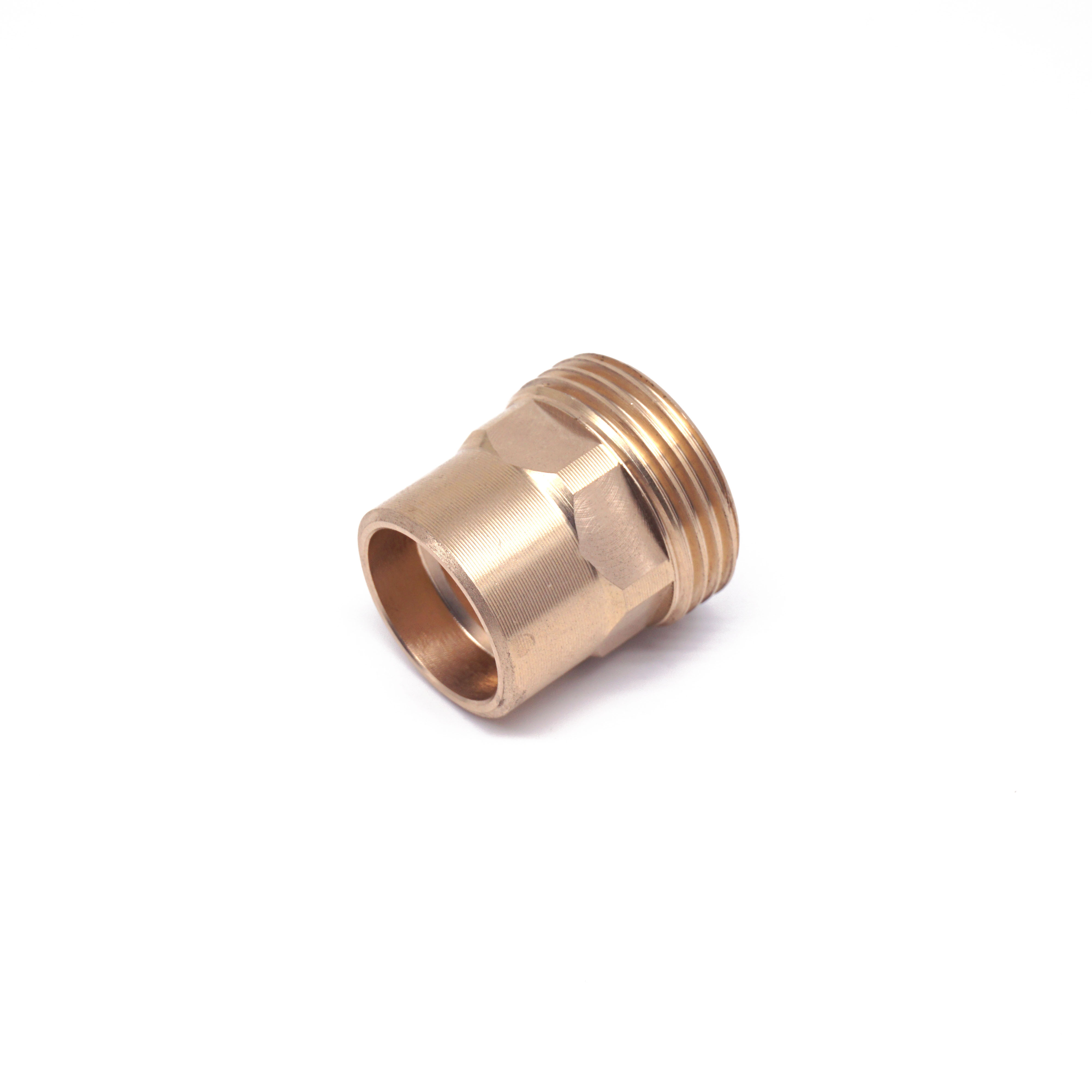

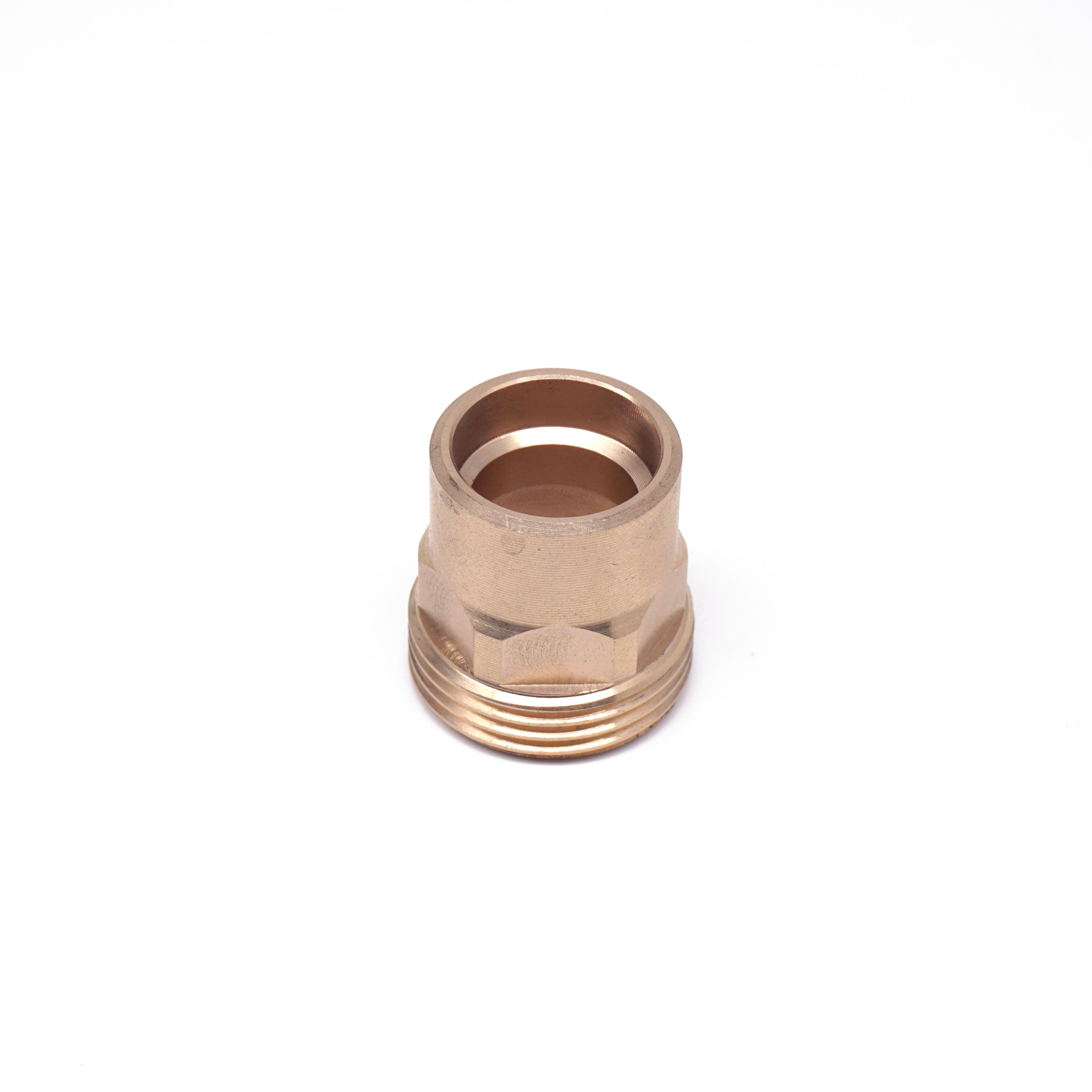

| Basic Product Info | Product Name | CNC Turned Precision Fitting | Custom Non-Standard Connecting Fitting |
| Execution Standard | ISO Industrial Standard | Customer Custom Non-Standard | |
| Material & Surface | Raw Material | 304 Stainless Steel | 316/316L SS, Brass, Carbon Steel, Aluminum |
| Surface Finish | Natural Machined | Plating, Passivation, Polishing, Anodizing | |
| Machining Data | Process Type | CNC Precision Turning | CNC Turning + Milling Combined |
| Machining Tolerance | ±0.005mm | ±0.001mm to ±0.01mm | |
| Performance Data | Working Temperature | -45℃ to 240℃ | Adjustable by Material Type |
| Pressure Rating | Medium Pressure | High Pressure Custom Available |
Client Profile：Well-known European hydraulic equipment manufacturer, focusing on heavy machinery hydraulic systems.
Client Challenges: Standard fittings had poor precision and weak corrosion resistance, causing frequent pipeline leakage and equipment shutdown.
Our Solution: Custom 316L stainless steel fittings, tolerance ±0.003mm, passivation surface, fully matched customer 2D drawings.
Project Outcome: Solved leakage completely, improved equipment stability by 90%, customer signed long-term annual contract.
Application Scenario: High-pressure hydraulic pipelines, heavy industrial machinery, outdoor corrosive environment.
Ultra-High Precision Tolerance: Processed by high-precision CNC turning equipment, with tight tolerance control, ensuring perfect assembly fit, no gaps or looseness, and effectively avoiding connection leakage and assembly errors.
Full Non-Standard Customization: Support personalized customization of materials, sizes, threads, surface treatments and structures, accept small-batch prototype production and large-scale mass production, covering diverse special project demands.
Excellent Environmental Resistance: Selected high-strength industrial metal materials, with outstanding rust resistance, wear resistance, high and low temperature resistance and pressure resistance, adapting to complex and harsh working conditions.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
