| Parameter Item | Standard Details & Range | Customization Support |
|---|---|---|

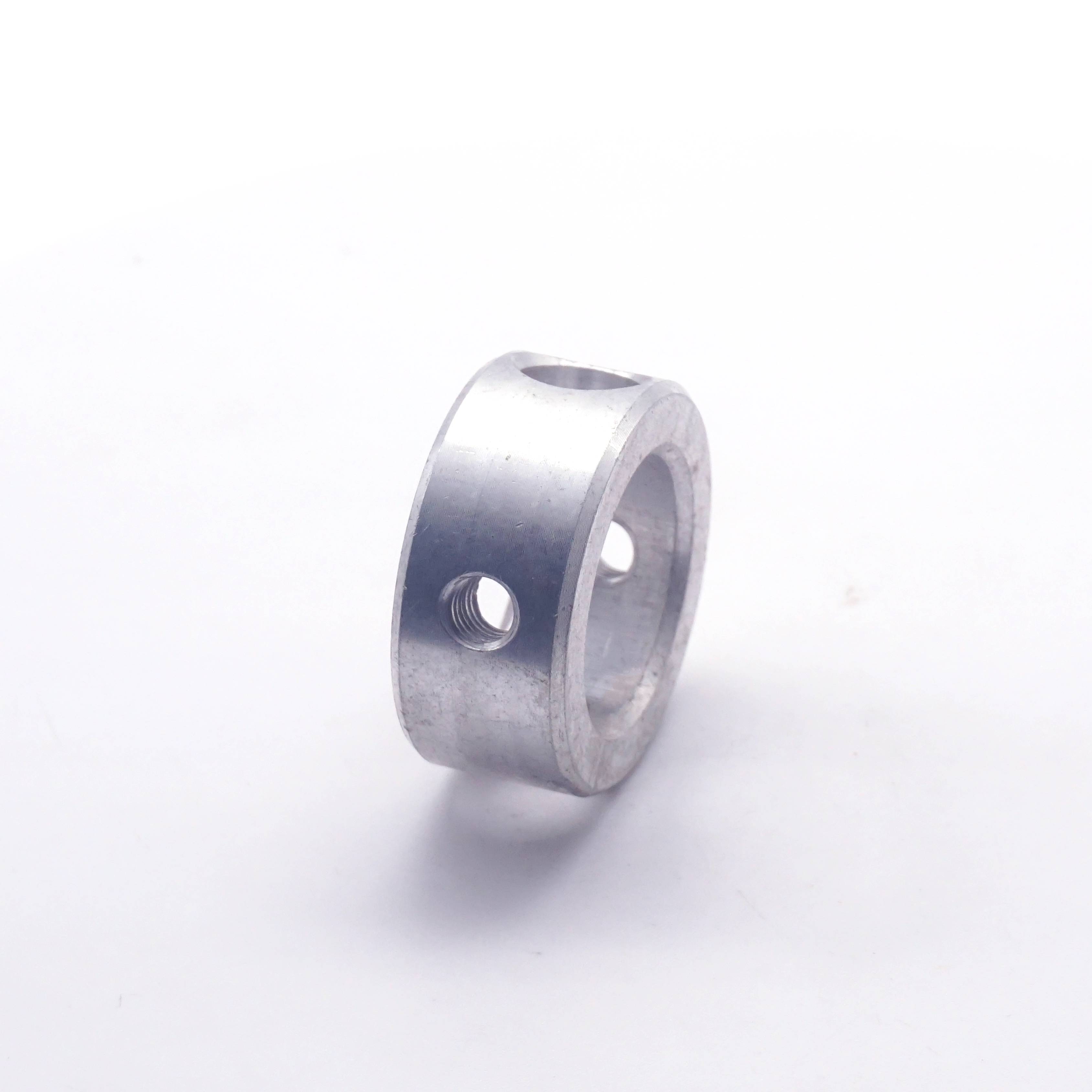

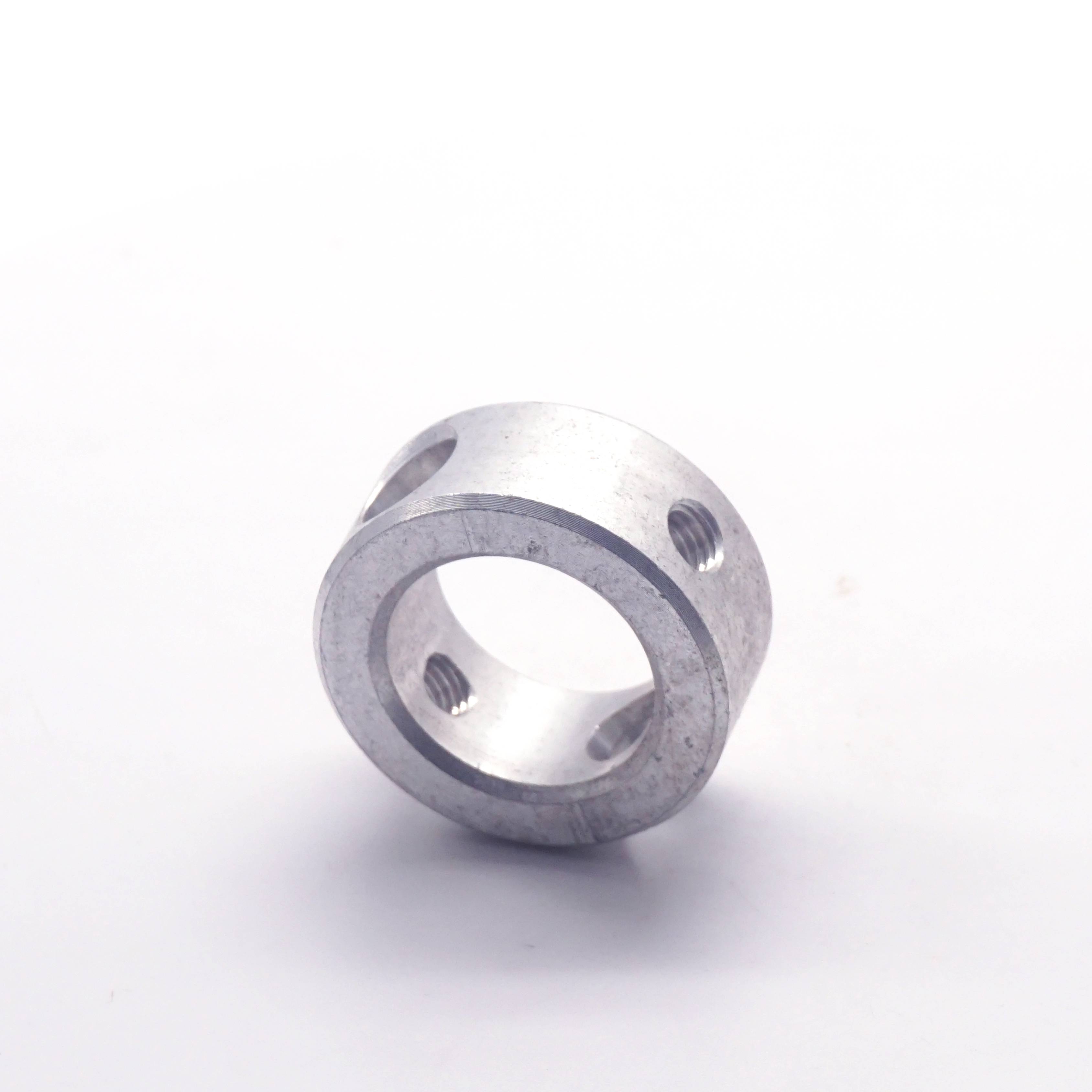

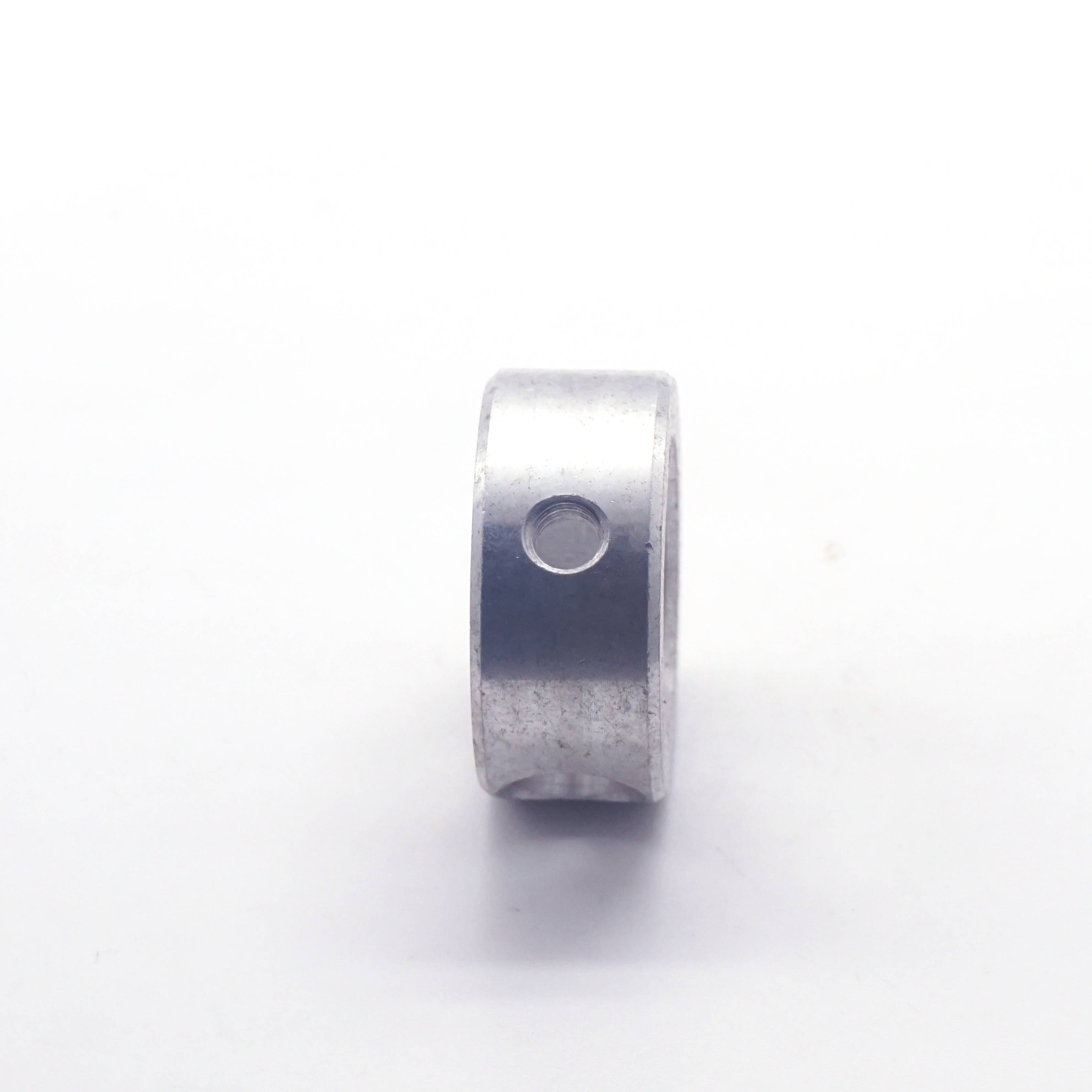

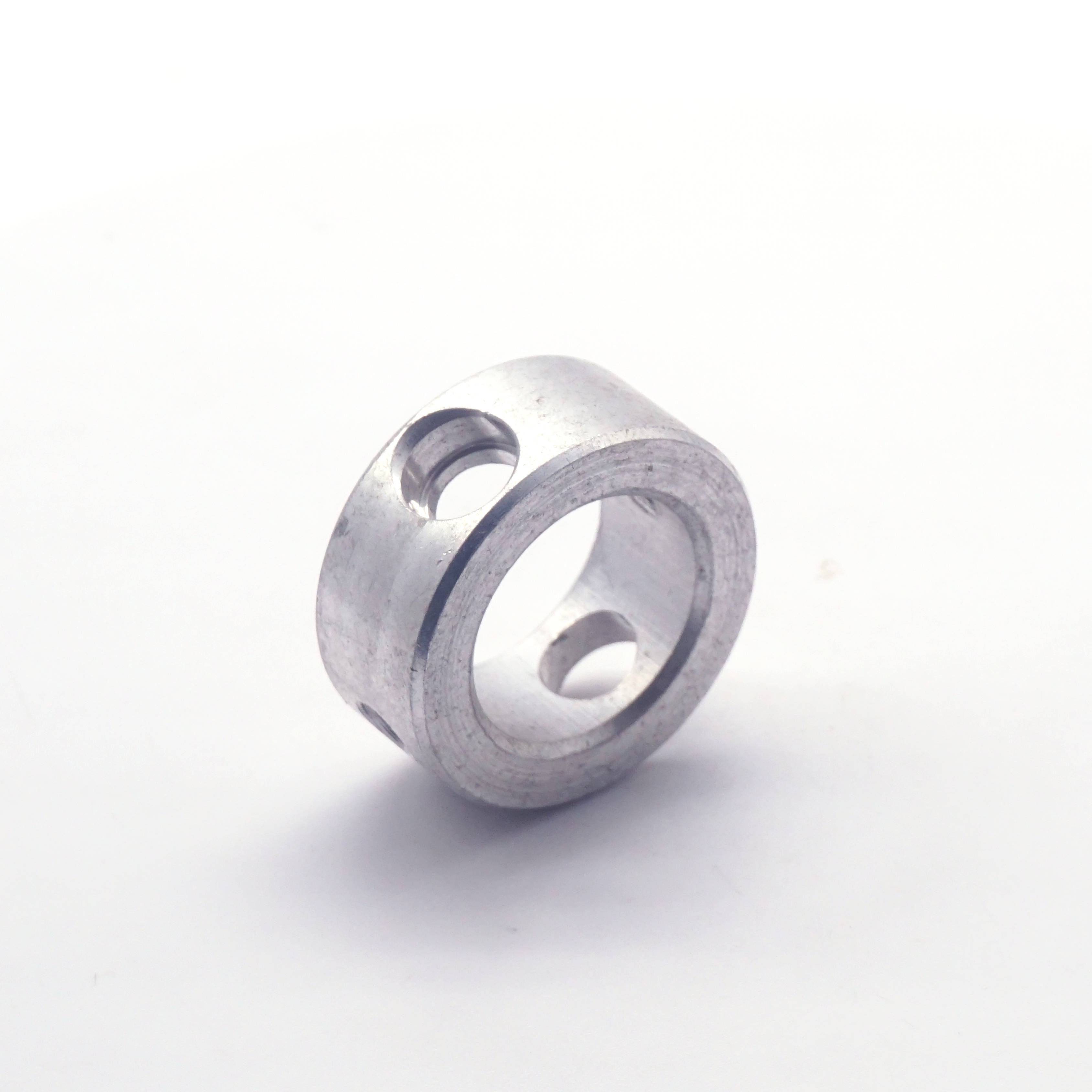

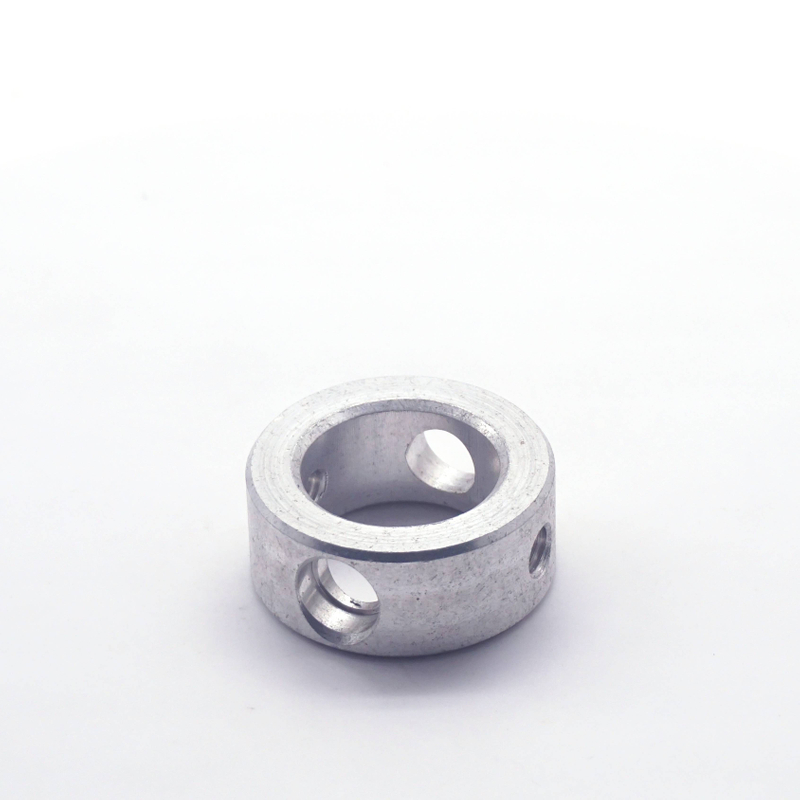

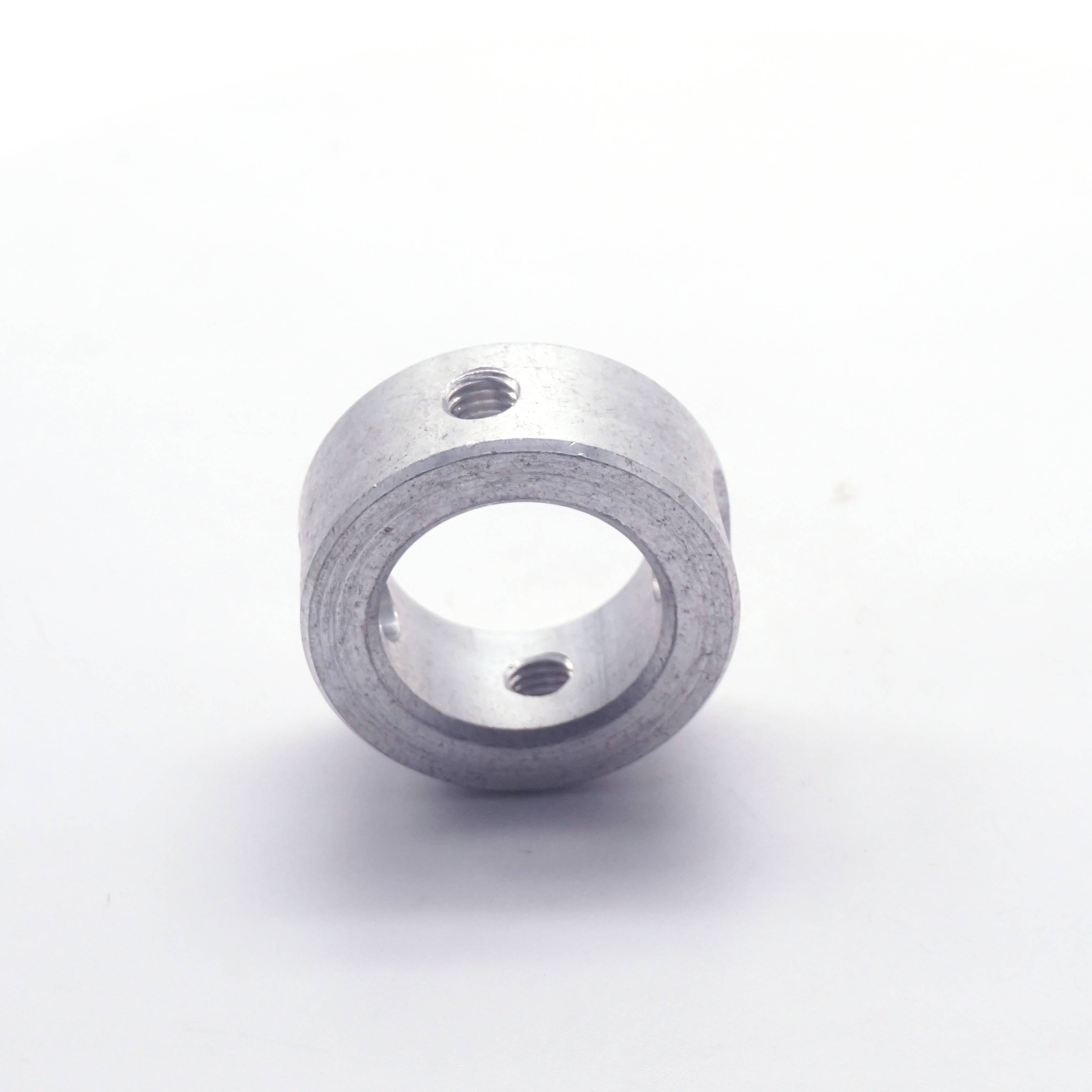

| Product Name | Custom CNC Turning Parts – Shaft Collar | Adjustable as per client request |
| Material | SS304/316, Carbon Steel, Aluminum | Custom special materials accepted |
| Dimensional Tolerance | ±0.002mm to ±0.01mm | Tighter precision available |
| Size Range | Inner bore 5mm-50mm, Outer diameter 10mm-100mm | Fully custom sizes and geometries |
| Surface Treatment | Passivation, Electroplating, Polishing | Custom finishes supported |
| Hardness (if applicable) | HRC 20-45 (depending on material) | Custom hardness treatments available |
| Processing Technology | CNC Turning, Drilling, Boring | Non-standard machining processes |
| MOQ | 20pcs - 50,000pcs | Flexible MOQ for prototype orders |
| Production Lead Time | 7-14 Working Days | Expedited service for urgent needs |
3.Application Cases
Case 1: Aerospace Satellite Shaft Locking Collar
A European aerospace supplier ordered lightweight aluminum CNC turning parts for satellite attitude control systems. The precision-machined collars provided stable shaft positioning under extreme temperature fluctuations, ensuring reliable signal transmission and meeting strict aerospace quality standards.
Case 2: Food Processing Sanitary Shaft Collar
A Japanese food processing plant commissioned 316 stainless steel CNC turned collars for conveyor systems. The electropolished, crevice-free surface met food-grade hygiene requirements, eliminating bacterial growth risks and complying with JIS food safety regulations.
Case 3: Optical Instrument Precision Positioning Collar
A German optical equipment manufacturer commissioned micro-tolerance CNC turning parts for microscope focusing mechanisms. The tight dimensional tolerances ensured precise shaft alignment, improving imaging clarity by 30% and meeting ISO 10110 optical component standards.
Shaft Locking & Positioning: Side mounting holes for set screws enable secure locking onto shafts, preventing axial slippage and providing reliable mechanical positioning.
Custom Ring Geometry: Non-standard ring thickness and hole configurations allow integration into complex assemblies without modification.
Corrosion & Wear Resistance: High-grade materials and surface treatments extend service life in harsh industrial environments, such as chemical plants or marine equipment.
Versatile Application: Suitable for use in automation lines, robotics, medical devices and automotive assemblies, supporting diverse shaft connection and positioning needs.
Cost-Effective Customization: We support small-batch prototyping and large-scale production with competitive pricing, reducing lead times for custom shaft components.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
