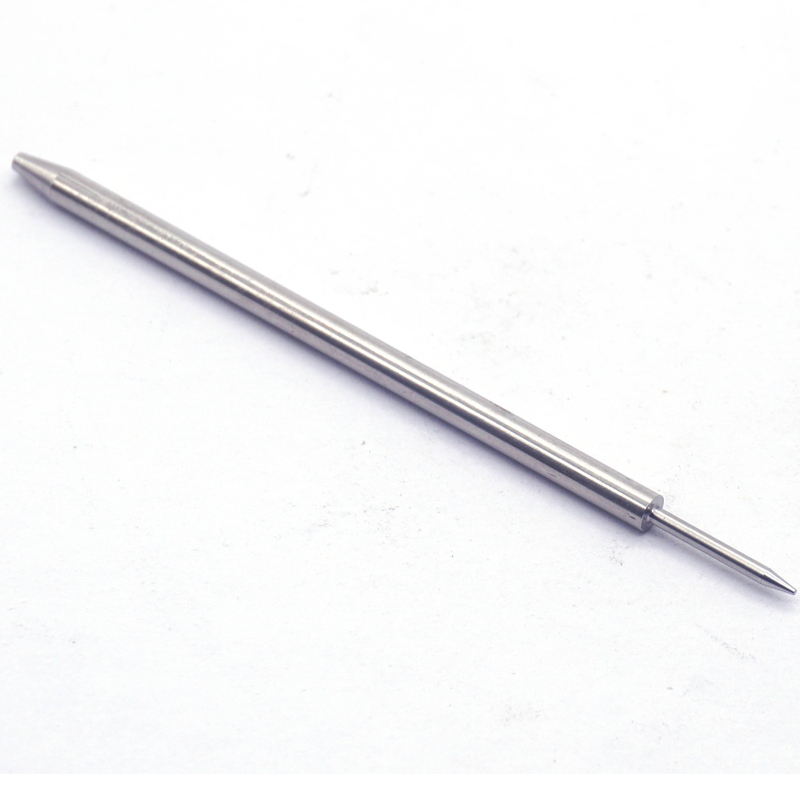

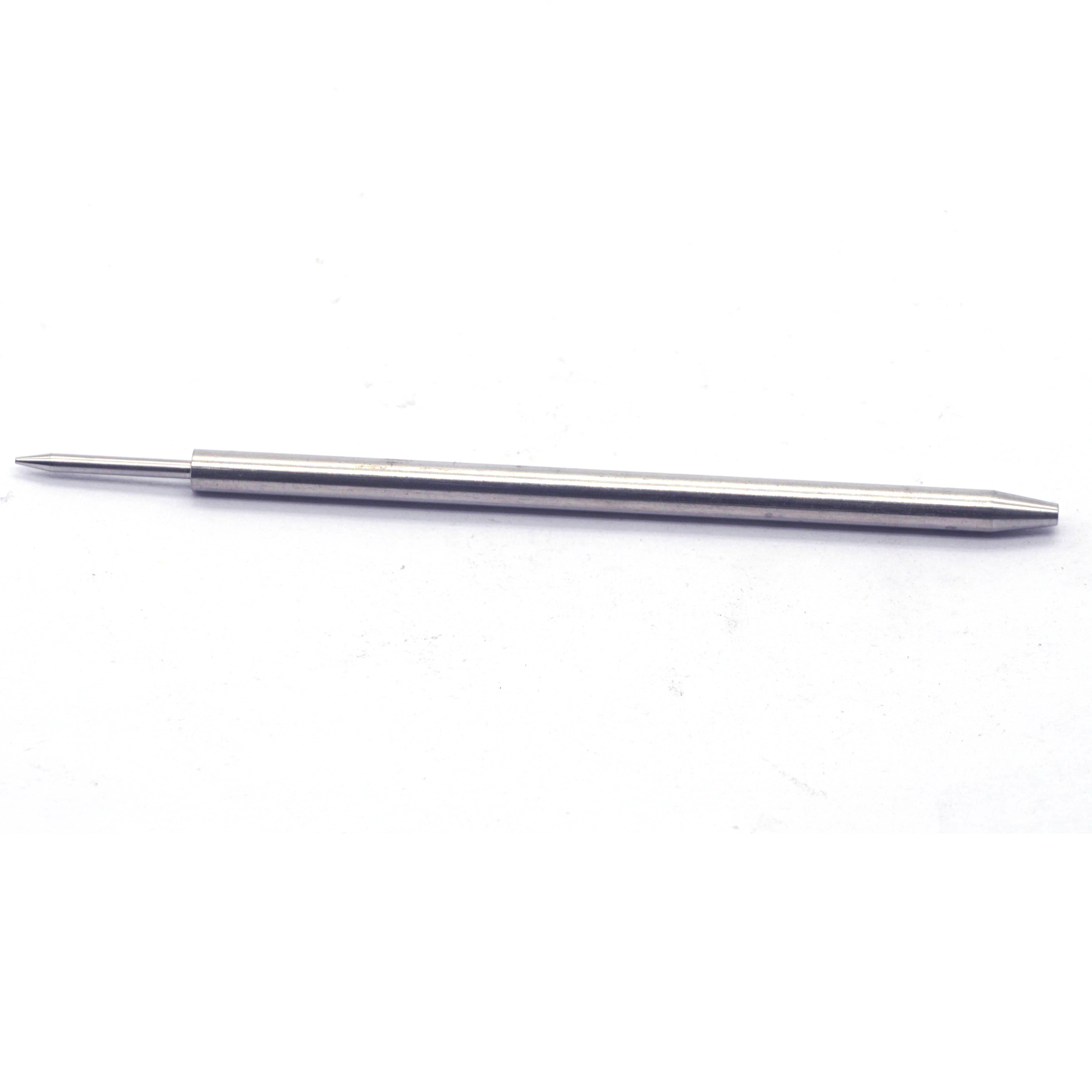

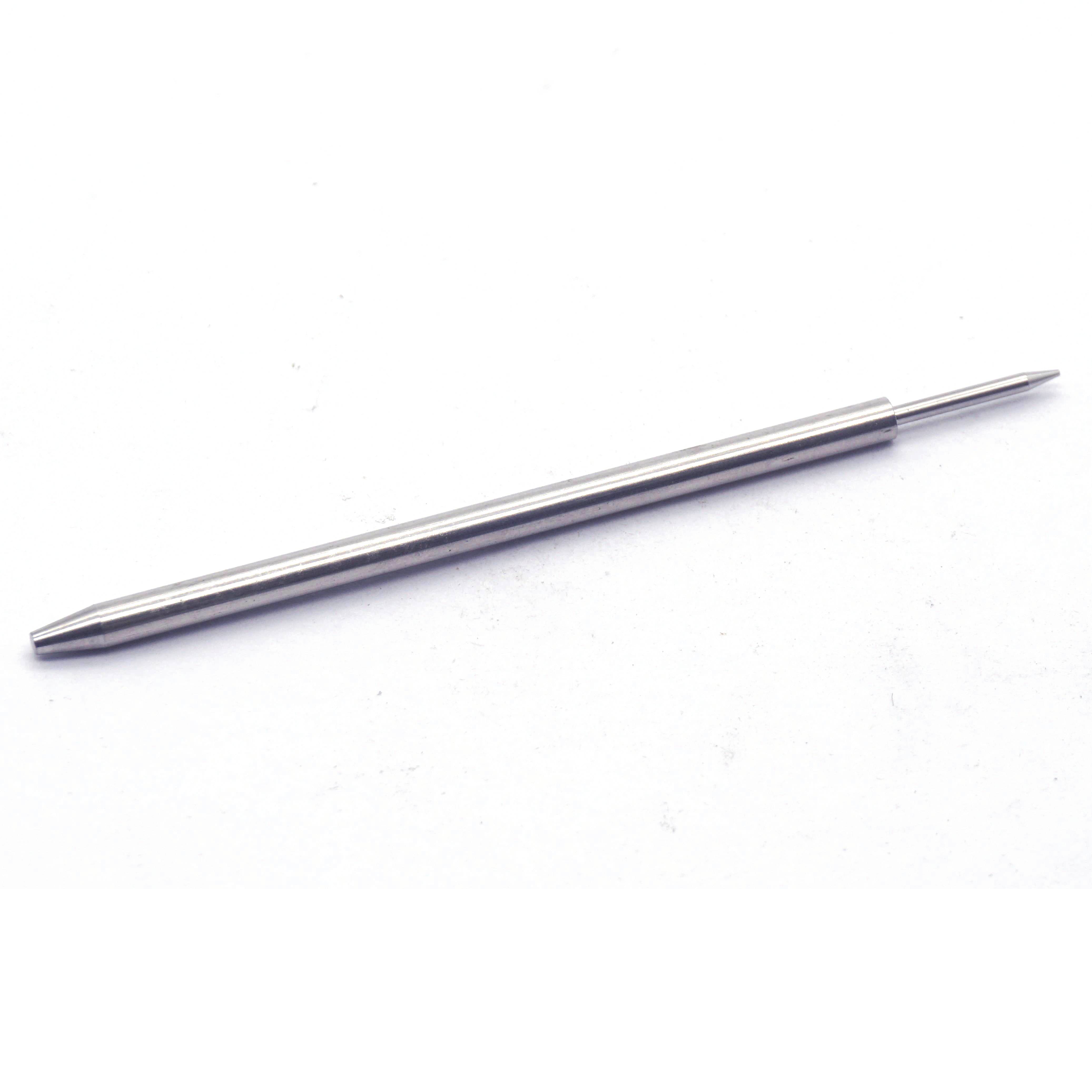

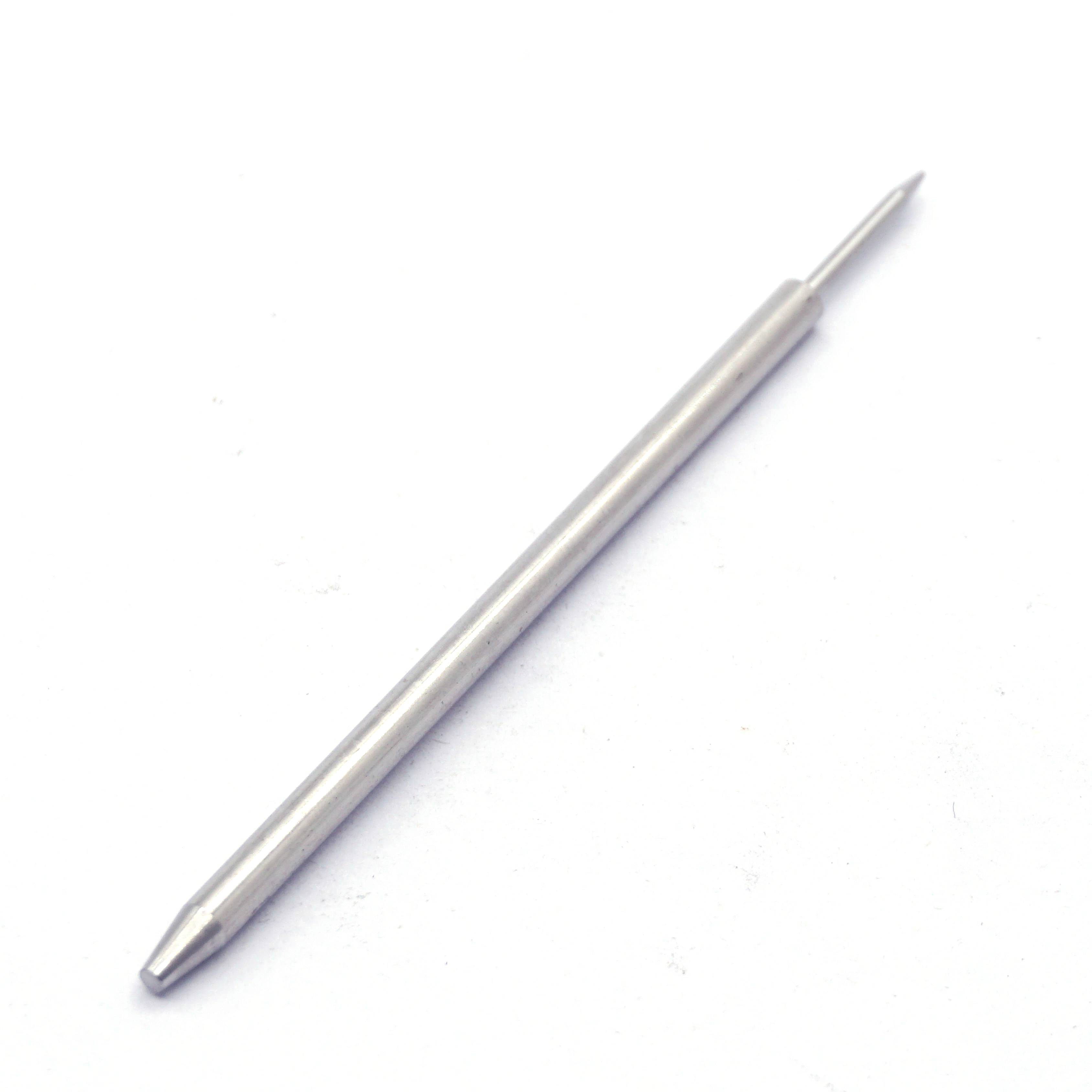

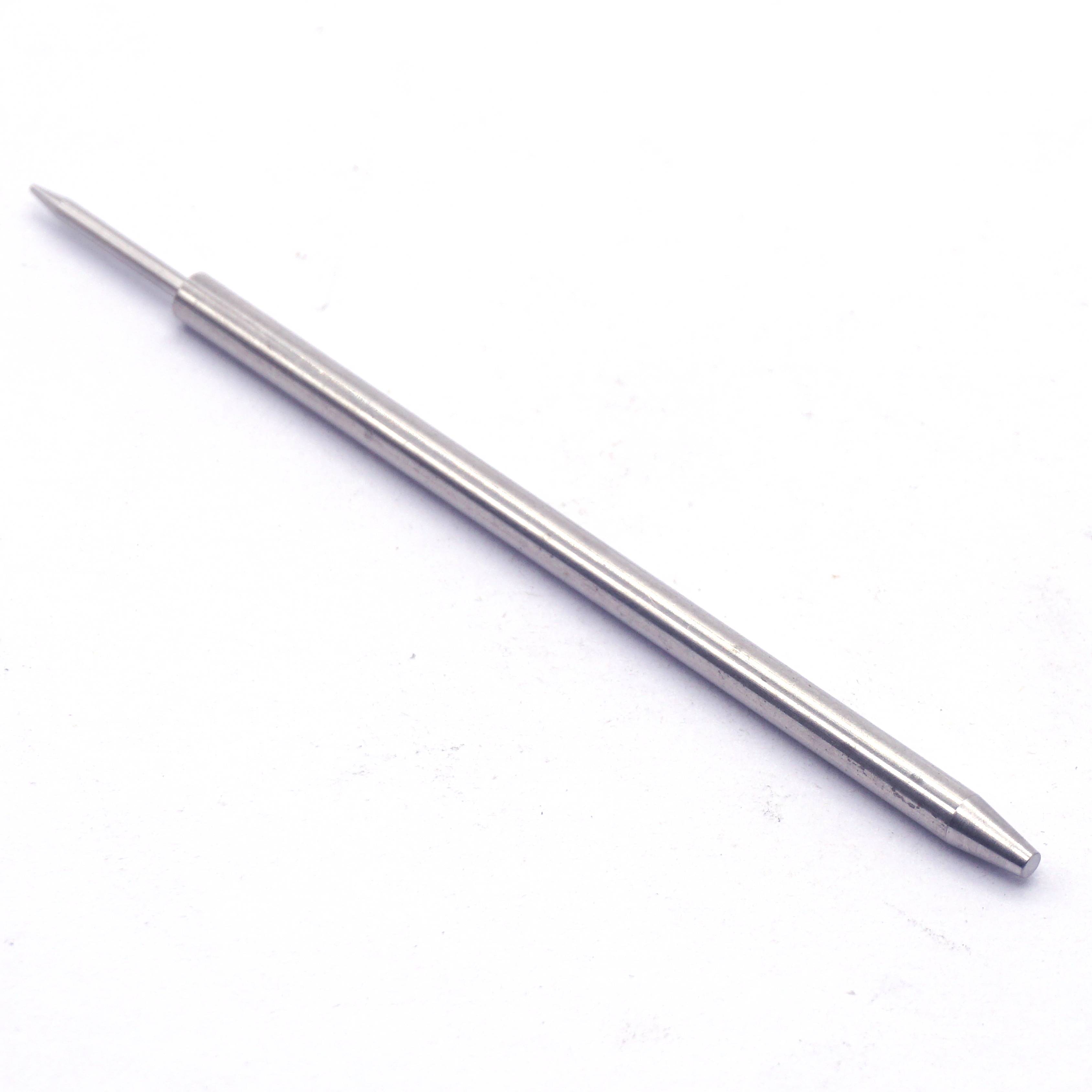

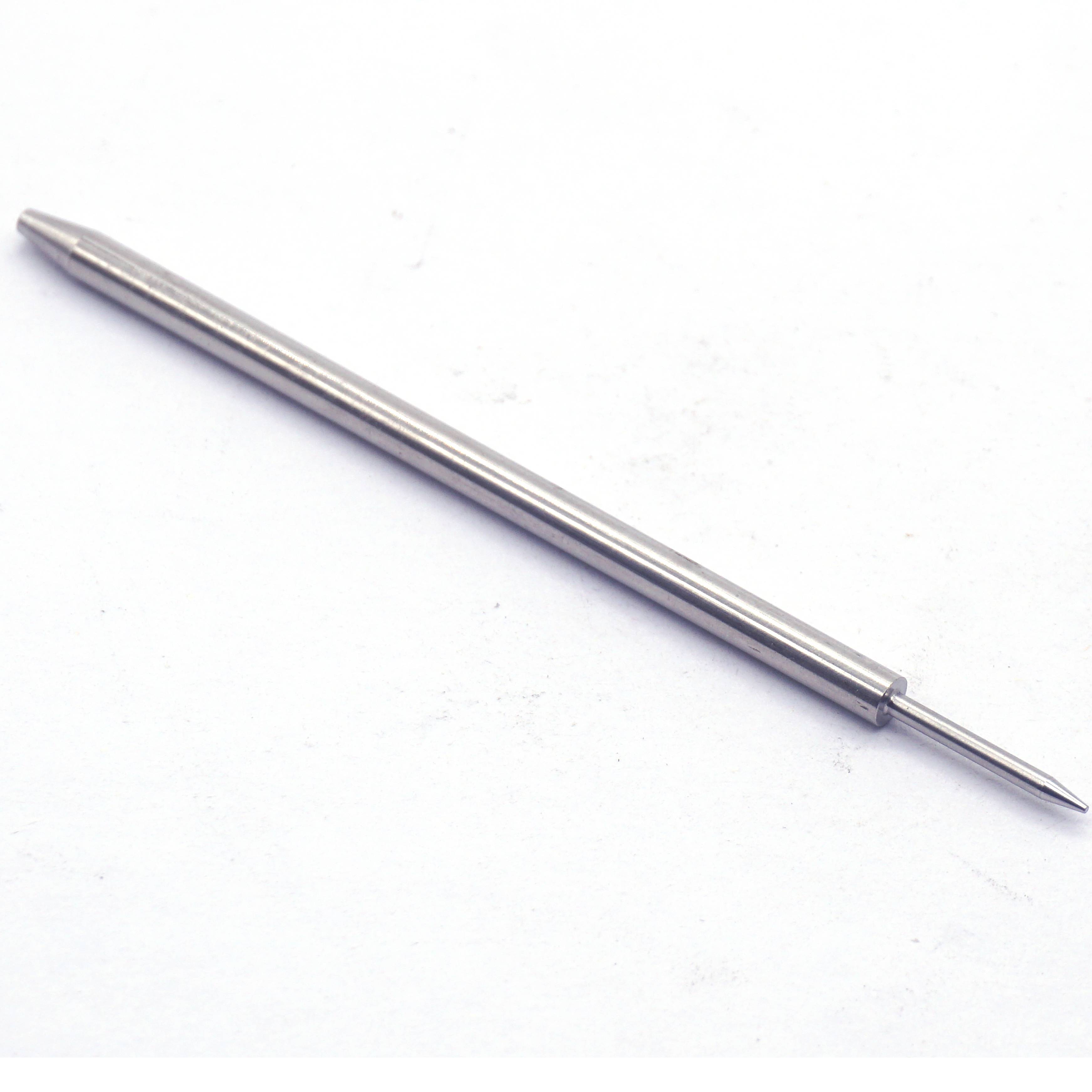

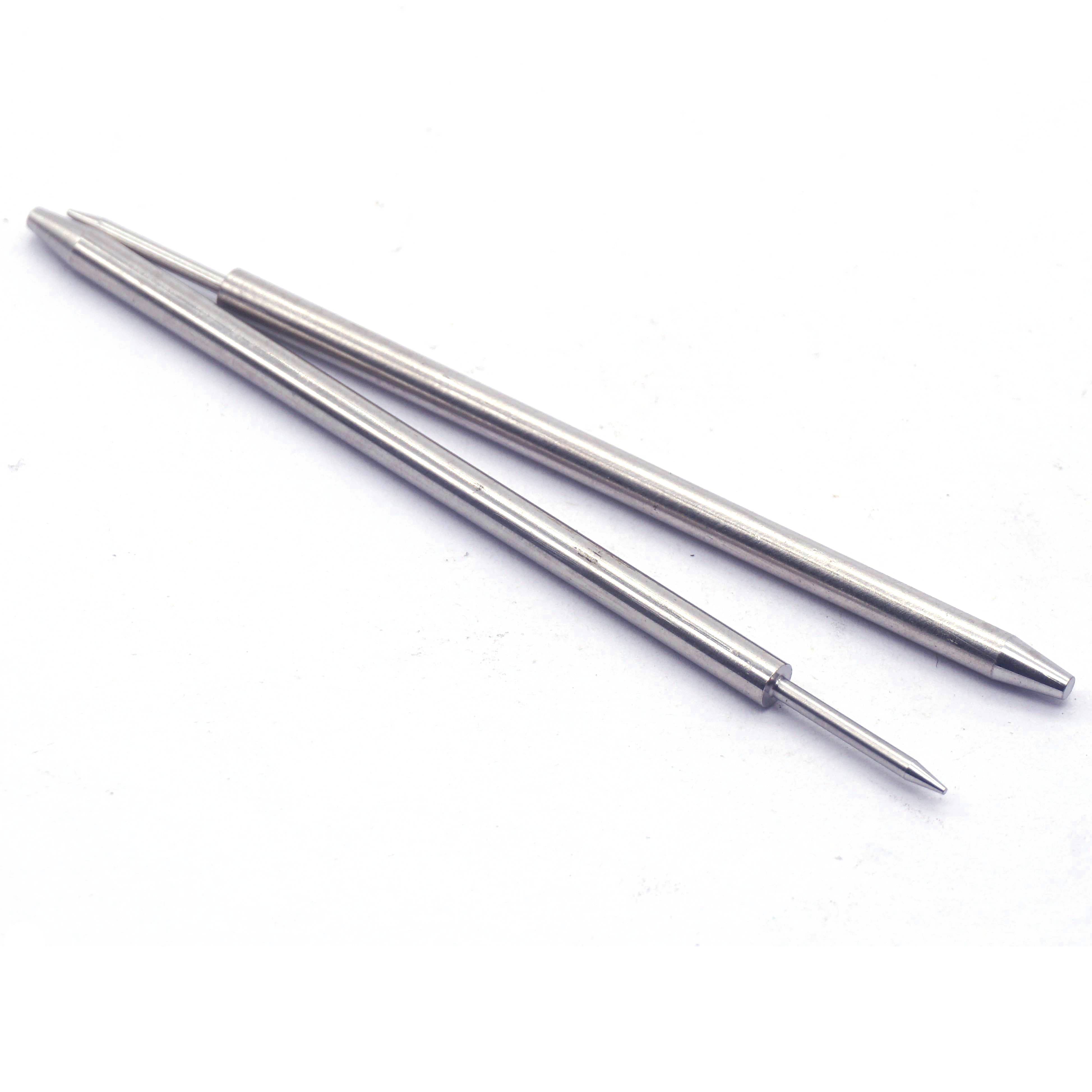

Custom Precision Micro Pin for Industrial Applications

Brand: NHY

Material: Available in stainless steel, brass, and alloy steel for strength and corrosion resistance.
Surface: Options include passivation, zinc plating, and black oxide for enhanced durability and aesthetics.
Size: Custom diameters from 0.5mm to 5mm and lengths from 2mm to 50mm to fit your design needs.
Packaging: Securely packed in anti-static bags and cartons to prevent damage during transit.

Quantity:
Availability:





Inquire Add to Basket

Model:
NHY-F0081
Brand:
NHY

Product Description

High-Strength Micro Pin with Corrosion-Resistant Surface Finishes

1.Product Overview

Our micro pin is a precision-engineered fastener designed for compact assemblies. Manufactured via CNC turning, it delivers tight tolerances and consistent quality for high-demand industries. Available in custom materials and finishes, it meets the most rigorous performance requirements for medical, automotive, and electronic applications.

2.Specification Parameters

Parameter	Details
Material	Stainless Steel 303/304/316, Brass, Alloy Steel
Diameter Range	0.5mm – 5mm
Length Range	2mm – 50mm
Tolerance	±0.005mm – ±0.01mm
Surface Finish	Passivation, Zinc Plating, Black Oxide
Type	Dowel Pin, Locking Pin, Hinge Pin, Knurled Pin
Lead Time	7–15 days for samples, 15–30 days for bulk orders

3.Application Cases

Medical Device: Used in insulin pumps to secure miniature components with zero play.

Automotive Sensor: Integrated into engine sensors for reliable vibration-resistant connection.

Wearable Tech: Applied in smartwatches as a hinge pin for slim, durable band assemblies.

Aerospace Component: Used in satellite mechanisms to withstand extreme temperature fluctuations.

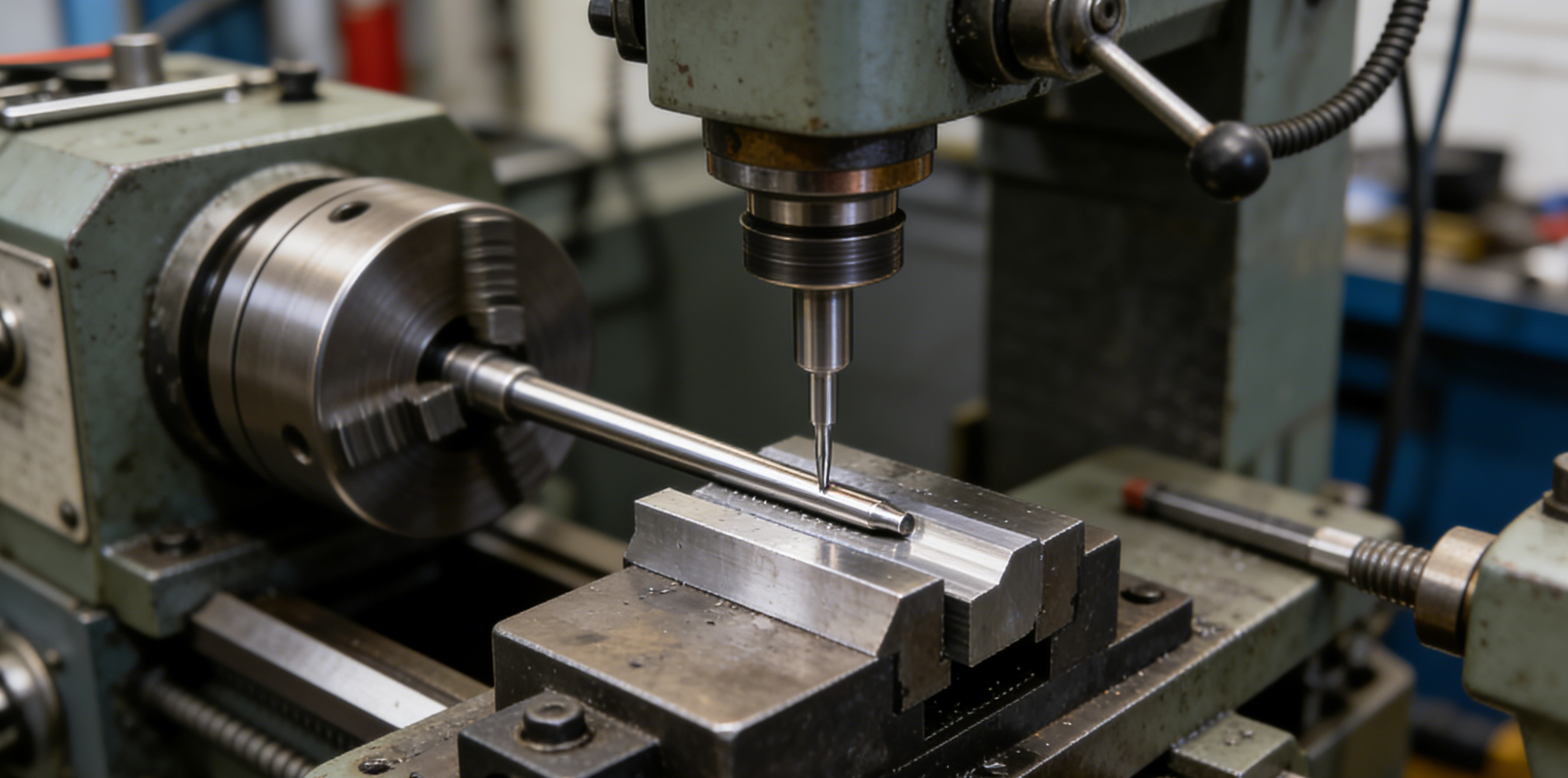

4.The Scene Diagram

5.Product Features & Core Advantages

Ultra-Precision: Tight tolerances up to ±0.005mm ensure perfect fit in miniaturized assemblies.
Customizable: Non-standard designs tailored to your specific application requirements.
Durable Materials: Resistant to wear, corrosion, and high temperatures for long service life.
Cost-Effective: CNC production enables high-volume manufacturing at competitive prices.
Versatile: Compatible with medical, automotive, and electronic industries.

6.Quality Assurance

100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001

ISO9001：2015
