NHY-F0031
NHY
Our custom - made fittings are high - precision components crafted to provide reliable and secure connections in a wide range of industrial systems. Combining advanced machining techniques with top - quality materials, these fittings are designed to meet the strictest standards of performance, durability, and compatibility. Whether used in high - pressure hydraulic systems, heavy - duty machinery, or precision - oriented aerospace equipment, our fittings ensure seamless integration and long - term functionality, reducing maintenance needs and enhancing overall operational efficiency.
| Parameter | Details |
| Material | Stainless Steel 304, 316; Alloy Steel 4140; Brass C36000 |
| Length | 10mm - 200mm (Customizable) |
| Diameter | 5mm - 50mm (Customizable) |
| Thread Type | Metric (M5 - M30), UNC, UNF, BSP |
| Thread Tolerance | 6g / 6H |
| Surface Finish | Galvanized, Polished, Anodized, Powder Coated |
| Max Working Pressure | 5000 psi (34.5 MPa) |
| Max Working Temperature | -40°C to 200°C |
| Tolerance Range | ±0.01mm (Critical Dimensions) |
| Certification | ISO 9001, CE, RoHS |
Automotive Manufacturing Plant: A leading automotive manufacturer was facing frequent leaks in their engine cooling system due to ill - fitting components. Our custom - designed stainless steel fittings, with precise threading and corrosion - resistant properties, were installed. This resulted in a 90% reduction in leaks, reducing production downtime by 15% and saving maintenance costs by $50,000 annually.4.More views of the Fitting

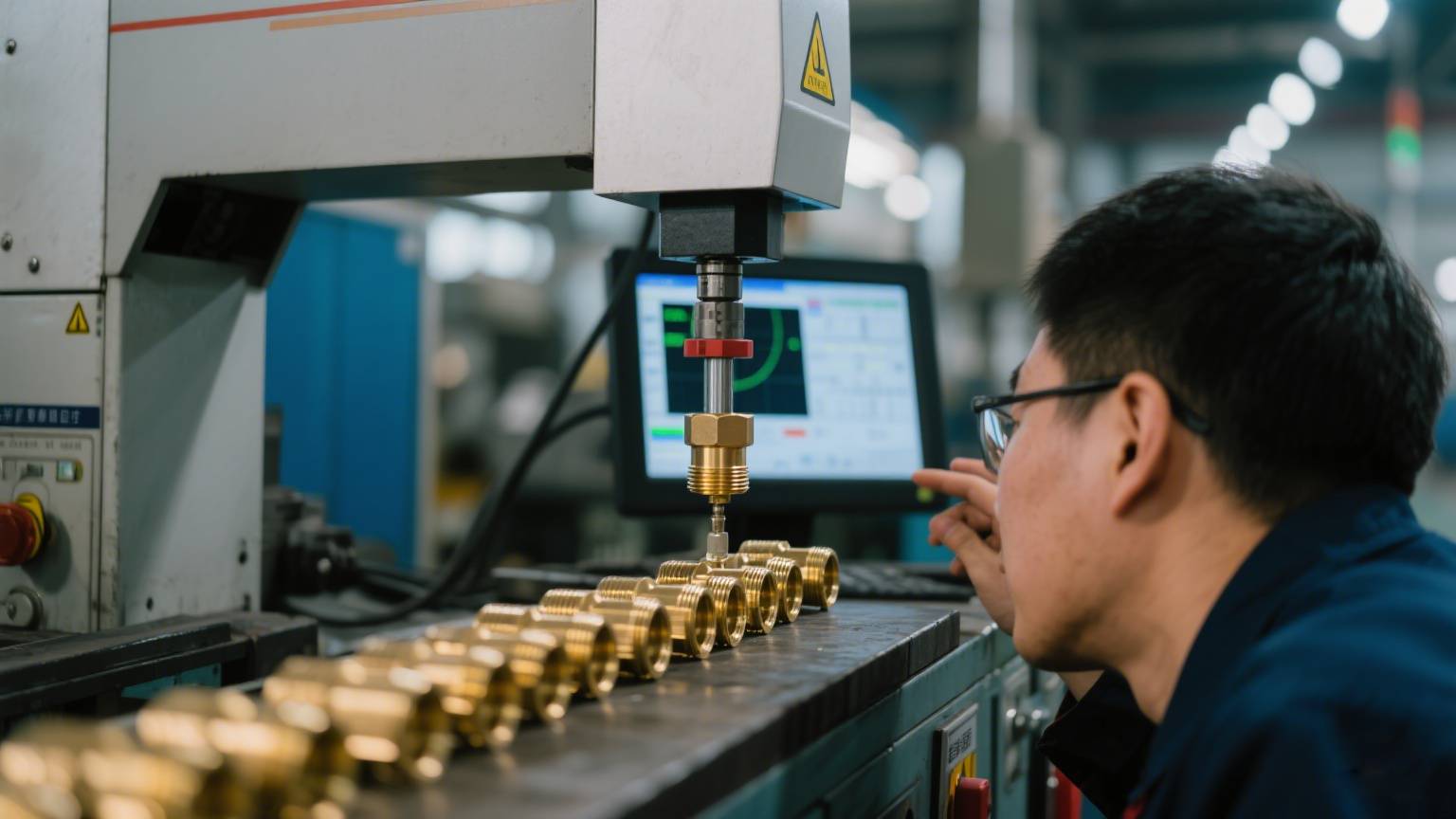

The connector is crafted with high-precision machining, ensuring tight contact between mating surfaces. This effectively distributes stress at the connection point, significantly reducing the risk of loosening or detachment. Whether in high-frequency vibration environments (such as mechanical transmission systems) or under heavy load conditions (like steel structure connections in construction), it maintains a stable connection, substantially enhancing the safety factor of the entire equipment or structure.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
