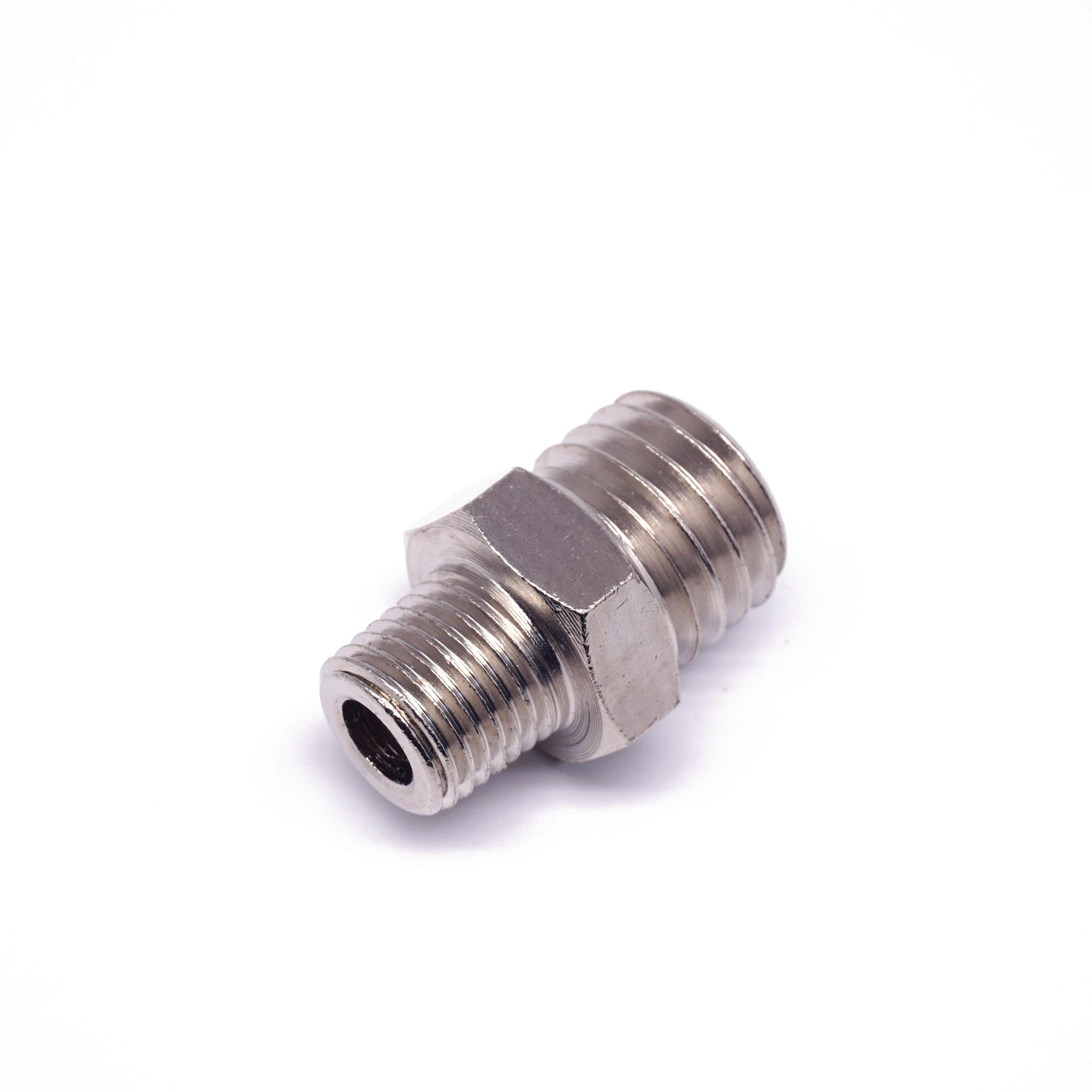

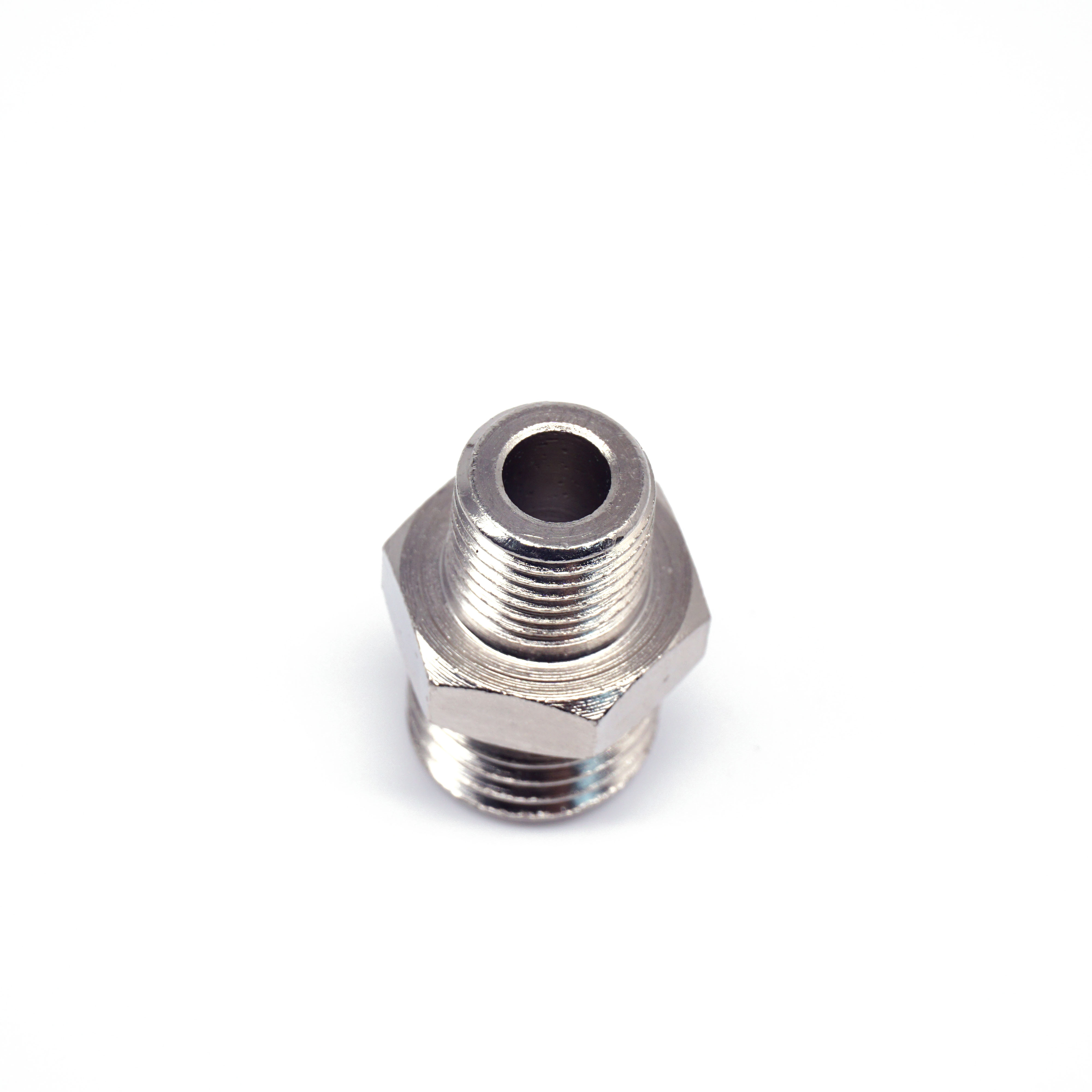

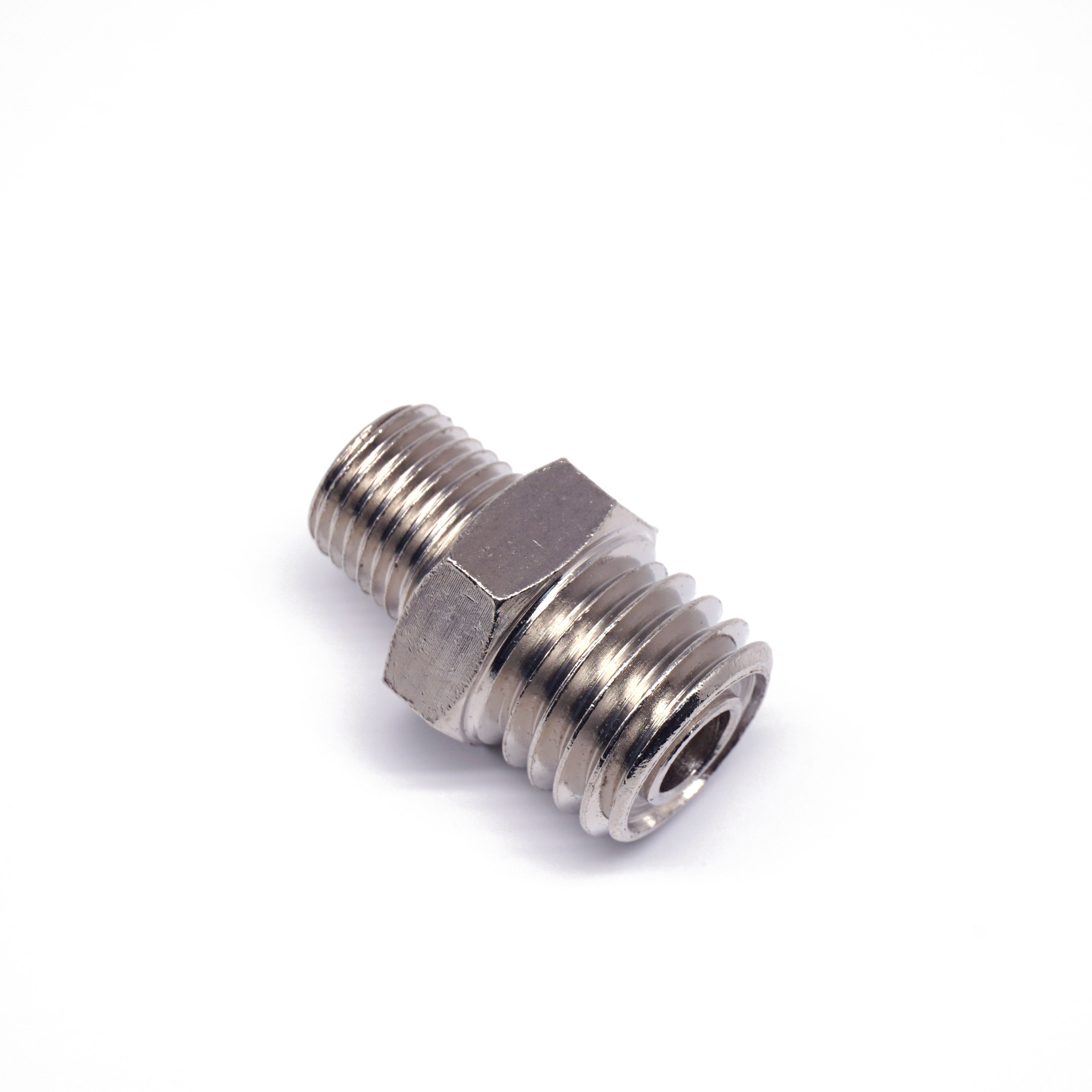

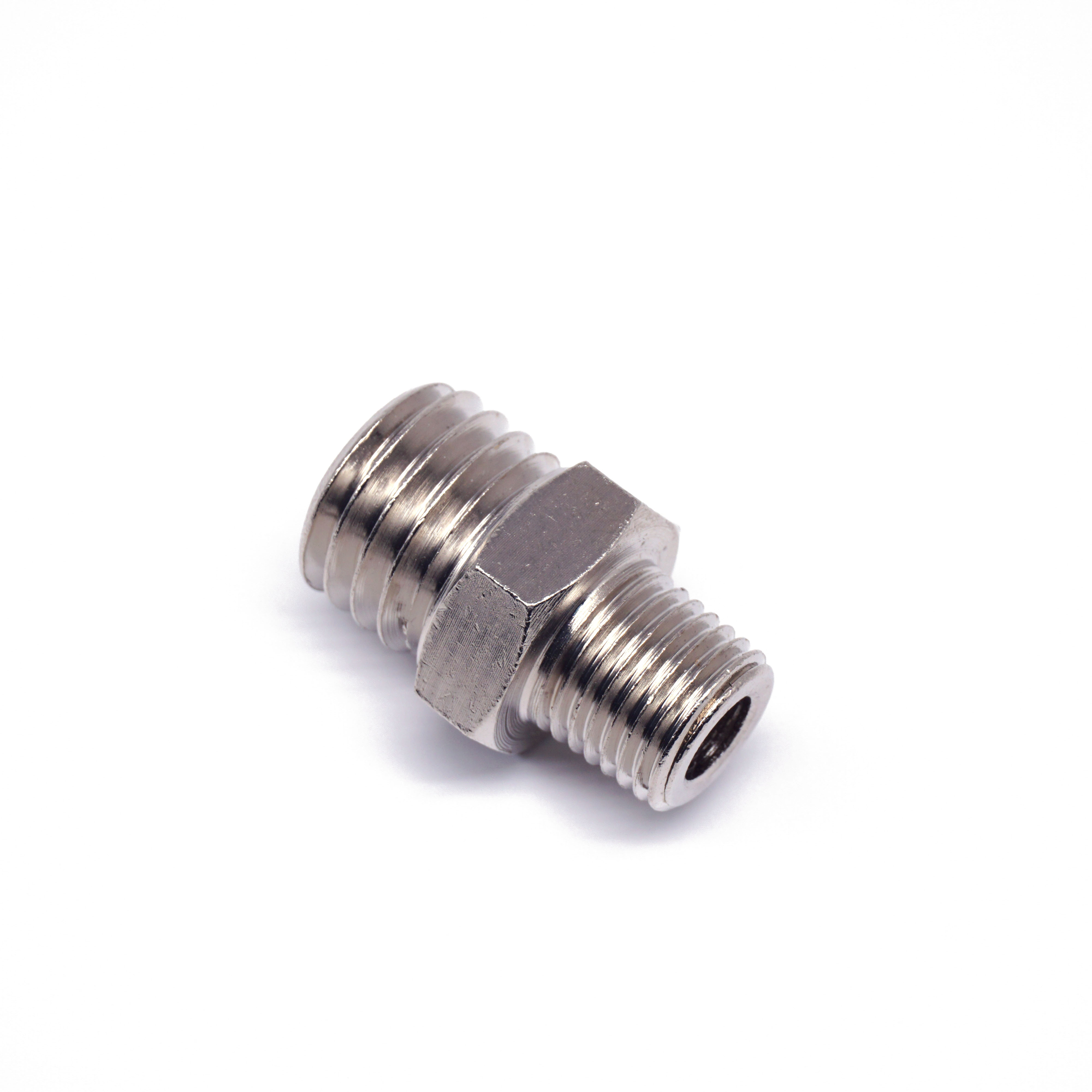

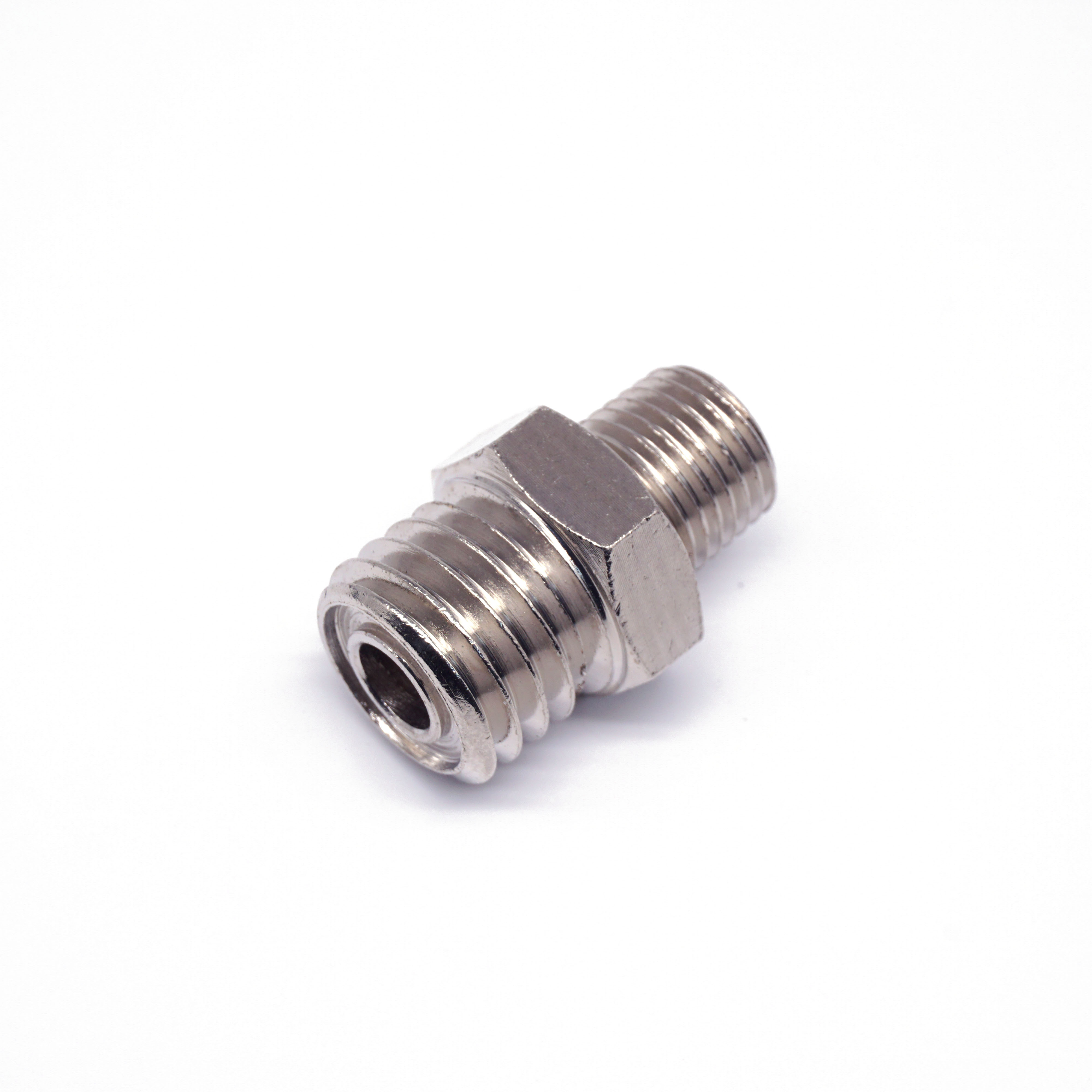

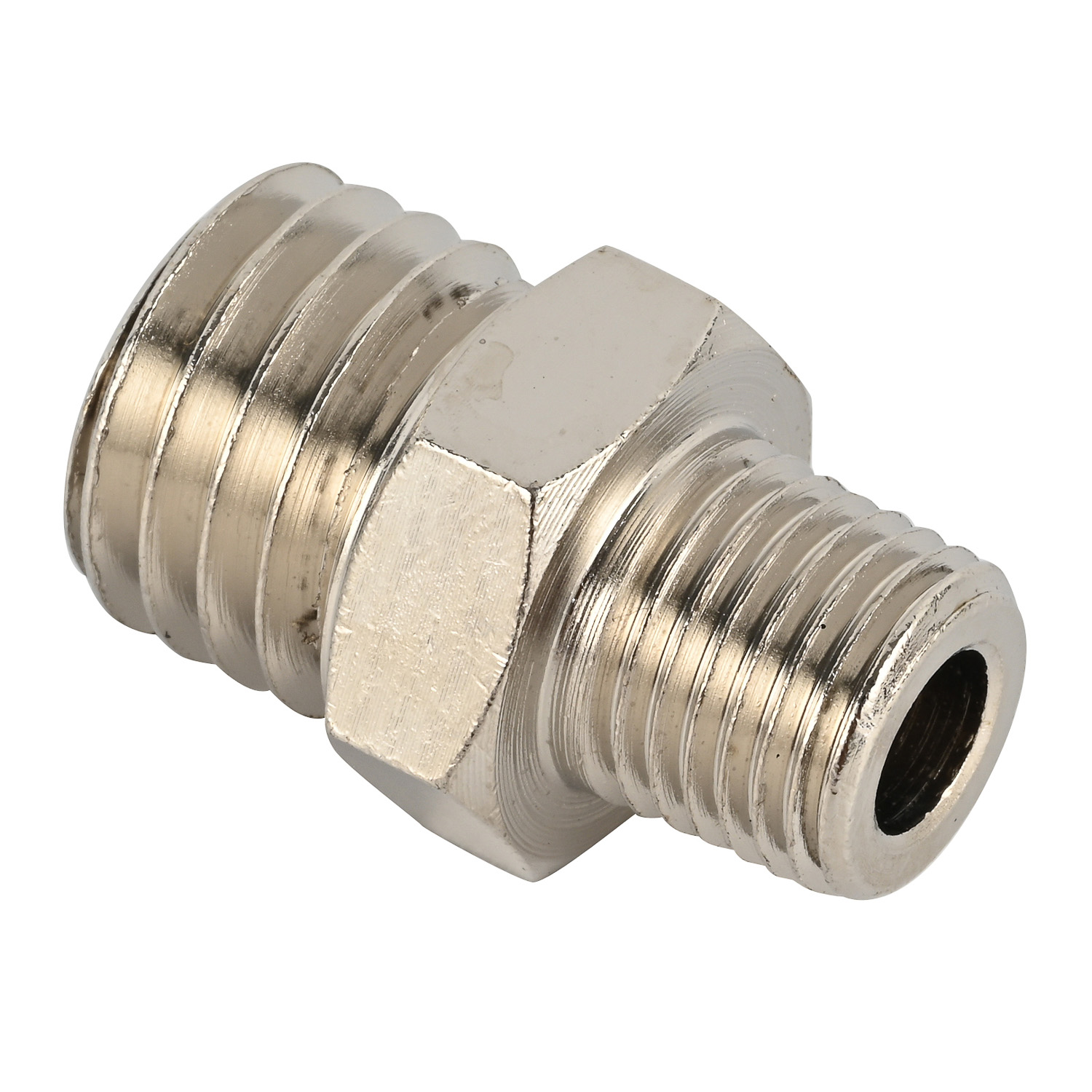

1.Product Overview

Our industrial joints are precision-manufactured components designed to connect, secure, and seal pipes, shafts, or equipment in diverse industrial settings. Combining high-strength materials (stainless steel, carbon steel, etc.), advanced surface treatment technologies, and ergonomic structural design, our joints deliver exceptional performance in terms of durability, leak resistance, and adaptability to harsh operating conditions (e.g., high temperature, high pressure, corrosive environments).

 2.Specification parameters

arameter Category	Specification Details	Unit	Tolerance
Dimensions	Outer Diameter	mm	±0.05
	Inner Diameter	mm	±0.03
	Length	mm	±0.10
Material	Base Material	-	AISI 316 Stainless Steel / Carbon Steel Q235
	Coating Material	-	Zinc Plating (8-12 μm) / Teflon Coating
Mechanical Performance	Tensile Strength	MPa	≥500
	Shear Strength	MPa	≥320
	Hardness (Rockwell)	HRC	25-30
Operating Conditions	Working Temperature Range	°C	-40 ~ +200
	Maximum Operating Pressure	MPa	10-15 (Depends on Model)
Connection Type	Thread Standard	-	ISO Metric Thread (M10-M30) / NPT Thread
	Sealing Method	-	O-Ring (NBR/EPDM) / Gasket Sealing

3.Application Cases

Case 1: Heavy-Duty Machinery Manufacturing (Automotive Assembly Line)

• Customer Requirement: Joints capable of withstanding high vibration (10-50 Hz) and frequent disassembly for maintenance, with a service life of ≥5 years.

• Solution Applied: Customized AISI 316 stainless steel joints with EPDM O-rings (for oil resistance) and anti-loosening thread design.

• Result: 0 failure rate in 3 years of operation; maintenance efficiency improved by 40% (due to easy disassembly).

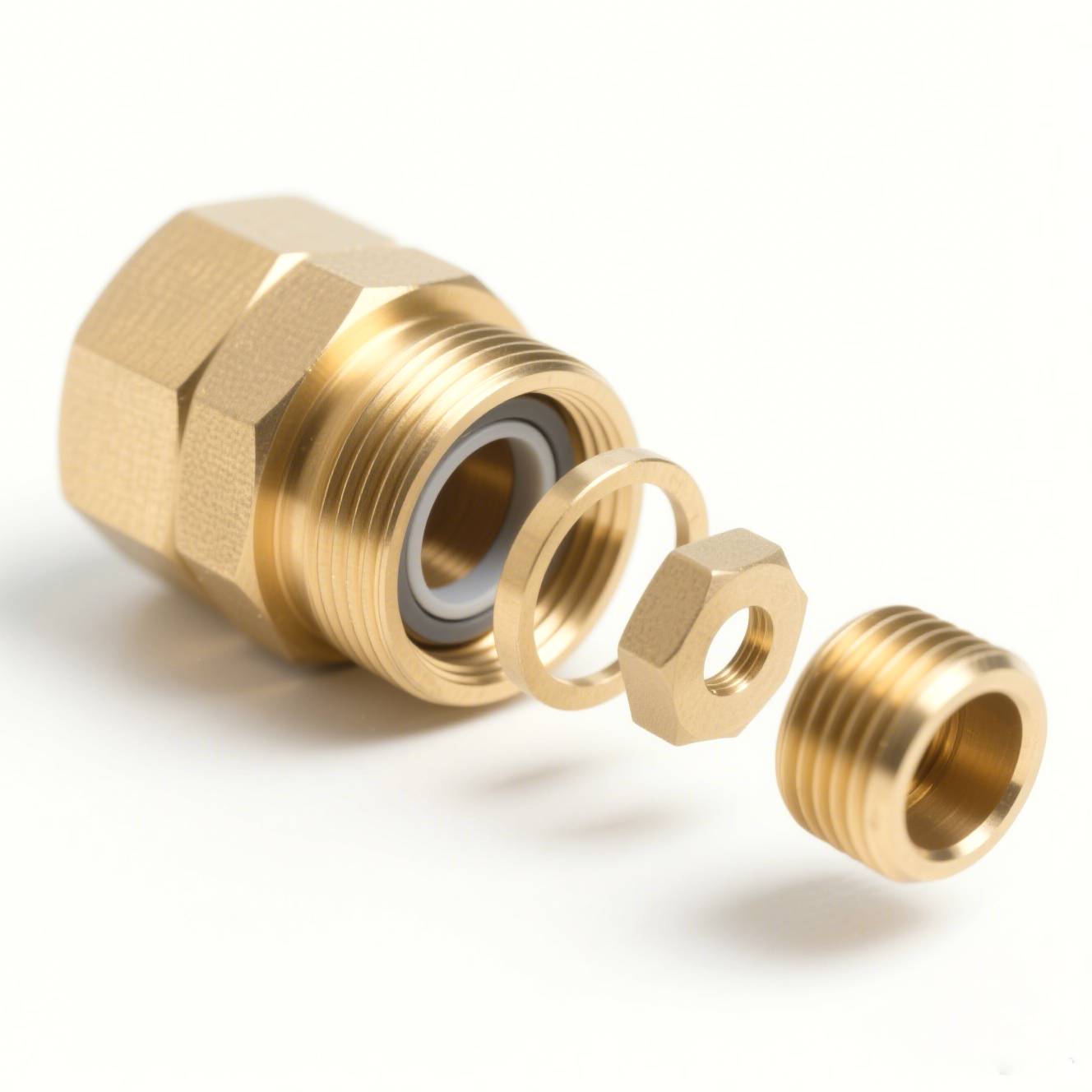

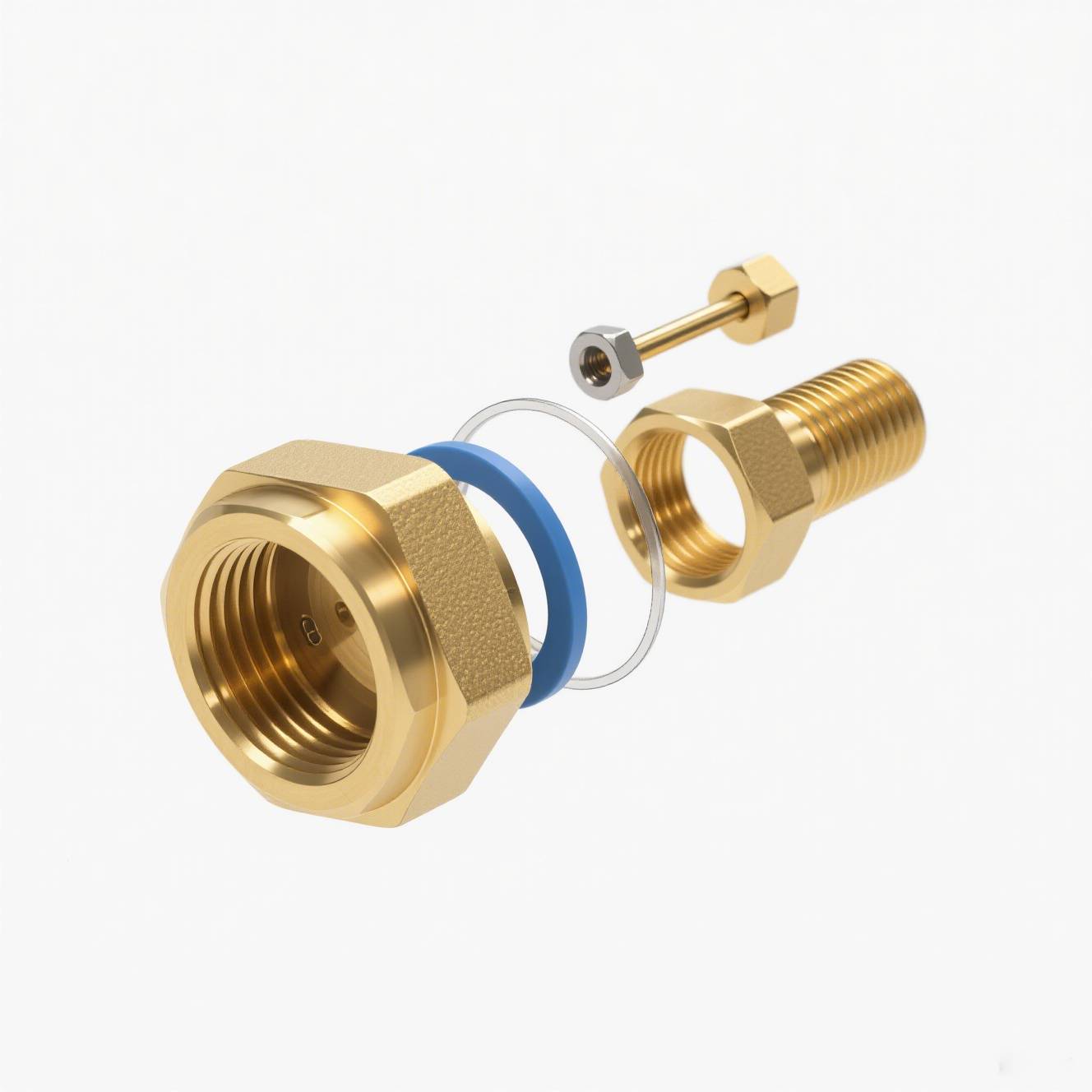

4.Exploded View of Joint

5.The advantages of joints

6.Quality Assurance

• 100% dimensional inspection via CMM

• Material certification (RoHS, mill test reports)

• Fatigue and torque testing for critical applications

• ISO 9001, ITAF 16949, ISO14001
