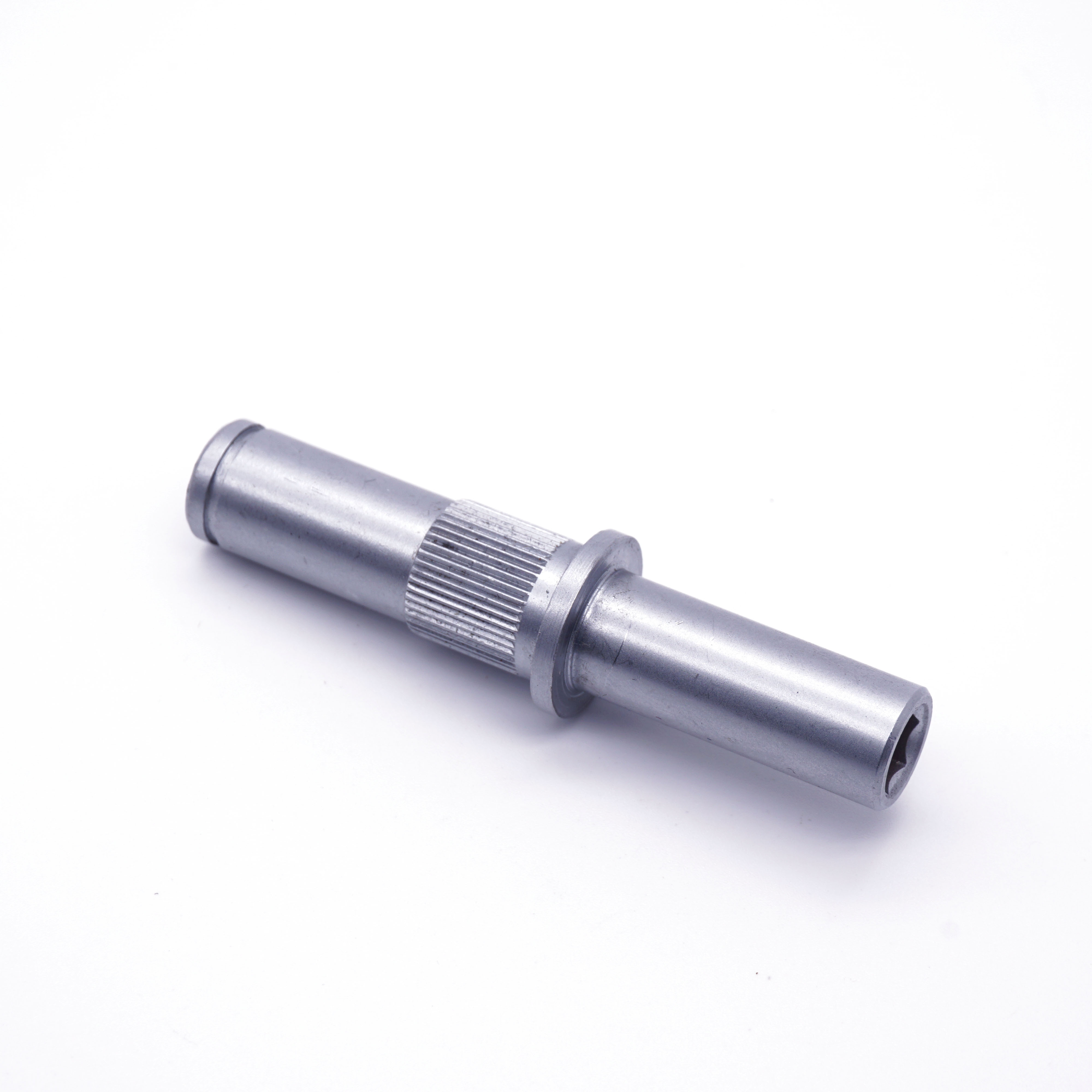

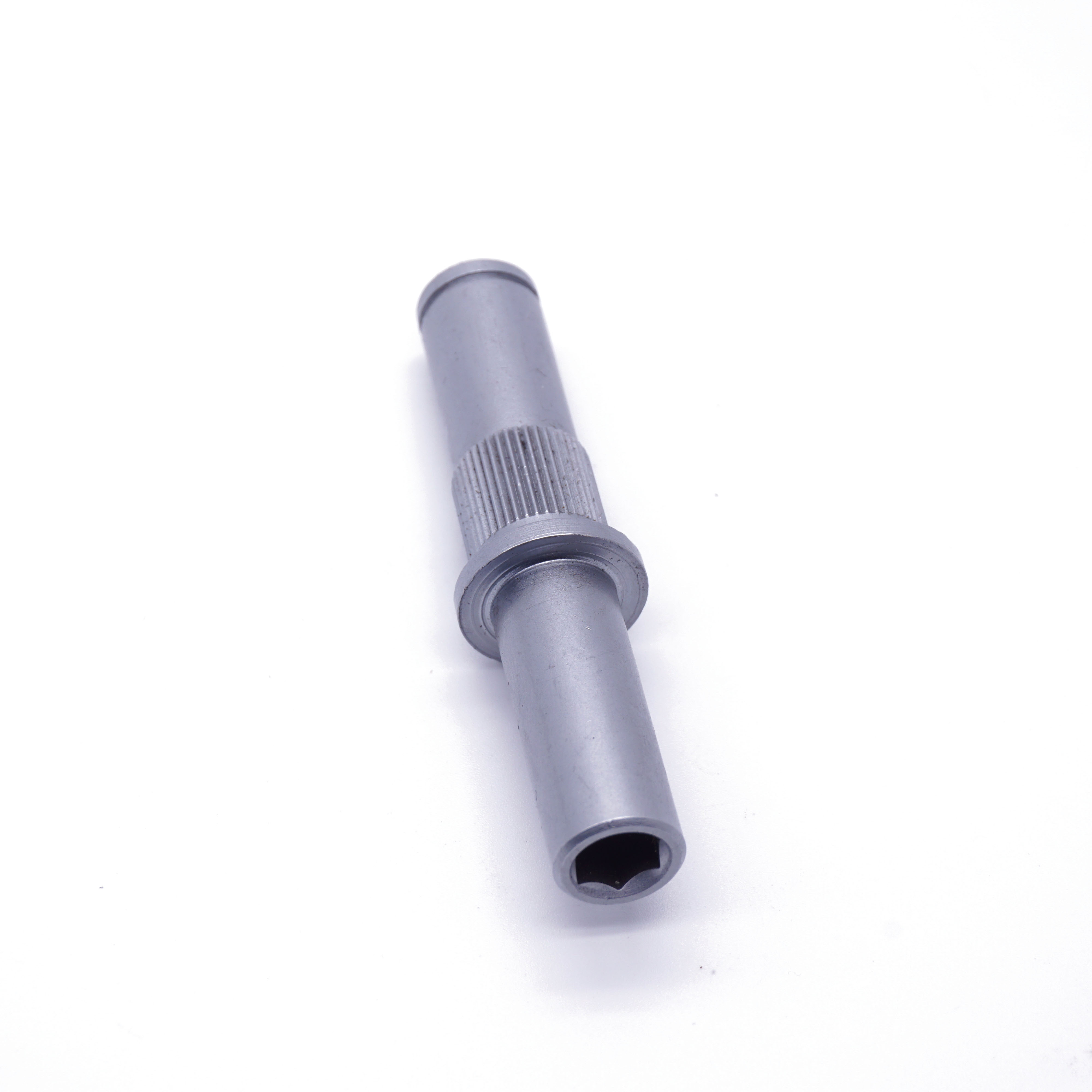

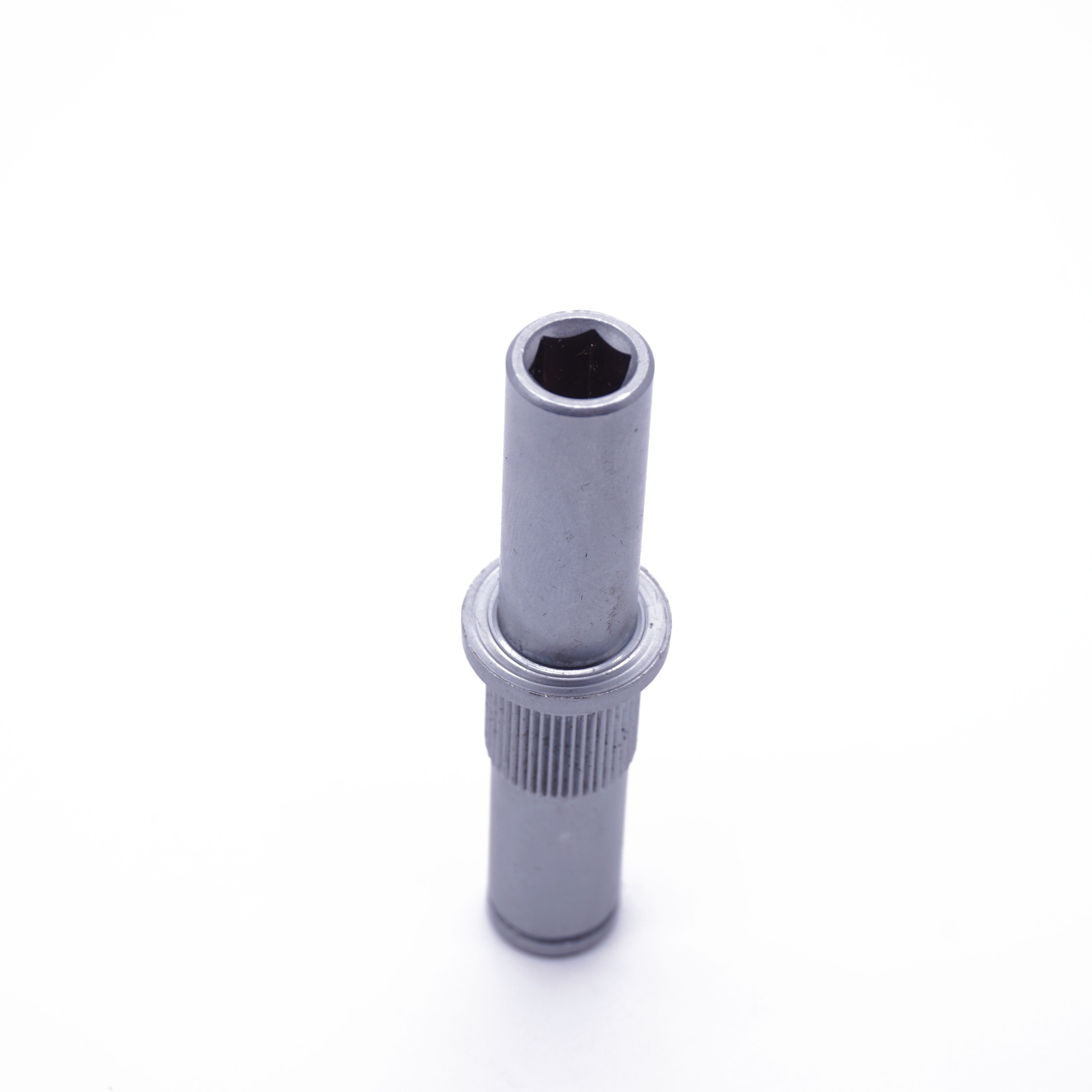

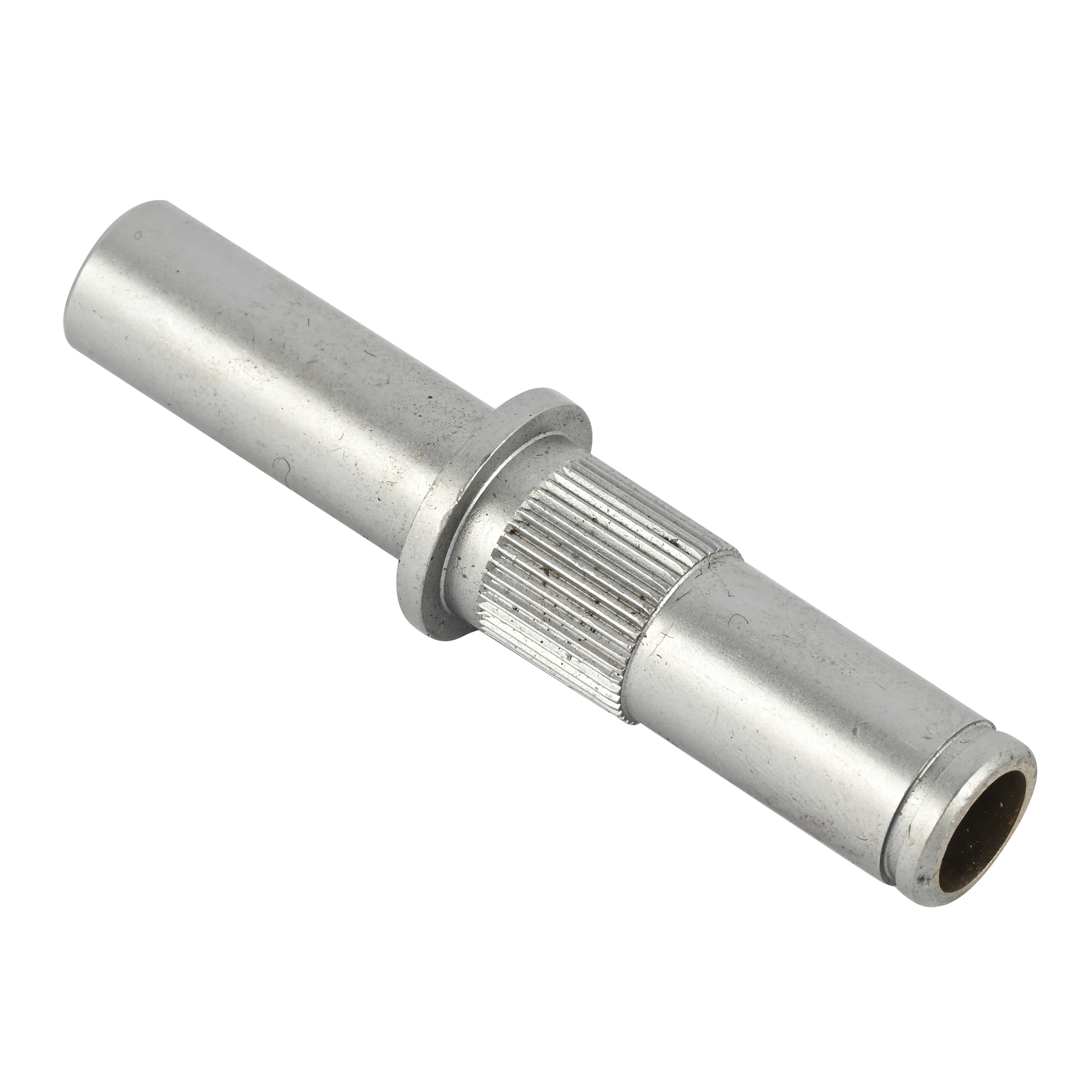

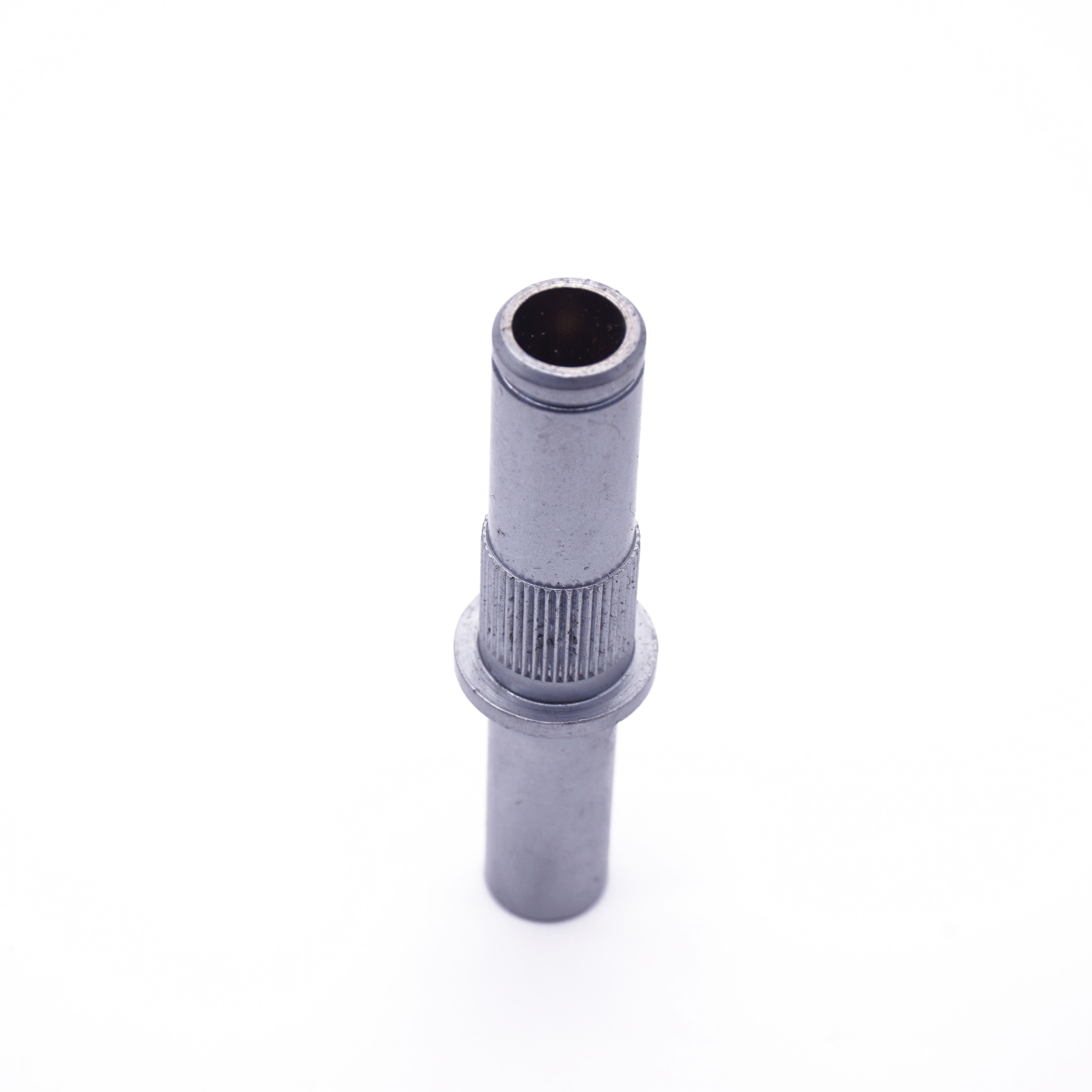

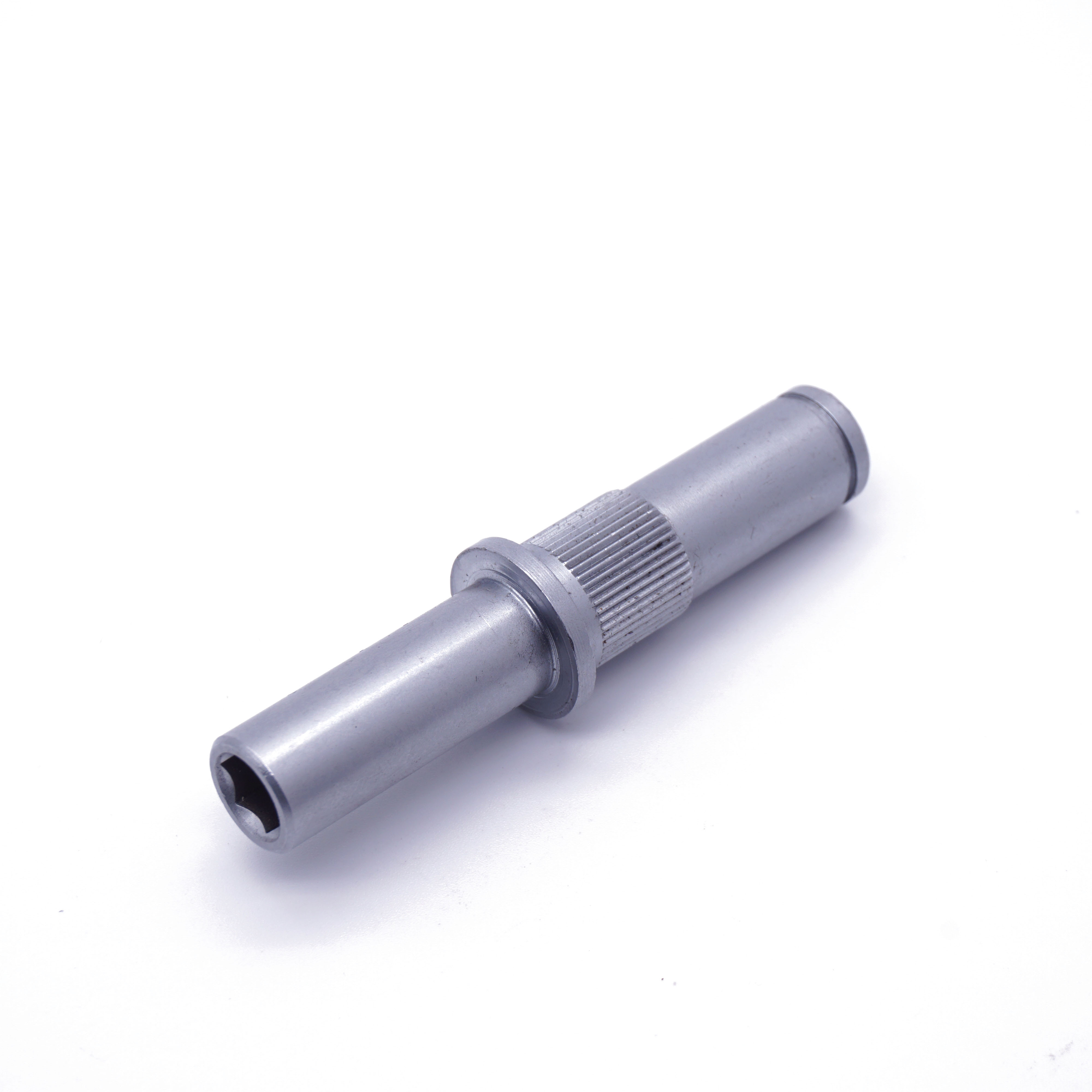

High-Quality Fan Shaft Manufacturing

Brand: NHY
Material: 7A04 Aluminum Alloy
Coat: Chromate conversion coating and UV - resistant paint
Size: Diameter 4 - 35mm, length 18 - 350mm
Package: Vacuum - packed in anti - static bags, then in shock - absorbing foam boxes
Accommodate Small - batch Demands

Quantity:
Availability:





Inquire Add to Basket

Model:
NHY-S0011
Brand:
NHY
Code:
73182400

Product Description

Unrivaled Precision: Your Ultimate Fan Shaft Solution

1.Overview of the product

Whether it's the harsh conditions of industrial machinery, the high - speed demands of automotive engines, or the precise requirements of ventilation systems, our fan shafts are engineered to meet and exceed expectations. With a wide range of materials, including corrosion - resistant stainless steels, lightweight aluminum alloys, and robust carbon steels, we can customize each fan shaft to fit the unique specifications of your application.

2.Product Specification Parameters

Parameter Category	Details
Materials	Stainless Steel 304/316, Aluminum Alloy 6061/7075, Carbon Steel
Diameter Range	5mm - 200mm
Length Range	10mm - 1000mm
Surface Treatment Methods	Anodizing, Chrome Plating, Powder Coating, Passivation
Tolerance Range	±0.01mm - ±0.1mm
Maximum Rotational Speed	Up to 15,000 RPM
Load - Bearing Capacity	5kg - 500kg

3.Application case

Industrial Ventilation System Upgrade

A leading manufacturing company in the chemical industry encountered persistent issues with fan shaft failures in their large - scale ventilation systems. These failures not only caused frequent production interruptions but also led to significant maintenance costs. Our team analyzed the problem and proposed custom - designed fan shafts made from corrosion - resistant Stainless Steel 316. By leveraging advanced CNC machining and precision grinding techniques, we ensured tight tolerances and optimal balance. After installation, the new fan shafts reduced maintenance frequency by 60% and increased the overall operational efficiency of the ventilation systems by 35%, saving the client over $100,000 annually in maintenance and downtime costs.

4. Manufacturing Capabilities

Coordinate Measuring Machines (CMM)

Accurate measurement is crucial in fan shaft manufacturing, and our Coordinate Measuring Machines play a vital role. These highly precise devices use touch - trigger or scanning probes to measure the dimensions of fan shafts from multiple points. With the ability to detect even the slightest deviations from the design specifications, CMMs ensure that each fan shaft meets the required quality standards. The data collected by the CMMs can also be used

1744958141759

5. Quality Assurance

100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications

ISO 9001， ITAF 16949，ISO14001

custom fan shaft manufacturers precision fan shaft machining industrial fan shaft suppliers high-performance fan shaft durable fan shaft for engines customized fan shaft for automotive fan shaft for ventilation systems precision-engineered fan shaft
