| Quantity: | |
|---|---|
NHY-F0062
NHY
| Main Parameter Category | Sub Item | Standard Specification | Customizable Range |
|---|---|---|---|

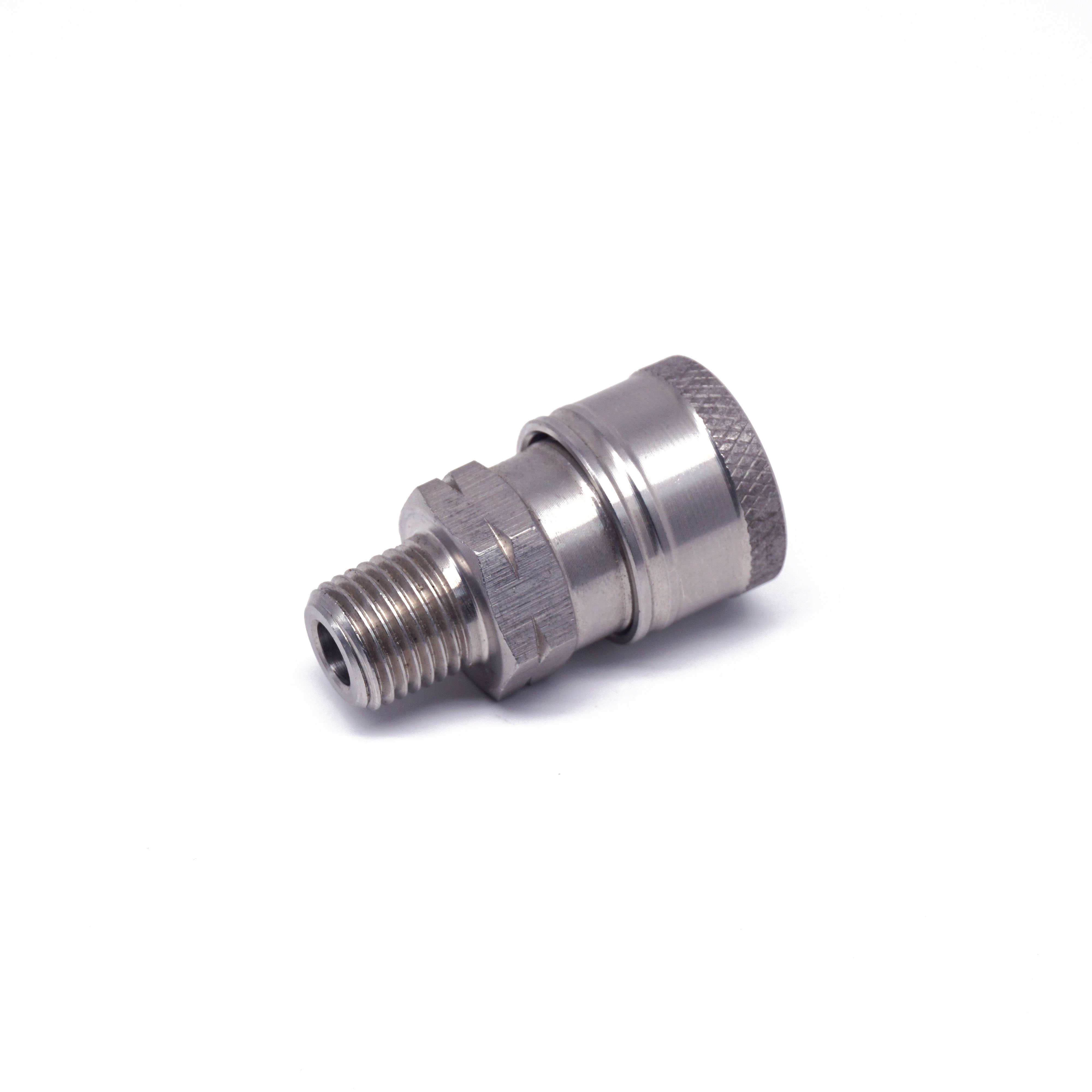

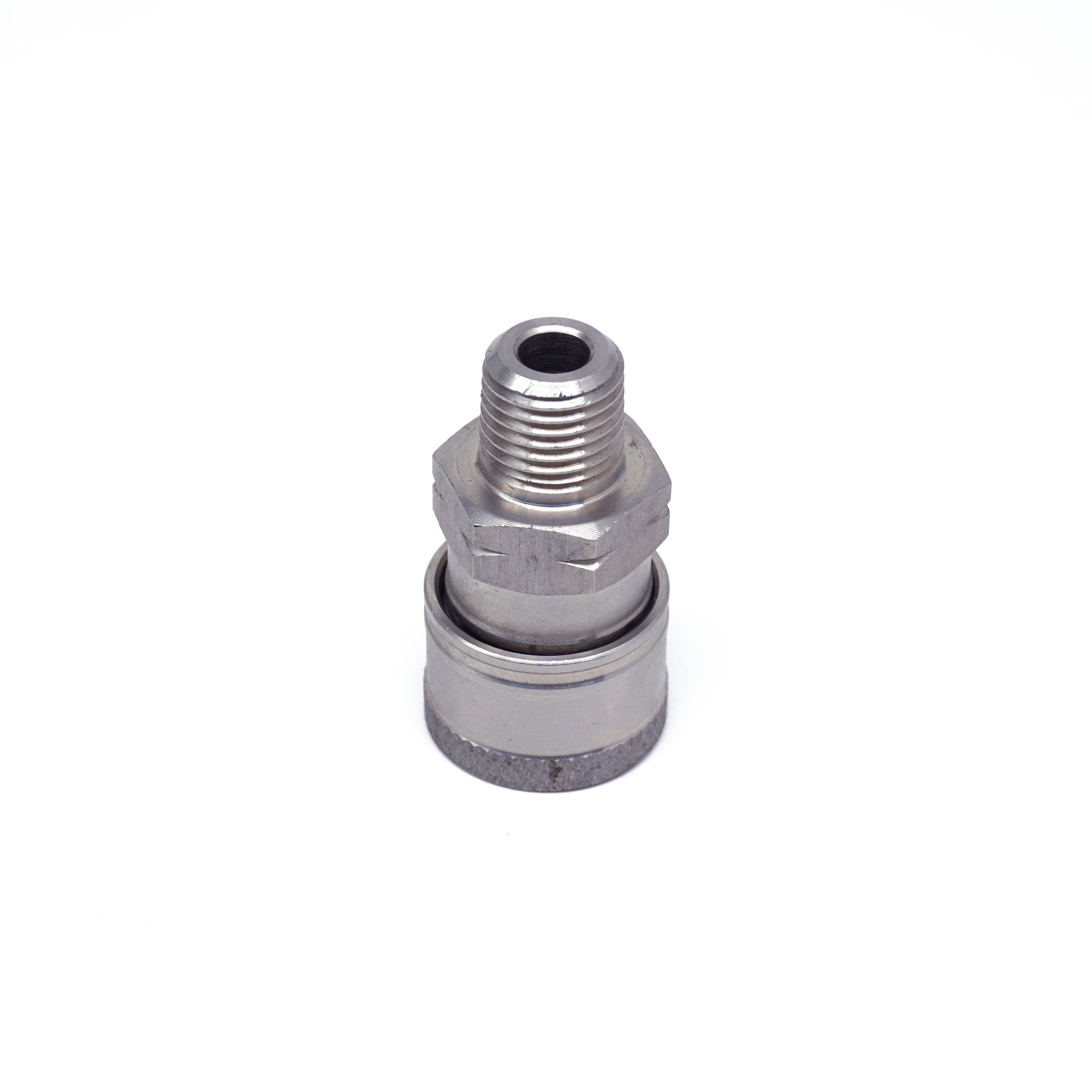

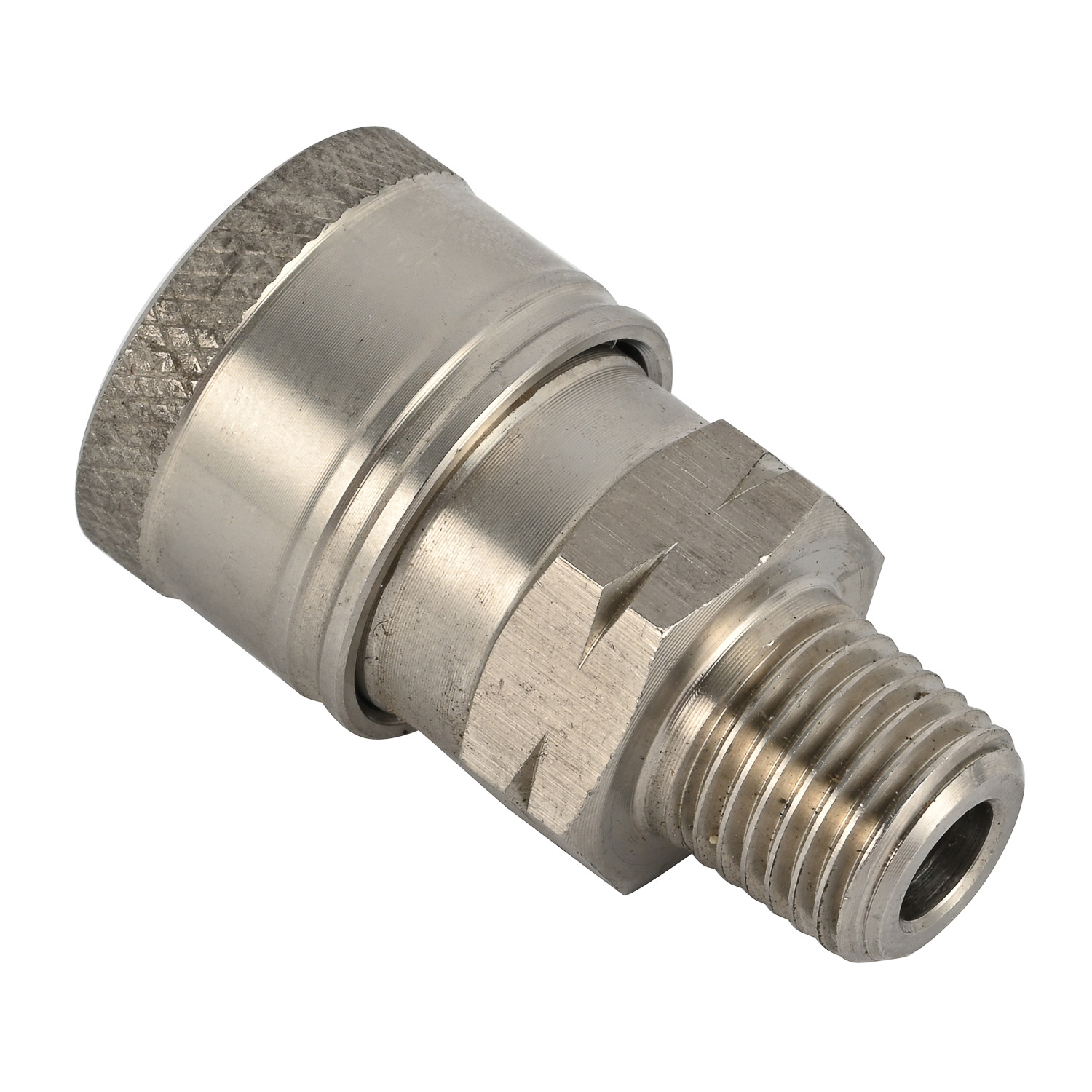

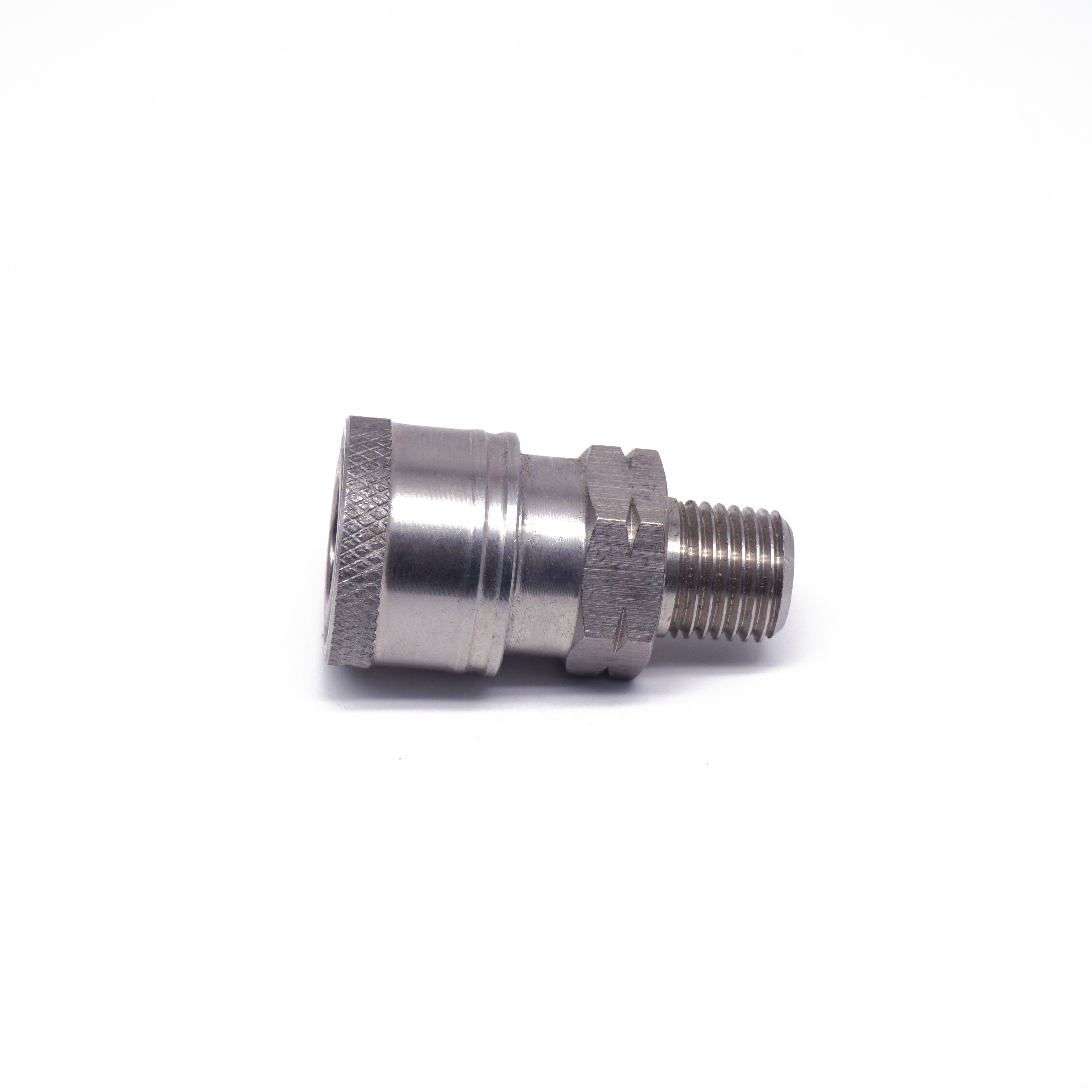

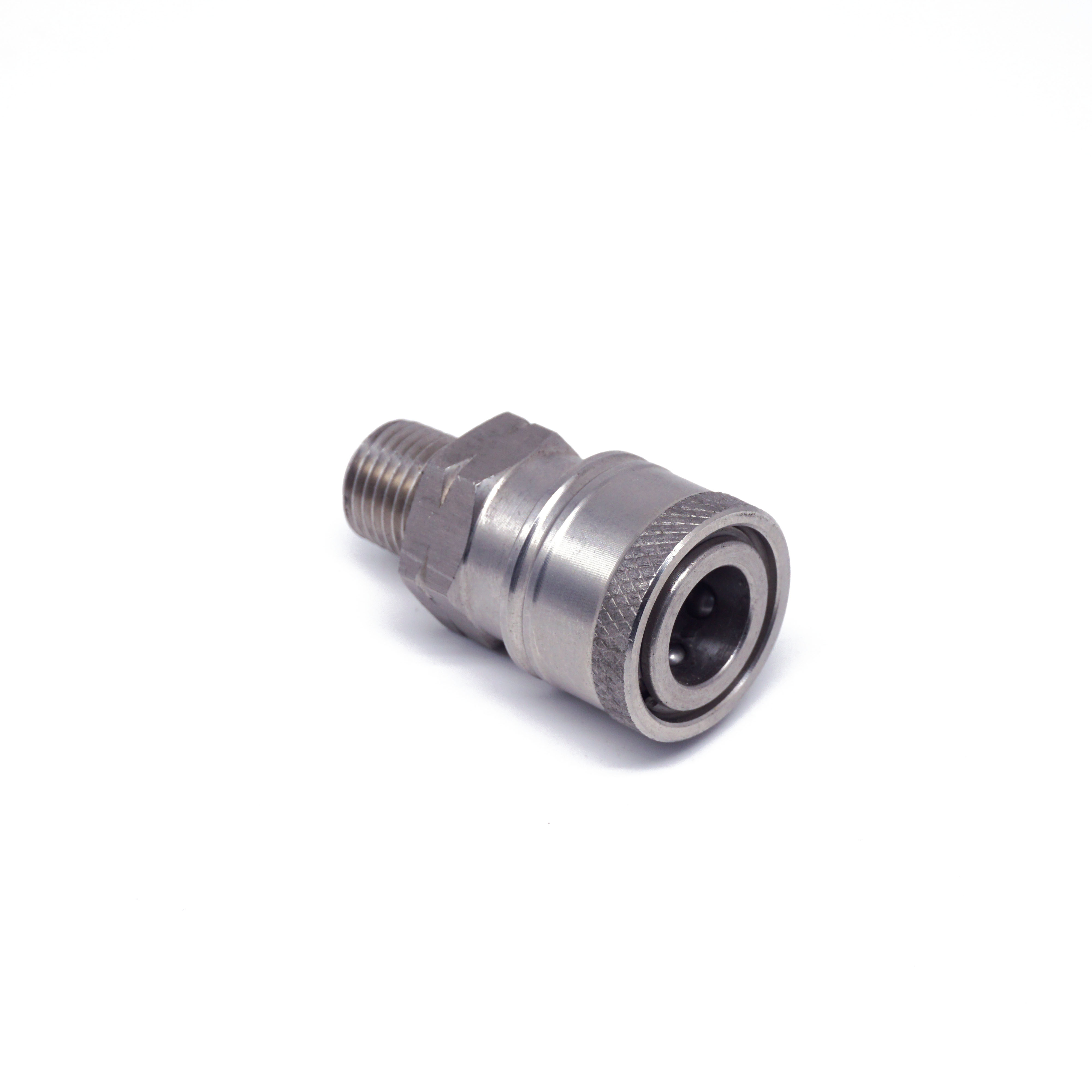

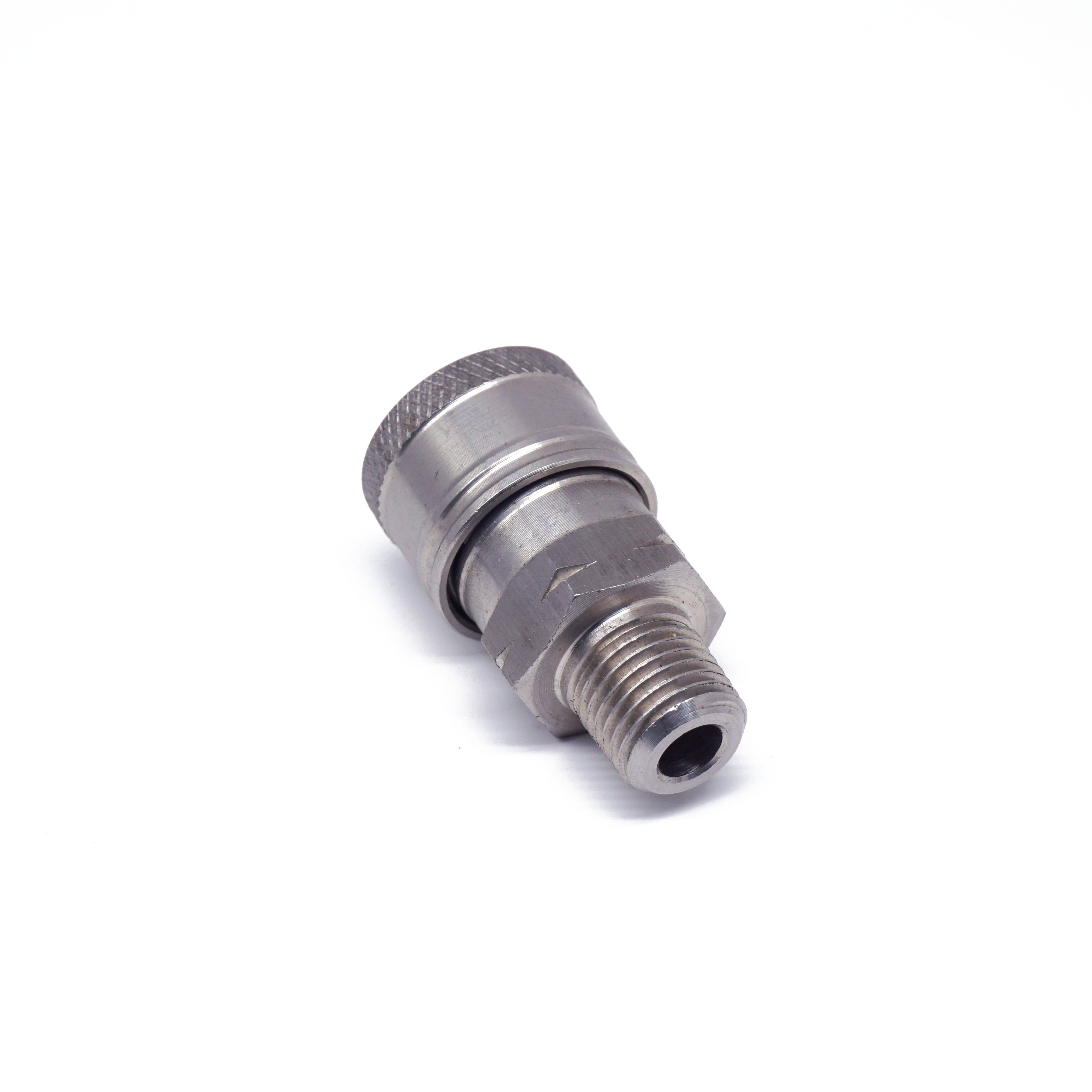

| Basic Product Info | Product Name | Non-Standard Precision Fitting | Custom CNC Turned Fitting |
| Execution Standard | ISO Industrial Standard | Customer Non-Standard Norms | |
| Material & Surface | Raw Material | 304 Stainless Steel | 316/316L SS, Brass, Carbon Steel, Aluminum |
| Surface Finish | Natural Machined | Plating, Passivation, Polishing, Anodizing | |
| Machining Data | Process Type | CNC Precision Turning | CNC Turning + Milling |
| Machining Tolerance | ±0.005mm | ±0.001mm - ±0.01mm | |
| Performance Data | Working Temperature | -50℃ to 230℃ | Adjustable by Material |
| Pressure Rating | Medium Pressure | High Pressure Custom Available |
Client Background: European industrial hydraulic equipment manufacturer, focusing on high-pressure hydraulic pipeline systems for heavy machinery.
Client Pain Points: Standard fittings failed to meet tight tolerance and anti-corrosion demands, causing frequent pipeline leakage and equipment downtime in harsh working sites.
Our Custom Solution: Designed and produced 316L stainless steel non-standard fittings, with machining tolerance controlled at ±0.003mm, passivation surface treatment for enhanced corrosion resistance, fully matching client’s 2D drawing requirements.
Precision Machining with Tight Tolerance: Processed by high-end CNC turning centers, tolerance controlled within ultra-fine range, ensuring perfect assembly fit, no gaps or looseness, and eliminating connection leakage risks effectively.
Full Customization Flexibility: Support full customization of materials, dimensions, threads, surface treatments and structures, accept small-batch prototype production and large-scale mass production, meeting diverse special project needs.
Superior Material Performance: Selected high-strength industrial metal materials, featuring outstanding rust resistance, wear resistance, high and low temperature resistance and pressure resistance, adaptable to complex working conditions.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
