Non - standard fan shaft customization service

Brand: NHY

Material: 316 Stainless Steel
Coat: Electropolished surface with anti - corrosion PTFE coating
Size: Diameter ranges from 5 - 50mm, length from 20 - 300mm
Package: Individual vacuum - sealed bag, then packed in shockproof carton
Small Orders Welcome

Quantity:
Availability:





Inquire Add to Basket

Model:
NHY-S004
Brand:
NHY
Code:
73182400

Product Description

Our custom fan shafts are expertly crafted for diverse industrial applications, ensuring top - notch performance.

1.Technical Specifications

Parameter	Details	Tolerance
Length	150mm	±0.08mm
Diameter	25mm	±0.03mm
Shaft Diameter	10mm	±0.05mm
Keyway Size	Width: 5mm, Depth: 3mm	±0.1mm for width, ±0.05mm for depth
Material	Stainless Steel 316L / Aluminum Alloy [Alloy Name]	-
Max Rotational Speed	6000 RPM	-
Torque Capacity	60 N·m	-
Balancing Grade	G1.0	-

2. Application case

Customer: [Anonymized Aerospace Company Name]

Application Scenario: The fan shafts were used in the engine cooling systems of aircraft. In this high - performance and high - reliability - required environment, the fan shafts need to operate steadily under extreme conditions such as high temperatures and high speeds.

Results: After installation, the vibration level of the engine cooling system was reduced by 40%, which significantly improved the stability of the engine operation. The equipment lifespan was extended by 30%, reducing maintenance costs and improving the overall efficiency of aircraft operations.

3. Production process display flow chart

360截图20250411164917

4. Manufacturing Capabilities

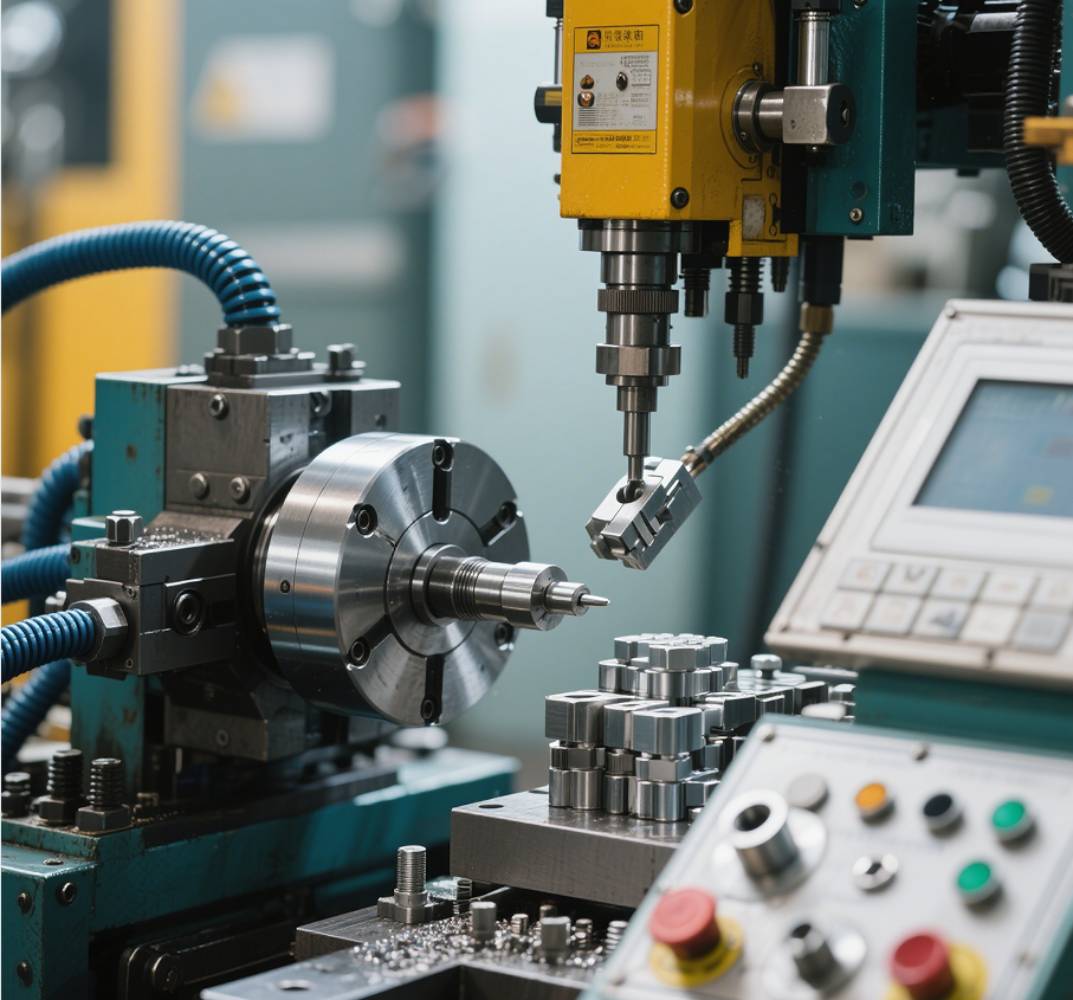

Our facility is furnished with a battery of state - of - the - art CNC lathes. These lathes are engineered with multi - axis control systems, with many of them featuring five - axis functionality. This advanced configuration enables the lathes to execute intricate machining operations from multiple angles simultaneously.

360截图20250411170533

5. Quality Assurance

100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications

ISO 9001， ITAF 16949，ISO14001
