| Quantity: | |
|---|---|

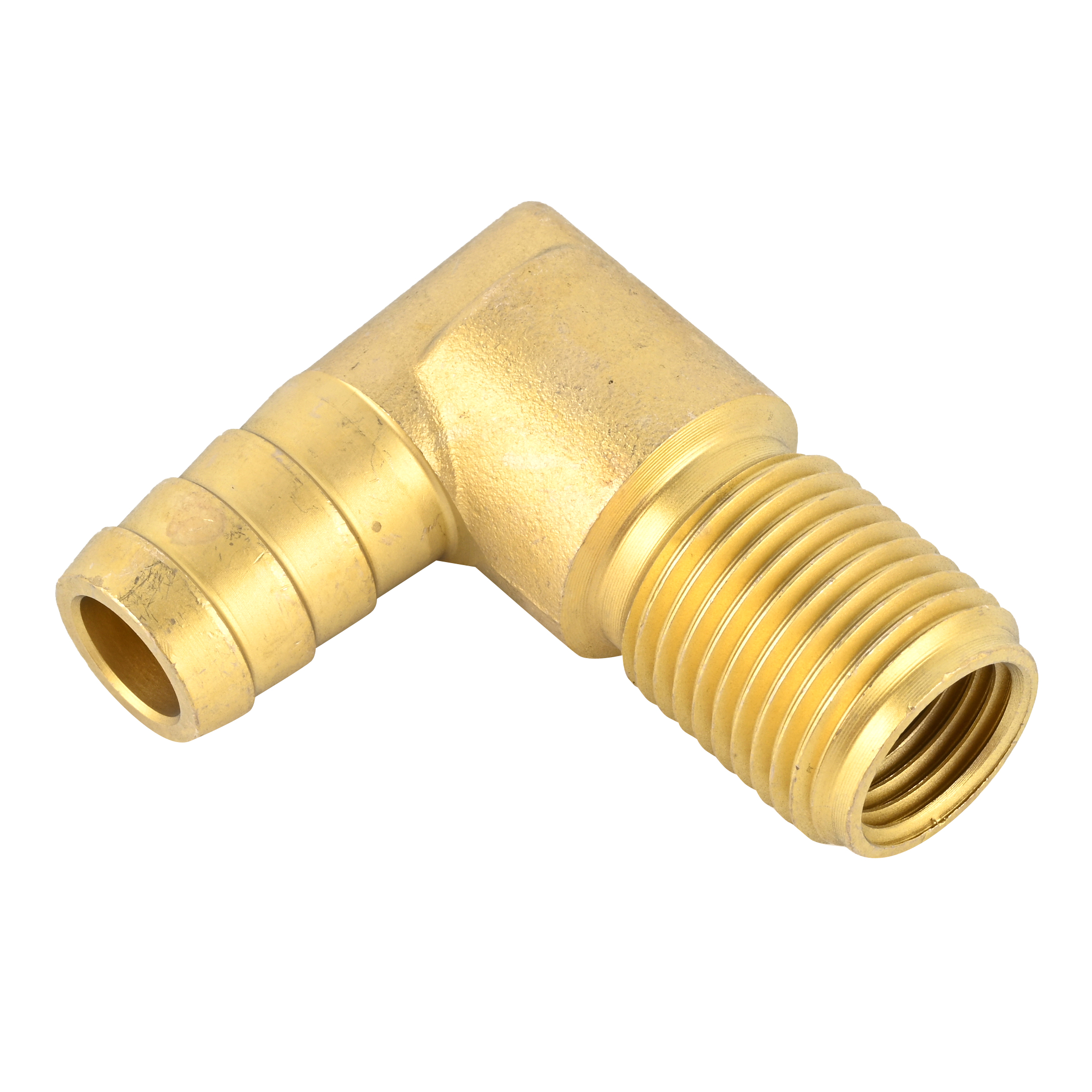

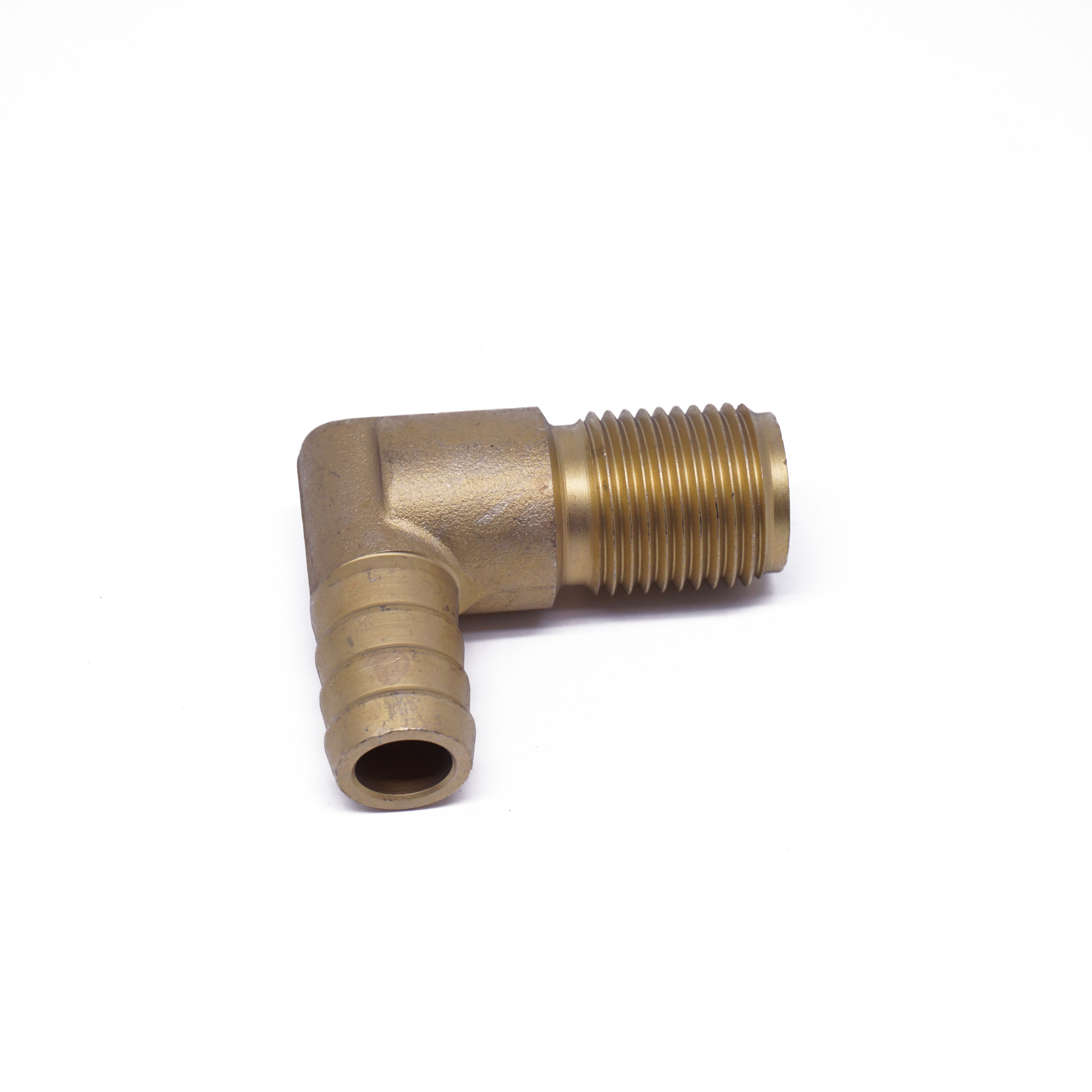

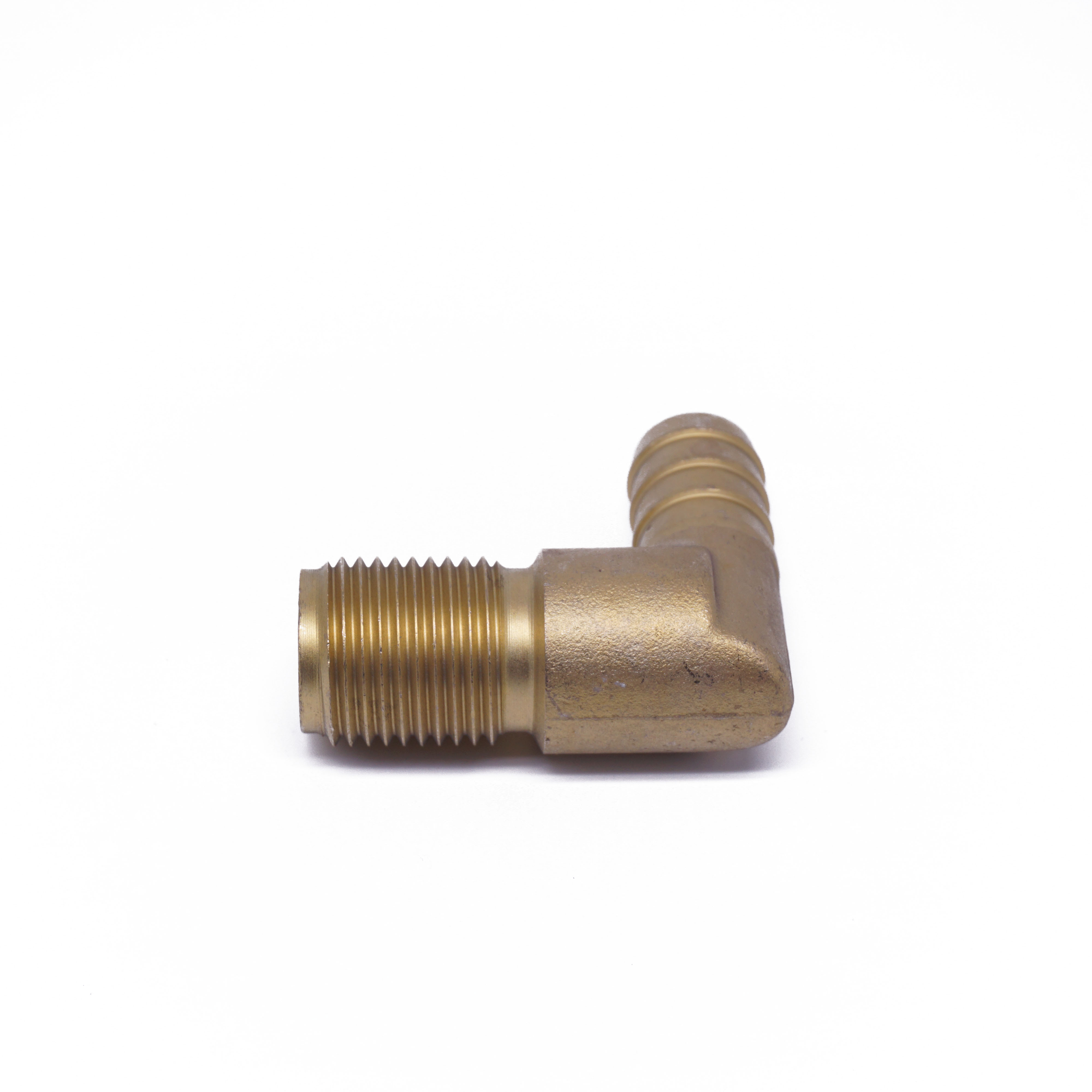

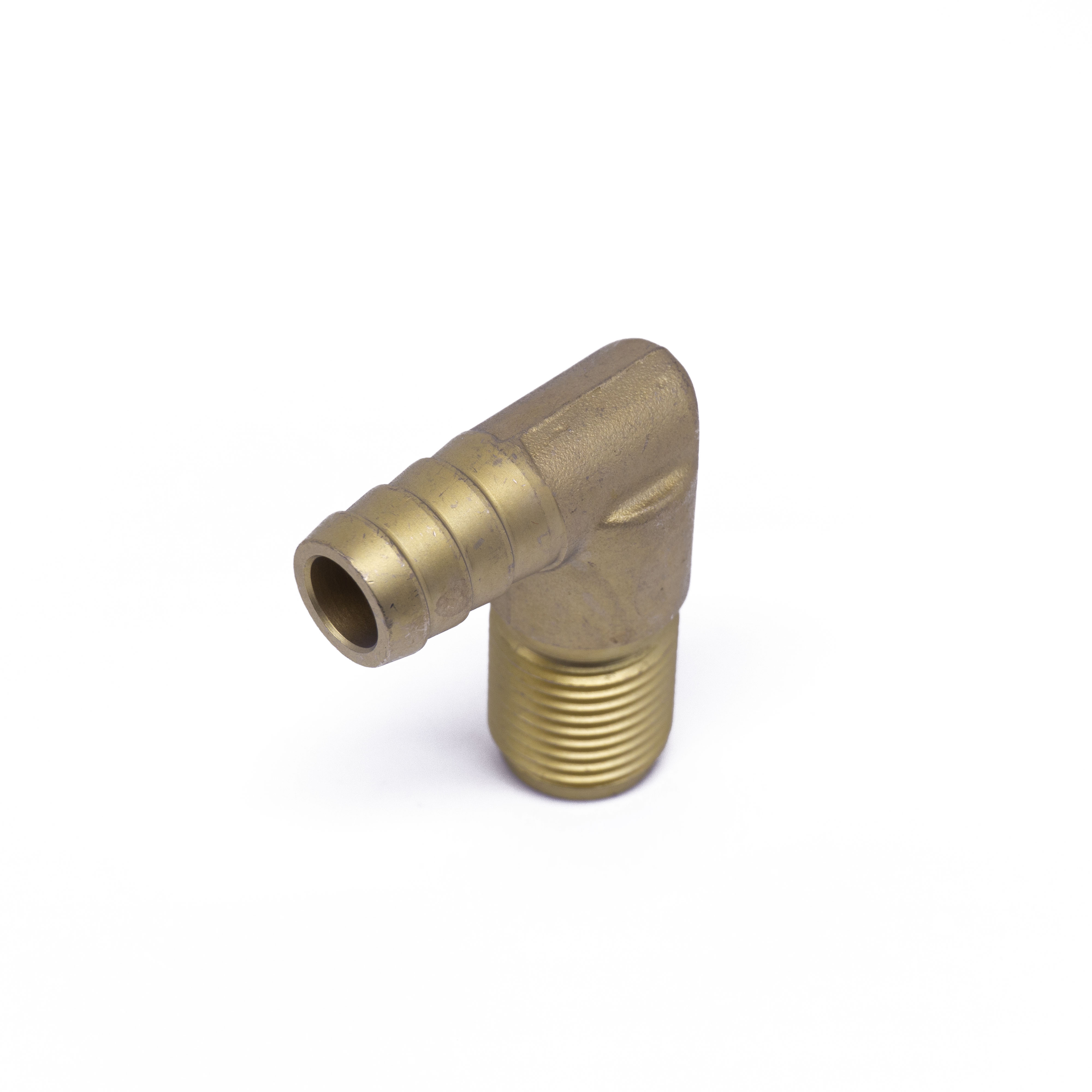

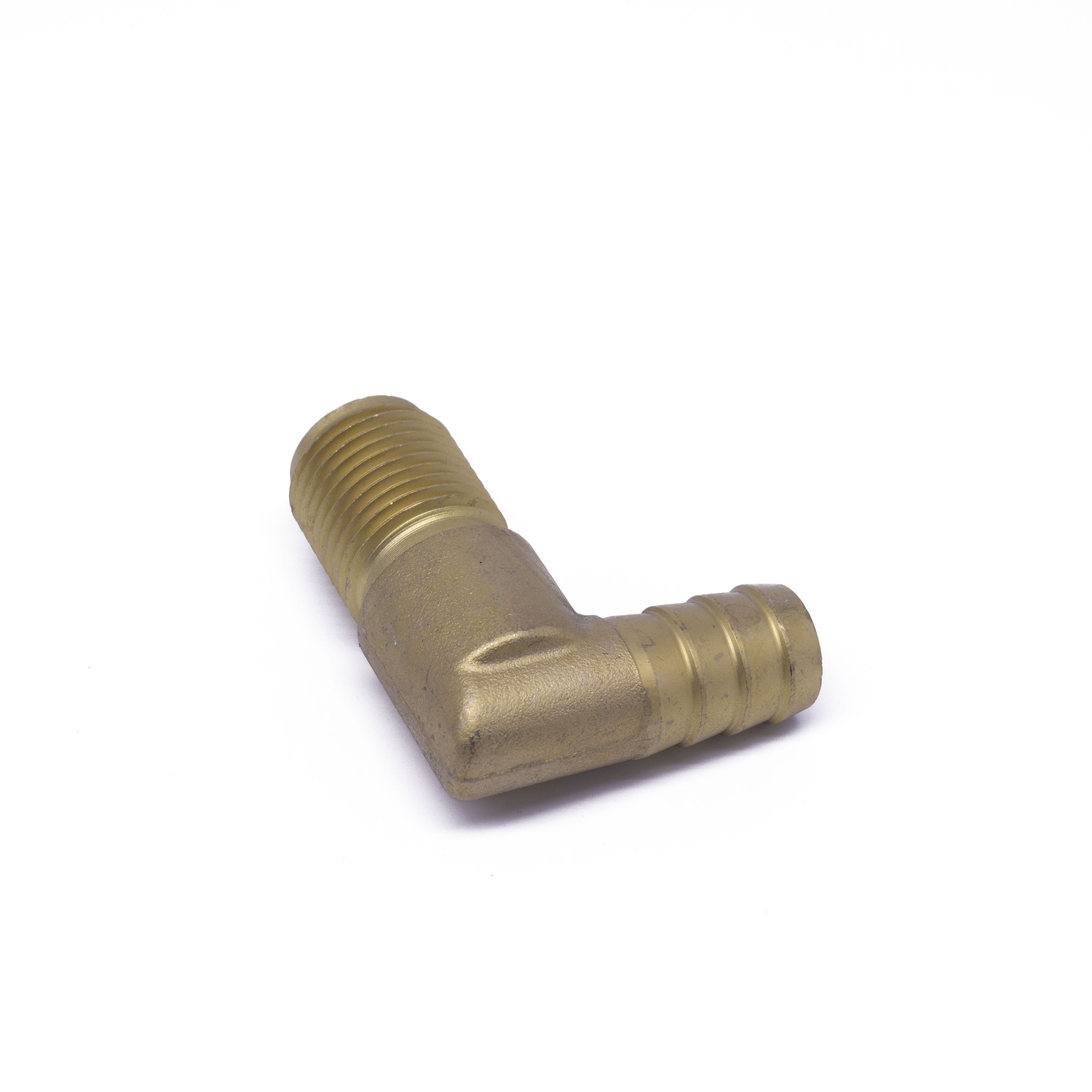

NHY-F003
NHY
Our fittings are meticulously crafted to deliver superior performance in diverse industrial applications. Using high-grade materials and advanced manufacturing techniques, each fitting offers exceptional durability, precision, and reliability. With customizable options for size, material, and surface treatment, we provide tailored solutions to meet your specific project needs. Whether for high-pressure systems or precision equipment, our fittings ensure secure connections and long-term functionality.
Automotive: Engine systems, fuel lines, braking systems
Aerospace: Hydraulic and pneumatic systems
Construction: Plumbing, structural connections
Manufacturing: Machinery assembly, conveyor systems
Energy: Oil & gas pipelines, power plant equipment
Water Treatment: Filtration and distribution systems
| Parameter | Details |
| Material | Stainless Steel, Brass, Copper, PVC |
| Surface Treatment | Polished, Galvanized, Nickel-plated, Anodized |
| Size Range | NPS 1/8" - 4" (DN6 - DN100), Custom Sizes Available |
| Thread Type | NPT, BSP, Metric Threads |
| Pressure Rating | Up to 2000 PSI (depending on material and size) |
| Temperature Range | -40℃ to 200℃ |
| Tolerance | ±0.01mm for precision fittings |
Automotive Industry: Custom fittings were designed to connect fuel lines, ensuring leak-proof performance and high-temperature resistance, improving vehicle safety and efficiency.

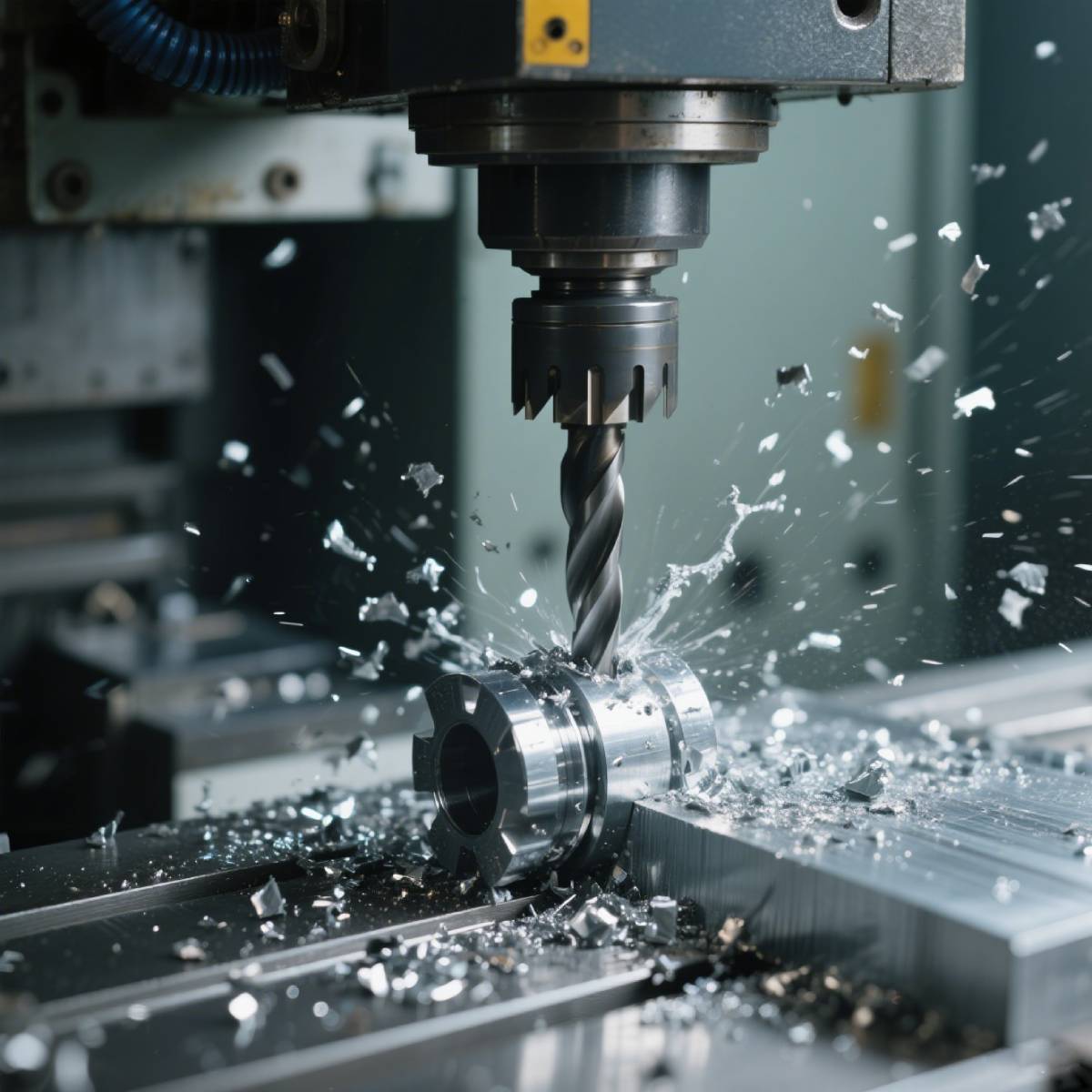

3-5 axis simultaneous machining ensures ±0.01mm precision for connectors, with integrated milling, drilling & tapping.
Handles stainless steel, aluminum, titanium and engineering plastics, achieving Ra ≤0.8μm surface finish.
Supports NPT/BSP threads and complex structures like cross-hole tees, with daily output of 500-2,000 pieces.
Quick 15-min changeover for small batches; automated lines enable 24/7 mass production.
Ideal for aerospace titanium fittings, 70MPa hydraulic connectors and medical-grade components.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
