| Quantity: | |
|---|---|
NHY-S0023
NHY
73182400
· Industrial Ventilation Systems
· Automotive Manufacturing
· HVAC Equipment
· Aerospace Engineering
· Power Generation Plants · Agricultural Machinery
· Marine Equipment
| Parameter | Details |
| Material Options | Titanium Alloy Grade 5, Inconel 718, 316 Stainless Steel, PEEK Engineering Plastics |
| Diameter Range | Min. 1mm - Max. 38mm |
| Length Range | 200mm - 3000mm |
| Precision Tolerance | ±0.002mm (XYZ Axes), Roundness ≤ 0.003mm |
| Surface Finish | Ra ≤ 0.8μm (Polished), Up to Ra ≤ 0.4μm (Electropolished) |
| Spindle Compatibility | Max. 20,000 RPM |
| Balancing Class | G1.0 (ISO 1940 Standard) |
| Corrosion Resistance | Salt Spray Tested up to 1000 Hours |
| Custom Features | Threaded Ends (ISO Metric/UNC/UNF), Keyways (DIN 6885), Splines (SAE Standards) |

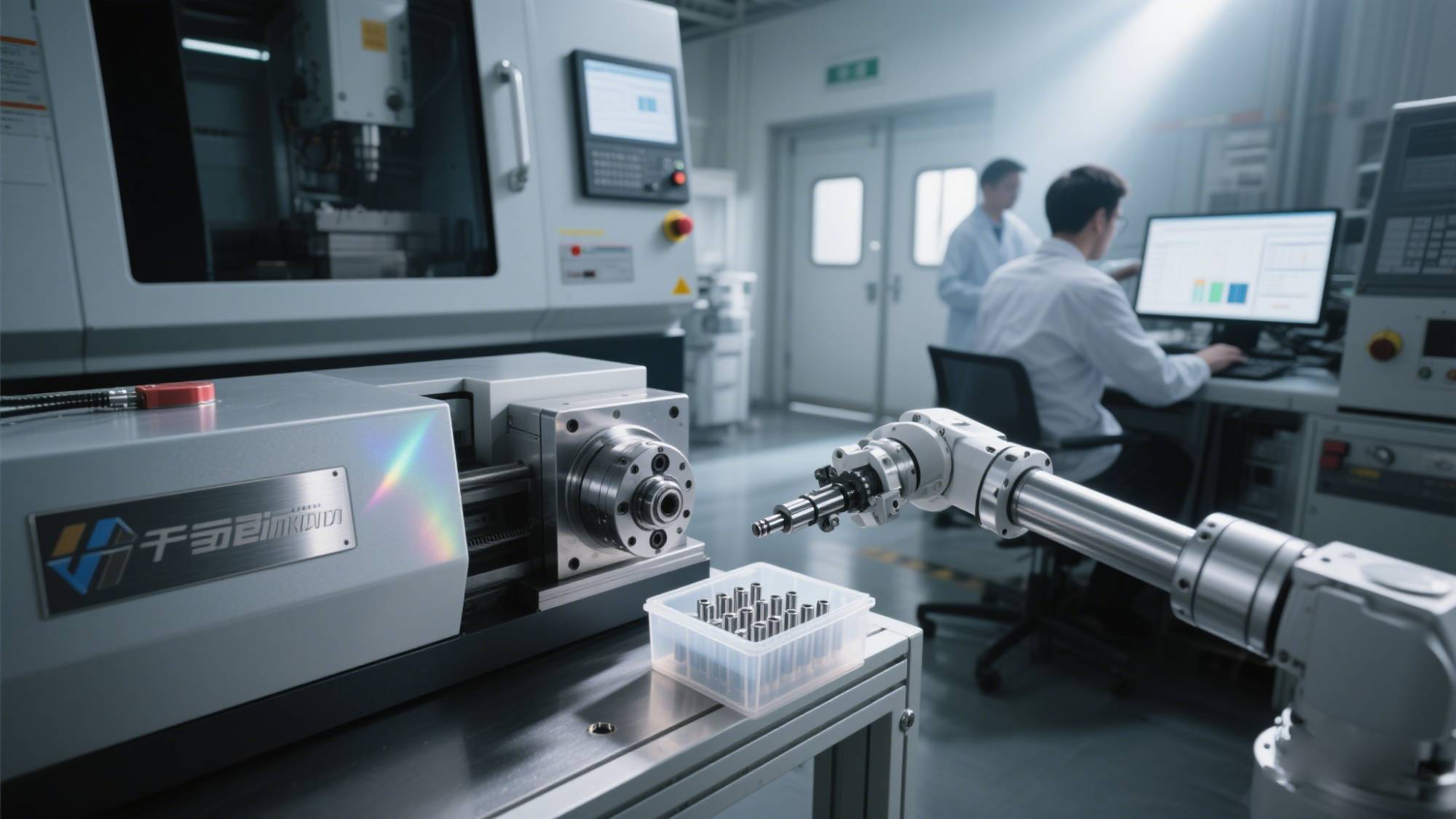

Machining centers excel at precision manufacturing of various shafts, including cylindrical, stepped, and splined shafts. Equipped with multi-axis (multi-axis linkage) and high-precision cutting tools, they can achieve tight tolerance control (e.g., IT6-IT7 grade) and fine surface finishes (Ra 1.6-0.8μm). Capable of performing milling, drilling, boring, and threading operations in one setup, they ensure high efficiency and consistency for shafts used in automotive, aerospace, and industrial machinery sectors.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001， ITAF 16949，ISO14001
