NHY-F0073
NHY

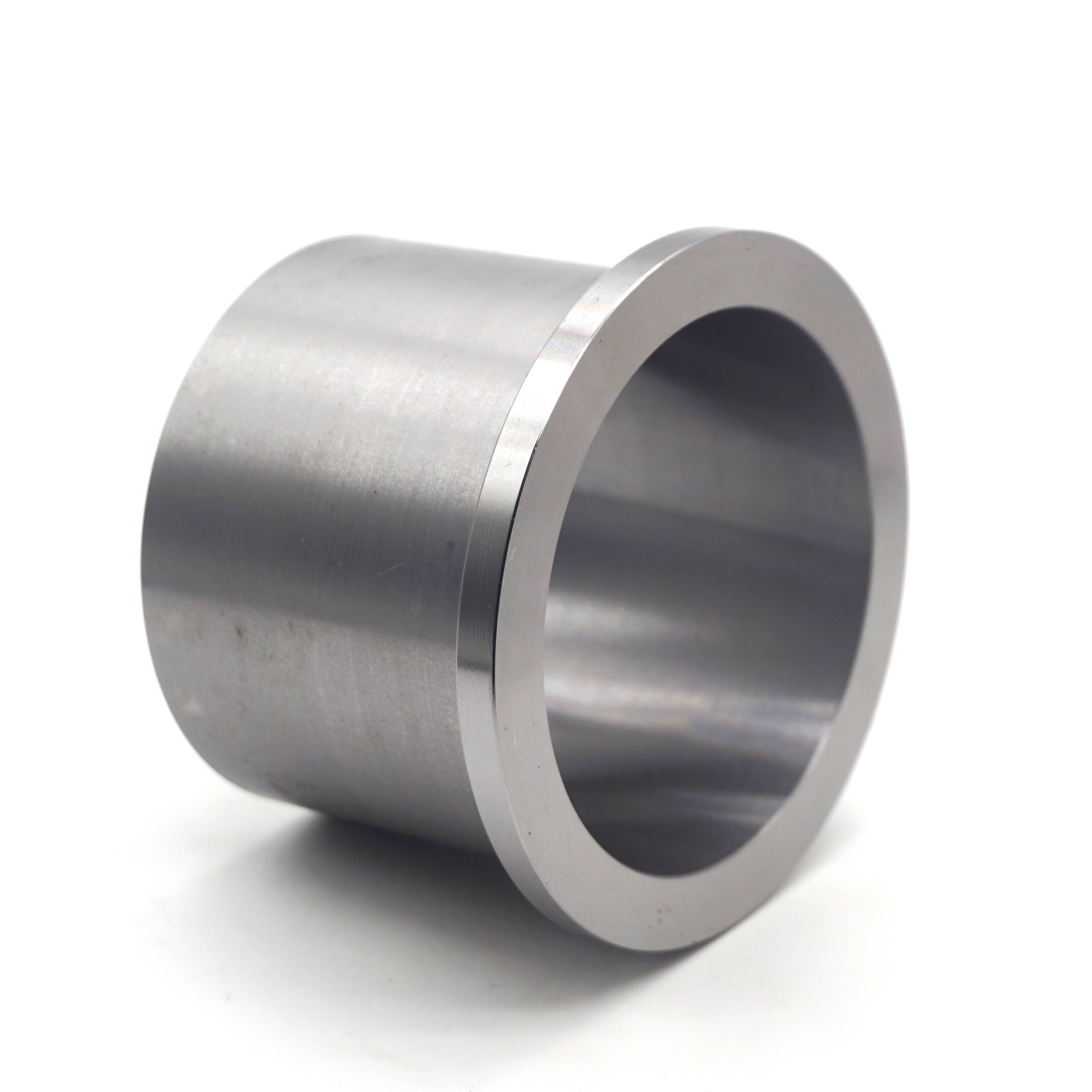

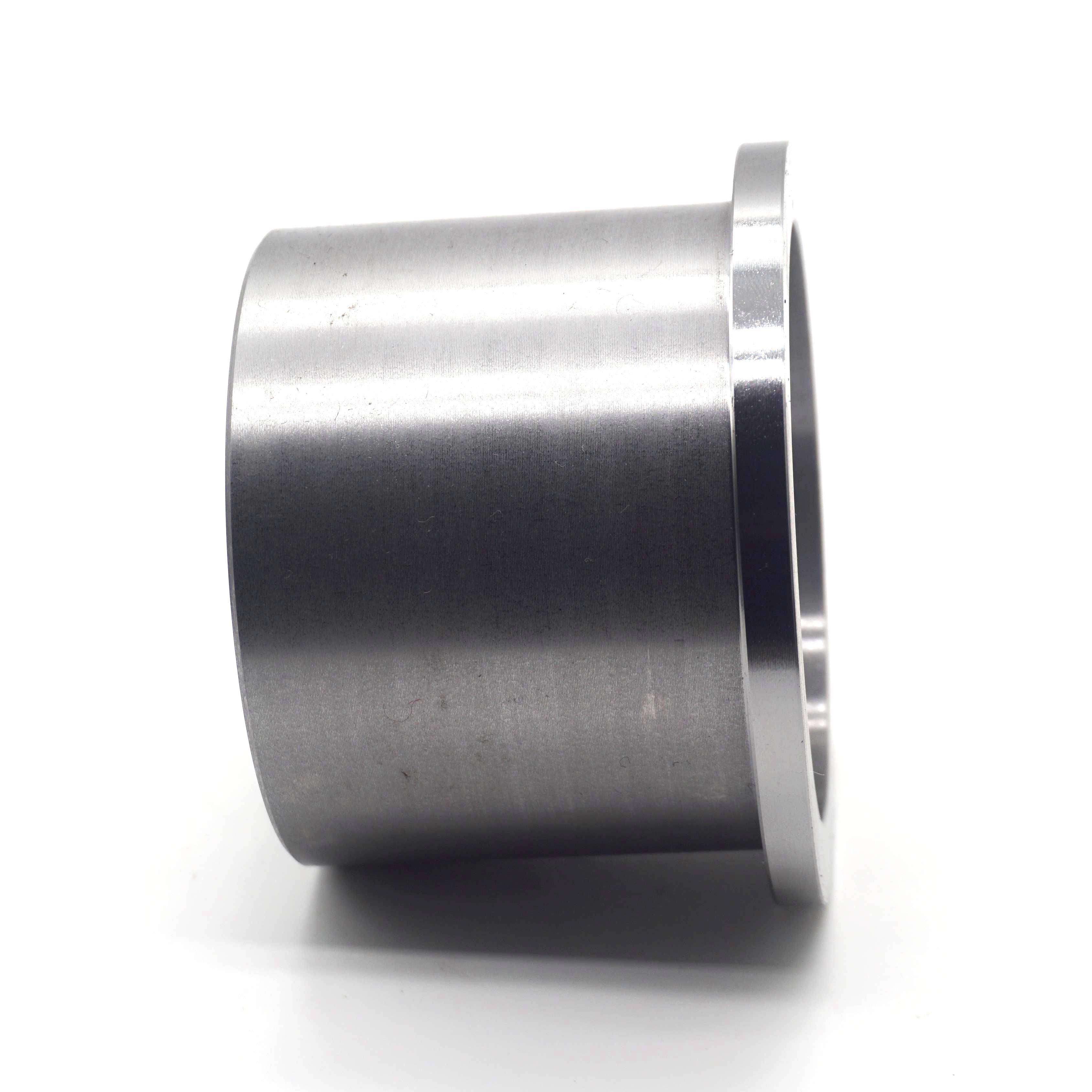

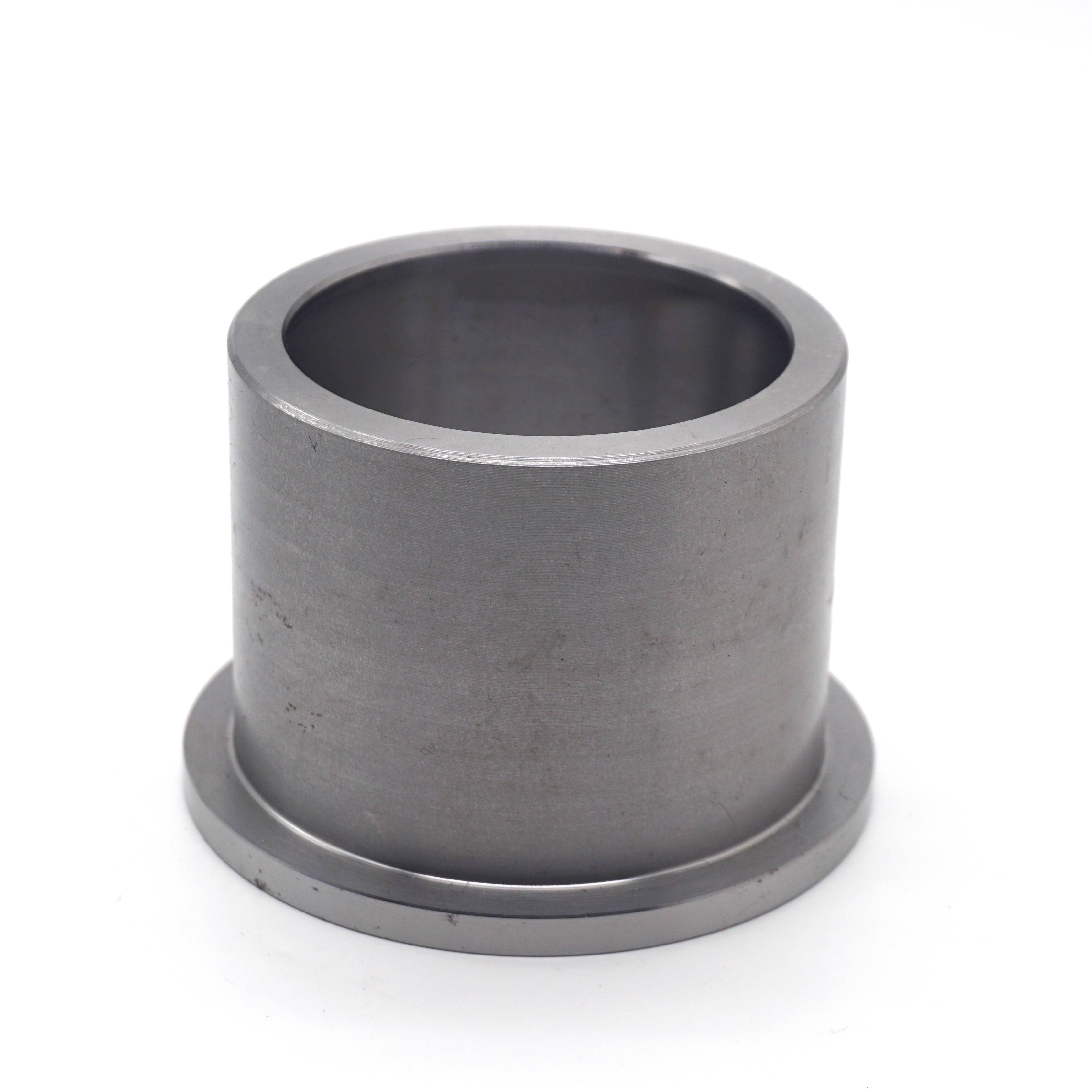

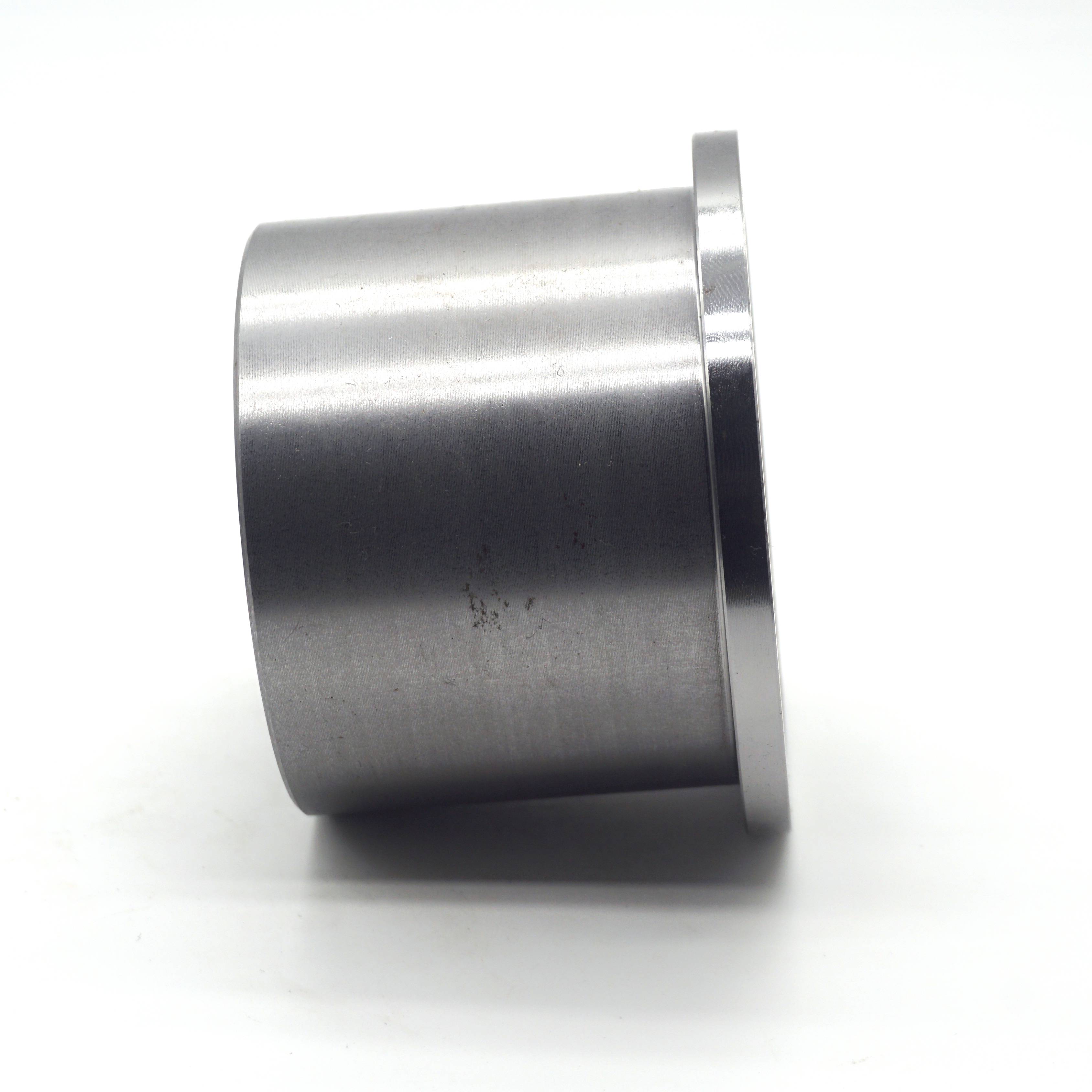

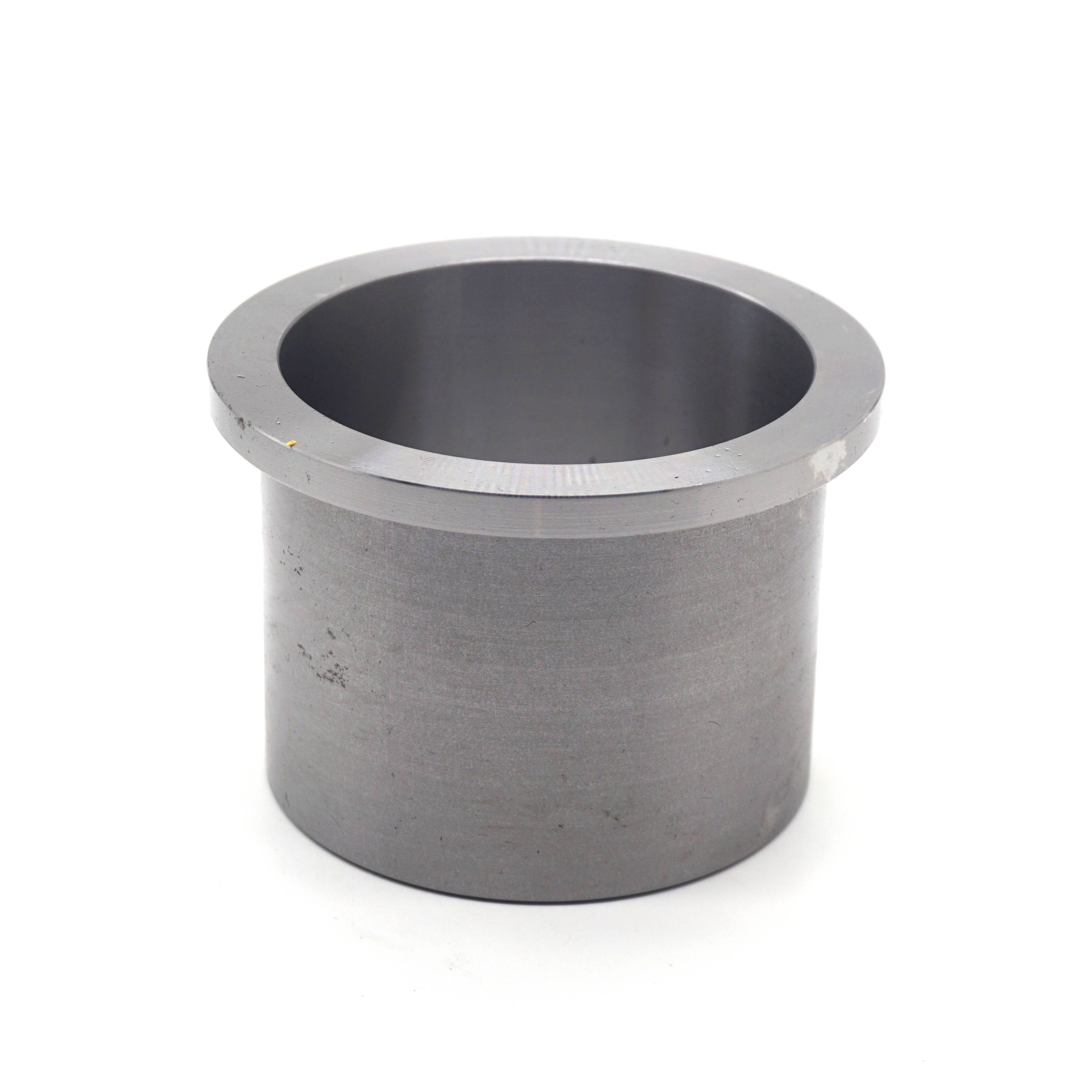

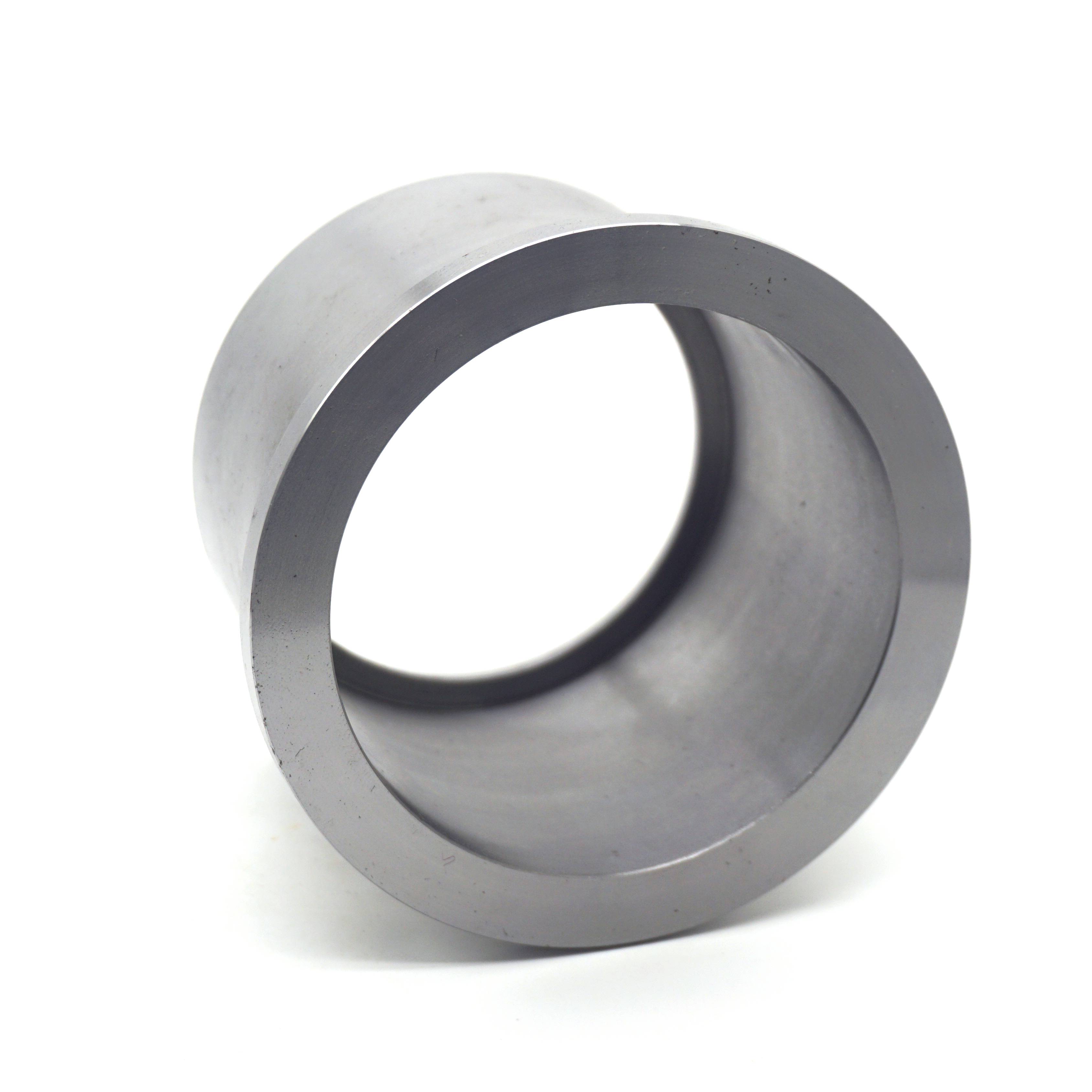

This custom flanged sleeve bushing is a precision non-standard turned component, engineered to provide reliable axial positioning and friction reduction in mechanical assemblies. Featuring an integrated flange at one end, it prevents axial displacement while the cylindrical sleeve supports rotating shafts, effectively minimizing wear and extending component lifespan. Manufactured via advanced CNC turning, it supports full customization of materials, dimensions and surface treatments, making it ideal for both industrial machinery and daily-life hardware applications.
| Parameter Item | Core Details & Custom Options | Key Notes |
|---|---|---|
| Product Name | Custom Flanged Sleeve Bushing | Non-standard precision turned fastener |
| Material Options | Carbon Steel, Stainless Steel 304/316, Brass | Special alloys available upon request |
| Size Range | OD: 3–60mm, Length: 5–100mm, Flange: Custom | Fully tailored to customer drawings |
| Precision Tolerance | ±0.005mm – ±0.02mm | High-precision CNC turning control |
| Surface Treatment | Plain, Zinc Plated, Passivation, Polishing | Anti-corrosion and wear-resistant options |
| Machining Process | CNC Precision Turning, Non-Standard Machining | Full-process quality inspection guaranteed |
| Main Function | Axial positioning, shaft support, friction reduction | Prevents axial movement and reduces wear |
Home Appliances: Used in washing machine drum suspensions, air conditioner swing blades and refrigerator door hinges to ensure smooth, quiet operation.
Fitness Equipment: Installed in treadmill hinges, gym machine joints and exercise bike shafts to withstand repeated use and maintain stability.
Building Hardware: Applied in shower door pivots, window hinges and furniture connectors to provide durable support and alignment.

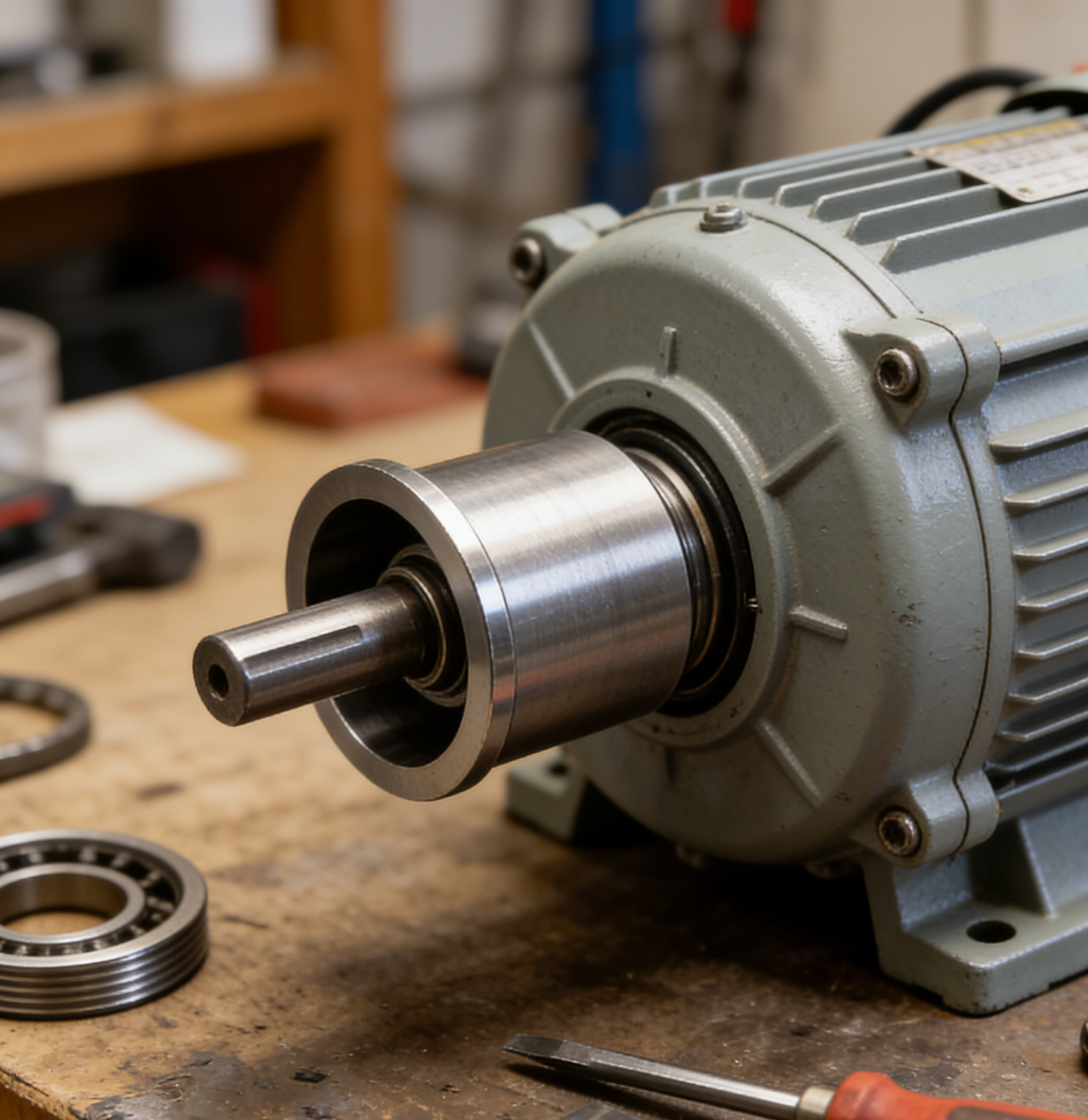

Mechanical Equipment: Fitted in conveyor systems, gearboxes and machine tool spindles to reduce friction and prevent axial movement.
Automotive Components: Used in vehicle chassis, suspension systems and transmission assemblies to support rotating shafts and absorb loads.
Hydraulic & Pneumatic Systems: Applied in cylinder joints and valve assemblies to ensure precise alignment and reliable performance.
We supplied custom carbon steel flanged bushings for a leading home appliance manufacturer, used in washing machine drum suspensions. The precise flange design ensured stable positioning during high-speed rotation, reducing noise and extending the product’s service life by 30%.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
