| Quantity: | |
|---|---|

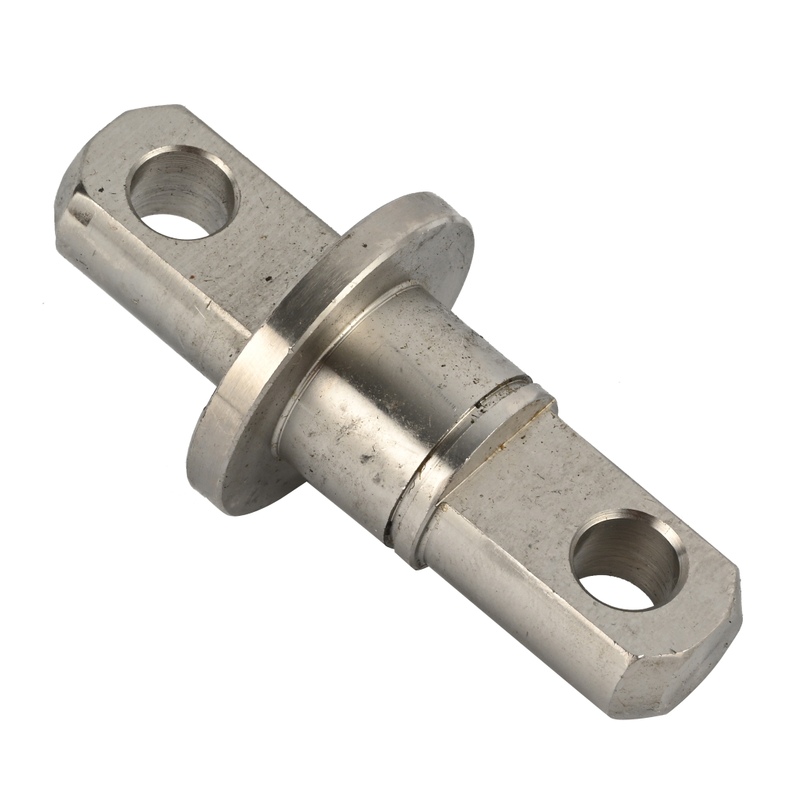

NHY-S008
NHY
73182400
| Parameter | Range/Details | Unit |
| Diameter | 5mm - 50mm (customizable up to 100mm) | mm |
| Length | 20mm - 300mm (max. 500mm for special orders) | mm |
| Tolerance | ±0.005mm - ±0.02mm (ISO 2768 fine/medium grade) | - |
| Surface Finish | Ra 0.8 - Ra 3.2 (polished/grinded options) | μm |
| Hardness | 18-30 HRC (adjustable via heat treatment) | HRC |
| Balance Grade | G6.3 - G2.5 (ISO 1940 standard) | - |
| Material Options | Stainless Steel, Carbon Steel, Aluminum, Brass | - |
| Certification | ISO 9001:2015, RoHS Compliant | - |
Aerospace: For aerospace ventilation systems, our lightweight aluminum alloy fan shafts contribute to a 15% reduction in overall component weight. This leads to significant fuel savings and enhanced aircraft performance.
Raw Material Selection ➨ Cutting ➨Turning➨Drilling and Threading (if applicable)➨Heat Treatment
CNC Milling Machines
Complementing the turning process, our CNC milling machines add intricate details and features to the fan shafts. These machines use multi - axis technology, allowing for simultaneous machining from multiple angles. They are ideal for creating slots, keyways, and other complex structures on the fan shaft surface. With high - precision linear guides and ball screws, our milling
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001， ITAF 16949，ISO14001
