In the world of mechanical engineering and automotive systems, the transmission plays a pivotal role in managing how power flows from the engine to the wheels. At the heart of this process are the transmission shafts, which transfer torque, synchronize speeds, and keep mechanical components in motion with precision.
Whether you're designing gearboxes for industrial machinery or maintaining an automotive drivetrain, understanding the different types of shafts within a transmission system is essential. This article explores the key shafts in manual and automatic transmissions, their functions, materials, and why selecting the right transmission shaft is critical to reliability and performance.
A transmission shaft is a rotating component within a mechanical power transmission system that transfers energy between moving parts. It typically connects the engine, gears, clutch, and differential, and it plays a central role in delivering motion efficiently and safely. These shafts must withstand varying loads, speeds, and torque levels while maintaining precise alignment and balance.
Modern transmissions—whether manual, automatic, or CVT (continuously variable transmission)—rely on a series of precisely engineered transmission shafts to manage the flow of mechanical power. Regardless of the design complexity, most gearboxes contain three essential shafts that work together to ensure smooth, responsive, and efficient vehicle operation.
The input shaft is the first point of power entry into the transmission system. It connects directly to the engine crankshaft, typically via a clutch assembly in manual transmissions or a torque converter in automatic systems. As the engine spins, the input shaft rotates in tandem, feeding torque into the gearbox.
Function: Transmits engine power into the transmission to initiate gear engagement.
Design Considerations: Precise axial alignment is crucial to prevent vibration, gear wear, or bearing damage. Any misalignment could result in increased noise and reduced transmission lifespan.
Common Materials: Heat-treated alloy steels (such as SAE 8620 or 4140) are often used for their excellent toughness, fatigue resistance, and hardness under load. Surface treatments like nitriding may be applied to improve surface durability.
The countershaft runs parallel to the input and output shafts and acts as an intermediary between them. It carries a set of fixed gears that constantly mesh with movable gears on the output shaft. In manual transmissions, shifting gears changes which gear on the countershaft transmits torque to the output shaft.
Function: Routes power through different gear ratios depending on driver input or shift commands.
Found In: Most manual gearboxes, and even some dual-clutch and semi-automatic designs.
Performance Role: Determines available gear ratios and influences how smoothly and efficiently the transmission shifts. A precisely machined countershaft is key to noise reduction, gear synchrony, and fuel economy.
Note: In some compact transmission designs, such as those in front-wheel-drive vehicles, the countershaft may be combined with the output shaft in a concentric configuration to save space.
The output shaft is the final link in the transmission system, delivering rotational power from the gearbox to the differential and then to the drive wheels. It receives torque from the countershaft based on the engaged gear ratio and converts it into forward or reverse motion.
Function: Sends regulated torque and RPM to the vehicle’s driveline.
Load Handling: Must endure sudden torque spikes, RPM changes, and shock loads during gear changes or heavy acceleration. Reinforced bearings and splined ends help accommodate these stressors.
Importance: A robust output shaft ensures responsive acceleration, traction control, and smooth gear transitions under all operating conditions.
The output shaft often includes synchronizer assemblies and gear selector sleeves in manual transmissions, contributing directly to shifting performance.
In more advanced or high-performance transmission setups, you'll find extra shafts that serve specific functions:
An intermediate shaft is used in some designs to transfer power between non-parallel components or bridge complex gear stages.
Often found in dual-clutch and heavy-duty industrial transmissions.
Helps maintain compact gearbox designs while preserving torque handling.
This shaft holds the reverse idler gear, which allows the vehicle to move backward. It changes the direction of rotation from the output shaft.
Only engaged during reverse gear operation.
Adds flexibility without requiring additional torque converters.
Selecting the right material for a transmission shaft is crucial due to the high-stress environments they operate in.
Alloy Steels: High-strength, heat-treated for durability (e.g., 8620, 4140).
Carbon Steels: Cost-effective but suitable for low-torque applications.
Forged or machined shafts: Preferred for their grain alignment and strength.
Shafts are typically surface-hardened (via nitriding or induction hardening) to resist wear while maintaining a ductile core to absorb shock.
Transmission shaft failures can disrupt the entire drivetrain and are often caused by:
Torsional overload: Excessive torque causing twisting or breakage.
Misalignment: Leads to fatigue and vibration.
Corrosion or wear: Especially in harsh industrial settings.
Manufacturing defects: Inconsistent material quality or heat treatment.
Preventive solutions include:
Choosing high-quality, precisely machined shafts
Ensuring proper lubrication and alignment
Regular inspection for early signs of wear or fatigue
The input, countershaft, and output shafts work together in a synchronized flow:
The input shaft receives power from the engine.
This power is passed to the countershaft, which has fixed gears that rotate continuously.
Gear selectors engage various gears on the output shaft to select the right ratio.
The output shaft rotates accordingly and delivers torque to the wheels.
The coordination of these shafts allows for smooth acceleration, speed variation, and directional control.
Modern demands for higher efficiency and durability have led to several design innovations:

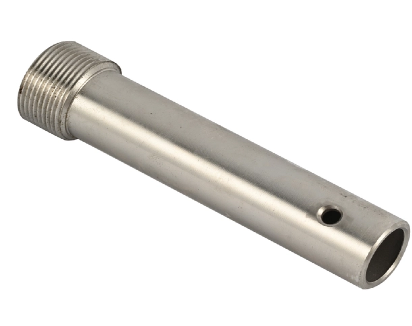

Hollow shafts for weight reduction in electric vehicles
Spline profiles for improved torque transmission
Advanced coatings (like DLC or ceramic) to resist extreme wear
In electric and hybrid vehicles, the traditional transmission is often replaced with simpler single-speed gearboxes, but transmission shafts still play a role in reducing rotational friction and managing high-speed outputs.
While automotive transmissions are the most familiar, transmission shafts are also used in:
Heavy machinery: Excavators, cranes, mining equipment
Aerospace gearboxes: Lightweight yet strong shafting for propeller systems
Wind turbines: Transmitting mechanical energy from rotor to generator
Marine propulsion systems: High-strength corrosion-resistant shafts
Each use case demands customized designs based on load, environmental conditions, and operational speed.
If you are in need of high-performance transmission shafts, selecting the right manufacturer is key. Look for partners who offer:
Precision CNC machining
Metallurgical expertise and material traceability
ISO-certified production and quality control
Custom shaft design based on application requirements
From enabling speed changes to reversing direction and managing torque, transmission shafts are the unsung heroes of mechanical systems. Their reliability directly affects the performance, efficiency, and longevity of vehicles and industrial equipment alike.
As transmission technologies evolve—especially with the rise of electric and hybrid systems—the demand for stronger, lighter, and more efficient shafts will only grow. Whether you're an OEM, engineer, or procurement manager, understanding the makeup and function of these shafts is essential for making informed decisions.
For those seeking reliable, high-precision transmission shaft solutions, Ningbo Hanyue Metal Products Co., Ltd offers a range of custom manufacturing capabilities. Their engineering expertise, material sourcing, and consistent quality make them a trusted partner for both standard and specialty shafts. Visit their website to learn more or get in touch with their team for tailored support.
