| Quantity: | |
|---|---|
NHY-S0027
NHY
73182400

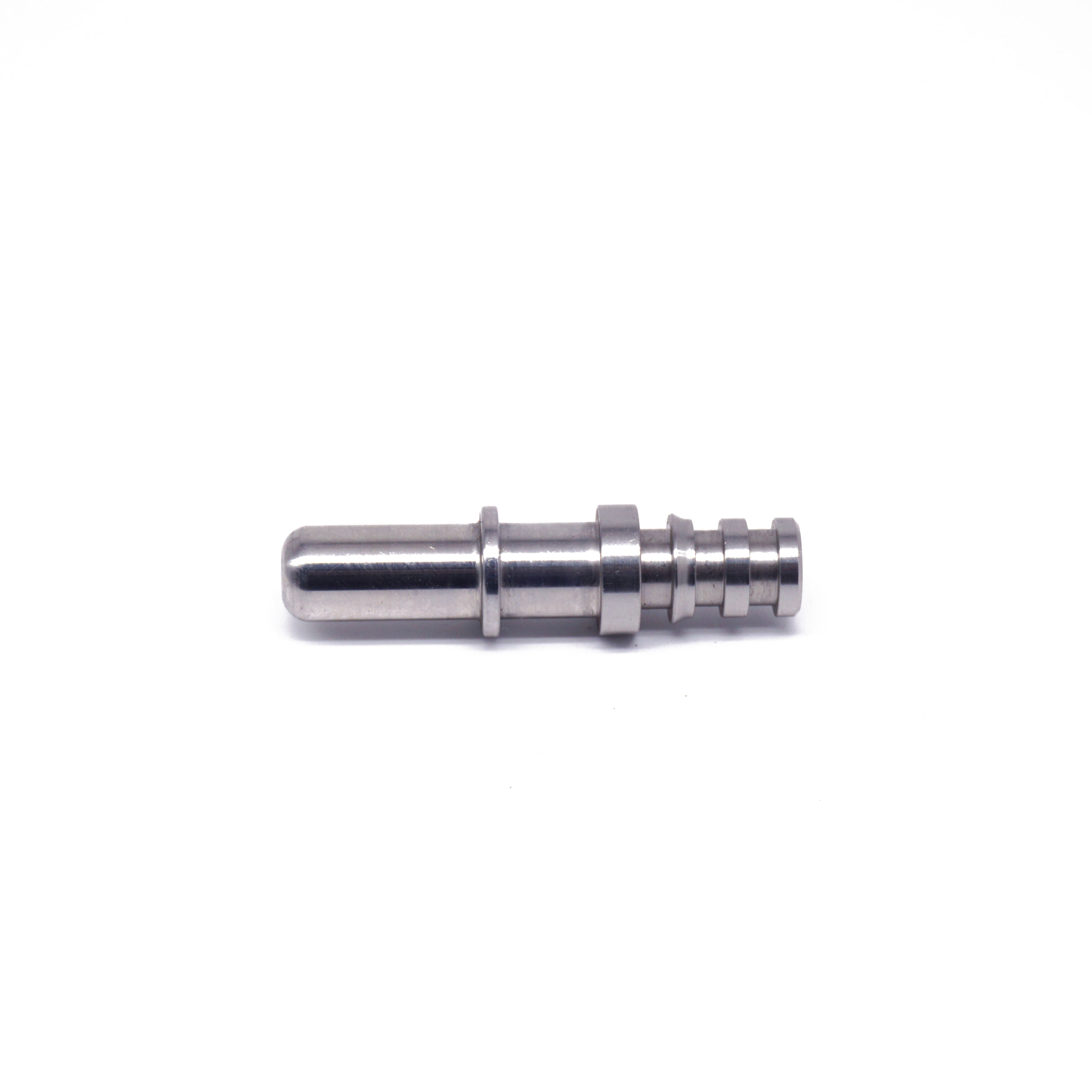

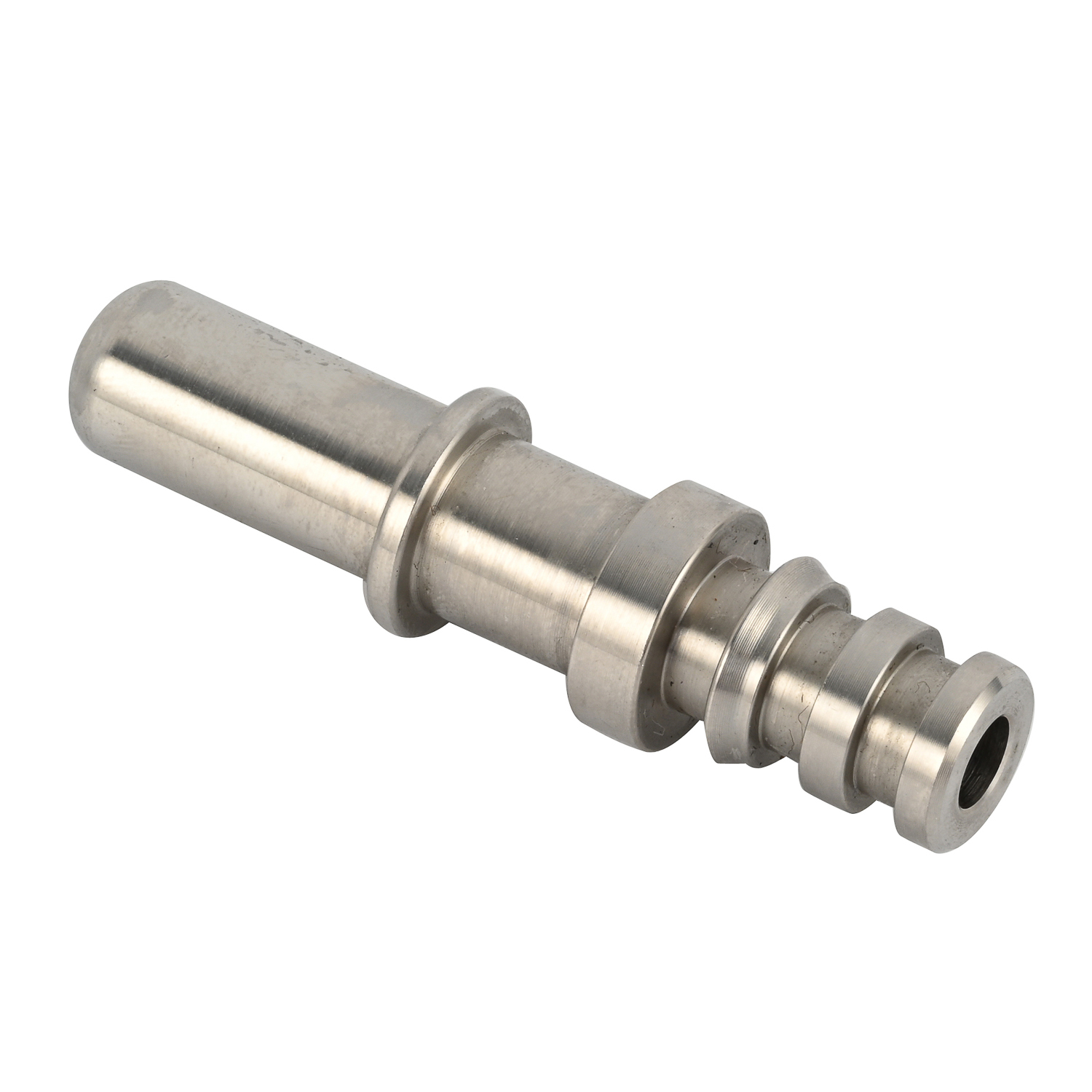

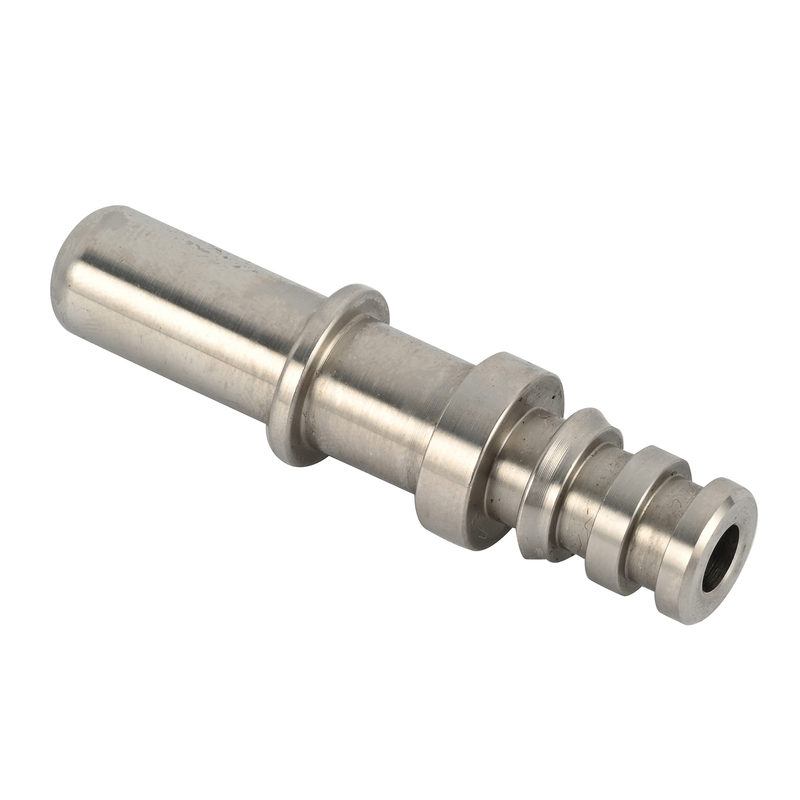

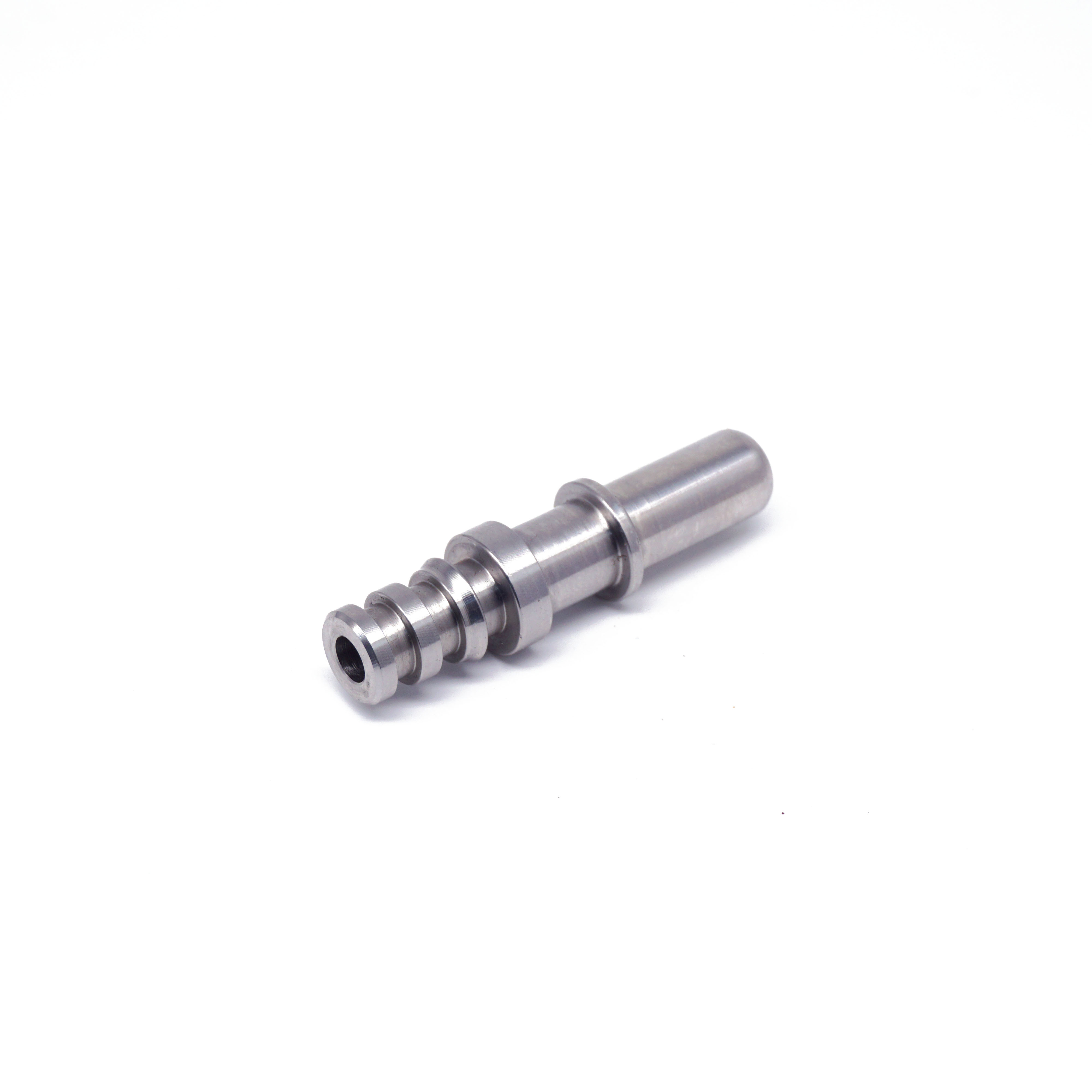

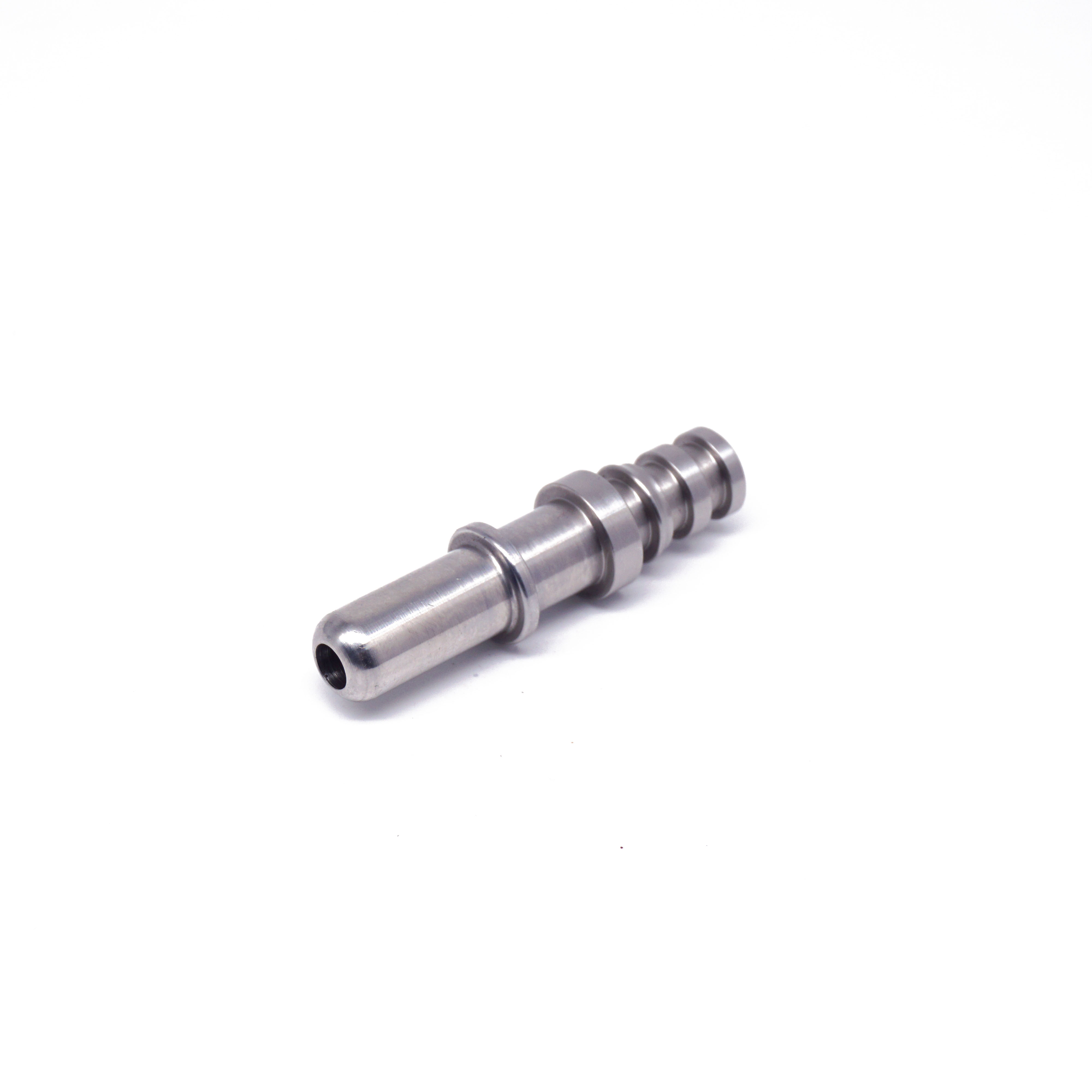

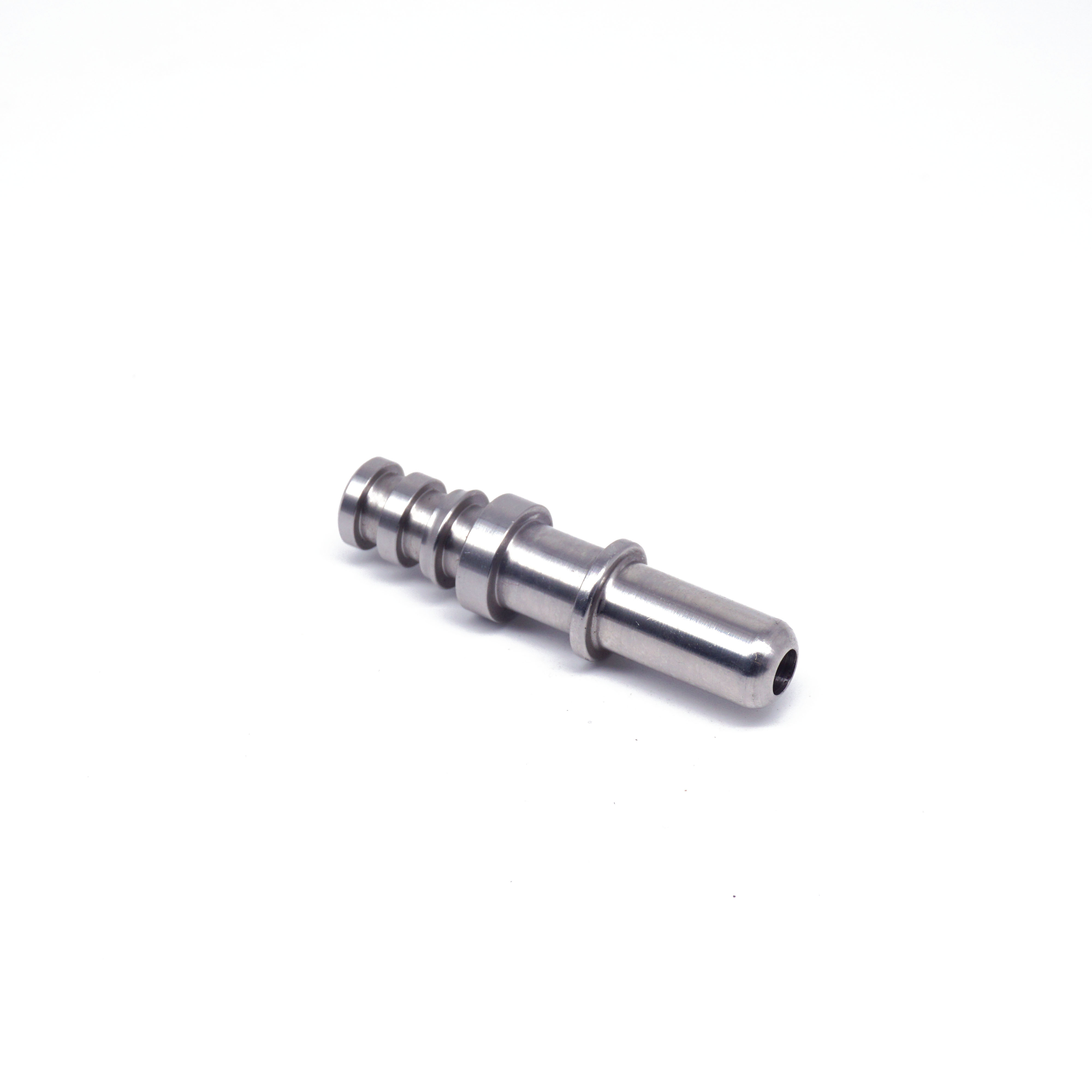

Our custom precision fan shafts stand as the epitome of excellence in non - standard fasteners and precision turned components. Employing state - of - the - art manufacturing technologies, we ensure each fan shaft adheres to the strictest accuracy and durability standards. Whether it's for aerospace, automotive, or industrial applications, our fan shafts are engineered to deliver peak performance. With a wide range of material options and customizable designs, we tailor solutions to meet your unique requirements, ensuring seamless integration and long - term reliability.
| Parameter | Specification |
| Diameter | 3 - 120 mm (Customizable) |
| Length | 10 - 1500 mm (Customizable) |
| Material | Stainless Steel (304, 316), Aluminum Alloy (6061, 7075), Titanium Alloy, Carbon Steel |
| Surface Finish | Ra 0.4 - 1.6 μm |
| Dimensional Tolerance | ±0.002 mm |
| Hardness | Up to 58 HRC |
| Balancing Grade | G2.5 |
| Keyway/Thread | Custom keyway, metric/imperial threads available |
| Corrosion Resistance | Passivated, Anodized, Electroplated options |
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001， ITAF 16949，ISO14001
