| Quantity: | |
|---|---|
NHY-F0018
NHY
| Parameter | Description |
| Material | Stainless Steel 304/316, Carbon Steel, Aluminum Alloy, Brass, Titanium |
| Size Range | Diameter: 0.5mm - 50mm; Length: 10mm - 200mm |
| Thread Type | Metric (M1 - M48), UNC/UNF, BSPP, NPT |
| Tolerance | ±0.01mm for Precision Series; ±0.05mm for Standard Series |
| Working Pressure | Up to 500 bar (dependent on material and size) |
| Temperature Range | -40°C to 600°C |
| Surface Treatment | Zinc Plating, Anodizing, Passivation, PTFE Coating |
1. Precision Engineering：Manufactured with advanced CNC technology to achieve ultra-tight tolerances, ensuring a perfect fit in complex systems.
2.Superior Material Selection：Crafted from high-grade stainless steel, carbon steel, aluminum alloy, brass, and titanium, offering excellent corrosion resistance, strength, and durability.
3.Versatile Sizing Options：Available in a wide size range, from 0.5mm to 50mm in diameter and 10mm to 200mm in length, catering to diverse application needs.

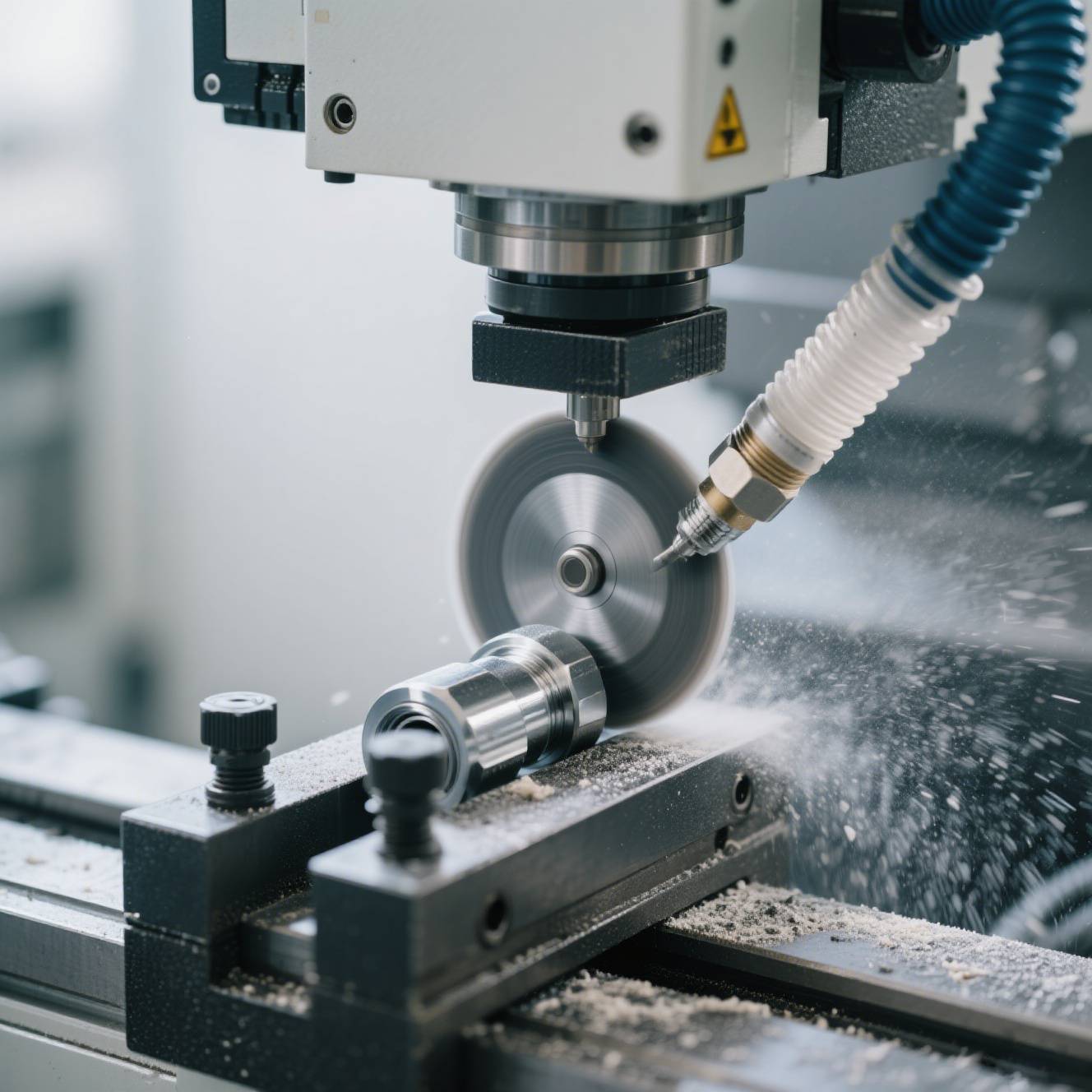

We have established an advanced equipment matrix covering the entire production process. CNC five-axis machining centers, high-precision stamping machines, and automated assembly lines work in tandem. With micron-level control precision, we mill, stamp, and form the core components of connectors. Paired with a real-time online monitoring system, this setup not only boosts production efficiency by 40% but also ensures that key dimensional tolerances remain stable at ±0.005mm, providing reliable support for high-precision fields such as 5G communications and
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
