NHY-F0098
NHY

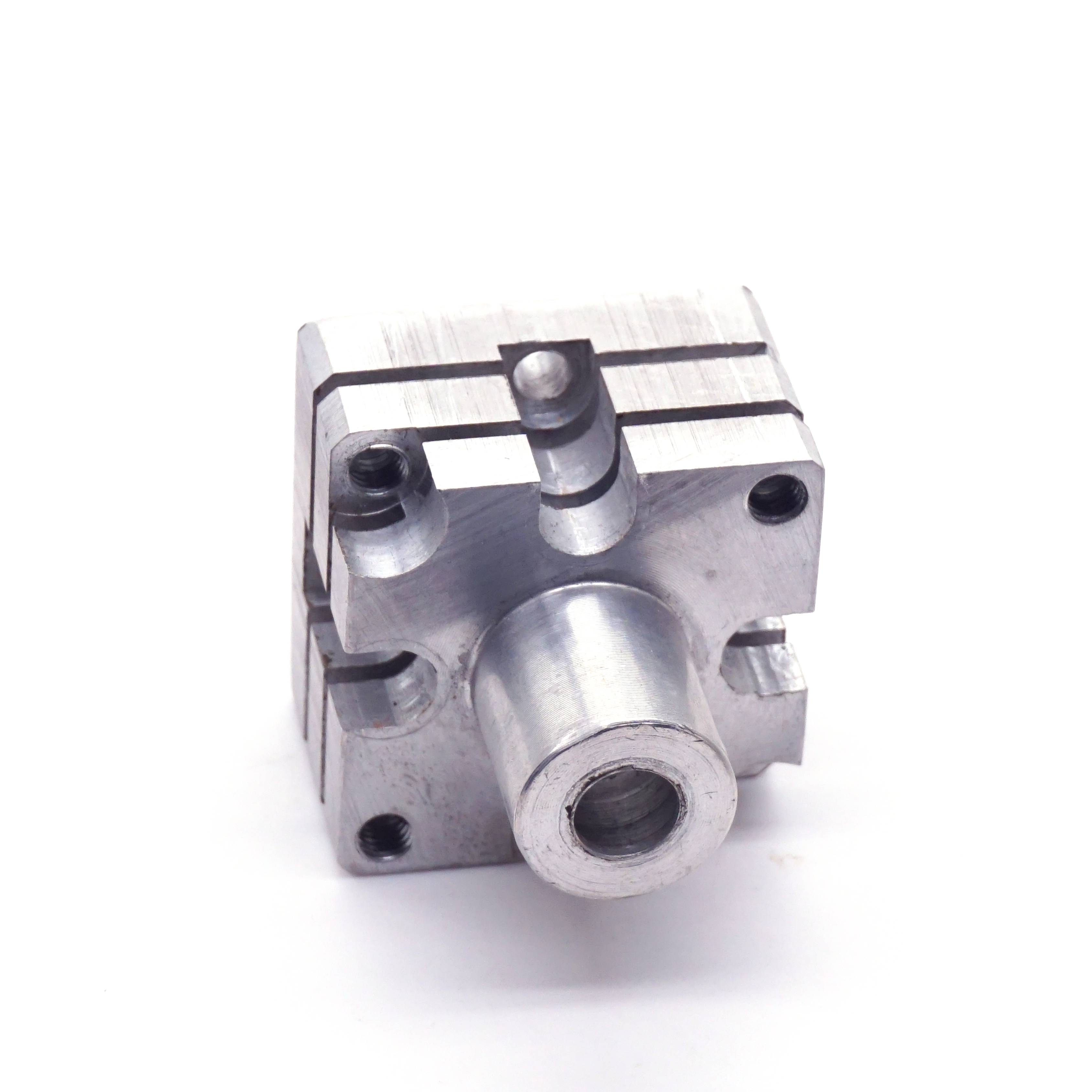

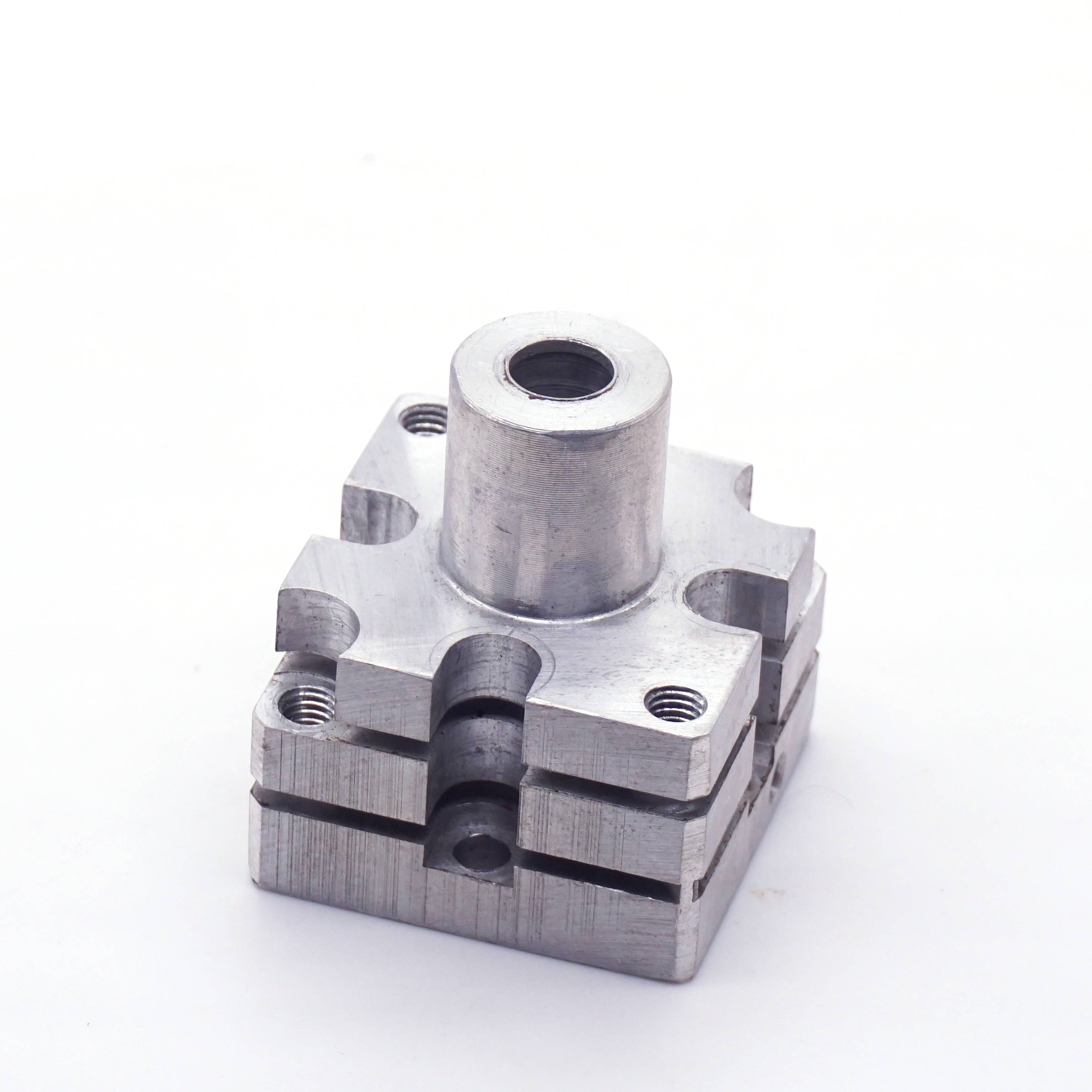

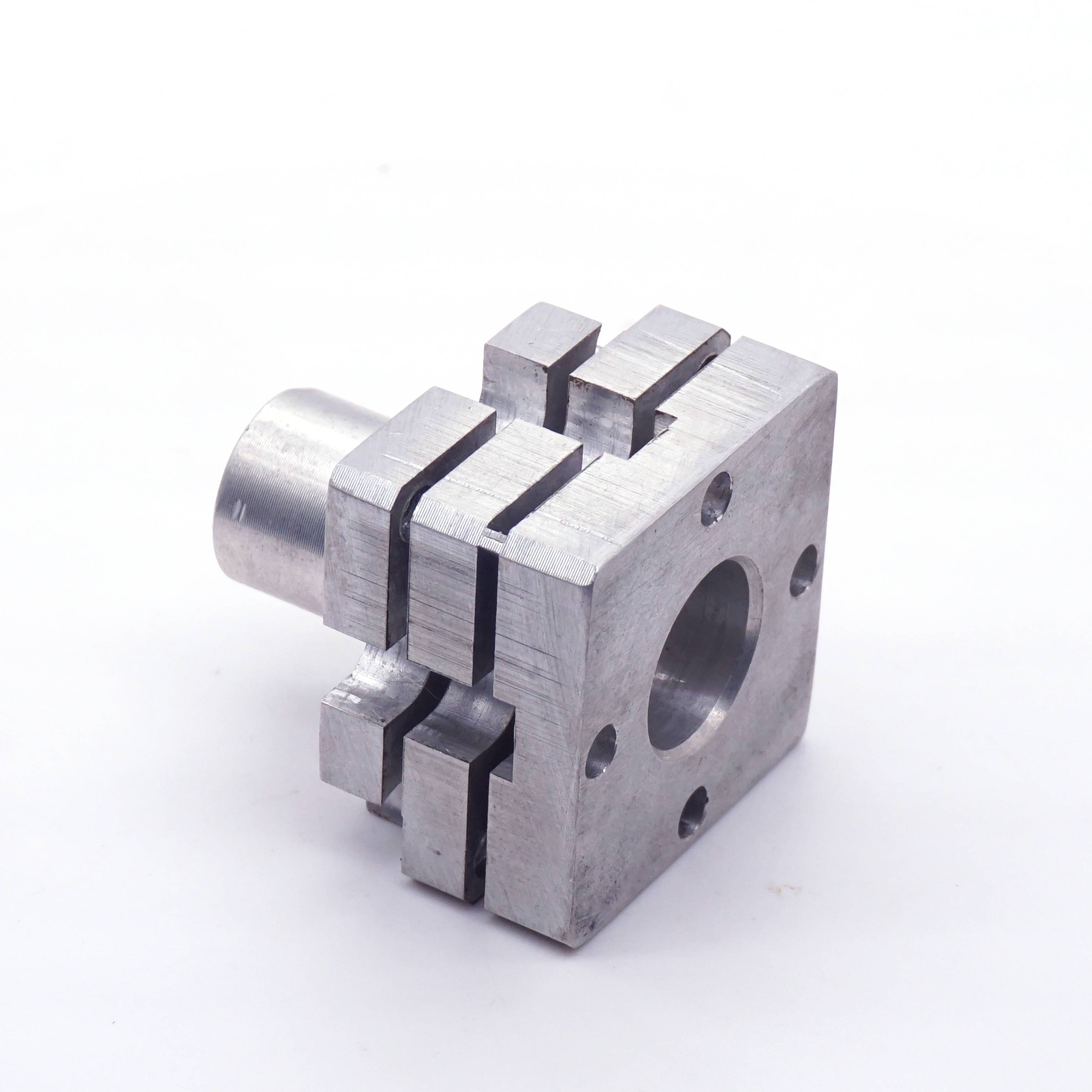

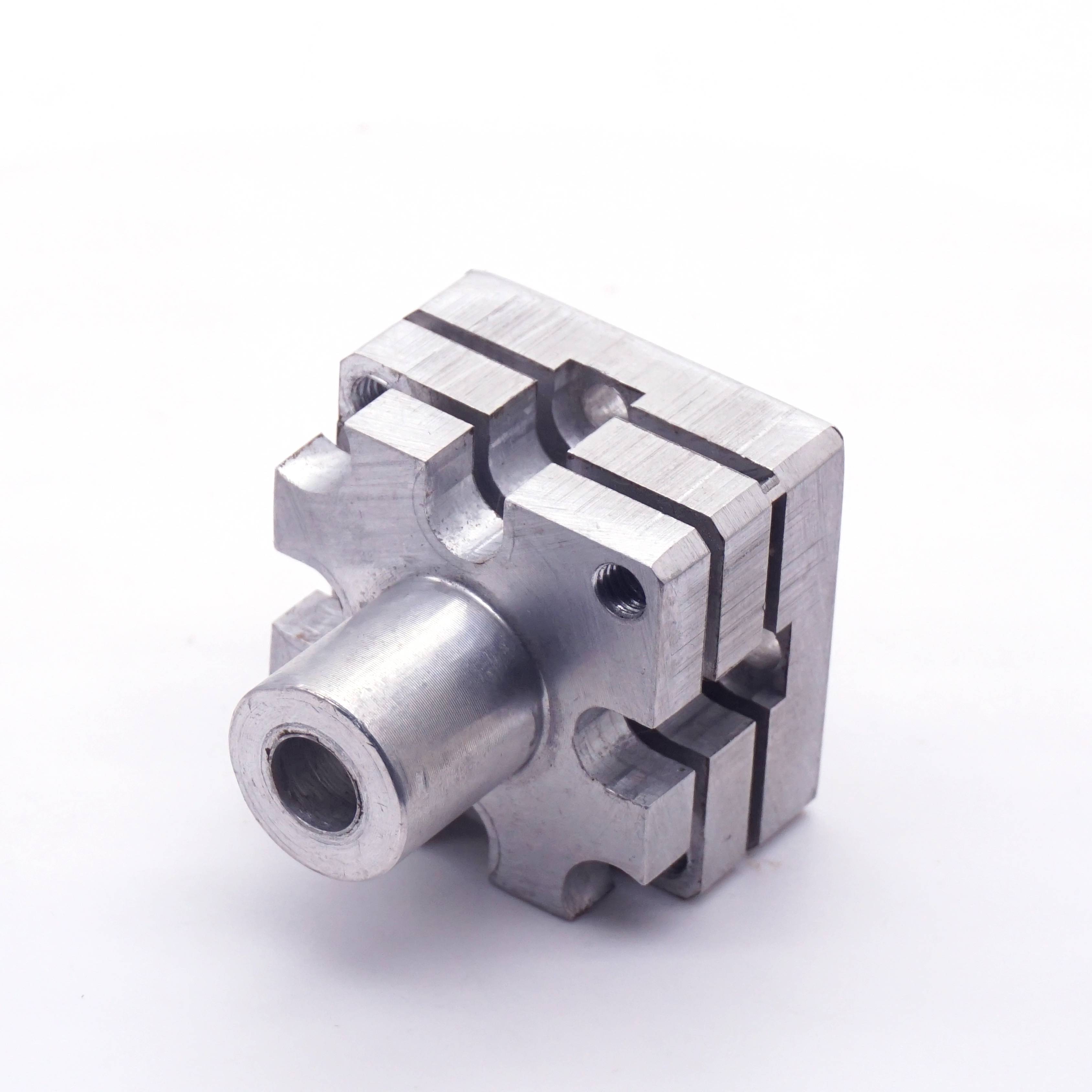

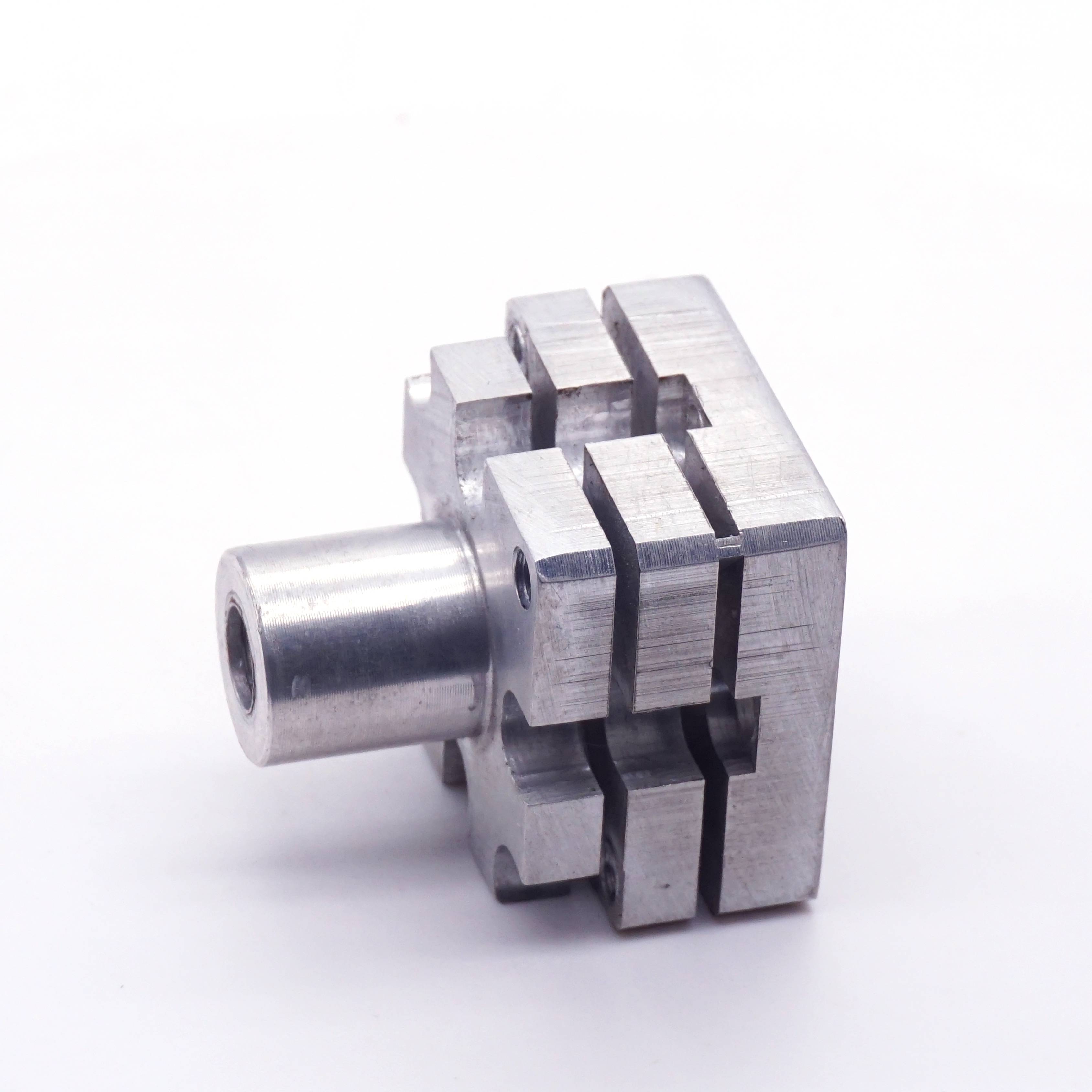

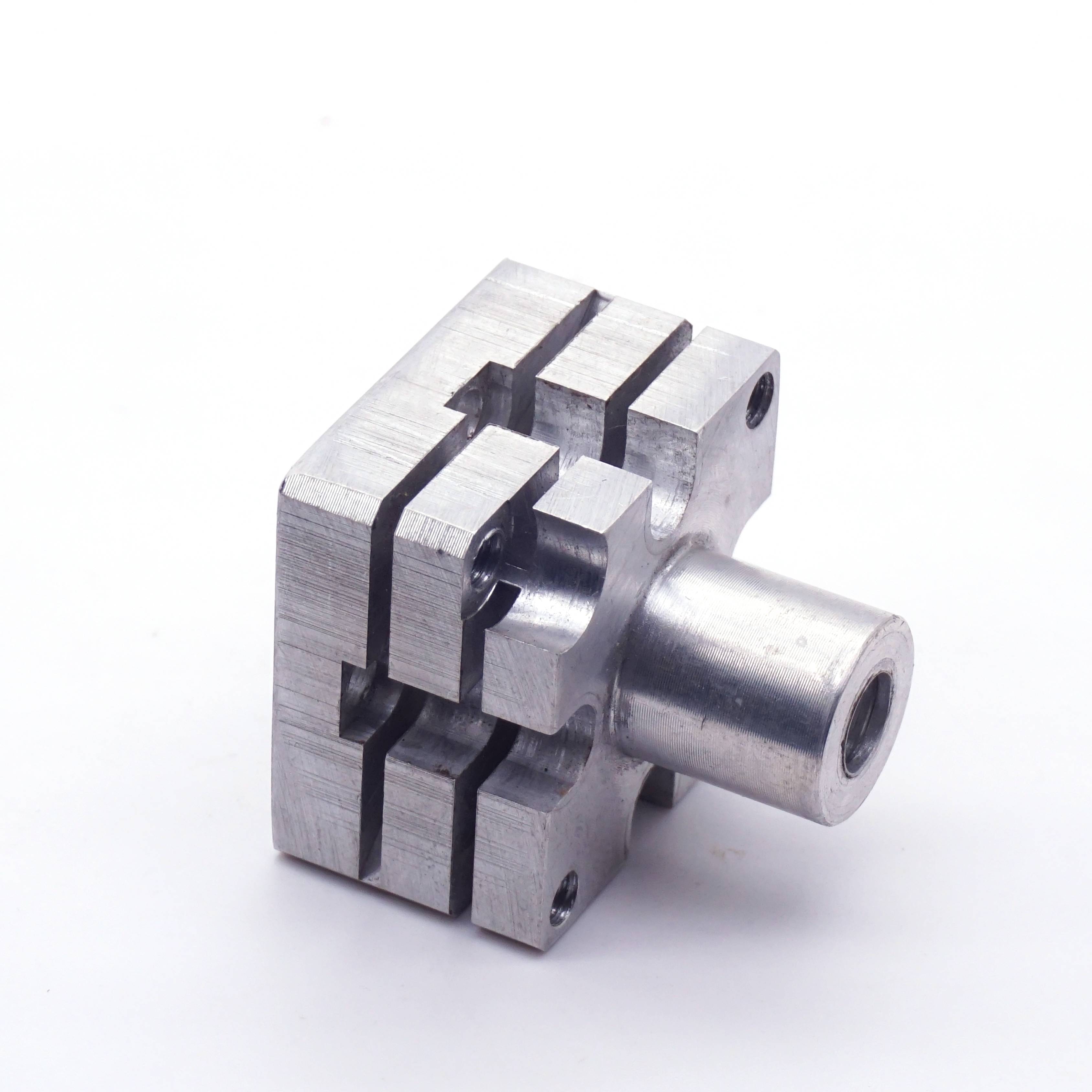

Our custom CNC machined clamping fixture block is a precision-engineered component for mechanical clamping and positioning tasks. Produced via combined CNC turning and milling processes, it features a robust square base, threaded cylindrical insert, and locking screw mechanism to secure workpieces in automated and manual assembly setups.
| Parameter | Standard Specification | Custom Option |
|---|---|---|
| Material | Aluminum 6061/Stainless Steel 304 | Brass/Alloy Steel |
| Base Dimensions | Custom (20mm–100mm square) | Fully customizable |
| Cylinder Diameter | Custom (φ8mm–φ30mm) | Fully customizable |
| Internal Thread | Custom (M4–M12) | Non-standard thread sizes |
| Locking Screw Size | Custom (M3–M6) | Fully customizable |
| Tolerance | ±0.005mm | Tighter tolerance (±0.002mm) |
| Surface Finish | Ra 1.6μm (machined) | Anodized / Passivated / Polished |
| Slot Width | Custom (2mm–10mm) | Fully customizable |
3.Application Case

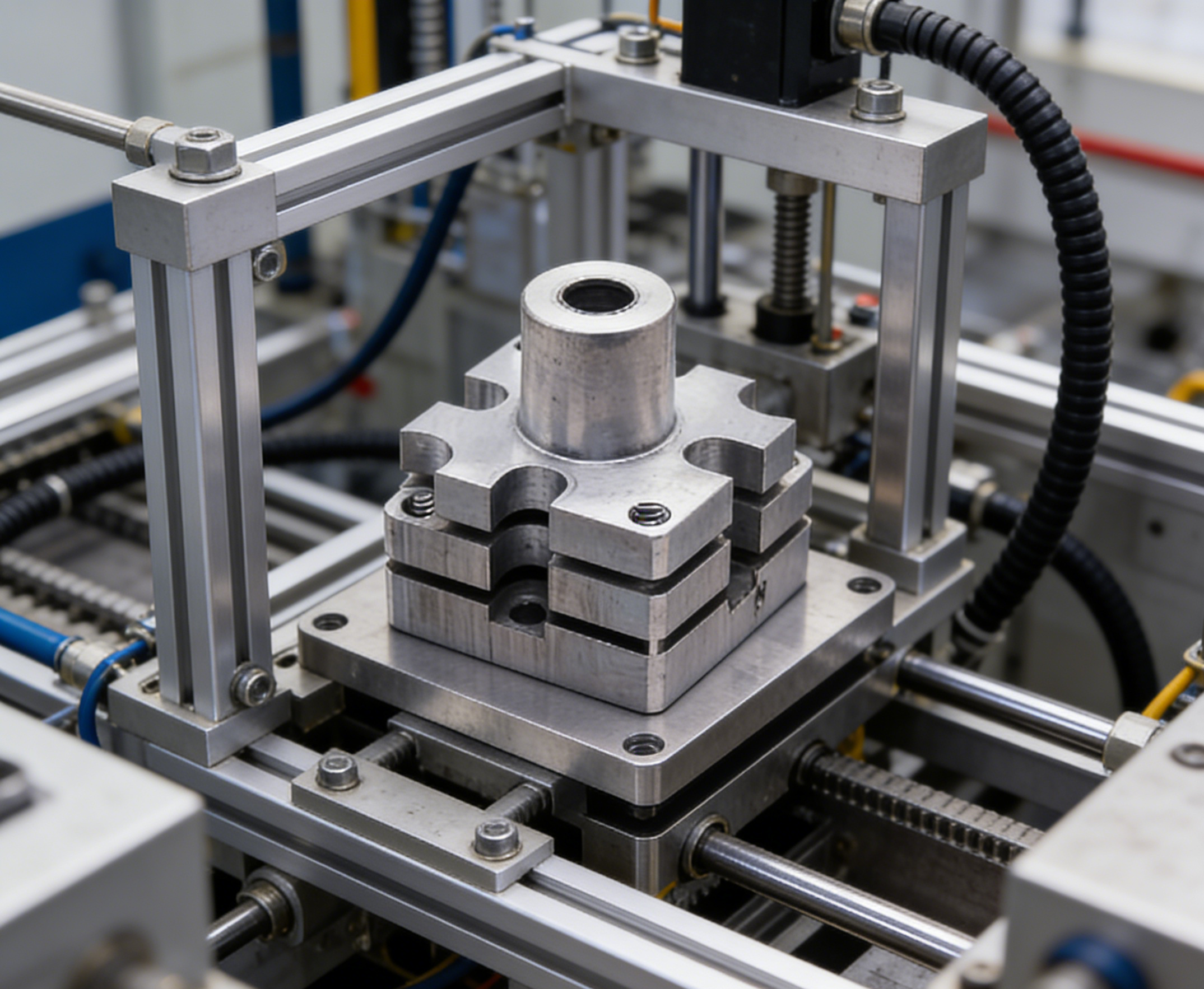

Our custom CNC machined clamping fixture block was integrated into a client’s high-speed optical lens assembly line, securing delicate glass lenses during precision alignment and bonding processes. The slot-locking mechanism and threaded cylindrical insert ensured zero slippage under 60 cycles per minute operation, reducing assembly alignment errors by 38% and boosting production throughput by 25% over 6 months of continuous use.
Custom CNC Machining Precision: Tight tolerance control (±0.005mm) ensures accurate alignment.
Combined Machining Process: Integrates CNC turning and milling for complex geometry.
Robust Clamping Mechanism: Slot and screw design provides secure, non-slip workpiece holding.
Material Versatility: Available in aluminum, stainless steel, or alloy for diverse applications.
Modular Design: Compatible with automated assembly lines and manual workstations.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
