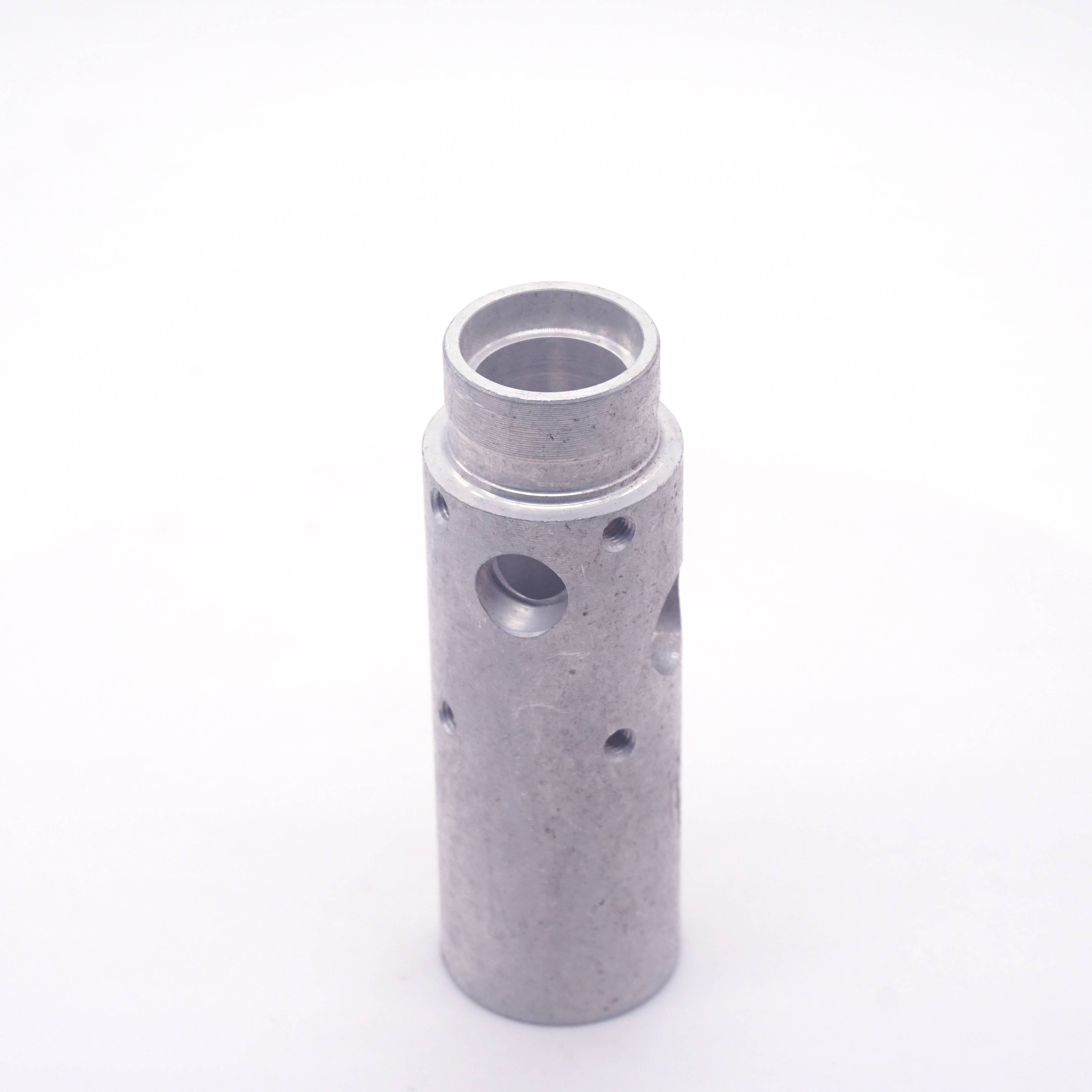

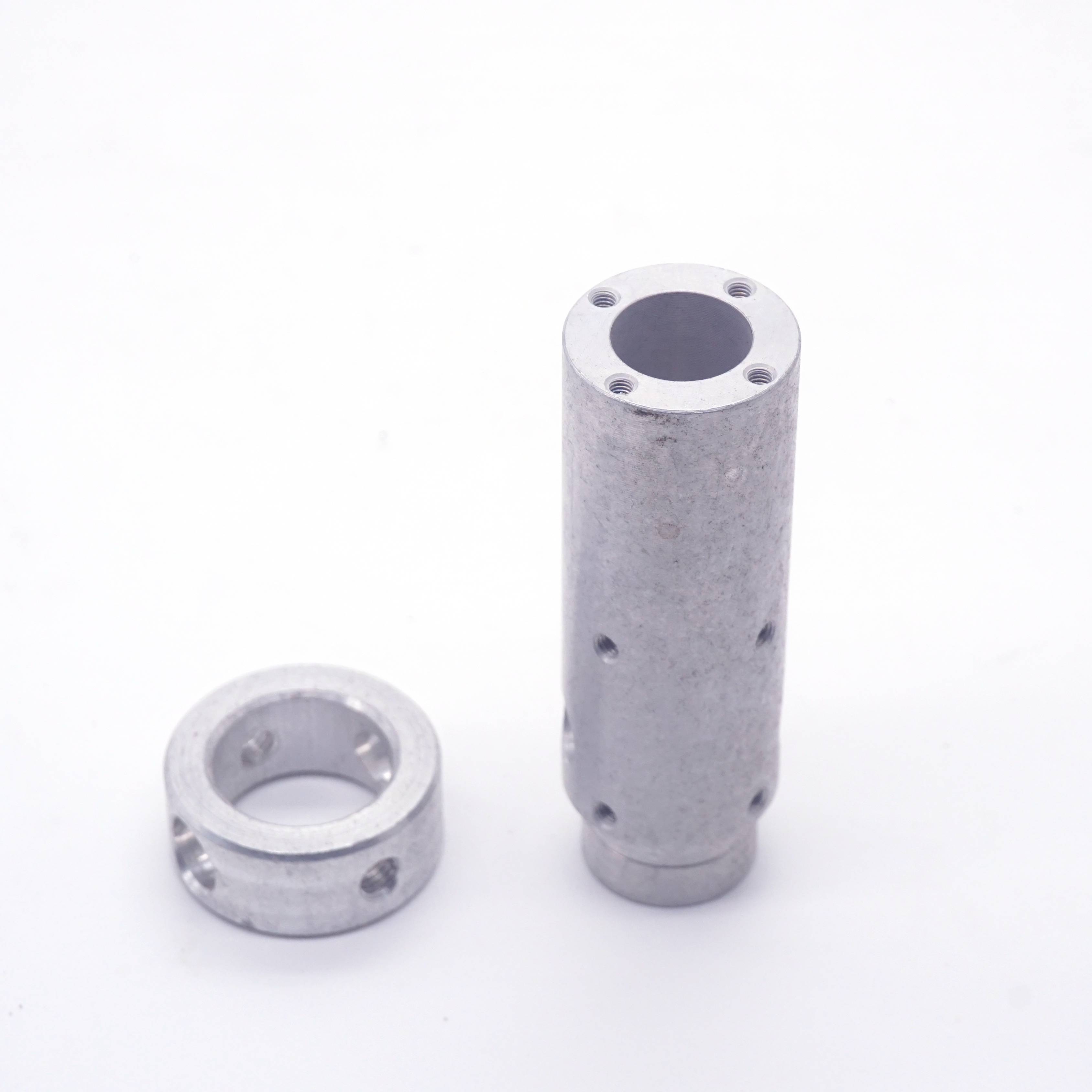

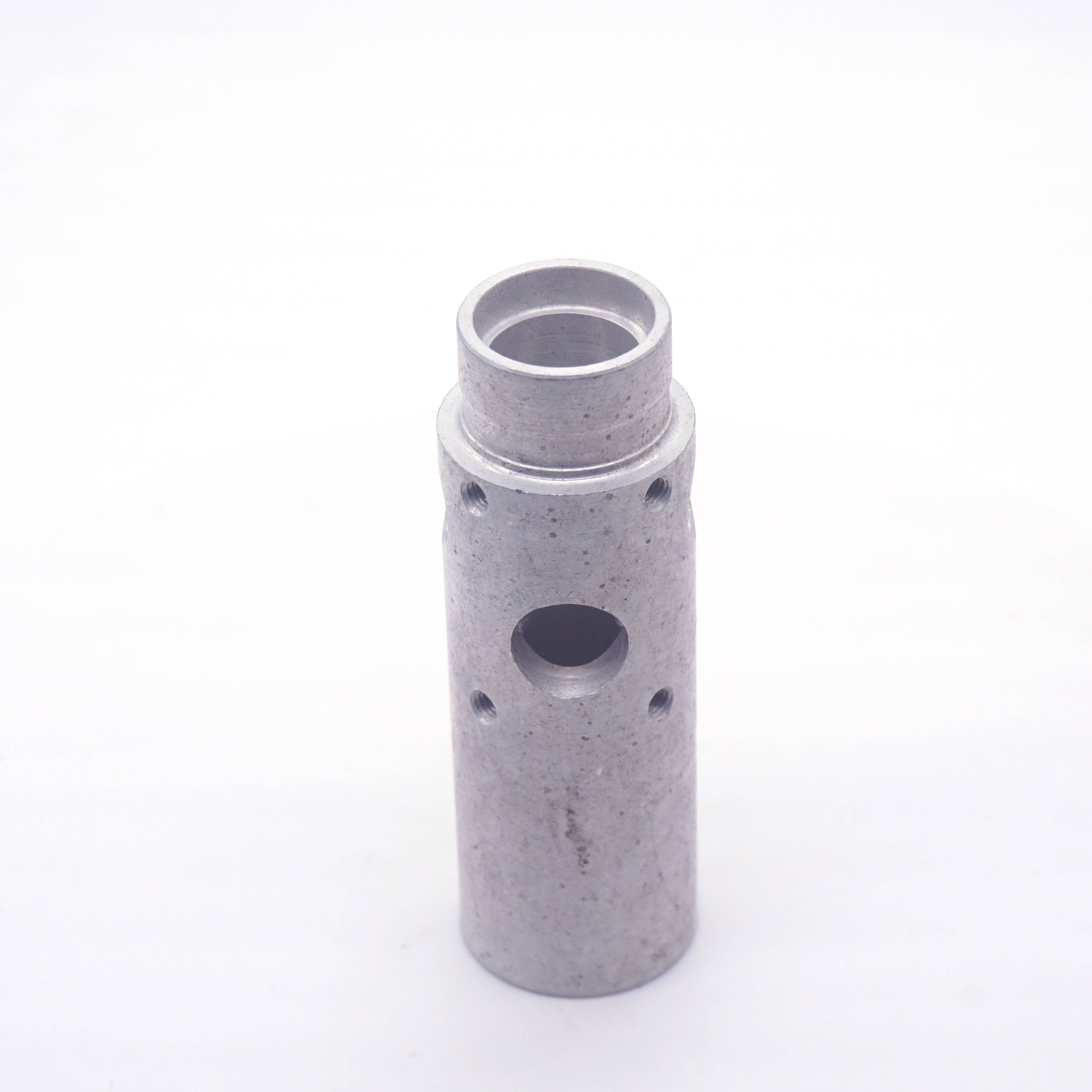

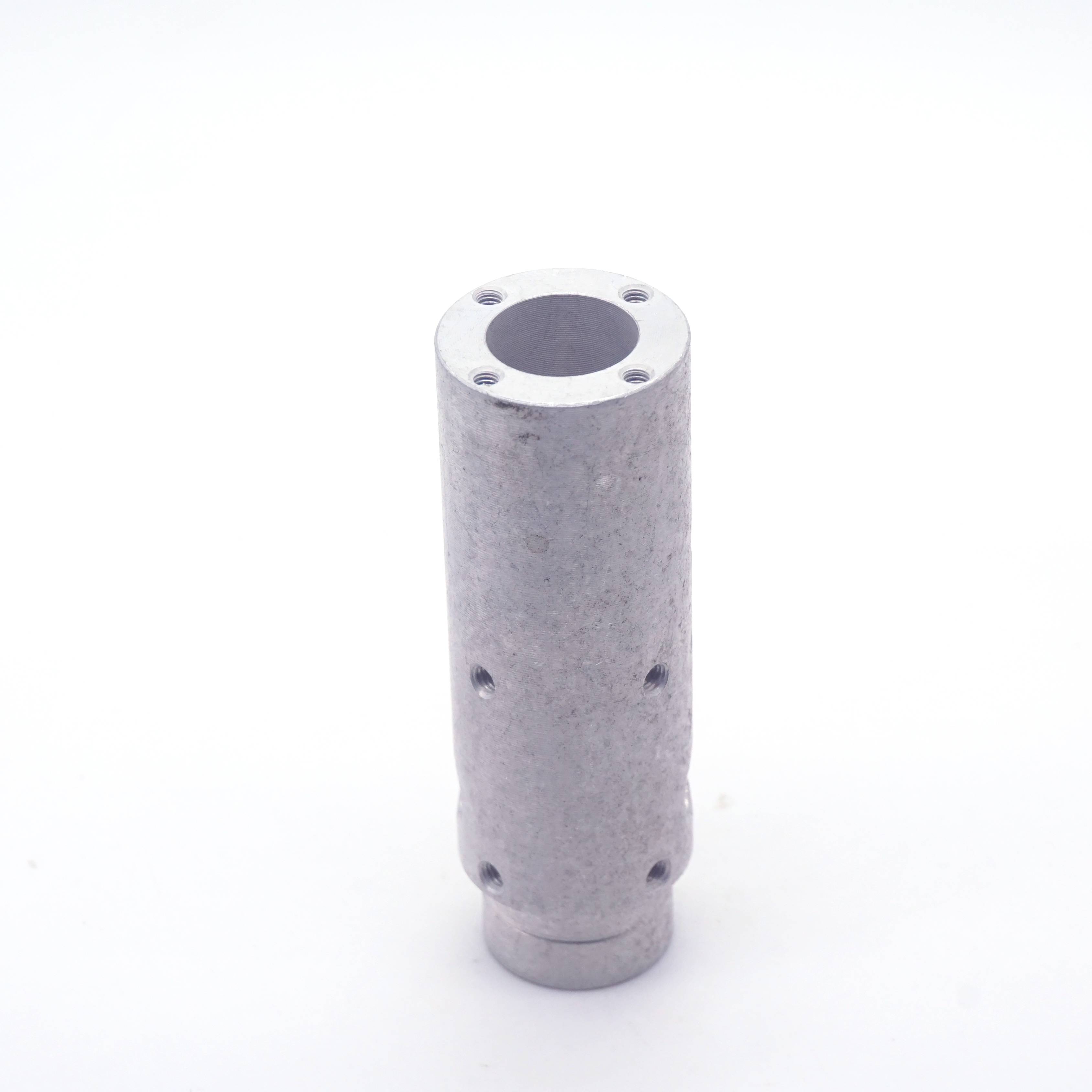

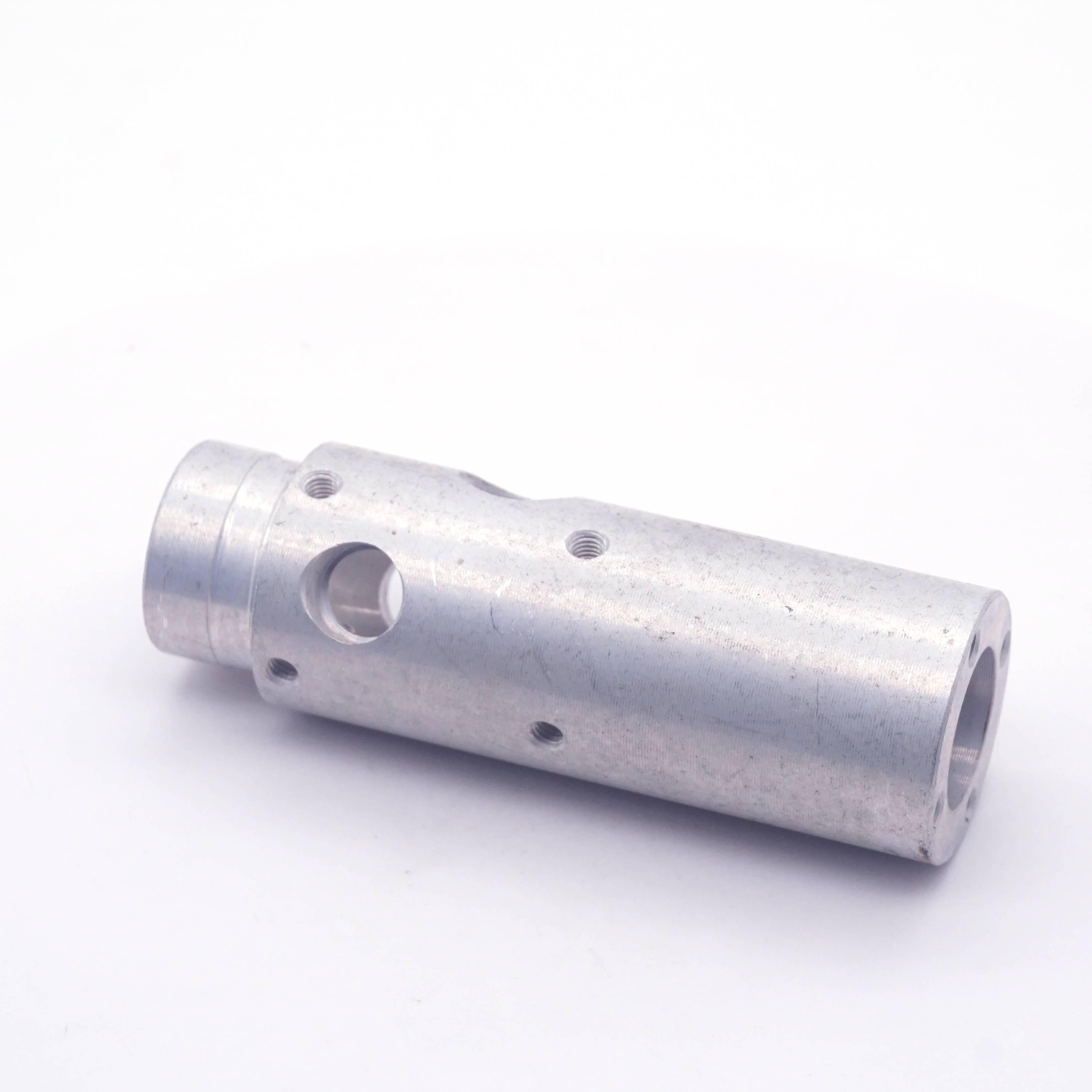

Custom Precision Industrial Transmission Shaft

Brand: NHY

Material Details: High-grade carbon steel, stainless steel, aluminum alloy and Inconel are available for diverse industrial use.
Surface Treatment: Shot peening, passivation and nickel plating enhance wear resistance and fatigue life.
Size & Dimension: Custom diameters, lengths and keyway/spline profiles per client technical drawings and tolerance specs.
Packaging Method: Anti-static ESD bags, foam inserts and custom wooden crates ensure safe global shipping and product protection.

Quantity:
Availability:





Inquire Add to Basket

Model:
NHY-F0084
Brand:
NHY

Product Description

Non-Standard CNC Machined Transmission Shafts for Industrial Power Transmission and Torque Transfer

1.Product Overview

Our custom precision transmission shafts are engineered for high-efficiency power delivery and precise torque transfer in industrial drive systems. Fabricated via advanced CNC turning, milling and precision grinding, these non-standard components deliver ultra-tight dimensional accuracy, exceptional torsional rigidity and stable performance under dynamic load conditions, fully tailored to client drawings and unique functional demands. They act as critical core parts for power trains, equipment drive systems and mechanical motion control across high-demand industrial sectors.

2.Specification Parameters

Parameter Item	Standard Details & Range	Customization Support
Product Name	Custom Precision Industrial Transmission Shaft	Adjustable as per client request
Material	SS304/316, Carbon Steel, Aluminum, Inconel	Custom special alloys accepted
Dimensional Tolerance	±0.002mm to ±0.01mm	Tighter precision available
Size Range	Diameter 3mm-80mm, Length 10mm-500mm	Fully custom sizes and keyway/spline designs
Surface Treatment	Shot Peening, Passivation, Nickel Plating	Custom finishes supported
Processing Technology	CNC Turning, Milling, Precision Grinding	Non-standard machining
MOQ	20pcs - 100000pcs	Flexible MOQ for prototype orders
Production Lead Time	5-12 Working Days	Expedited service for urgent needs

3.Application Cases

Case 1: Automotive Powertrain Transmission Shaft
We supplied custom carbon steel transmission shafts for a German automotive manufacturer, with high torsional strength and black oxide surface treatment. These shafts improved powertrain efficiency by 12%, reduced component fatigue and passed all international automotive quality certifications, securing long-term repeat orders for vehicle assembly.
Case 2: Industrial Robotics Transmission Shaft
A Japanese automation company ordered non-standard aluminum transmission shafts for robotic arm drive systems. Our precision machined shafts ensured zero backlash, extended service life and met the client’s high-speed, lightweight operational requirements perfectly, supporting their advanced industrial robot solutions.
Case 3: Renewable Energy Wind Turbine Transmission Shaft
A European renewable energy supplier commissioned custom alloy steel transmission shafts for wind turbine gearboxes. These shafts withstood extreme wind loads and vibration, meeting strict renewable energy quality standards and securing long-term contracts for wind farm equipment assembly.

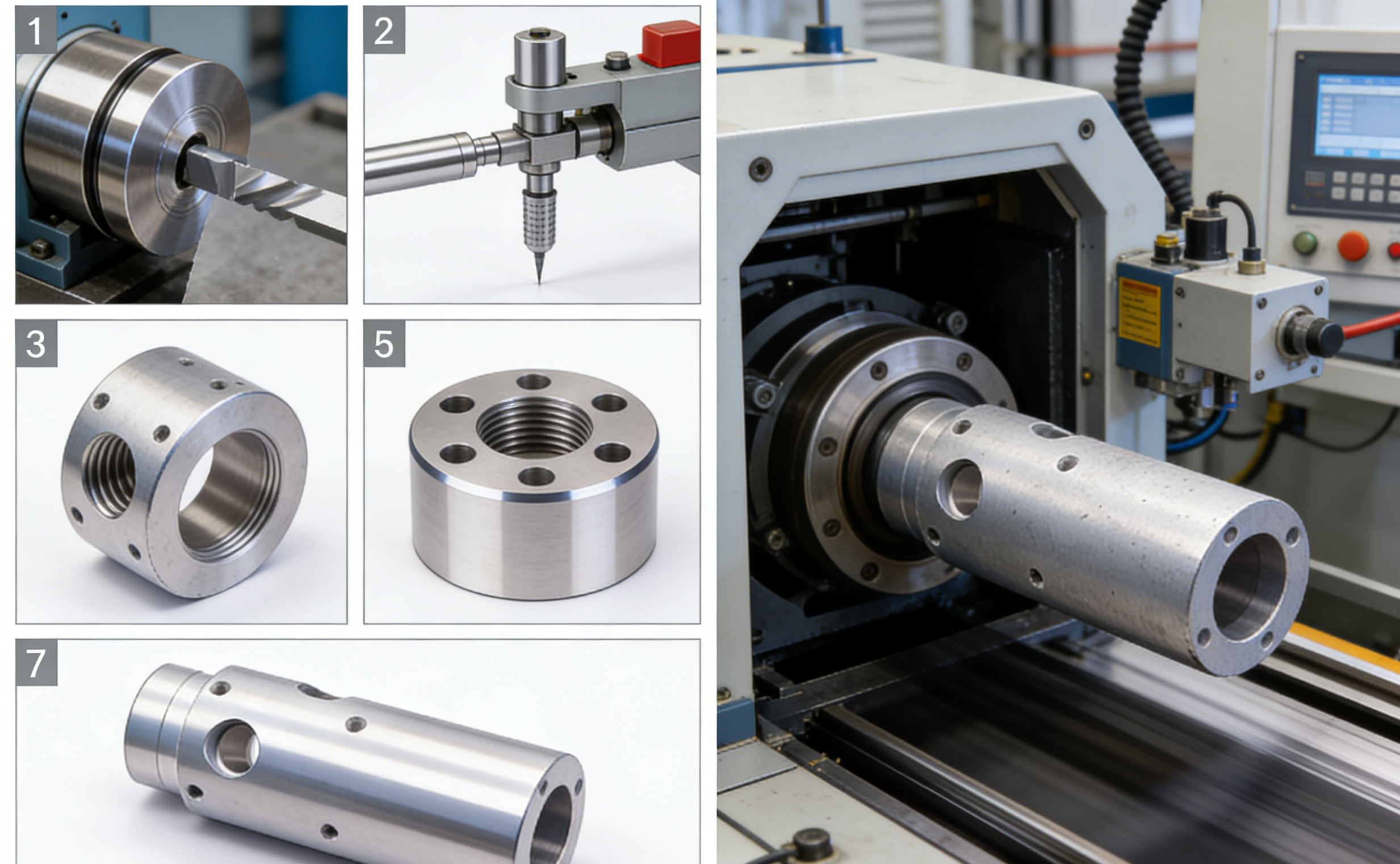

4.The Scene Diagram

5.Product Features & Core Advantages

Custom Material & Surface Treatment for Extreme Durability

We offer high-grade alloys (Inconel, stainless steel) and specialized treatments (shot peening, nickel plating) to resist corrosion, high temperatures and fatigue, extending service life by 30% in harsh industrial environments like mining or aerospace.
Modular Non-Standard Customization for Unique Applications

Our engineering team modifies shaft profiles, keyways and hole positions to match client-specific assembly constraints, supporting prototype and bulk production without compromising performance, ideal for niche industries like medical devices or robotics.
Consistent Batch Quality via Advanced CNC Machining

Automated CNC turning and grinding ensure uniform dimensional accuracy across production runs, reducing rework rates by 25% and maintaining consistent performance for large-scale orders, which lowers client’s total cost of ownership.

6.Quality Assurance

100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001

ISO9001：2015
