In the world of modern manufacturing, CNC (Computer Numerical Control) machines are the backbone of high-precision operations. From aerospace parts to electronic components, these machines are relied upon for producing intricate shapes with tight tolerances. At the heart of every CNC machine lies a key component that directly affects its performance: the spindle shaft.
Choosing the right spindle shaft is crucial for achieving accuracy, speed, and long-term reliability. Yet, with so many variables—ranging from materials and tolerances to load capacity and rotation speed—the decision isn't always straightforward.

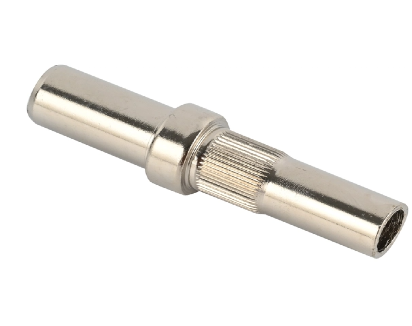

A spindle shaft is the central rotating component of a CNC spindle assembly. It holds and spins the cutting tool (or the workpiece, in some lathe applications), allowing material to be removed or shaped with precision.
The spindle shaft’s role is critical: it must maintain high rigidity, withstand centrifugal forces at high speeds, and minimize runout to ensure precise machining. In essence, the quality and characteristics of the spindle shaft largely determine the overall performance of the CNC machine.
The selection of the spindle shaft directly influences:
Machining accuracy and repeatability
Surface finish quality
Tool life and efficiency
Machine vibration and noise levels
Overall spindle longevity and maintenance frequency
Using an improper or low-quality spindle shaft can result in dimensional inaccuracies, tool deflection, and premature equipment failure—all of which cost time and money in precision manufacturing environments.
The material of the spindle shaft affects its strength, rigidity, wear resistance, and thermal stability.
Common spindle shaft materials include:
Alloy Steel (e.g., 42CrMo, 40Cr): High strength, fatigue resistance, and excellent machinability. Often used for general-purpose CNC applications.
High-Speed Steel (HSS): Suitable for high-speed operations but less common in shaft bodies.
Stainless Steel (e.g., SUS420): Offers corrosion resistance and moderate strength, ideal for humid or chemical-exposed environments.
Carbide and Ceramic Coatings: Used for specialized applications requiring extreme wear resistance and thermal performance.
When selecting a material, consider the operating speed, type of machining (milling, turning, drilling), and environmental conditions.
In CNC machining, runout refers to the amount of deviation a shaft exhibits when rotating. The lower the runout, the more accurate the tool’s movement.
High-precision spindle shafts typically have runout tolerances of less than 2 microns.
For ultra-precise machining (e.g., microelectronics or mold making), tolerances may be reduced to 1 micron or less.
To ensure long-term precision, the shaft must be manufactured with tight dimensional tolerances and undergo high-accuracy dynamic balancing to minimize vibration during high-speed rotation.
The spindle shaft must match the intended speed and load parameters of the machine:
High-speed CNC machines may require spindle shafts rated for speeds above 20,000 RPM. In such cases, shaft material must withstand high centrifugal force without distortion.
For heavy-load applications like large-part milling, the shaft should have a larger diameter and higher rigidity to resist bending under load.
Ensure that the shaft is designed with the correct bearing support system, as bearing compatibility also impacts speed/load performance.
Spindle shafts in high-precision CNC machines generate significant heat due to continuous high-speed rotation and cutting friction. Effective cooling and lubrication are essential to prevent thermal expansion, maintain tight tolerances, and reduce wear. Depending on the machine's configuration, spindle shafts may incorporate air cooling, oil mist lubrication, or grease-sealed bearings to ensure smooth operation. In high-performance applications, coolant-through shafts are often used to deliver fluid directly through the shaft to the cutting zone, enhancing heat dissipation. Selecting a spindle shaft compatible with your machine’s cooling system is critical for operational efficiency and extended lifespan.
The spindle shaft must support the appropriate tool holding interface for your CNC process, such as:
HSK (Hollow Shank Taper)
BT (MAS403)
CAT (V-flange)
ISO, DIN, or custom tapers
Improper matching may lead to poor tool engagement or increased runout. Verify compatibility between the shaft taper and your tool holding system to ensure reliable machining.
Beyond material and tolerances, spindle shafts may include:
Internal bore for coolant-through operation
Threaded ends for locking mechanisms
Keyways, splines, or gear teeth for torque transmission
Surface coatings (e.g., nitriding, hard chrome) for wear resistance
Reviewing these features ensures the shaft will integrate smoothly into your spindle assembly and provide the needed performance characteristics.
Not all applications can use off-the-shelf shafts. For specialized machines or performance targets, custom spindle shafts may be needed. This can include:
Custom dimensions or flanges
Enhanced balance specs
Special materials or surface treatments
Unique interface designs
Working with a manufacturer capable of providing OEM or ODM services ensures that your spindle shaft is tailored to your application’s exact requirements.
Even if your CNC machine is operational, certain signs may suggest your current spindle shaft isn’t optimal:
Decreased machining accuracy or surface finish
Increased vibration or noise
Shortened tool life or tool breakage
Shaft temperature exceeding normal operating range
Visible shaft wear or corrosion
Upgrading to a higher-quality or better-suited spindle shaft can restore performance and prevent larger machine issues.
Requires ultra-high precision and smooth finishes—runout and vibration must be near zero.
Tight tolerances and challenging materials demand durable, thermally stable spindle shafts.
Clean-room and micro-machining environments require extremely reliable and precise spindles.
High-volume operations need shafts that can endure continuous duty with minimal downtime.
Proper maintenance extends the life of your spindle shaft:
Regularly inspect for wear, runout, or imbalance
Ensure lubrication systems are functioning properly
Avoid tool crashes or overloading
Use protective covers to prevent contamination
Schedule dynamic balancing if vibration increases
Preventative maintenance helps detect issues before they lead to full spindle failure or costly downtime.
The spindle shaft is one of the most crucial components in a CNC machine, directly affecting machining accuracy, tool performance, and system reliability. Whether you're investing in new equipment or upgrading an existing system, taking the time to select the right spindle shaft pays dividends in productivity and precision.
When evaluating options, focus on material quality, runout tolerance, load handling, and compatibility with your machine’s speed, tool system, and cooling setup. The more tailored the spindle shaft is to your application, the better your results will be.
If you're seeking high-quality spindle shafts engineered for demanding applications, Ningbo Hanyue Metal Products Co., Ltd offers a diverse selection of spindle solutions, manufactured to exacting standards. With a focus on performance, reliability, and customization, they support clients across various industries in achieving next-level machining precision.
To explore their product line or discuss your specific CNC spindle shaft needs, feel free to visit their website or get in touch with their technical team. Making the right choice starts with the right partner.
