NHY-F00110
NHY

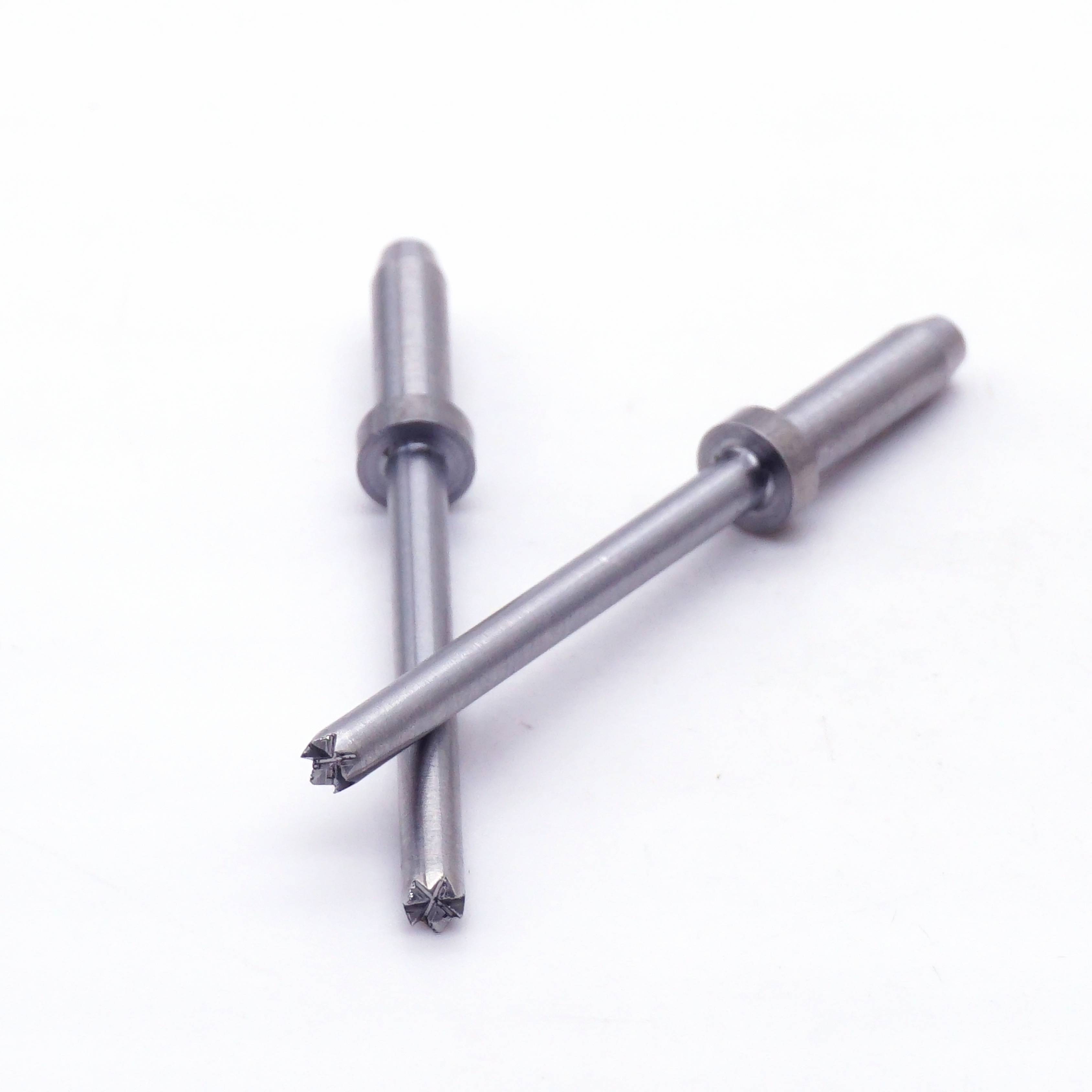

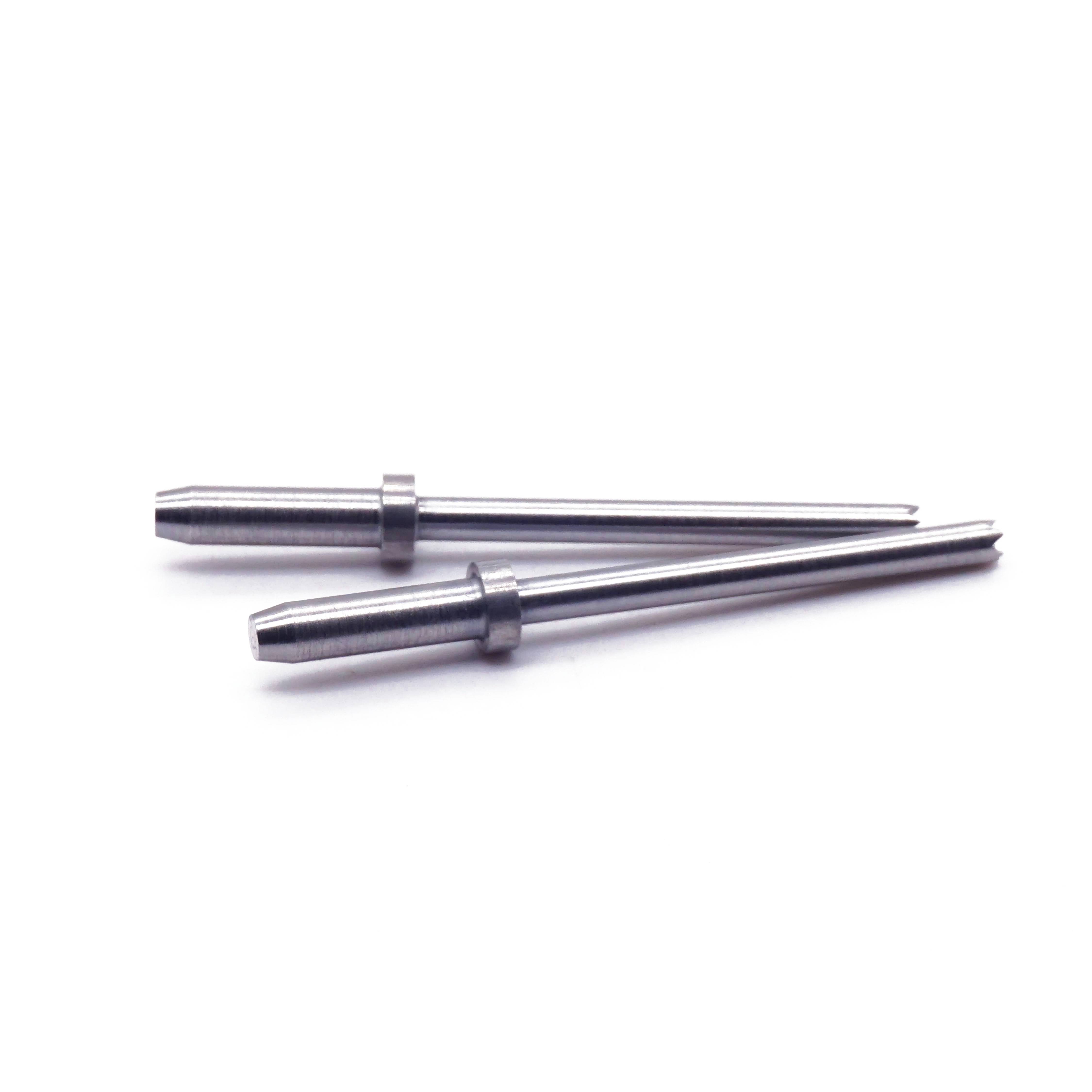

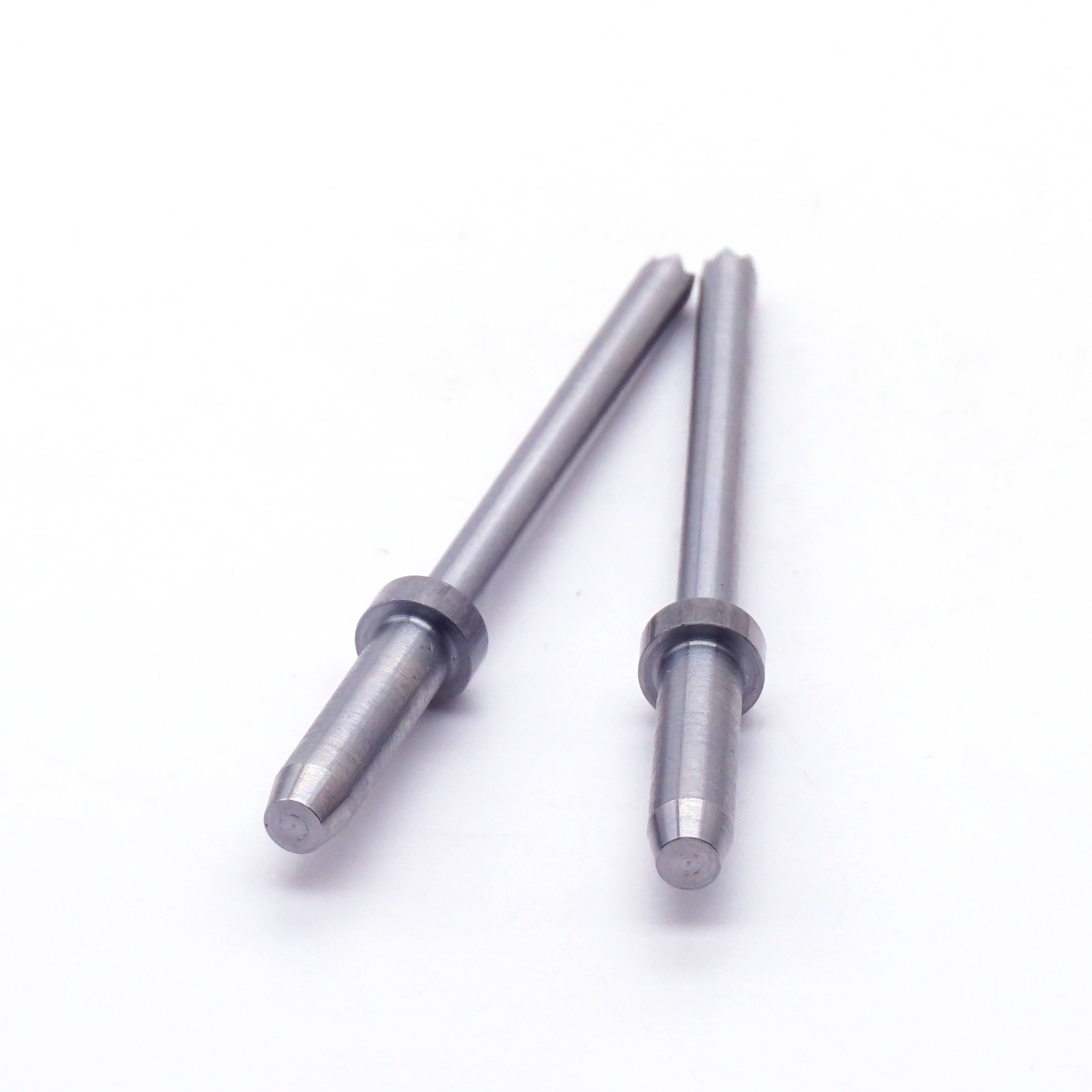

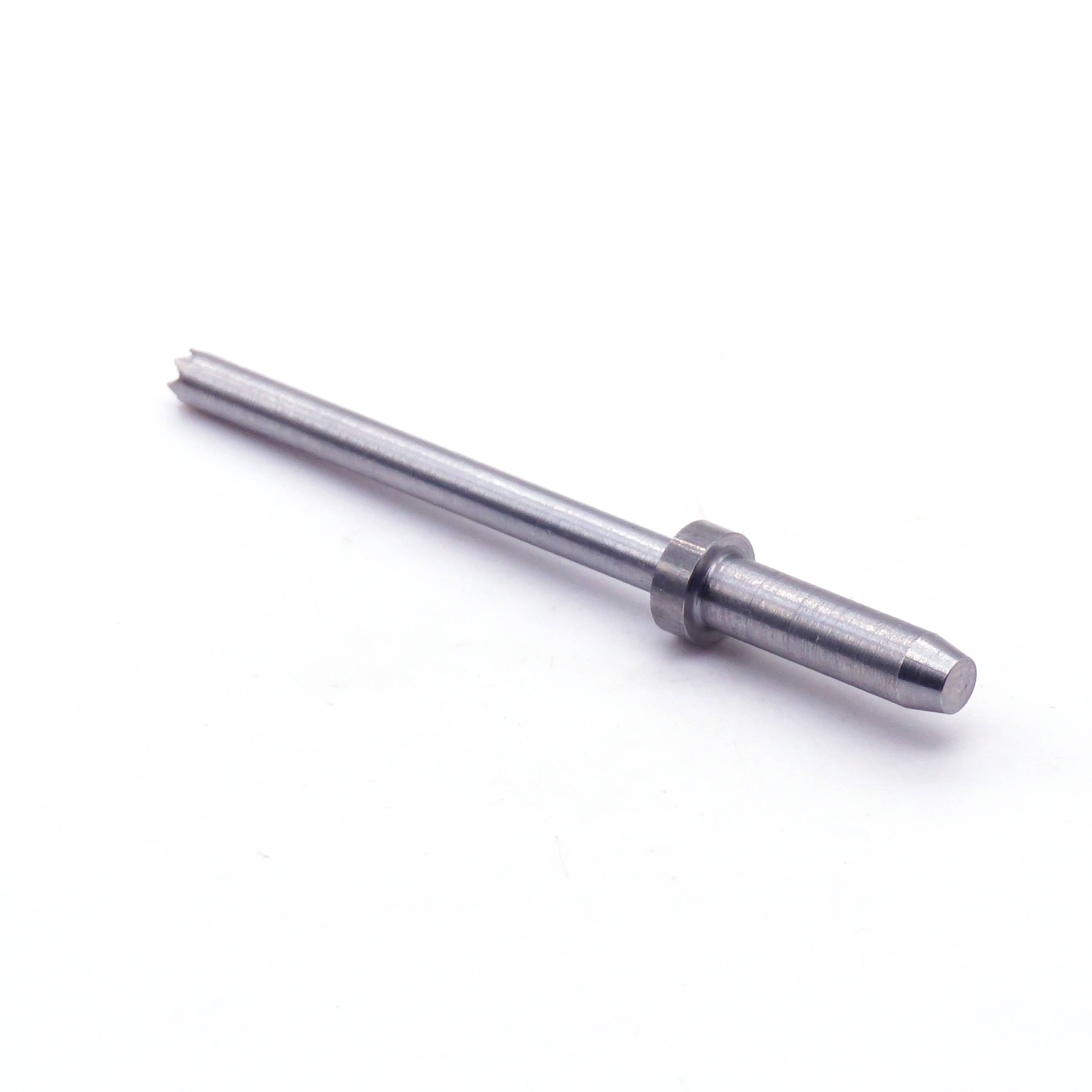

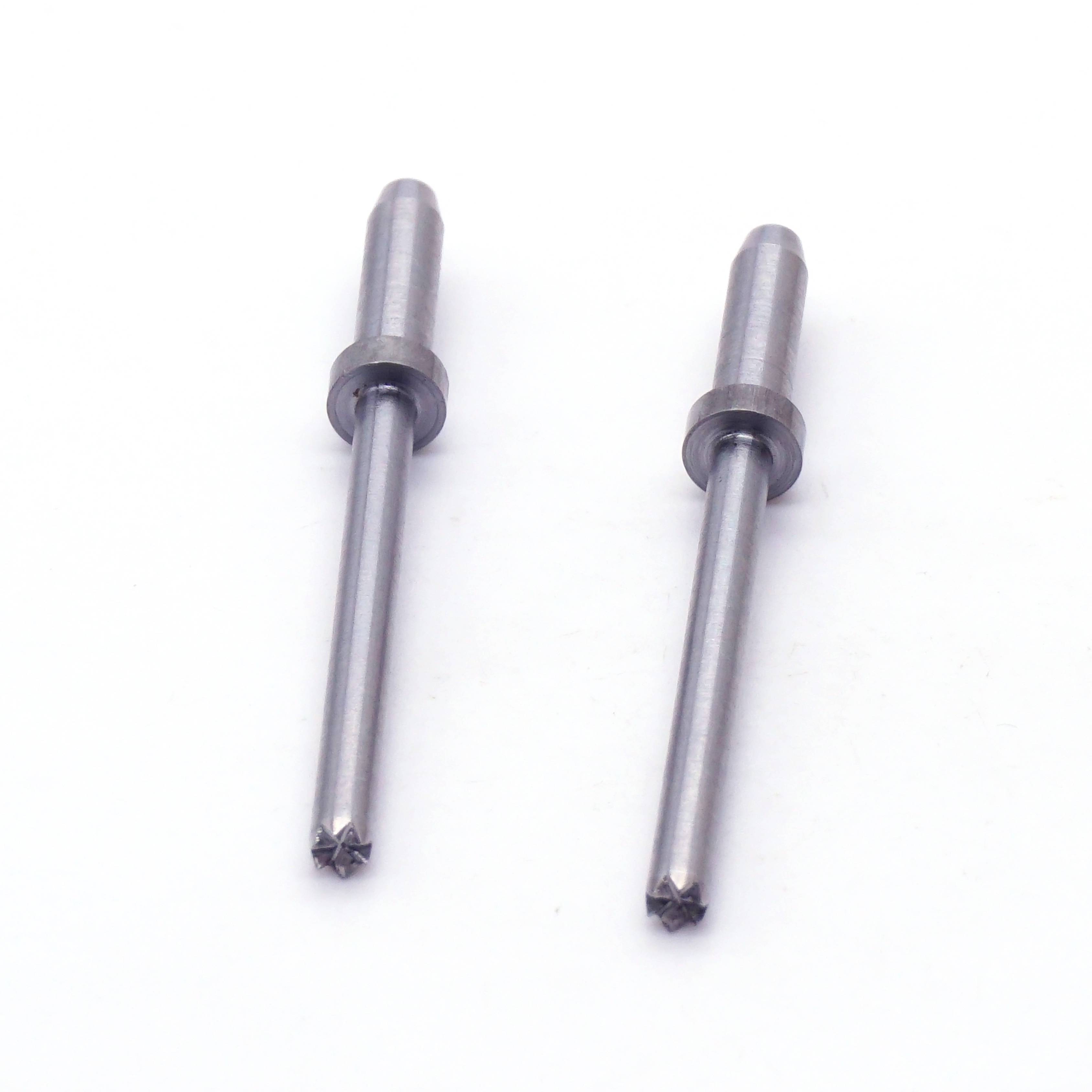

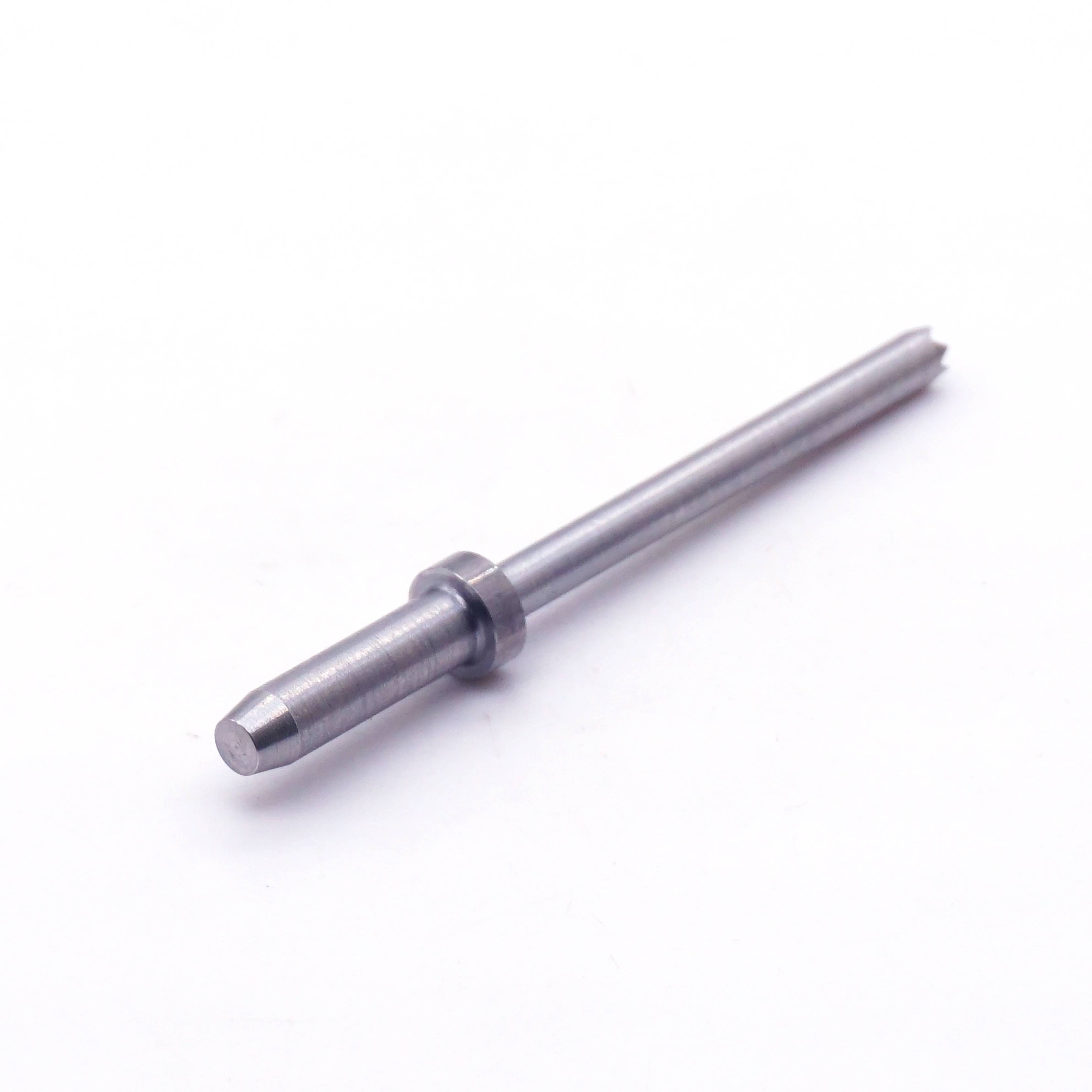

Our custom CNC machined precision steel locating pin is a high-performance positioning component engineered for accurate alignment and fixation in industrial molds, automation fixtures, and precision mechanical assemblies. Featuring a precision-machined step structure for clear positioning stops and a smooth cylindrical surface for minimal friction, it is produced via advanced CNC turning, centerless grinding, and heat treatment processes to achieve ultra-tight dimensional tolerances. Crafted from high-strength carbon steel or stainless steel and hardened for wear resistance, this steel locating pin delivers exceptional stability and repeatability, resisting deformation and abrasion under long-term heavy loads and frequent assembly cycles. Fully customizable in diameter, length, step dimensions, and surface finish, it caters to diverse precision positioning needs across automotive, electronics, medical, and aerospace industries, ensuring consistent assembly accuracy and production efficiency.
| Parameter | Standard Specification | Custom Option |
|---|---|---|
| Material | Carbon Steel 45# / Stainless Steel 304 | Alloy Steel / Titanium |
| Diameter | Custom (φ3mm–φ25mm) | Fully customizable |
| Overall Length | Custom (20mm–150mm) | Fully customizable |
| Step Diameter | Custom (1–4mm larger than pin diameter) | Custom step size & position |
| Step Length | Custom (3mm–20mm) | Customizable |
| Tolerance | ±0.005mm | Tighter (±0.002mm) or looser |
| Surface Finish | Ground / Polished | Black Oxide / Passivation |
| Hardness | HRC 40–45 (carbon steel) | Custom hardness levels |
3.Application Case

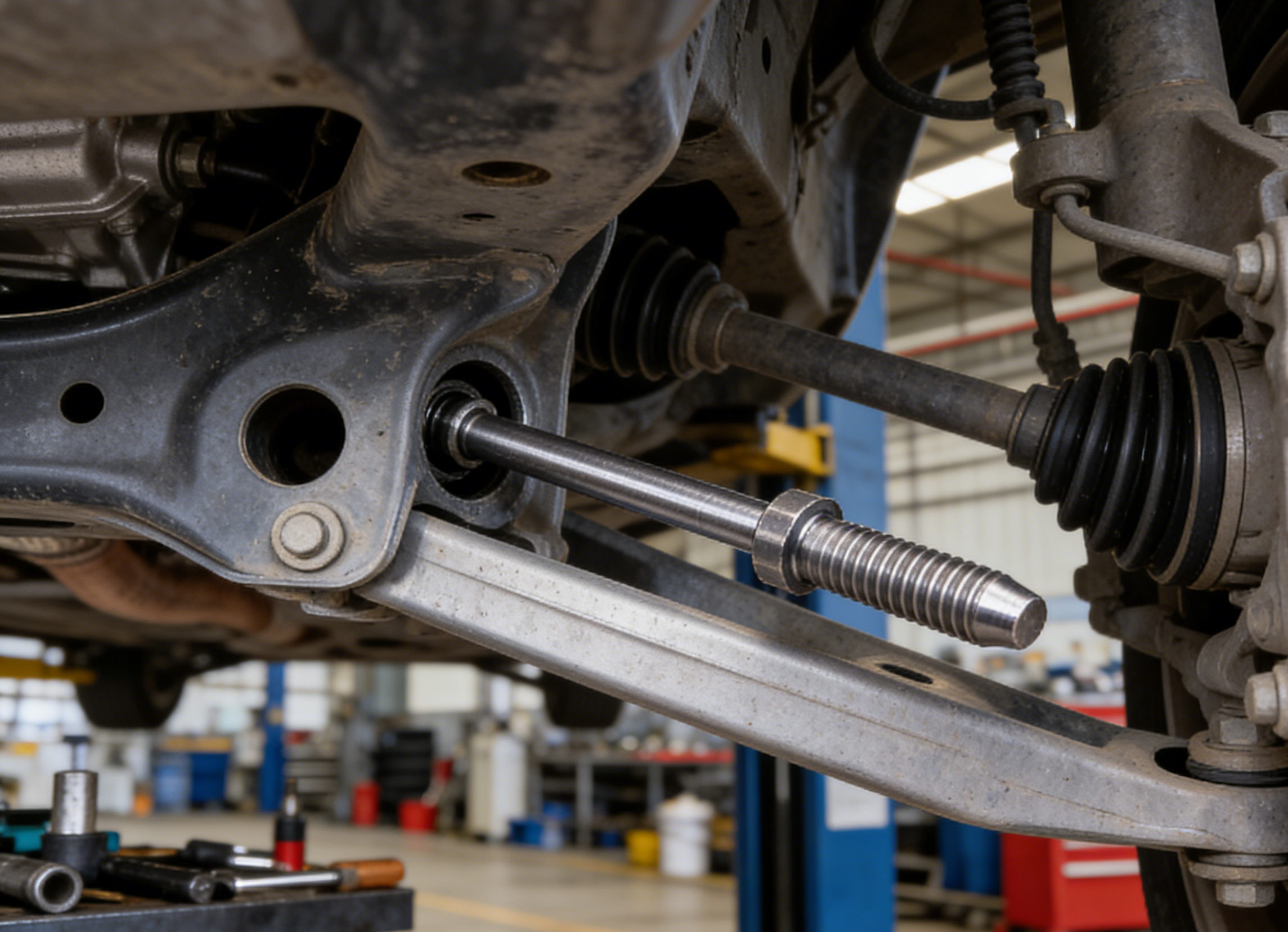

A major automotive OEM integrated our steel locating pins into chassis sub-assembly lines, ensuring precise alignment of suspension brackets. The hardened steel construction withstood high vehicle load and vibration, reducing assembly misalignment errors by 40% and cutting production downtime by 25%.
A precision mold manufacturer utilized our stepped steel locating pins in plastic injection molds, aligning movable mold cores. The ultra-tight tolerance maintained core accuracy across 100,000+ molding cycles, extending mold service life by 30% and reducing maintenance costs significantly.
Heat-Treated Steel: High hardness and wear resistance extend service life.
Step Positioning Structure: Clear mechanical stop for consistent assembly.
Full Customization: Non-standard sizes and step configurations available.
Superior Surface Finish: Low friction facilitates easy insertion/removal.
Corrosion Resistance: Stainless steel option suits harsh environments.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
