Choosing between 303 vs 304 Stainless Steel is rarely just a raw material cost decision. It is a strict tradeoff between cycle times, tool life, and end-use compliance. Specifying the wrong austenitic alloy destroys profit margins through rapid tool wear. It can also cause catastrophic failures in the field due to environmental degradation. Machinists face a harsh reality every day. Selecting the wrong material means dealing with gummy chips or broken inserts. We must evaluate these materials objectively. This article provides a purely technical and financial evaluation framework. We will compare the "free-machining" 303 and the "general-purpose" 304 for CNC applications. You will learn how chemical additions change chip formation. We will show you how to prevent rapid work-hardening during production. Finally, you will understand when to prioritize manufacturing speed over corrosion resistance.
303 is optimized for volume: The addition of sulfur makes it the premier choice for fast, high-volume machining and extended tool life.
304 is the compliance standard: It offers superior corrosion resistance, weldability, and formability, but requires rigid setups and disciplined feeds/speeds to prevent work-hardening.
The hard limitations: Never specify 303 if the part requires welding or will be exposed to highly corrosive/marine environments.
Cost vs. ROI: 304 raw material is generally cheaper and more available, but 303 often yields a lower final part cost in complex turning operations due to significantly faster cycle times.
Understanding the micro-structure of austenitic alloys is essential. The core differentiator between these two metals comes down to one specific element. Type 303 contains added sulfur. Sometimes material engineers use selenium instead. The specification demands a minimum of 0.15% sulfur. This micro-structural change heavily influences shop-floor behavior. The sulfur creates non-metallic inclusions within the metal matrix. These manganese sulfide inclusions act as internal lubricants. They weaken the continuous metal grain just enough to snap chips efficiently.
Conversely, we have Type 304. Engineers universally define Type 304 as the industry baseline. You often hear it called 18/8 stainless steel. This refers to 18% chromium and 8% nickel. It entirely lacks the added sulfur found in its free-machining cousin. This pure grain structure keeps it highly resistant to corrosion. Moisture and chemicals cannot easily penetrate the metal. However, this same tough structure makes it notoriously gummy under a cutting tool.
We must acknowledge the fundamental trade-off matrix. The exact element improving machining efficiency compromises other vital properties. Sulfur creates microscopic breakpoints in the material. These breakpoints snap chips beautifully during turning operations. Yet, those same breakpoints act as initiation sites for chemical attack. They also cause structural failures during high-heat joining processes.
Austenitic Alloy Properties Comparison
Material Grade | Key Differentiating Element | Machinability Baseline Rating | Primary Industrial Advantage | Critical Weakness |
|---|---|---|---|---|
Type 303 | Sulfur (Min 0.15%) | ~78% | High-speed material removal | Poor weld integrity; prone to pitting |
Type 304 | None (Pure 18/8 base) | ~45% | Excellent corrosion resistance | Gummy chip formation; rapid work-hardening |
Production environments demand efficiency. The exceptionally high 303 stainless steel machinability rating makes it a favorite among programmers. We measure this rating against a baseline. B1112 carbon steel represents 100% machinability. Type 303 achieves roughly 78% on this scale. This represents a massive leap over standard austenitic grades. High speeds and aggressive feeds become entirely possible. You can push tooling much harder without experiencing premature edge failure.
Chip control heavily dictates unattended production success. Type 303 forms brittle, easily cleared chips. The sulfur inclusions break the metal apart cleanly at the shear zone. This virtually eliminates the risk of stringers. Long, continuous chips often wrap around chucks and tooling. Clearing bird nests forces operators to stop the spindle. Type 303 chips fracture into small pieces. They fall directly into the chip conveyor. This characteristic dramatically increases spindle uptime.

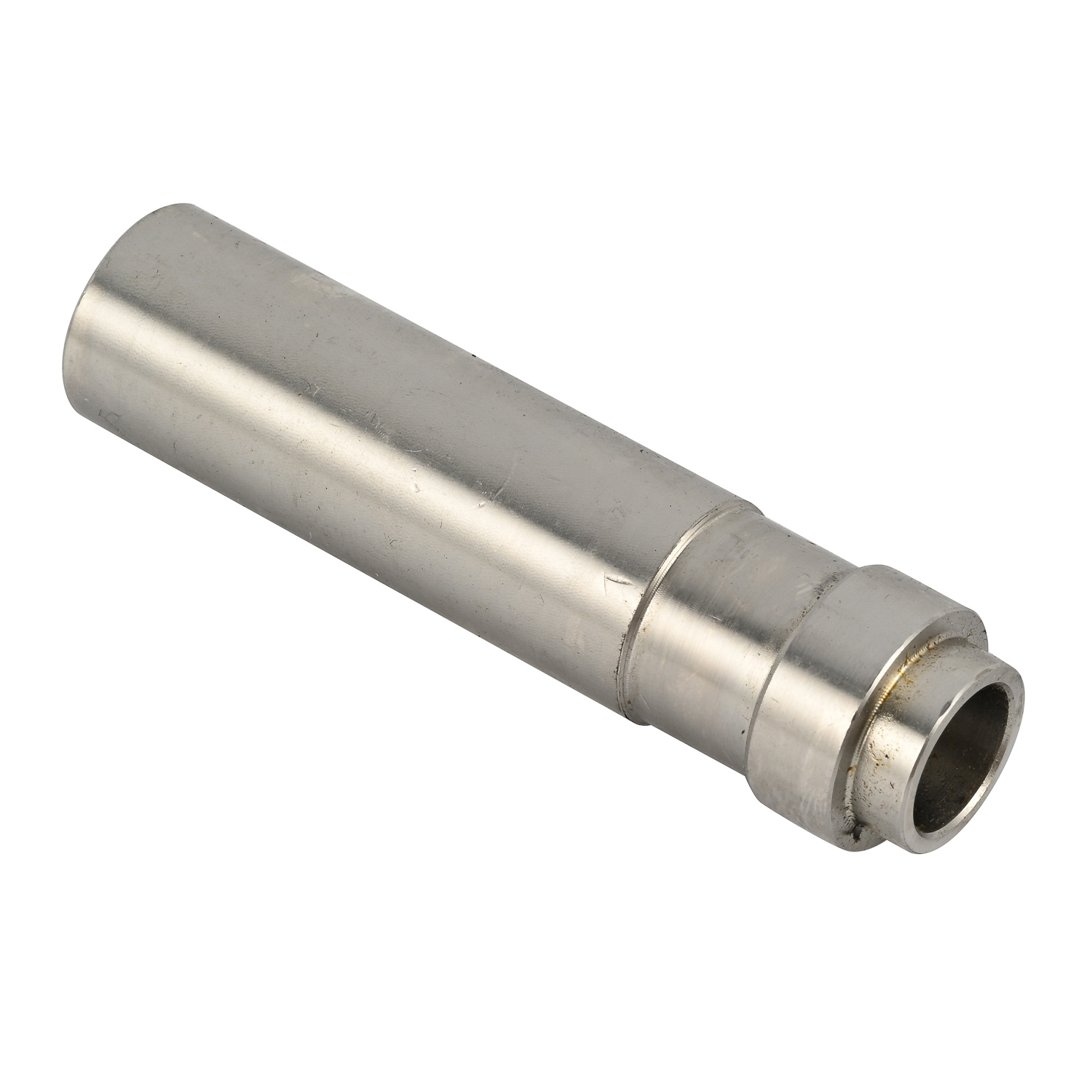

We see this alloy dominate specific applications. It is the premier choice for high-volume stainless steel CNC turning parts. Manufacturers use it extensively for shafts, gears, and aircraft fittings. Heavily threaded components benefit massively. Single-point threading requires clean material shearing to maintain tight tolerances. Type 303 yields excellent surface finishes during extensive material removal processes.
However, implementation risks remain severe. You must warn engineering teams against using 303 for welded assemblies. The material will experience hot-cracking. The sulfur melts at a lower temperature than the surrounding steel. This creates liquid films at the grain boundaries during welding. Upon cooling, the weld joint simply pulls apart. Furthermore, you must avoid using it in food-processing environments. Localized pitting easily occurs at the sulfur inclusion sites. Harsh cleaning chemicals will quickly attack these microscopic pockets.
Shop floors frequently complain about this specific material. We must address the notorious difficulties regarding 304 stainless steel CNC machining. It carries a machinability rating of roughly 45%. The lack of internal lubricants causes high friction at the cutting edge. Heat builds up rapidly. The material tends to tear rather than shear cleanly. This gummy nature leads directly to built-up edge (BUE) on cutting tools.
The work-hardening challenge destroys many production runs. You must understand the mechanics behind this phenomenon. Type 304 work-hardens rapidly if a tool rubs or dwells. The mechanical stress actually transforms the surface structure. It turns into a much harder martensitic layer. The next tool pass must cut through this newly hardened zone. We acknowledge a high risk of catastrophic tool failure if feeds are too light. A micro-feed approach guarantees disaster.
Despite these challenges, certain applications mandate its use. You must choose 304 for parts requiring heavy forming. It readily bends and stamps without fracturing. It remains mandatory for welded structures. The lack of sulfur ensures pristine, strong weld joints. Furthermore, you must specify it for exposure to moderate corrosives. Food grade, medical, and architectural applications rely on its pure surface. It forms a uniform chromium oxide layer. This passive layer prevents rust progression.
We must define the actual corrosion benchmark clearly. Type 304 handles standard moisture and chemicals quite well. It thrives in typical indoor or sheltered outdoor environments. However, it is not invincible. Environments requiring absolute marine-grade resilience will expose its limits. Saltwater will pit Type 304 over time. In those harsh scenarios, you will require stepping up to 316 stainless steel corrosion resistance. Type 316 contains molybdenum, which specifically fights chloride-induced pitting.
Engineers and buyers must evaluate materials based on final outcomes. A simple cost-per-pound comparison often leads to expensive mistakes. We must break down the evaluation criteria into three distinct categories.
Total Cost of Production drives true scalability. Let us examine the raw material cost first. Type 304 is usually more abundant globally. It costs slightly less per pound than Type 303. However, machining costs dictate the final price tag. Type 303 lowers cycle times by up to 30-40%. Faster cycles mean more parts per shift. It also preserves expensive carbide inserts. Less tooling replacement drastically lowers production expenses. For highly complex parts, the faster machining of 303 easily offsets its higher raw material price.
Corrosion Resistance and Compliance dictate product liability. The outcomes here are binary.
Type 304: Passes stringent sanitary and food-grade standards. It perfectly suits outdoor exposure and regular wash-downs.
Type 303: Remains strictly for dry, well-lubricated applications. It performs well indoors. It is highly prone to rust in harsh environments due to surface inclusions.
Weldability and Joining requirements eliminate one option entirely.
Type 304: Delivers excellent results for all standard welding processes. MIG, TIG, and spot welding work flawlessly.
Type 303: Is highly discouraged. Welding it introduces severe structural failure risks. The metal will crack along the heat-affected zone.
Theoretical knowledge must translate into practical shop-floor execution. Managing these two alloys requires entirely different approaches. Following best practices minimizes scrap rates and prevents tooling emergencies.
Tooling and Setup requirements dictate your risk level.
For Type 303: Standard carbide tooling works exceptionally well. You can comfortably program higher spindle speeds. Standard flood coolant delivery adequately flushes the brittle chips away. Tool geometries can be relatively standard.
For Type 304: You require highly rigid setups. Any vibration or chatter will destroy the cutting edge. Tools must have sharp, positive cutting geometries. A dull tool will immediately rub and harden the surface. Employ coated carbide inserts designed specifically for high-heat shear zones.
Feed and Speed rules remain non-negotiable. This heavily focuses on Type 304 processing. The primary mantra is "get in, get out." You must ensure tools constantly advance into the cut. Dallying or utilizing micro-feeds will instantly glaze the material surface. Once the material hardens, your tool will chip. Program aggressive feed rates to stay underneath the work-hardened zone from the previous pass.
Your coolant strategy determines thermal management success. High-pressure coolant is critical for Type 304. The intense heat generation at the shear zone will rapidly degrade tooling binders. High-pressure systems (1000 PSI or greater) blast through the vapor barrier. This effectively cools the cutting edge. Furthermore, the pressure helps evacuate gummy chips from deep holes. Proper coolant application prevents built-up edge on your drills and taps.
Choosing the correct alloy requires clear shortlisting logic. The decision tree is surprisingly straightforward. If your final part requires welding, default to 304. If the part faces a corrosive or food-grade environment, you must accept the machining penalty of 304. However, the alternative scenario is equally clear. If you are producing a complex, non-welded, heavily machined component for a dry environment, choose 303. The cycle-time reductions and tooling savings make the return on investment undeniable.
We encourage engineers and procurement teams to collaborate early. Consult your manufacturing partner during the initial design phase. Ask them to calculate actual cycle-time savings versus material costs. A minor design tweak might allow you to switch to a free-machining alloy. Request a comprehensive Design for Manufacturing (DFM) review today to lock in your production efficiency.
A: It is highly discouraged. The sulfur added for machinability causes severe hot cracking during the cooling phase. No filler rod can completely negate this metallurgical flaw. If your assembly requires structural integrity, always switch to 304 or 304L for welded components.
A: Generally, no. The sulfur inclusions create microscopic pits across the material surface. These pits can harbor dangerous bacteria. Furthermore, the material will corrode quickly under harsh industrial cleaning chemicals and sanitizers. Types 304 or 316 remain the mandated food-grade standards.
A: You cannot distinguish them visually. Both alloys look identical in bar or sheet form. Relying on appearance will cause catastrophic shop-floor errors. Proper material certification (MTRs), chemical analysis, or specialized spark testing are strictly required to verify the exact grade.
A: No. The internal lubrication provided by the sulfur significantly reduces friction. This reduced friction mitigates the thread galling commonly seen in standard austenitic grades. This makes 303 a vastly better choice for threaded fasteners requiring repeated assembly and disassembly.
