NHY-F00104
NHY

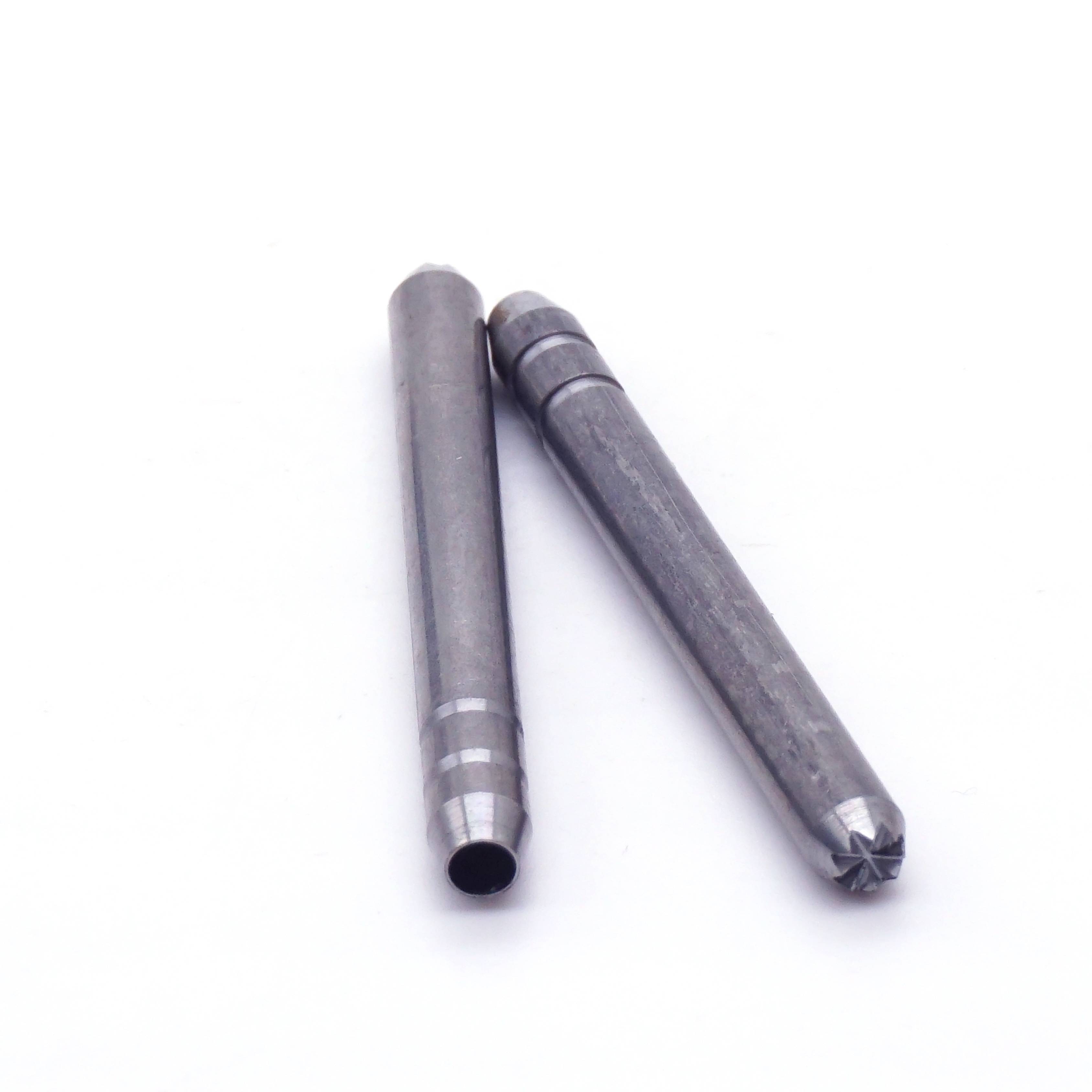

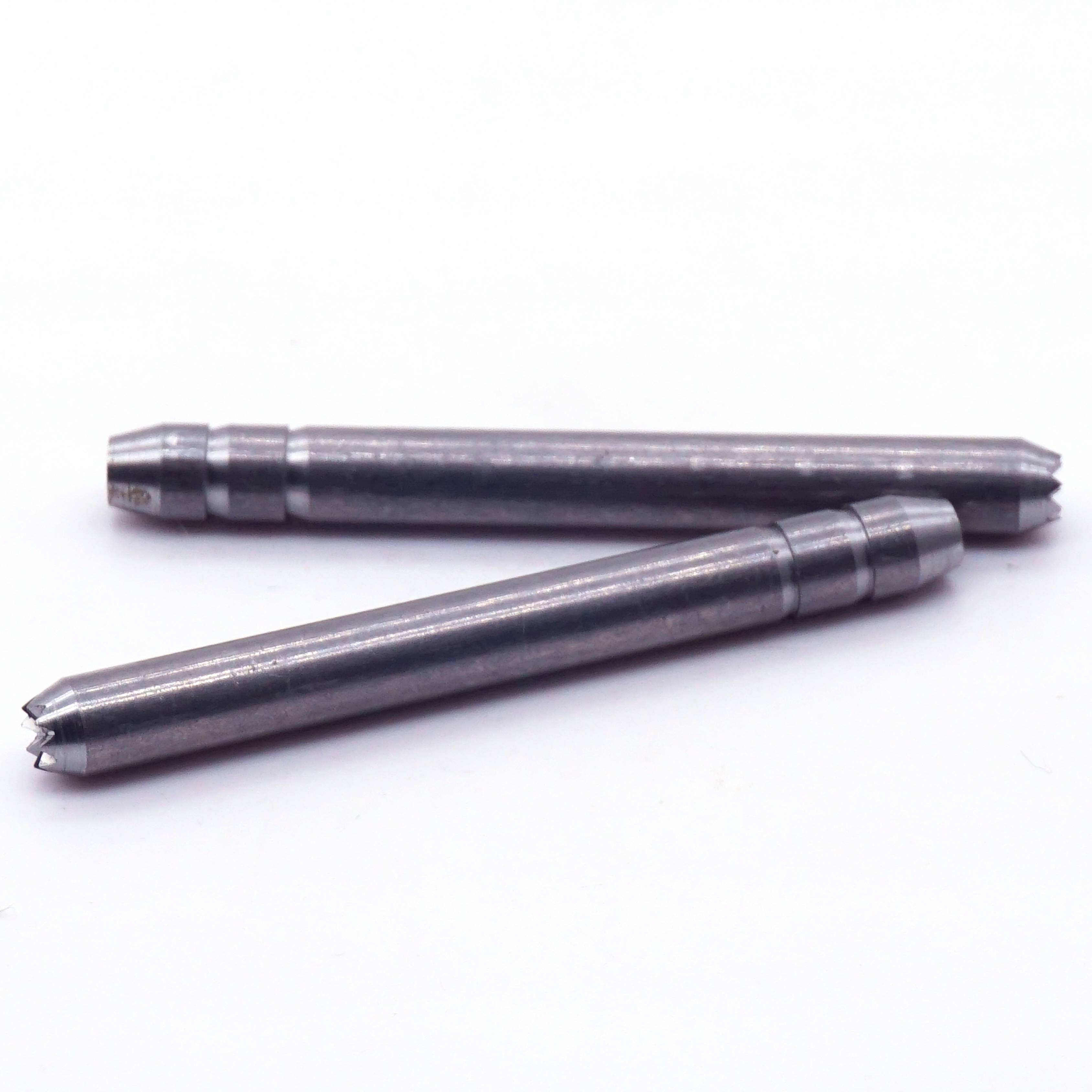

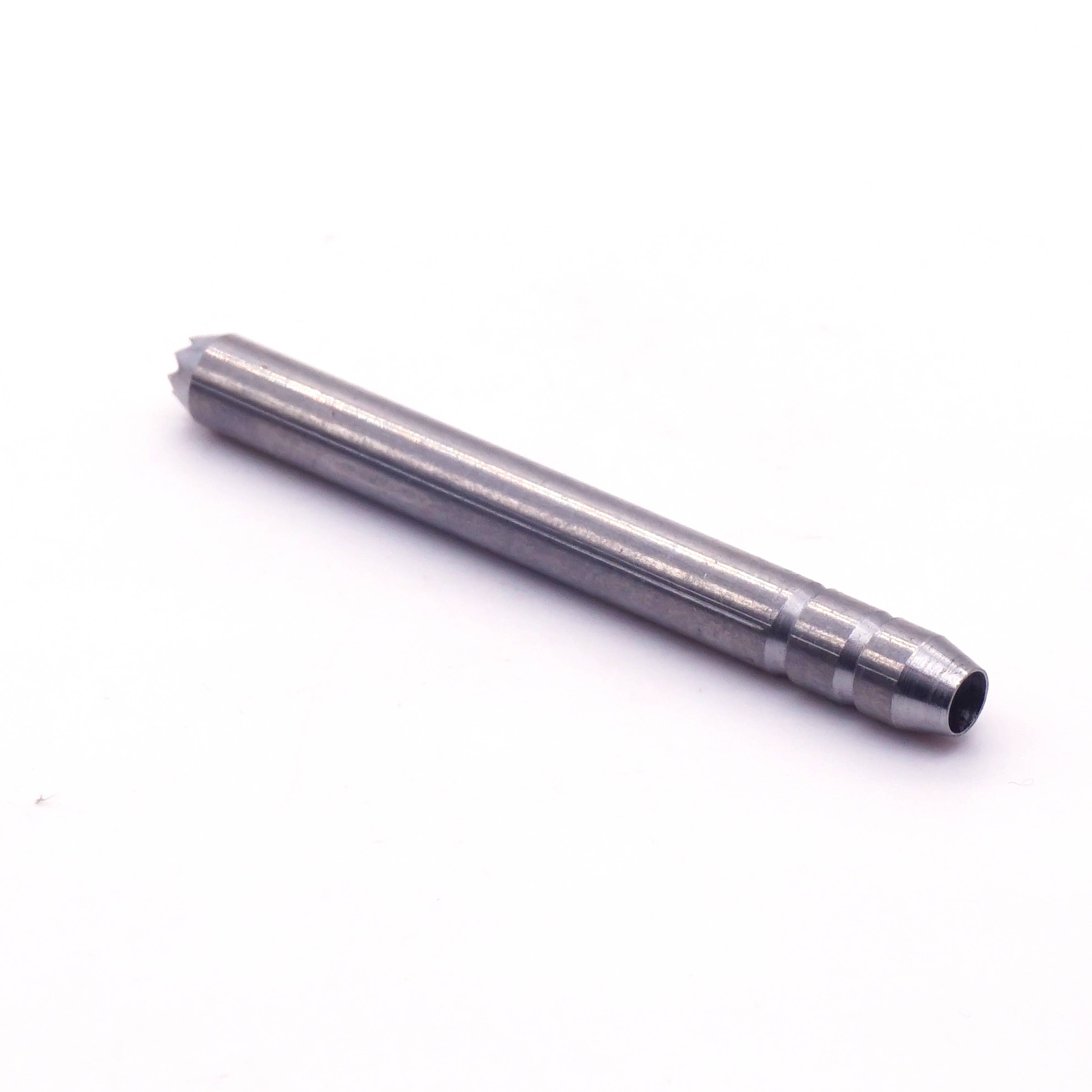

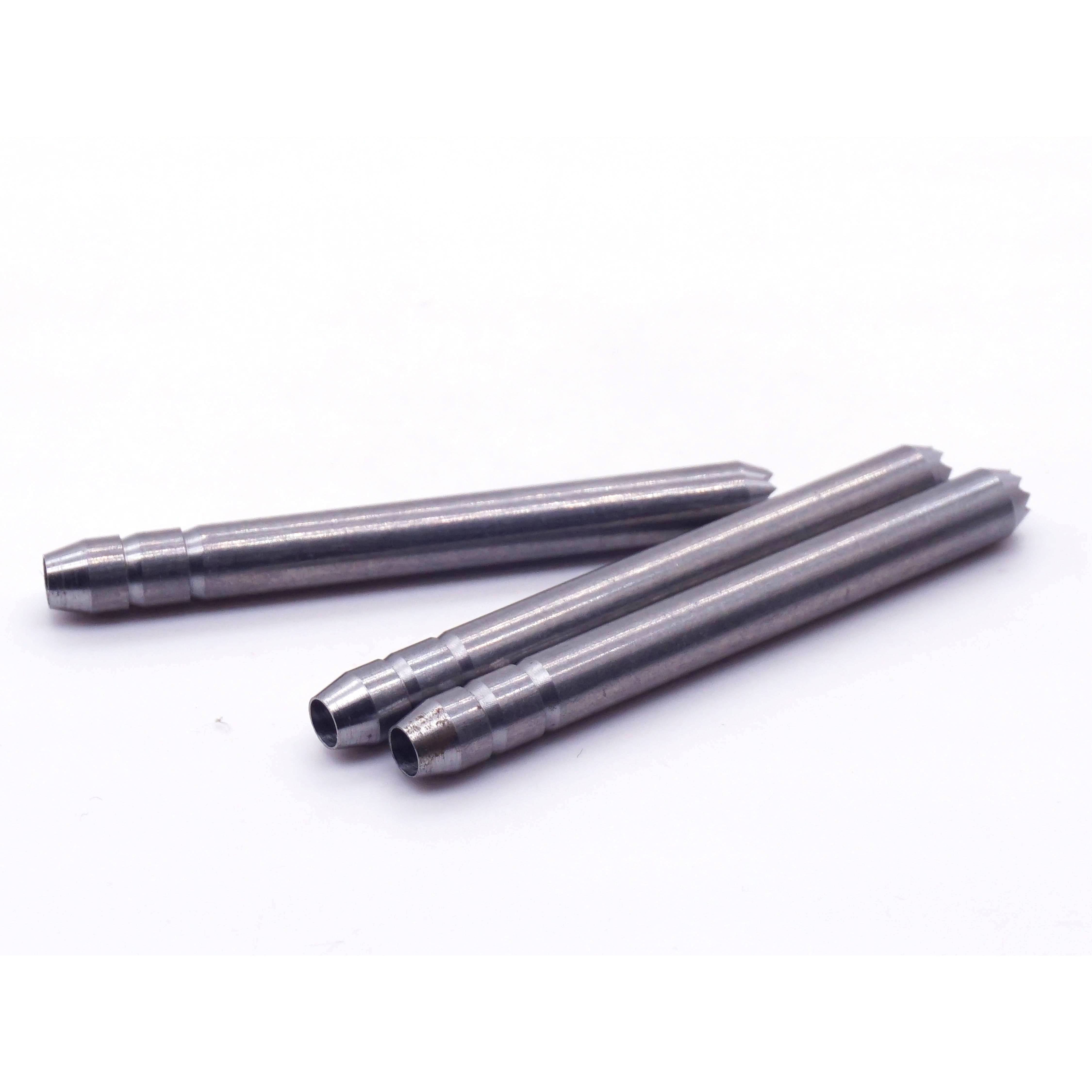

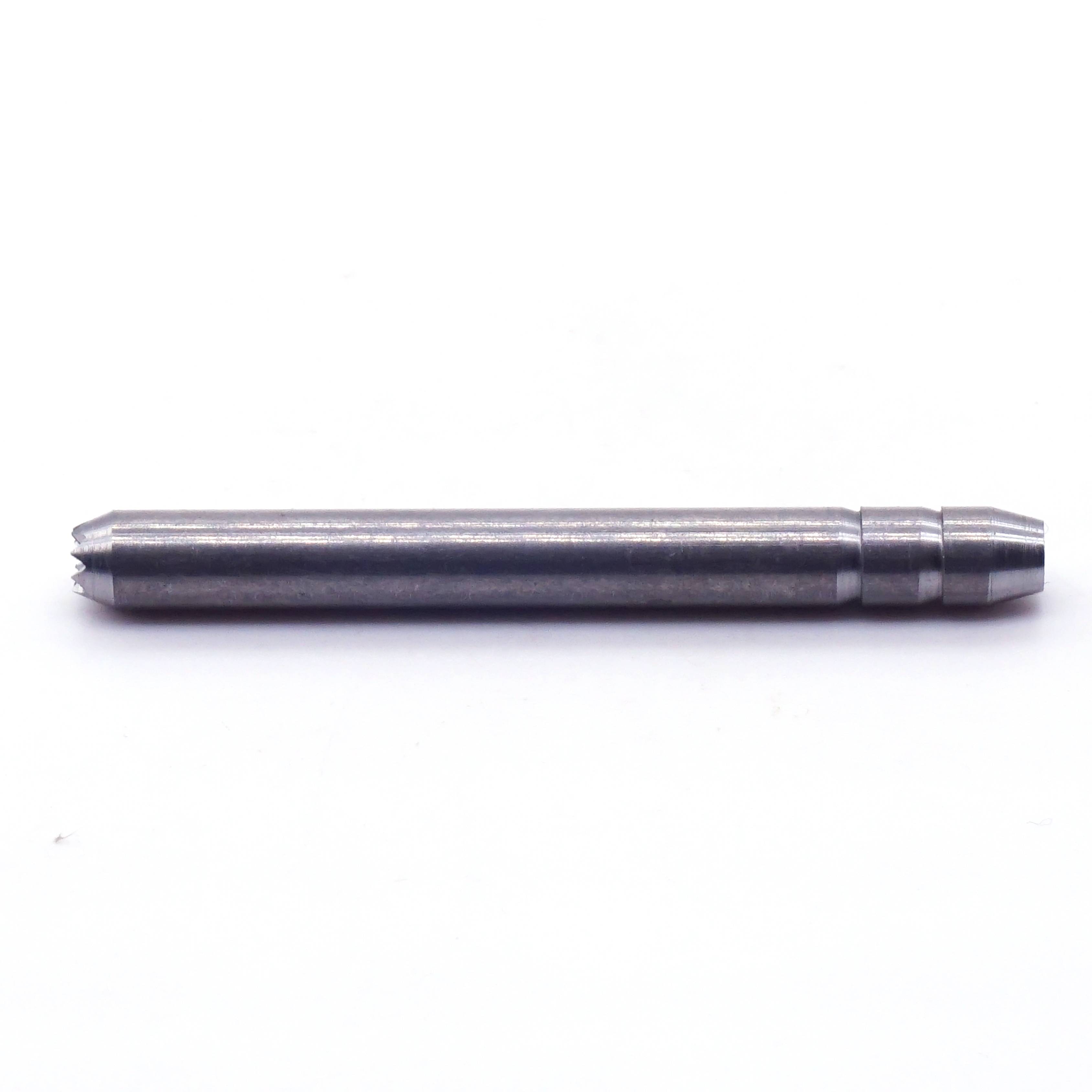

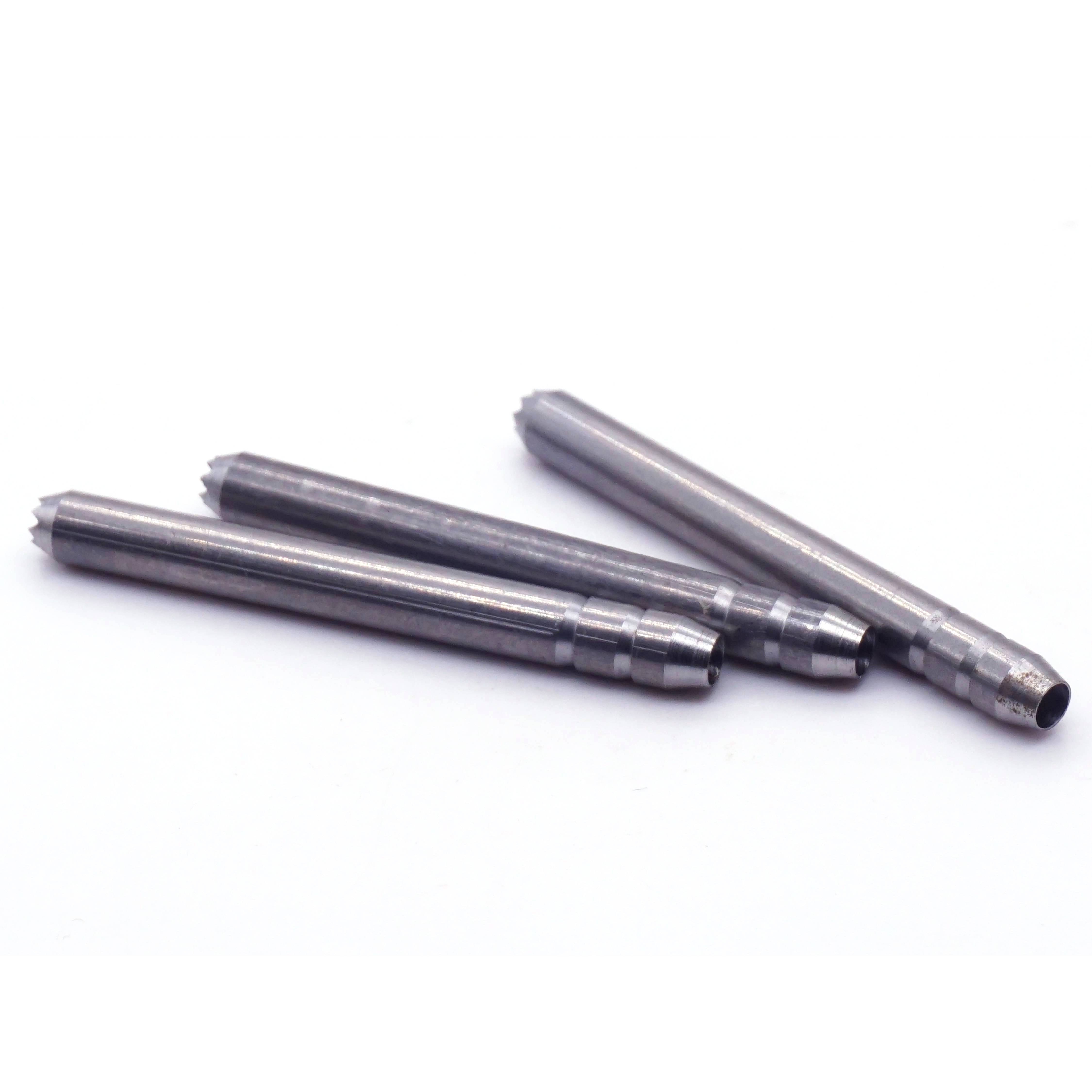

Our custom CNC machined knurled metal pin is a high-performance positioning and connection component engineered for industrial mechanical assemblies, automation equipment, and mold systems. Featuring a knurled shaft for anti-slip performance and a unique dual-end design (tooth-shaped head and inner-hole tail), it is produced via advanced CNC turning, knurling, and precision grinding processes to achieve tight dimensional tolerances. Crafted from wear-resistant stainless steel or alloy steel, this metal pin delivers reliable friction fixation and precise docking performance, resisting abrasion and deformation under long-term industrial operation. Fully customizable in shaft diameters, lengths, and end structures, it caters to diverse connection and positioning needs across automation, mold, automotive, and electronic industries, ensuring stable assembly and efficient power transmission.
| Parameter | Standard Specification | Custom Option |
|---|---|---|
| Material | Stainless Steel 304/Alloy Steel 4140 | Titanium Alloy/Brass |
| Shaft Diameter | Custom (φ2mm–φ20mm) | Fully customizable |
| Overall Length | Custom (10mm–100mm) | Fully customizable |
| Knurling Type | Diamond/Knurled (standard) | Custom knurling pitch and depth |
| End Structure | Tooth head + inner hole tail (standard) | Custom end shapes (pin/threaded) |
| Dimensional Tolerance | ±0.005mm | Tighter tolerance (±0.002mm) |
| Surface Finish | Passivated / Black Oxide | Polished / Custom coating |
| Hardness (Alloy Steel) | HRC 40–45 | Custom hardness levels |
3.Application Case
A mold manufacturer utilized our alloy steel metal pins in plastic injection molds, securing movable mold cores with the knurled anti-slip shaft. The wear-resistant material withstood 100,000+ mold opening/closing cycles, maintaining positioning accuracy within 0.003mm and reducing mold maintenance downtime by 28%.
An automotive OEM deployed our stainless steel knurled metal pins in dashboard component assembly, fixing delicate trim parts under vehicle vibration. The corrosion-resistant finish and anti-slip design eliminated part loosening issues, meeting automotive quality standards and reducing after-sales complaints by 32%.
Knurled Anti-Slip Shaft: Increases friction to prevent pin slippage under vibration and load.
Dual-End Special Structure: Tooth head and inner hole tail enable secure docking and transmission.
Full Customization: Non-standard lengths, diameters, and end shapes are fully customizable.
High Wear Resistance: Premium metal material extends service life in heavy-duty scenarios.
Corrosion Resistance: Stainless steel or passivated finish suits diverse industrial environments.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
