NHY-S0026
NHY
73182400

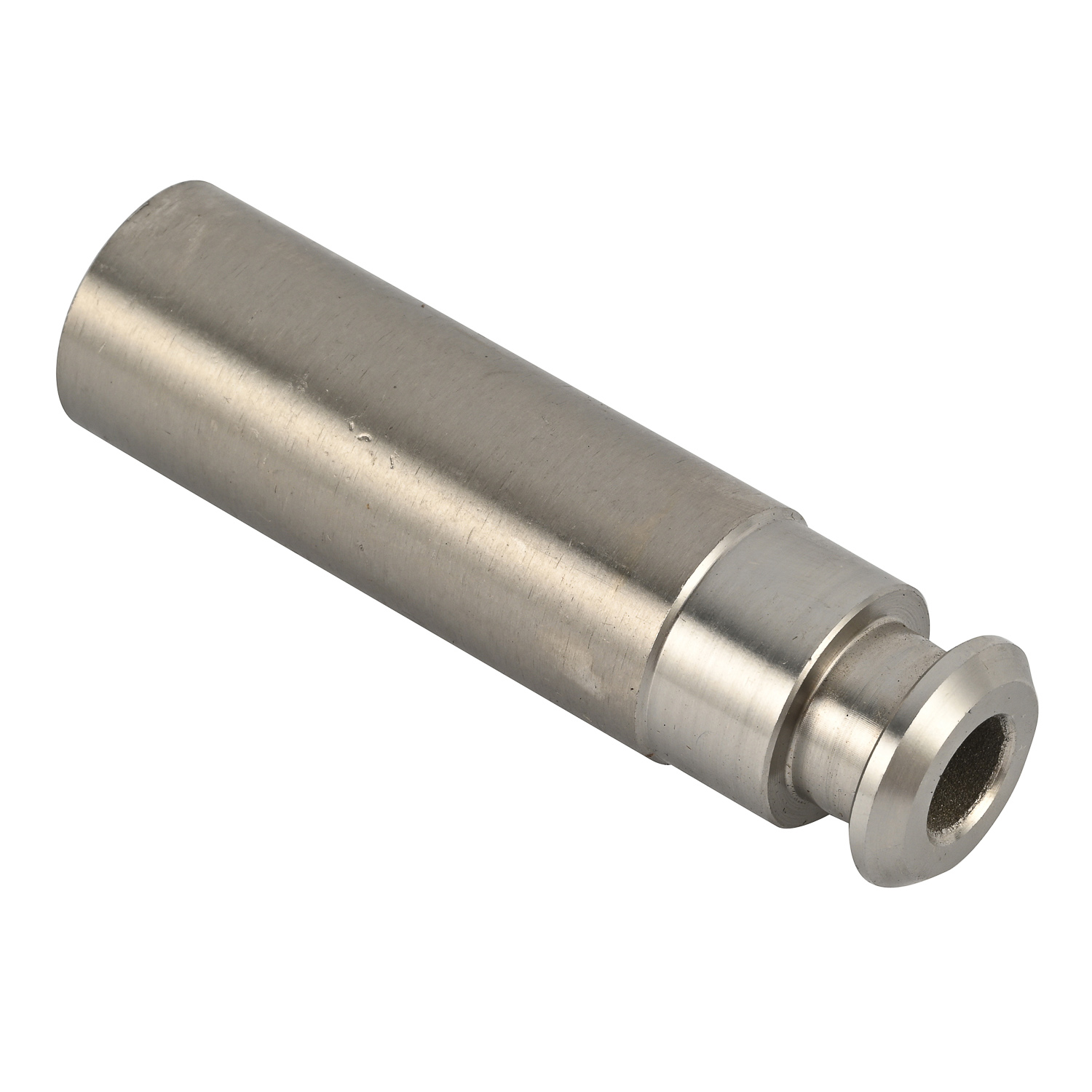

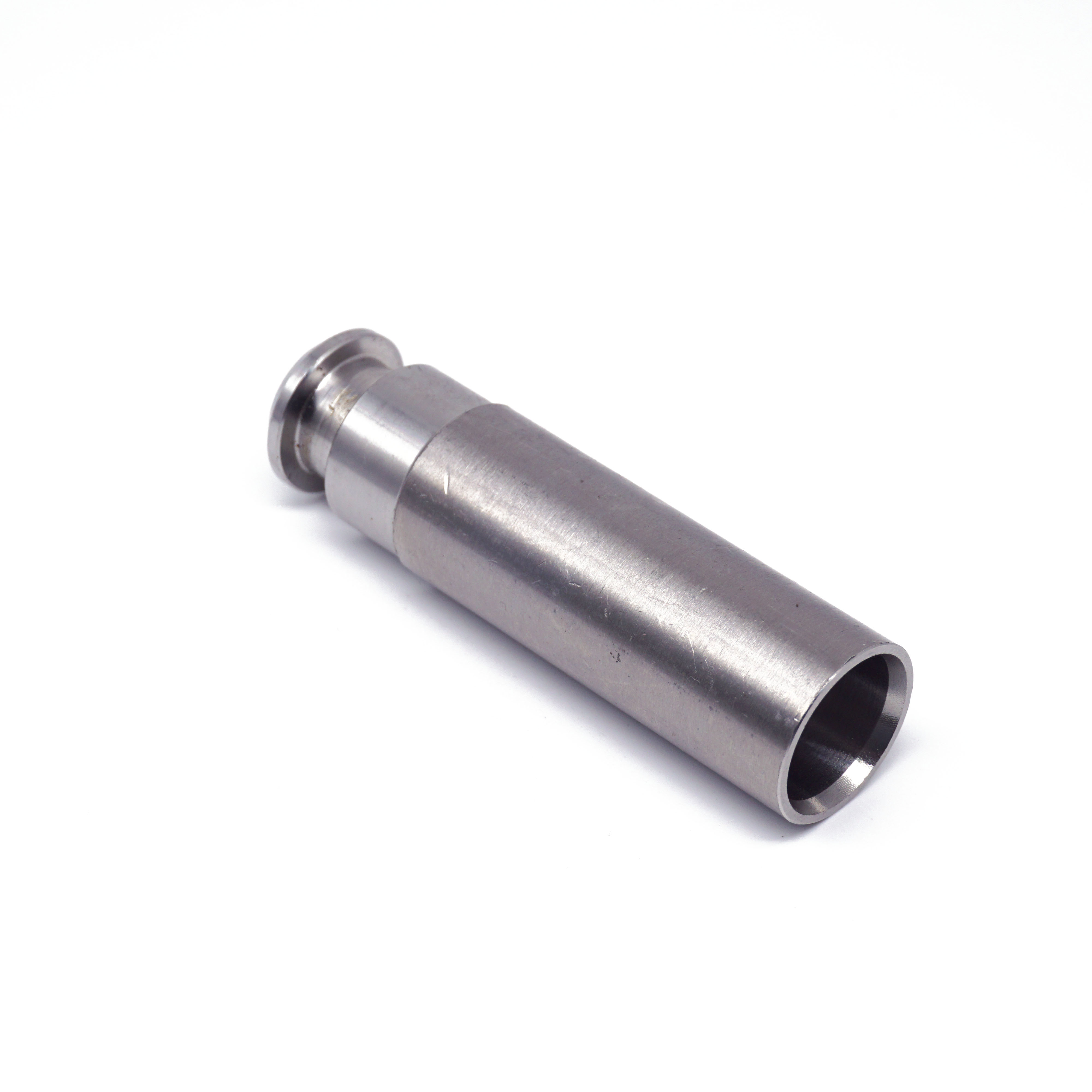

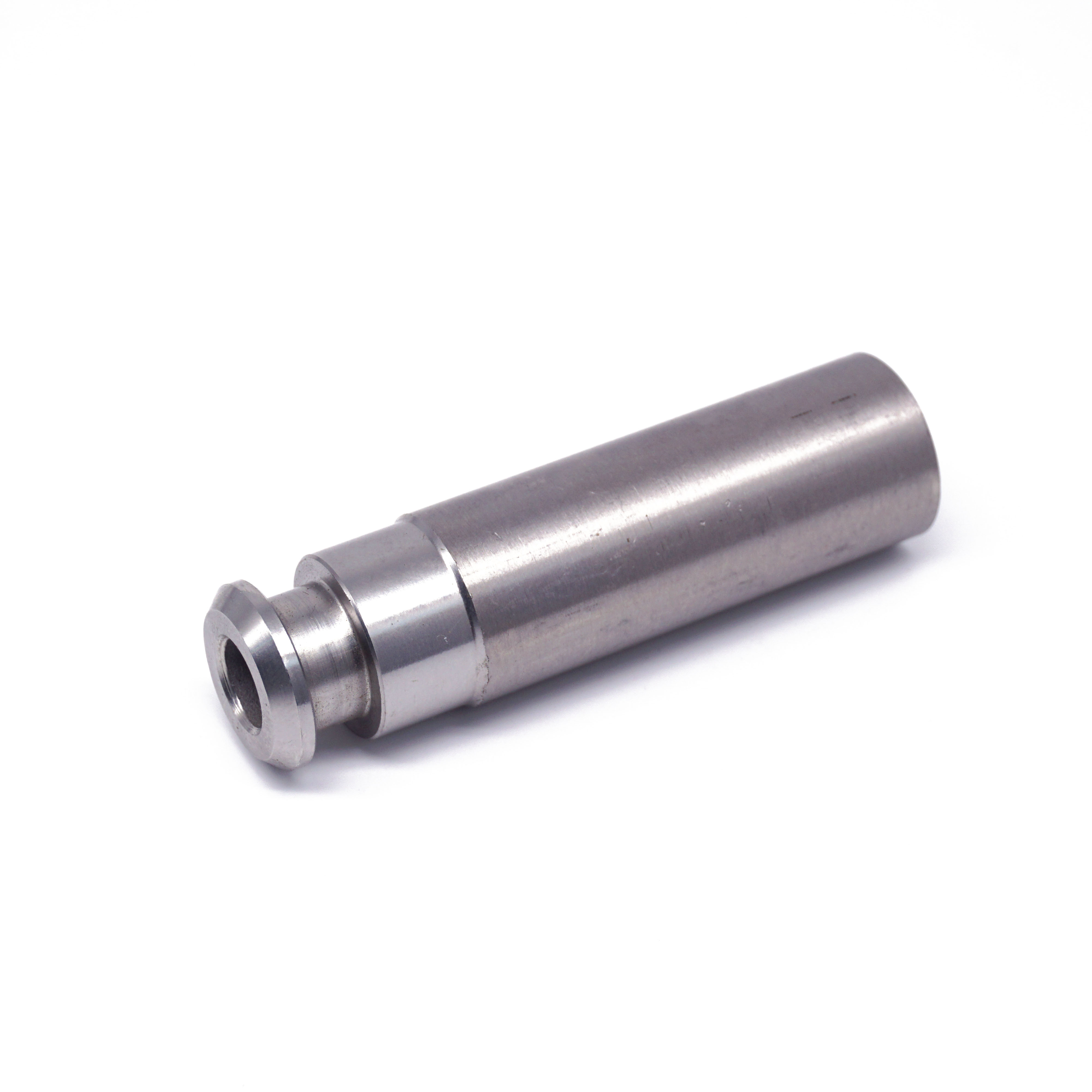

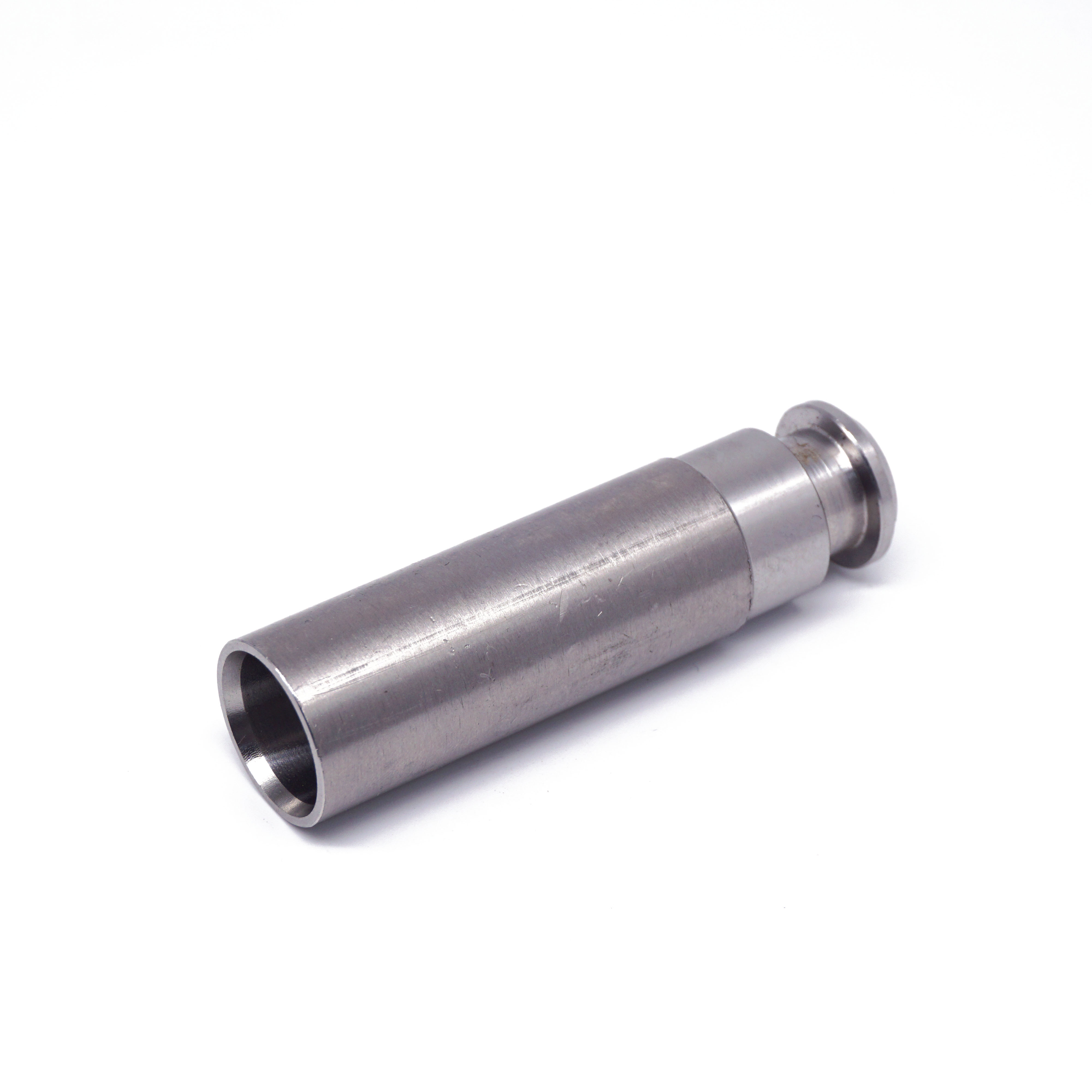

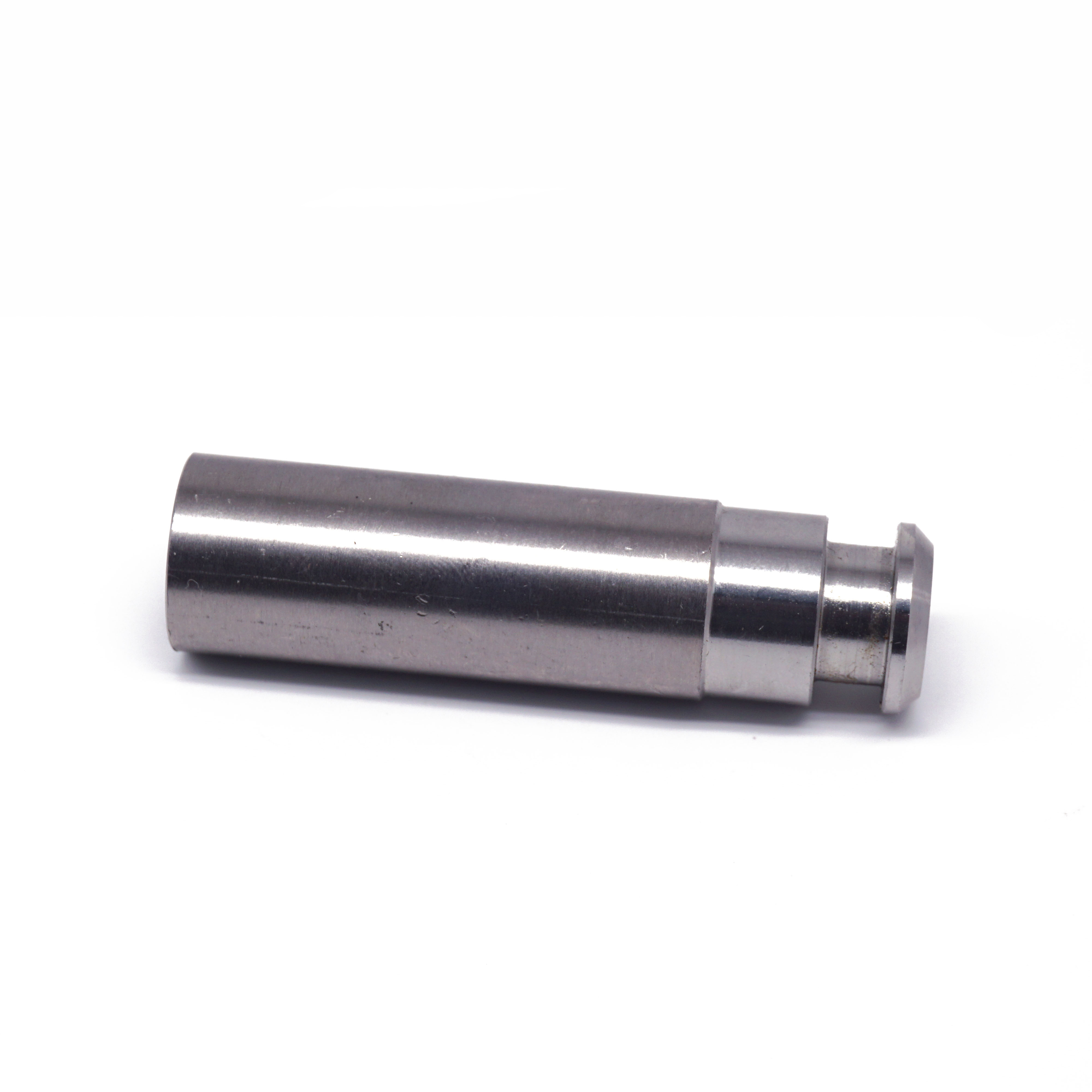

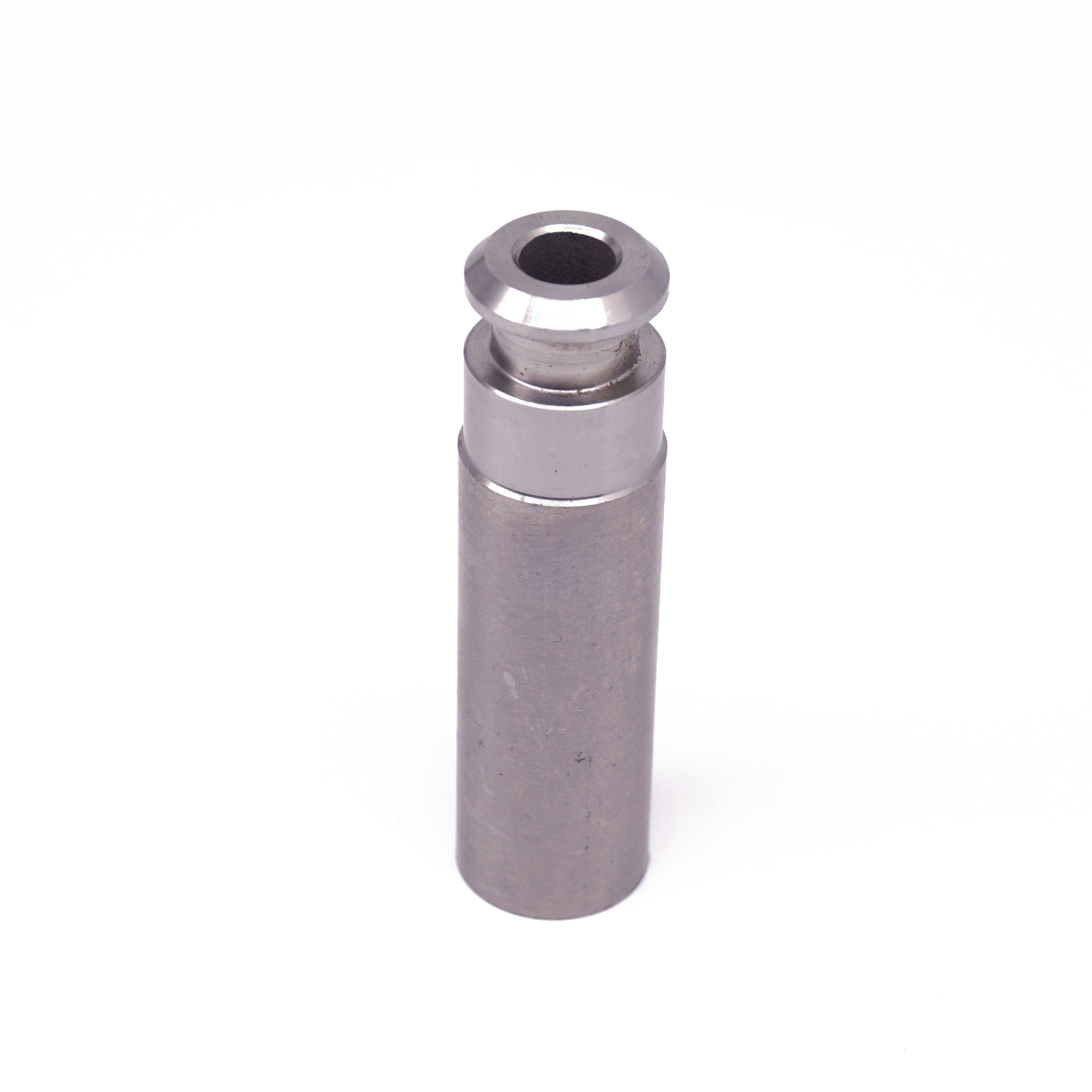

Our custom fan shafts are engineered as non - standard fasteners and precision turned components using state - of the - art CNC technology. Designed for applications requiring exacting tolerances and superior durability, these shafts undergo rigorous quality control at every production stage. Whether for high - speed industrial fans, aerospace systems, or automotive cooling, our fan shafts deliver unmatched performance through
Client: Tier 1 automotive supplier
Specification: High - speed shaft with tight tolerance
Process: CNC - machined 4140 steel with induction hardening
Achievement: Reduced vibration by 40%, met ISO 16949 standards
| Parameter | Specification Range |
|---|---|
| Diameter | 2mm - 100mm (Customizable) |
| Length | Up to 1,200mm (Depending on material) |
| Material Options | - Stainless Steel (303, 304, 316) - Aluminum Alloy (6061, 7075) - Titanium Alloy (Ti - 6Al - 4V) - Carbon Steel (1045, 4140) |
| Surface Finish | Ra 0.2 - 1.6μm (Customizable) |
| Dimensional Tolerance | Up to ±0.001mm (Ultra - precision) |
| Straightness | ≤0.005mm/m |
| Hardness | Up to 60 HRC (Through heat treatment) |
| Balancing Grade | G1 - G6.3 (According to ISO 1940) |
| Keyway/Tapping | Custom keyways, threads, or splines |
| Surface Treatment | - Passivation |

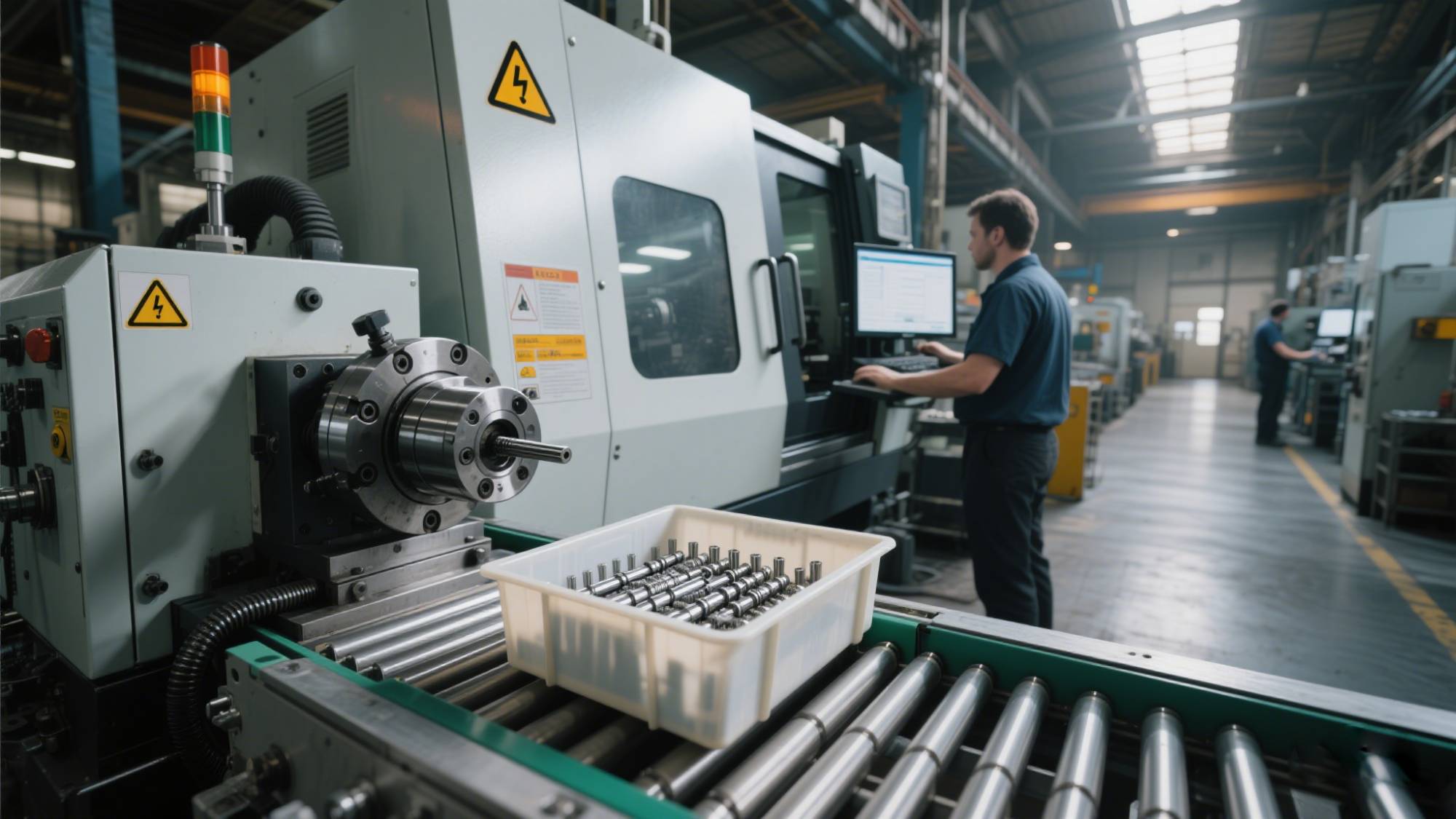

Sliding headstock lathes, also known as sliding head CNC lathes, have outstanding advantages in precision parts manufacturing. Their machining accuracy reaches the micron level. High - end models can achieve a dimensional accuracy of ±0.001mm and a surface roughness Ra value of ≤0.4μm. With multi - axis linkage, they can complete multiple processes in a single clamping, increasing production efficiency by 3 to 5 times compared to traditional equipment. These lathes can machine various metal and non - metal materials, and are especially good at processing slender shafts and shafts with complex profiles. During machining, workpieces are evenly stressed, ensuring stable quality and a low defect rate in mass production. Based on the CNC system, simply changing the program and tools can switch production, making them suitable for small - batch and multi - variety production modes.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001， ITAF 16949，ISO14001
