NHY-F00102
NHY

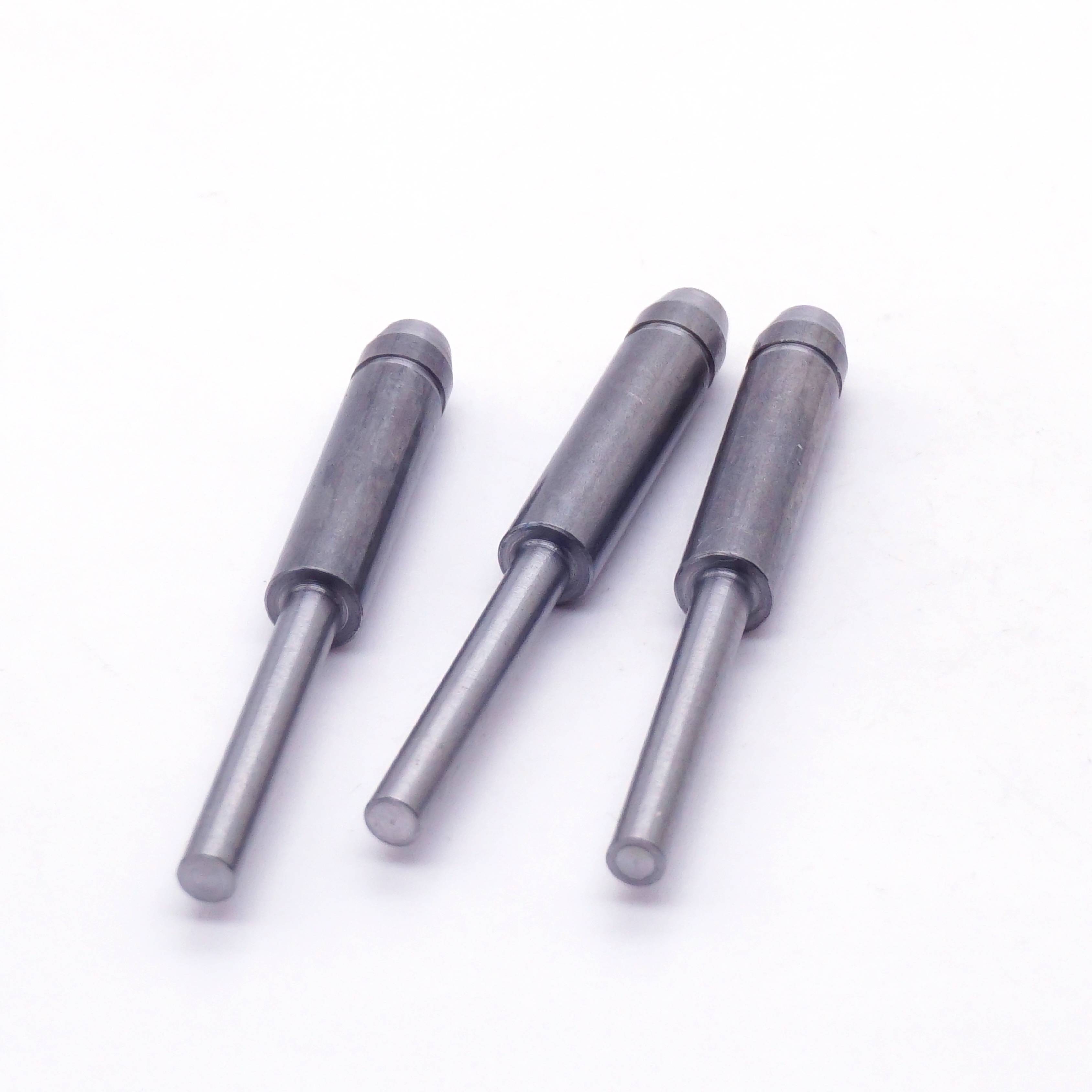

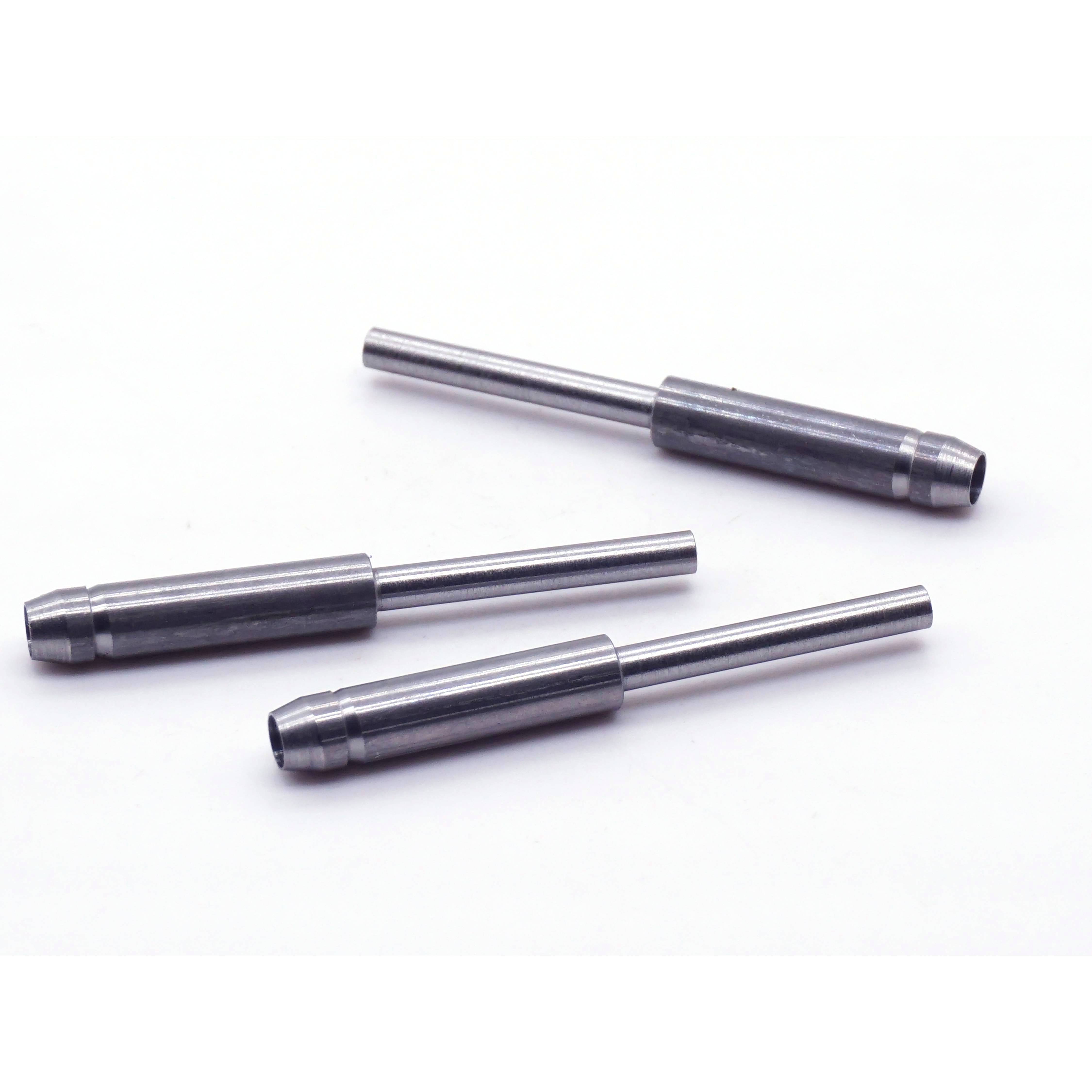

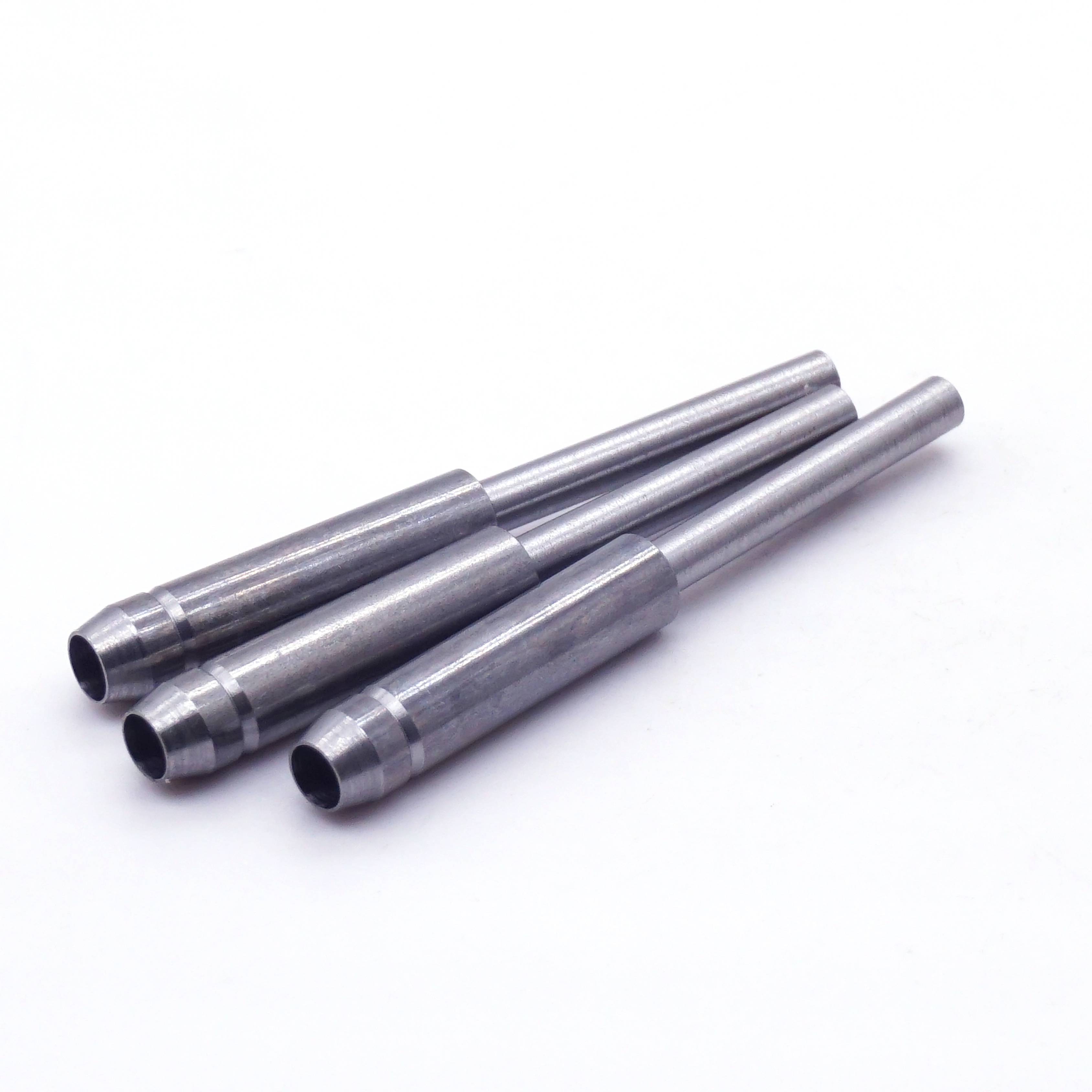

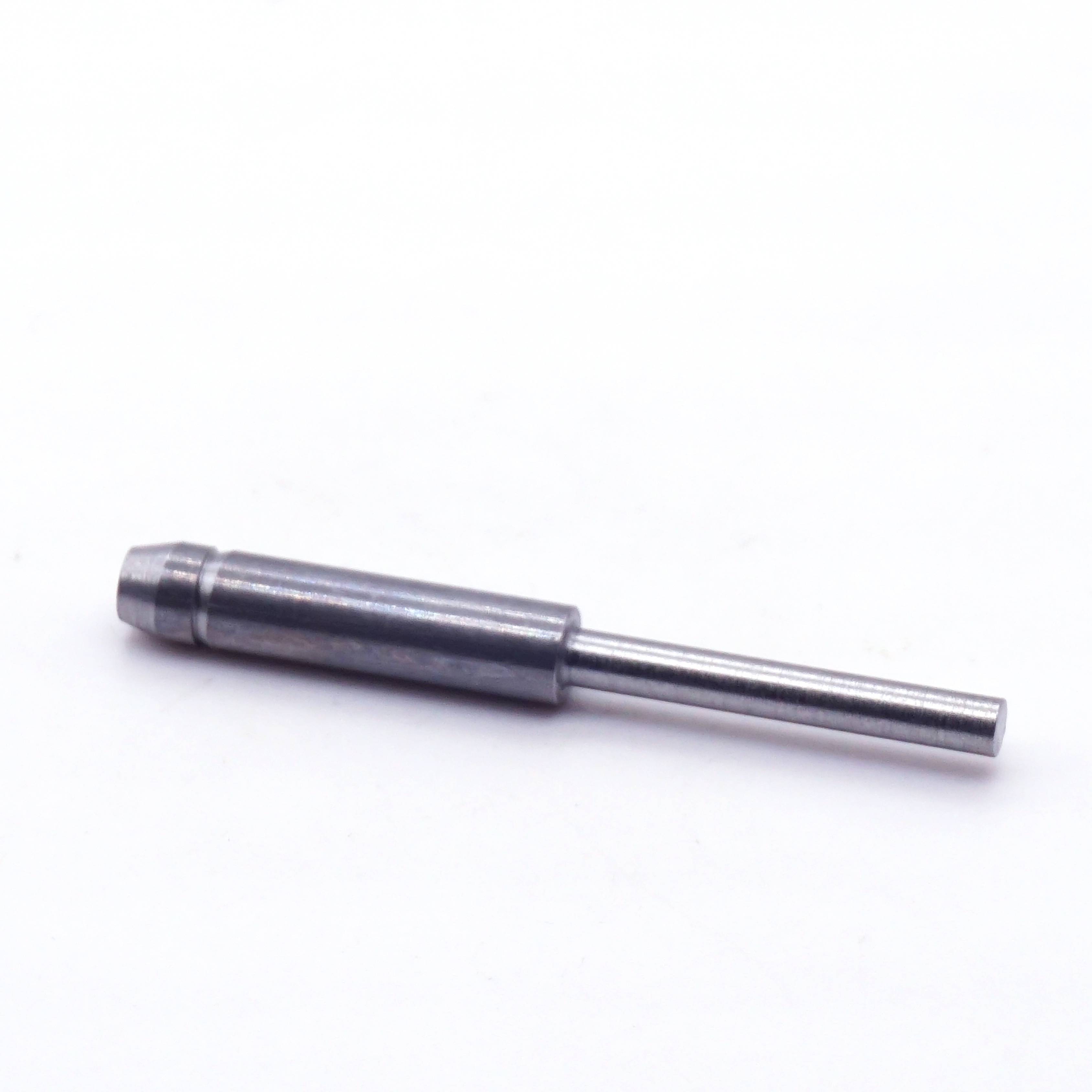

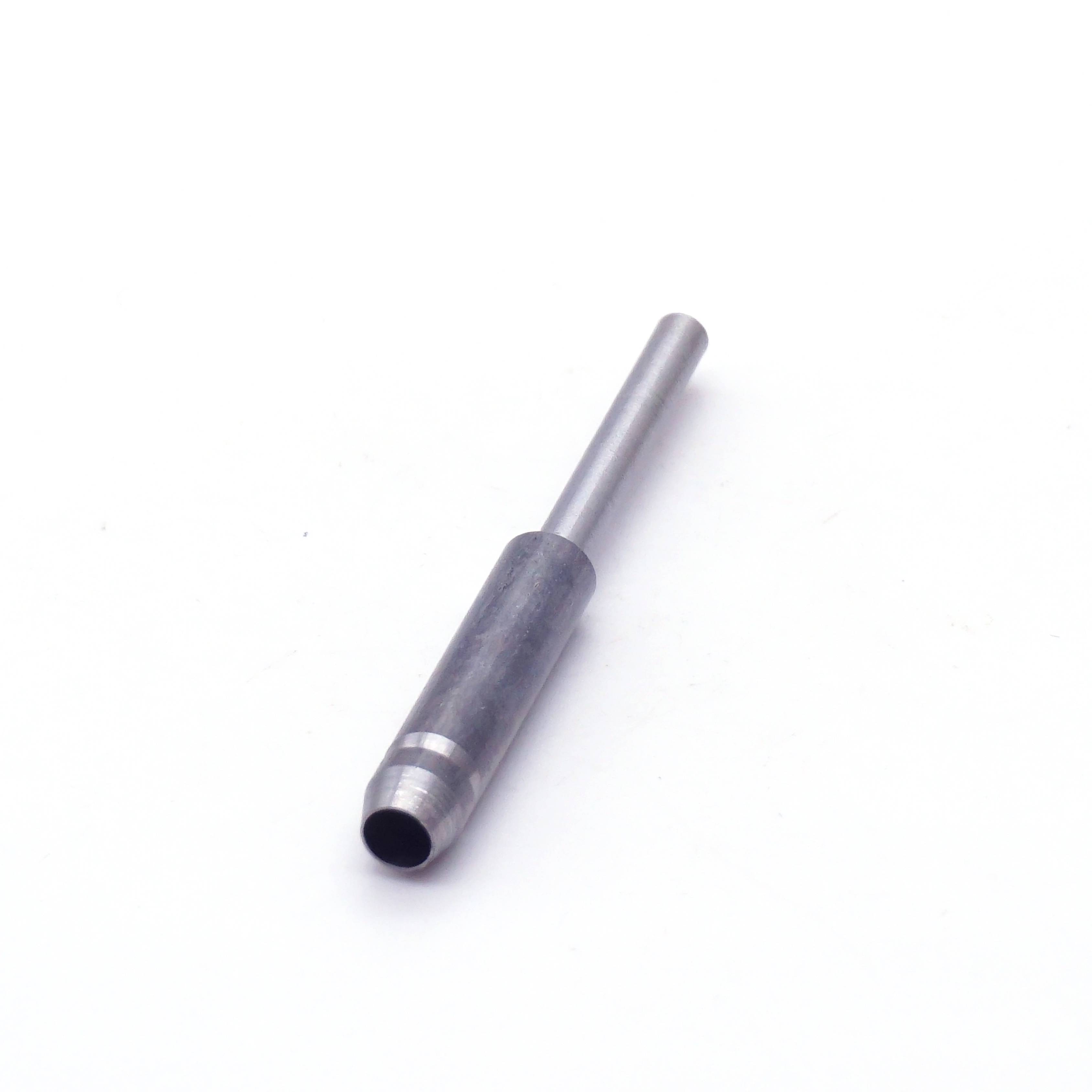

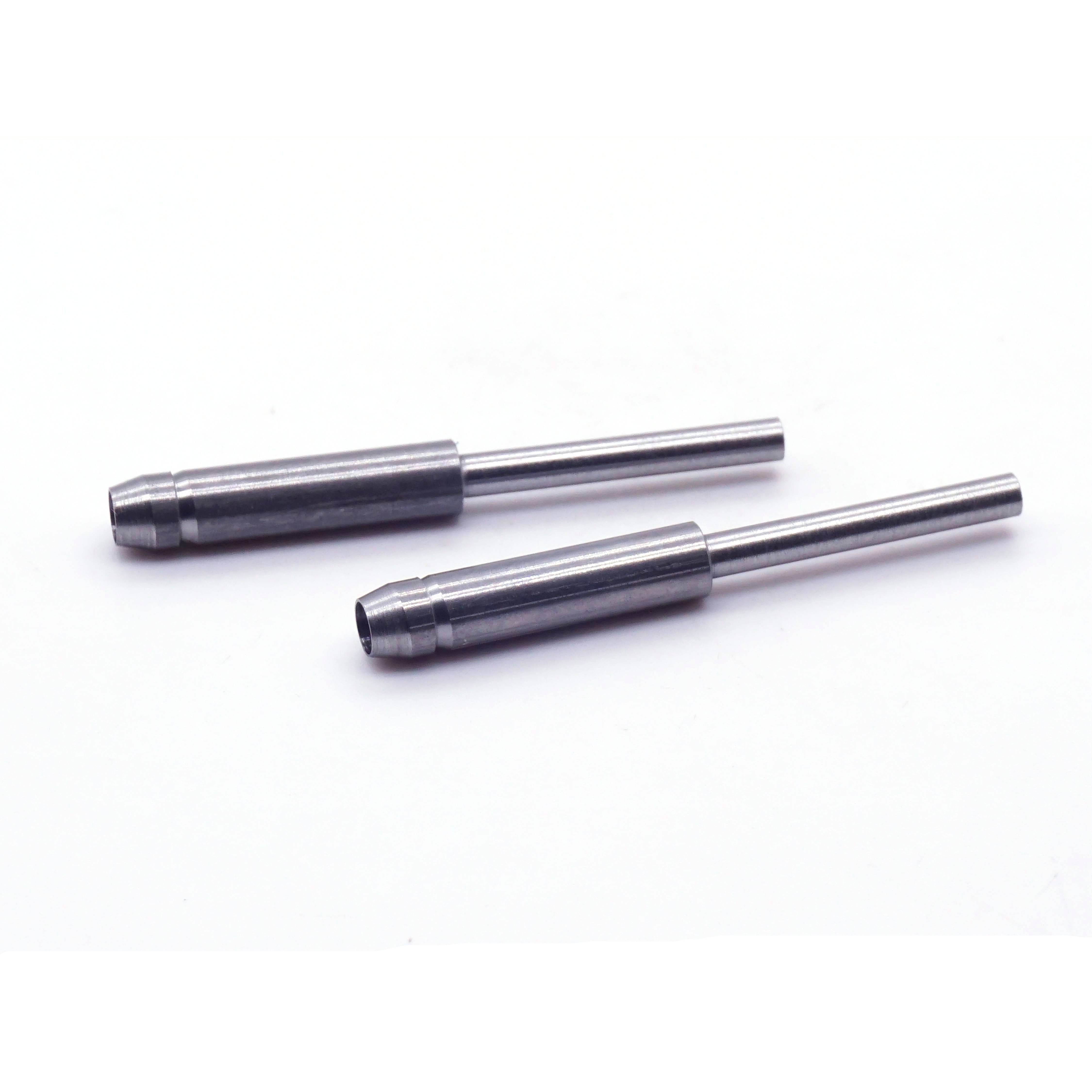

Our custom CNC machined locating pin is a high-precision positioning component engineered for accurate alignment and fixation in mechanical assemblies, molds, and automated production lines. Featuring a multi-step shaft structure (including a precision locating head, smooth intermediate section, and knurled tail), it is produced via advanced CNC turning and grinding processes to achieve tight concentricity and dimensional tolerances. Crafted from wear-resistant alloy steel or stainless steel, this locating pin delivers reliable repeated positioning performance, resisting abrasion and deformation under long-term industrial use. Fully customizable in shaft diameters, lengths, and surface treatments, it caters to diverse precision positioning needs across automation, mold, automotive, and electronic industries, ensuring consistent assembly accuracy and efficient production.
| Parameter | Standard Specification | Custom Option |
|---|---|---|
| Material | Alloy Steel 4140/Stainless Steel 304 | Brass/Titanium Alloy |
| Locating Head Diameter | Custom (φ2mm–φ20mm) | Fully customizable |
| Intermediate Shaft Diameter | Custom (φ1mm–φ18mm) | Fully customizable |
| Knurled Tail Diameter | Custom (φ3mm–φ22mm) | Fully customizable |
| Overall Length | Custom (10mm–100mm) | Fully customizable |
| Concentricity Tolerance | ≤0.005mm | Tighter tolerance (≤0.002mm) |
| Surface Finish | Ra 0.8μm (ground) | Polished / Passivated / Black Oxide |
| Hardness (Alloy Steel) | HRC 40–45 | Custom hardness levels |
3.Application Case
A mold manufacturer utilized our multi-step locating pins in plastic injection molds for automotive interior parts. The wear-resistant alloy steel construction withstood repeated mold opening/closing cycles, maintaining positioning accuracy within 0.003mm and extending mold service life by 30%.
CNC Precision Machining: Tight concentricity tolerance (≤0.005mm) ensures accurate alignment.
Multi-Step Shaft Design: Separates locating, mounting, and fixation functions clearly.
Knurled Tail Section: Increases friction to prevent pin slippage during operation.
Full Customization: Non-standard shaft diameters, lengths, and head shapes are available.
High Wear Resistance: Premium material extends service life in repeated positioning scenarios.
Easy Installation: Compact design allows quick insertion into fixture holes without tools.
100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001
