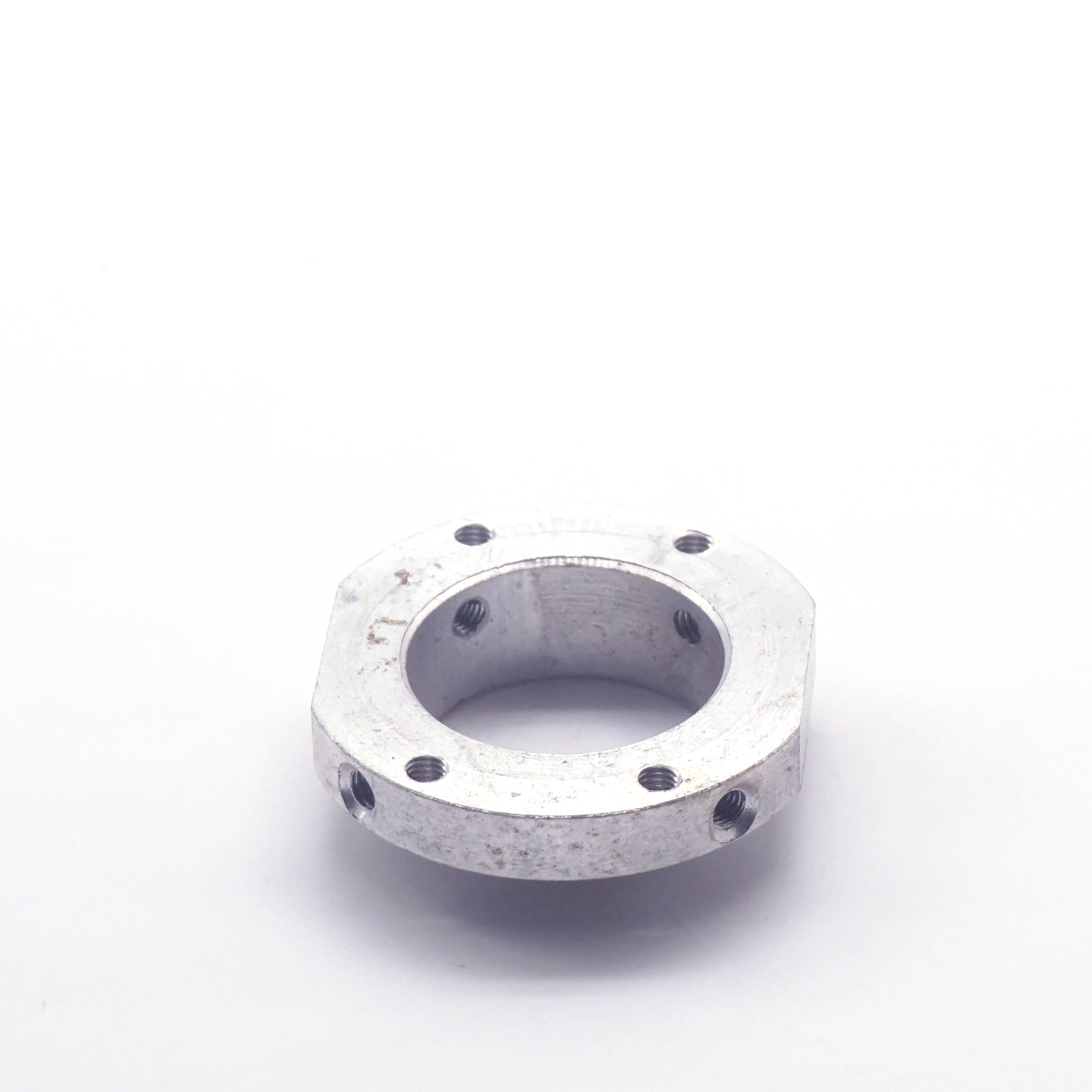

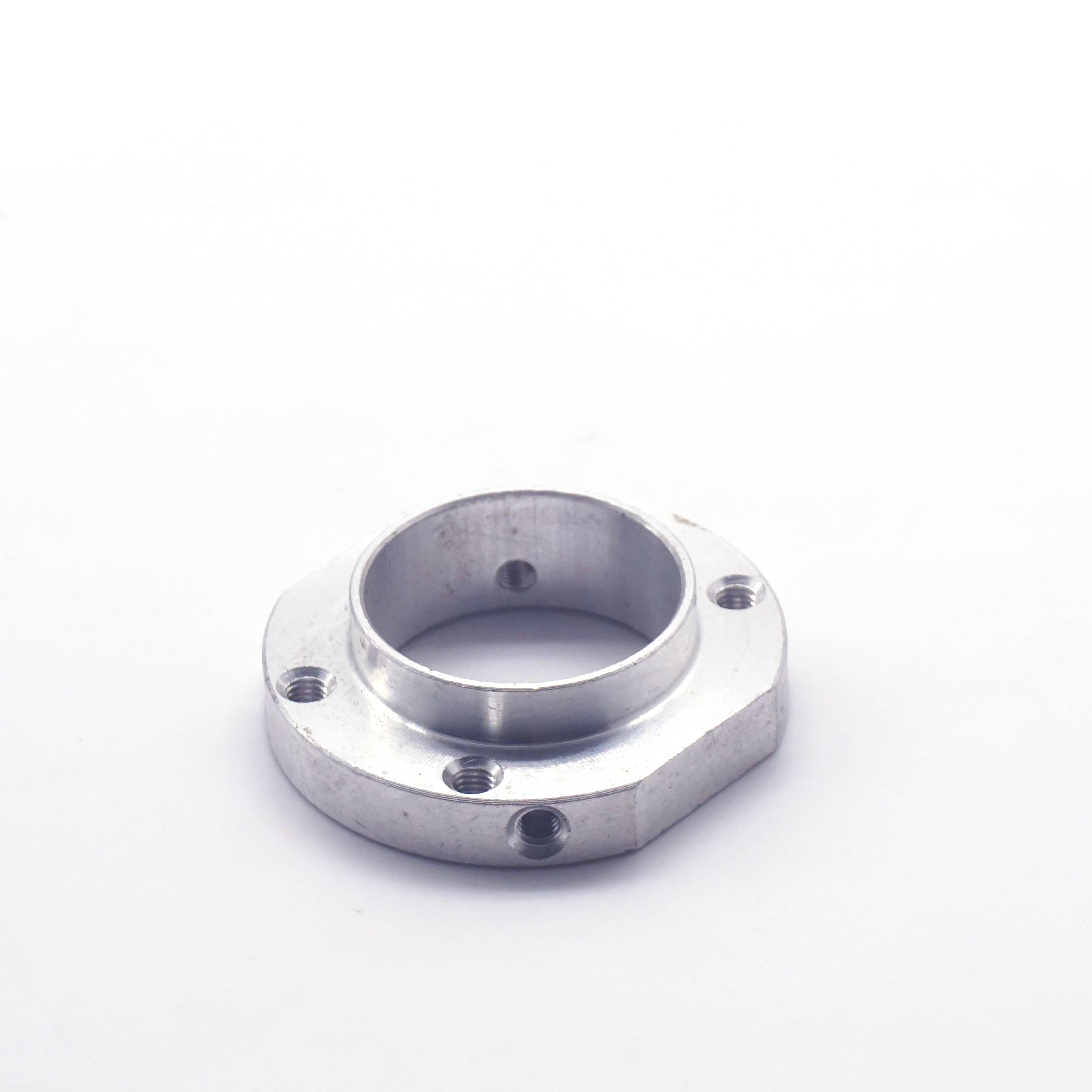

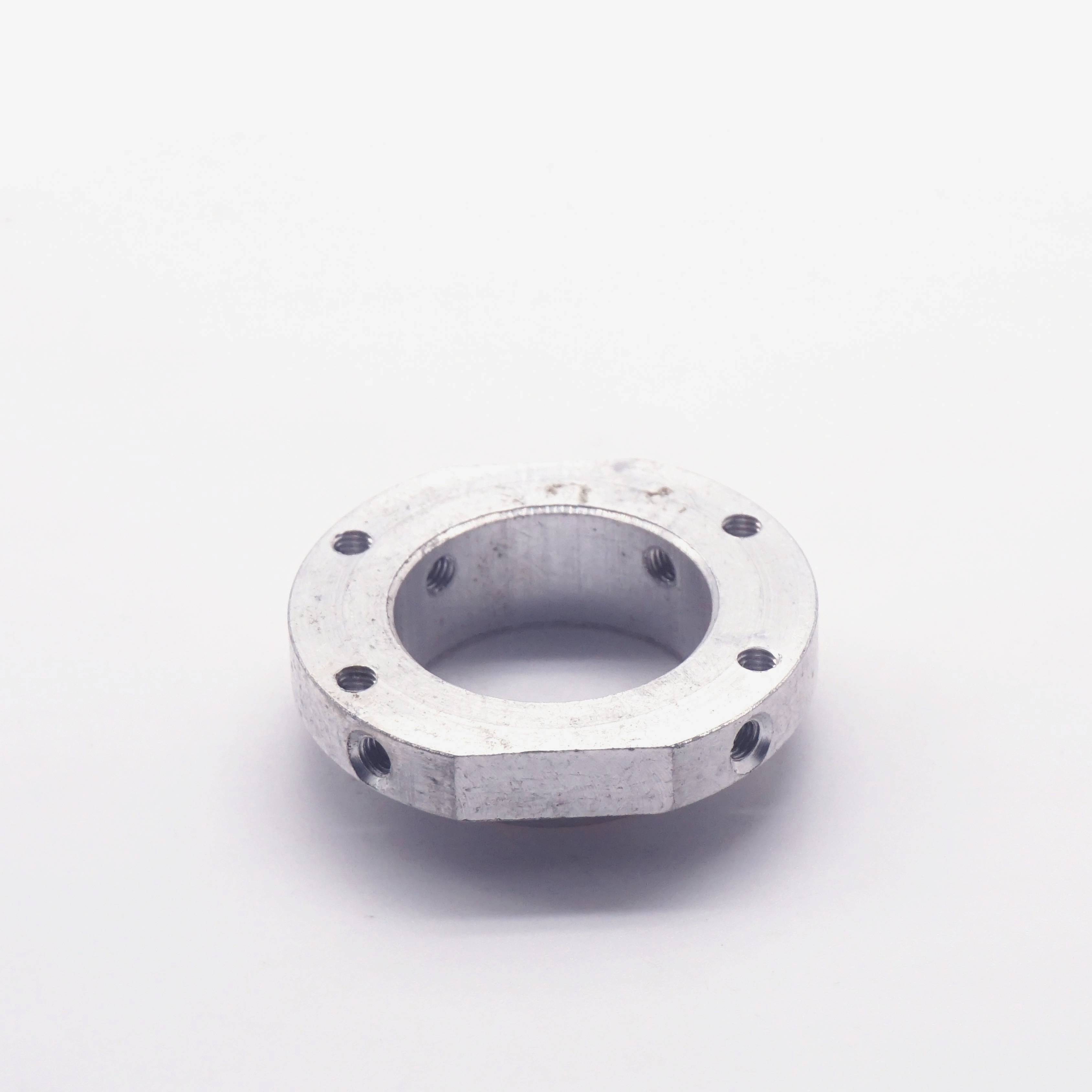

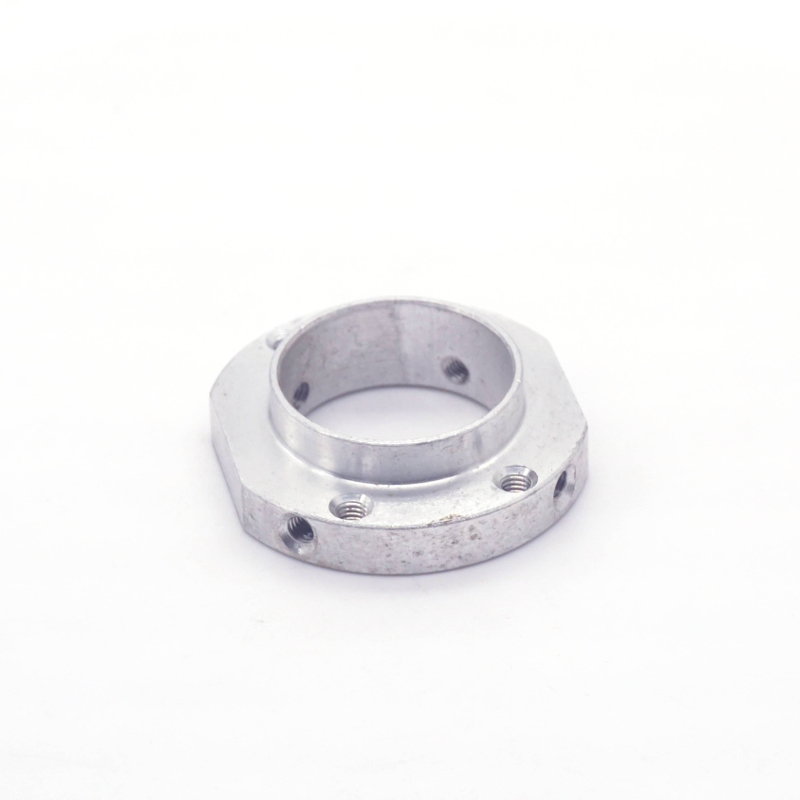

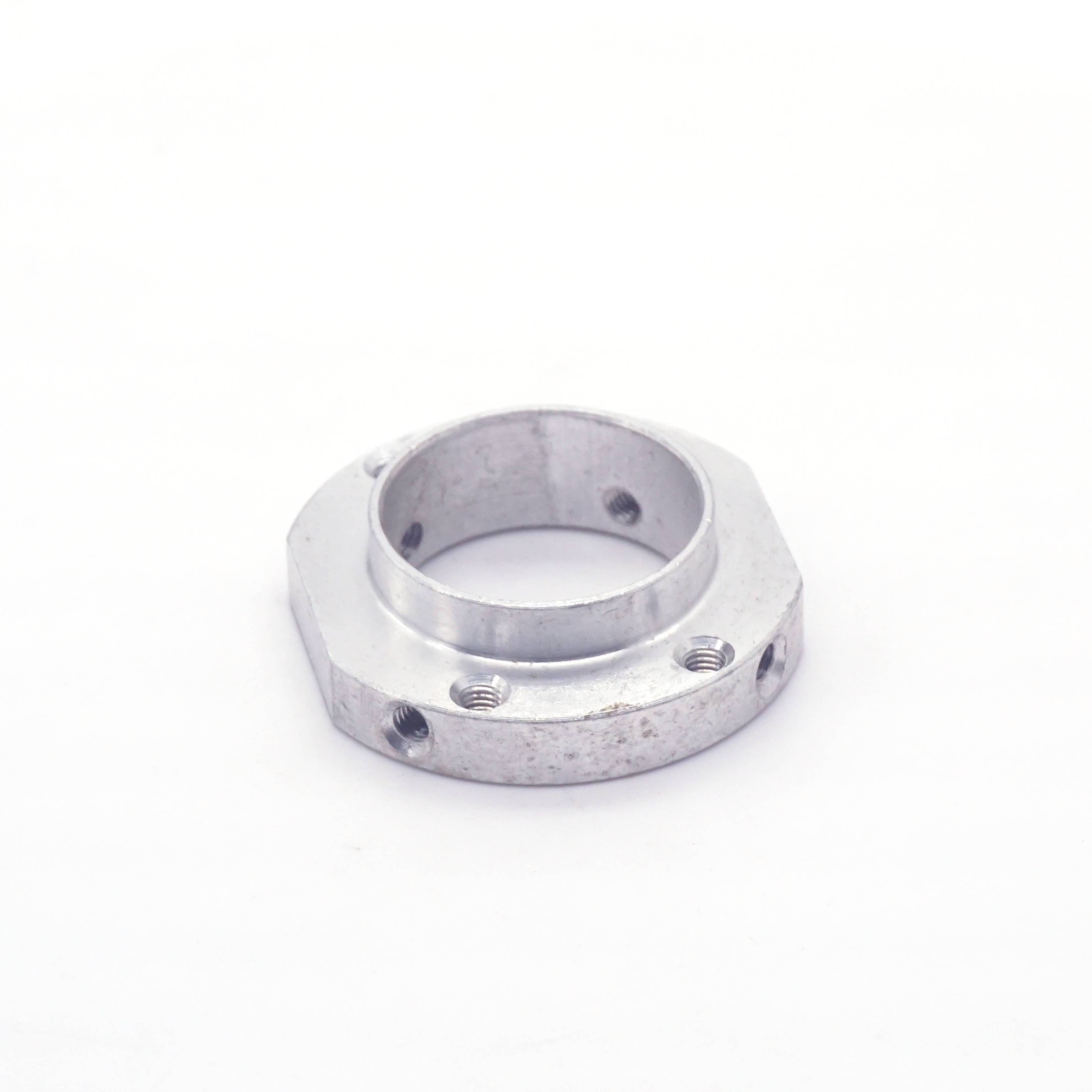

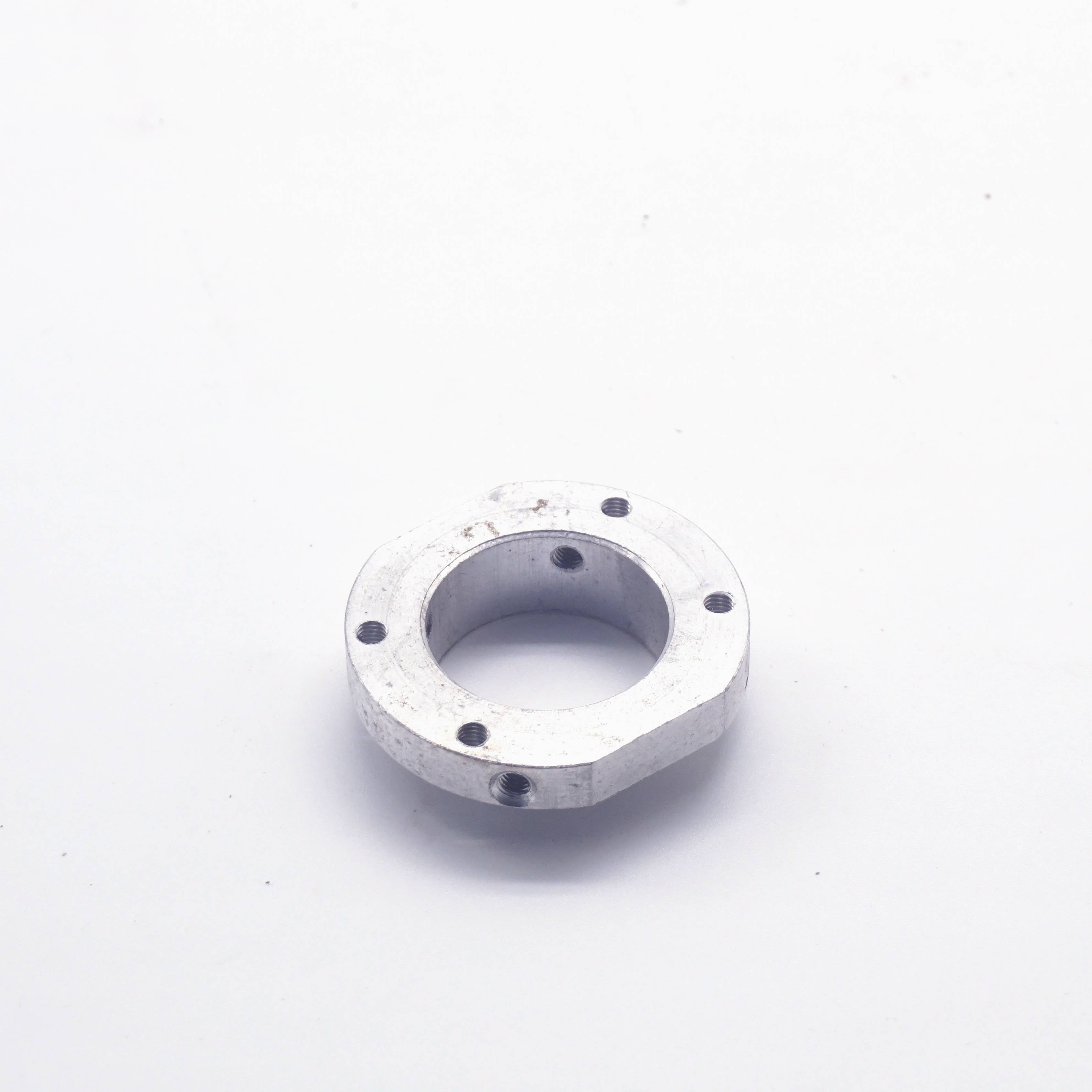

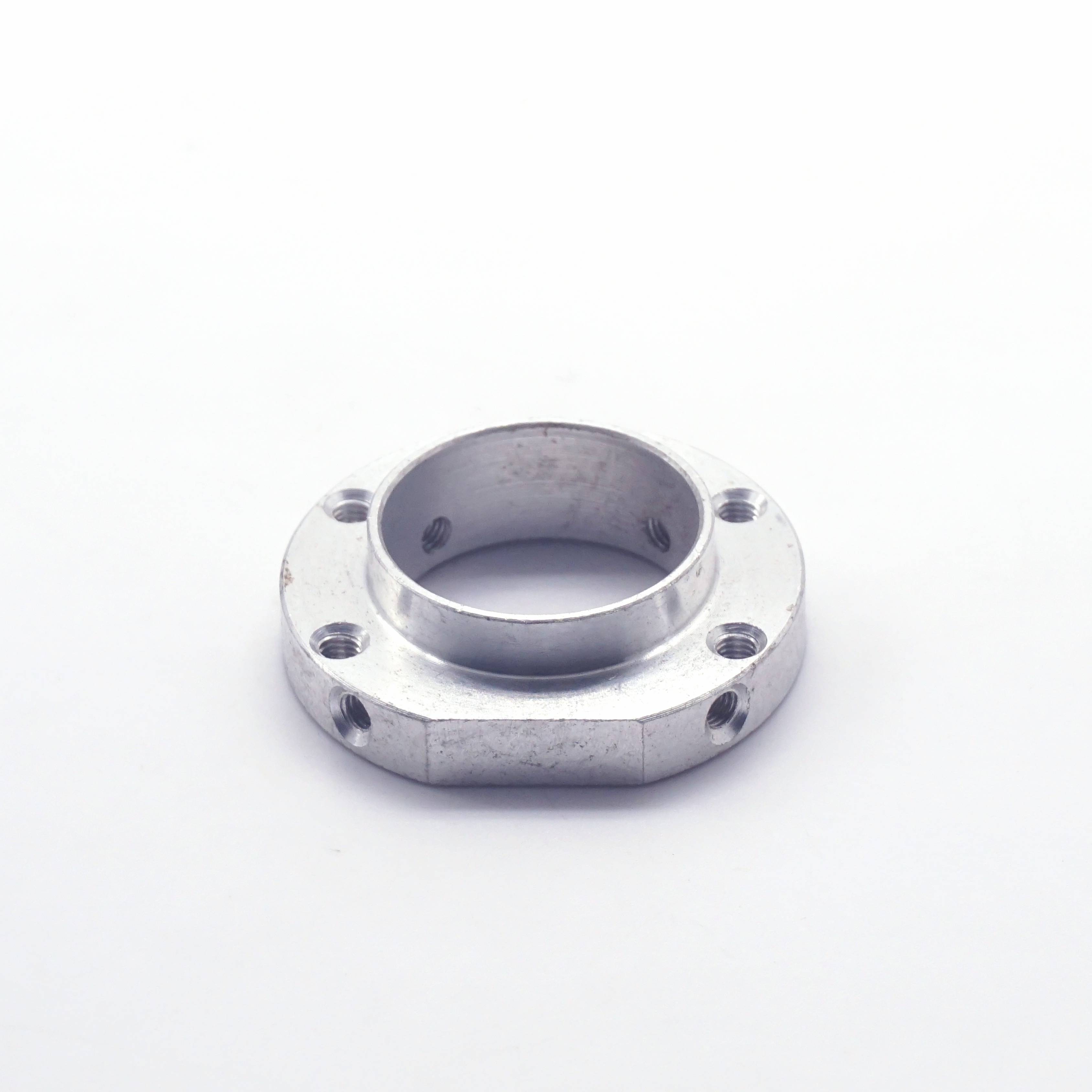

Custom CNC Turned Flanged Bushing for Industrial Assembly

Brand: NHY

Material Details: Aluminum, stainless steel (304/316) and carbon steel options.
Surface Treatment: Passivation, electroplating and polishing for corrosion resistance.
Size & Dimension: Custom flange, bore and hole dimensions for equipment fit.
Packaging Method: Anti-rust bags and foam inserts ensure damage-free shipping.

Quantity:
Availability:





Inquire Add to Basket

Model:
NHY-F0090
Brand:
NHY

Product Description

Precision Flanged Bushing for Reliable Industrial Installation & Mechanical Connection

1.Product Overview

Our custom CNC turned flanged bushing is engineered to solve industrial equipment installation challenges. Produced via advanced CNC lathe processes from high-grade metals, this non-standard component features a flange base with mounting holes, a stepped cylindrical body and a central bore to deliver stable installation, accurate positioning and seamless mechanical mating. Tailored to client specifications, it eliminates the limitations of off-the-shelf parts and ensures long-term performance under operational vibration and load stress.

2.Specification Parameters

Parameter Item	Standard Details & Range	Customization Support
Product Name	Custom CNC Turned Flanged Bushing	Adjustable as per client request
Material	Aluminum, SS304/316, Carbon Steel	Custom special materials accepted
Dimensional Tolerance	±0.002mm to ±0.01mm	Tighter precision available
Size Range	Flange diameter 10mm-100mm, Bore diameter 5mm-50mm	Fully custom sizes and geometries
Surface Treatment	Passivation, Electroplating, Polishing	Custom finishes supported
Hardness (if applicable)	HRC 20-45 (depending on material)	Custom hardness treatments available
Processing Technology	CNC Turning, Milling, Drilling	Non-standard machining processes
MOQ	20pcs - 50,000pcs	Flexible MOQ for prototype orders
Production Lead Time	7-14 Working Days	Expedited service for urgent needs

3.Application Cases

Case 1: Agricultural Machinery Steering Flanged Bushing

An Australian agricultural equipment manufacturer ordered high-strength carbon steel flanged bushings for tractor steering systems. These components withstood extreme outdoor load and vibration, reducing maintenance frequency by 30% and meeting agricultural machinery durability standards.
Case 2: Laboratory Instrument Precision Flanged Bushing

A Swiss laboratory equipment company commissioned stainless steel flanged bushings for analytical instruments. The passivated surface and tight tolerances ensured chemical resistance and precise component alignment, complying with ISO 17025 laboratory equipment standards.

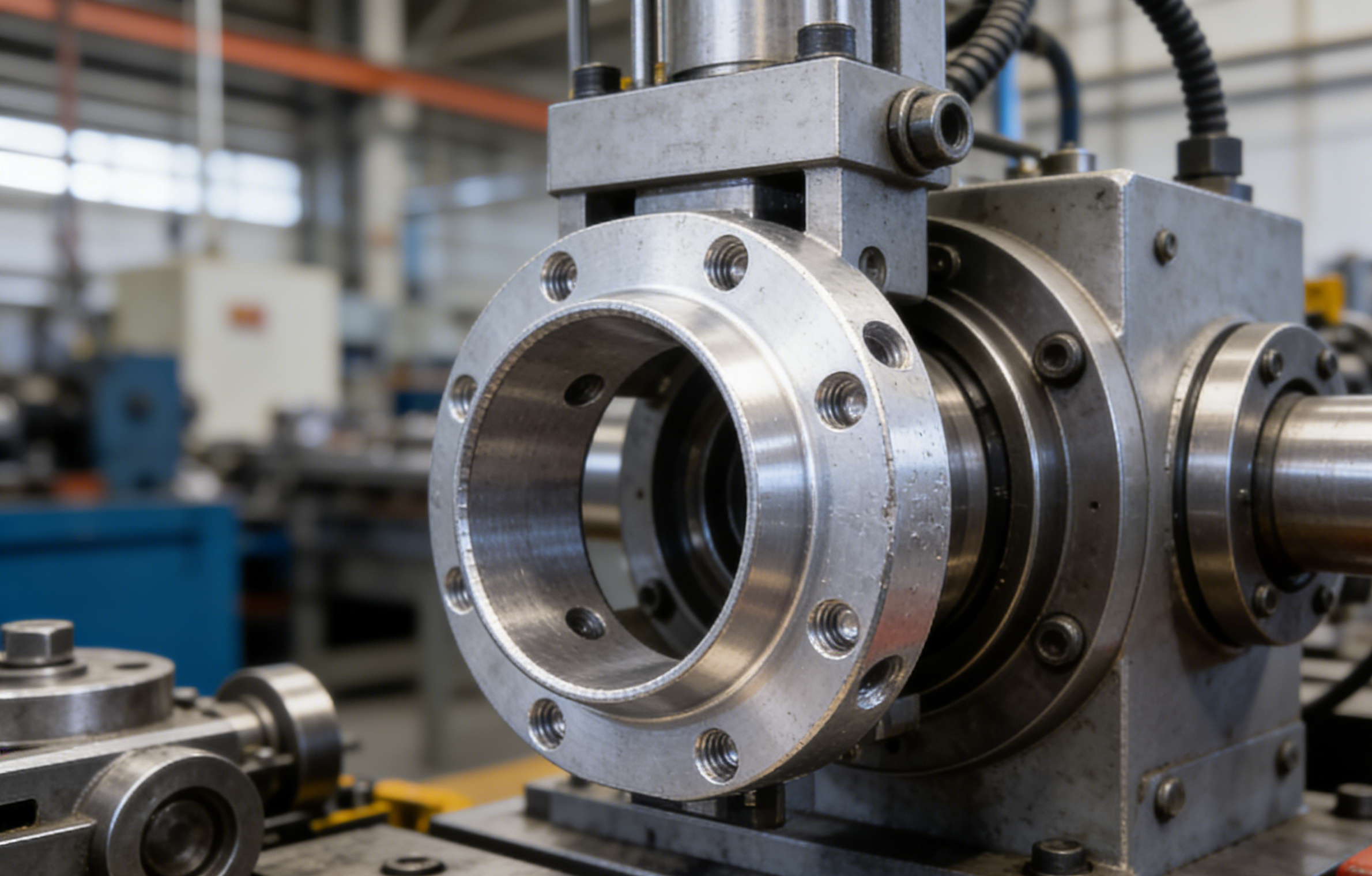

4.The Scene Diagram

5.Product Features & Core Advantages

Flanged Mount Stability: Flange base with evenly spaced holes ensures secure equipment installation, resisting vibration-induced loosening.
Stepped Cylinder Precision: Multi-step cylindrical body enables accurate component mating and positioning in mechanical assemblies.
Custom Hole Configuration: Non-standard mounting hole positions and sizes allow tailored integration into unique equipment interfaces.
Material & Surface Versatility: A range of metal alloys and finishes cater to high-load, corrosive or lightweight industrial applications.

6.Quality Assurance

100% dimensional inspection via CMM
Material certification (RoHS, mill test reports)
Fatigue and torque testing for critical applications
ISO 9001, ITAF 16949, ISO14001

ISO9001：2015
